Docma VF150 auto-4 GX50 - Honda engine forestry winch - 80m Ø 5mm cable

Add a question
ID: K607203

EAN: 8053435096416

MPN: 980009+310022+310002

8,0/10
After-sales assistance & Spare parts
Docma VF150 auto-4 GX50 - Honda engine forestry winch - 80m Ø 5mm cable
FREE
4-stroke engine oil bottles4-stroke engine oil bottles
Green Anchorage SlingGreen Anchorage Sling
Power supply
Petrol
Motor brand
Honda
Motor Model
GX 50
Cubic capacity
47.9 cm³
Rated power
1.9 Hp
Single rope traction
1210 Kg
Traction double rope
2420 Kg
Rope type
Galvanized steel
Cable diameter
5 mm
Cable length
80 m
Winding speed
19 m/min
Weight
28 Kg
Manufacturing country
Italy
Product Features
Model:
VF150 AUTO-4 GX50
Sound power level:
98 LWa av
Power supply:
Petrol
Operating mode:
Spark ignition
Rope type:
Galvanized steel
Direct pulling capacity:
1210 Kg/N
Double pulling capacity:
2420 Kg/N
Fuel:
Petrol
Manufacturing country:
Italy
Winding speed:
19 m/min
Single rope traction:
1210 Kg
Traction double rope:
2420 Kg
Cable diameter:
5 mm
Cable length:
80 m
Motor data
Motor brand:
Honda
Motor Model:
GX 50
Cubic capacity:
47.9 cm³
No. of cylinders:
Single-cylinder
Rated power:
1.9 Hp
Manufacturing country:
Japan
Equipment
Lifting handle:
Yes
Free gifts/extra features
Instructions manual:
Yes
Dimensions and logistics

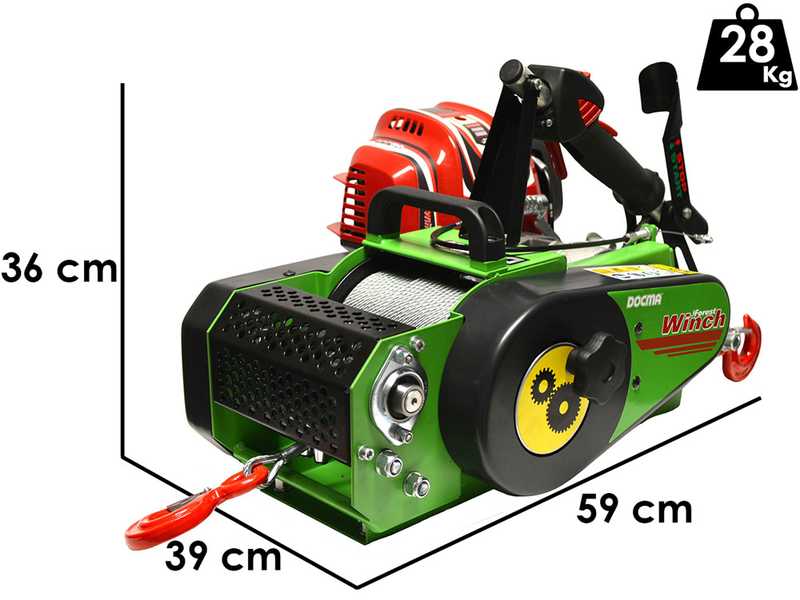

Product dimensions in cm (L x W x H):
59x39x36 cm
Net weight:
28 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
62x45x39
Gross weight (packaging included) :
30 Kg
Assembly time:
Assembled
Prompt Delivery
8 items in stock
Free Shipping
Estimated delivery: 05/08/2024 - 07/08/2024
€ 2.205,15
VAT Included
You're viewing:
Customers also viewed:
Description

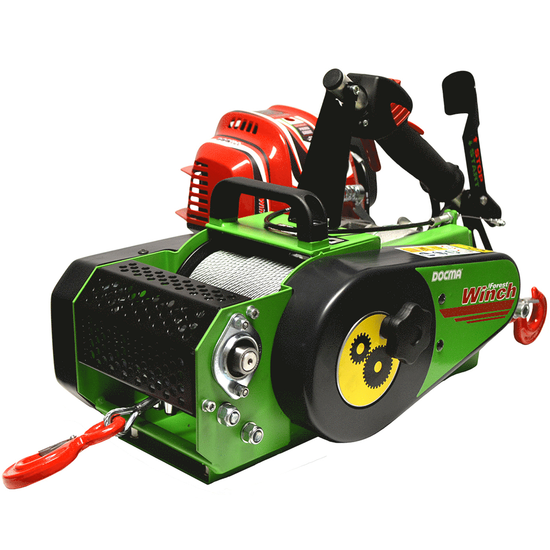

Docma VF150 auto-4 gx50 Petrol-powered Winch

The VF150 auto-4 gx50 petrol winch is distinguished by its built-in rope guide mechanism, which allows the cable to be rewound on the drum in an automati and orderly manner, avoiding tangles and jams.

Equipped with a 4.-stroke Honda GX 50 engine, demonstrating a machine with attention to every detail.

Its special features are its low noise level and strong, constant force.

The use of high-grade, top-quality materials guarantees a long service life.

Portable winches for forestry use are designed for the sole operation of dragging non-rotating objects, normally at angles of about 45 degrees from the horizontal plane.

This winch is equipped with a Honda 4-stroke engine with an avant-garde design features and in line with the latest European environmental regulations.

The high-quality gearbox with automatic rope guide, the high-performance, low-noise 4-stroke HONDA GX50 engine, and the operator-adjustable throttle unit are just a few examples of the meticulous design and high-quality, long-lasting components

The Docma VF150 auto gx50 winch was developed with the aim of reducing the pulling effort required to pull weights.

The field of application of these winches ranges from the forestry sector (towing wood, tractor winches) to the leisure sector (loading unloading boats, hunting, etc...)

It has a maximum pull of 1210 kg and a winding speed of approximately 19 metres per minute.

Equipped with 80m/5 mm steel rope, swivel hook and 4m sling.

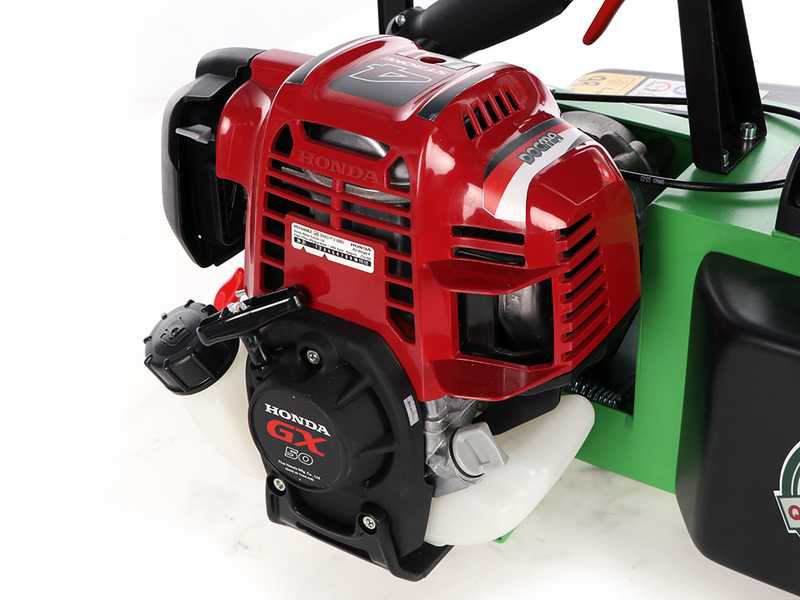

Honda GX50 4 Tempi 4-stroke engine

Equipped with a powerful 4-stroke Honda GX50 petrol engine, it is provided with state-of-the-art features in line with the latest European regulations.

A 47.9 cc engine with easy starting, it can reach a power of 1.47 kW (1.9 Hp) at 7000 rpm.

The machine's throttle is manual and is operated via the handle, from which the clutch is also engaged

Thanks to the power of this engine, the rope features a winding capacity of 19 m/min.

It is possible to chose among 2 different types of towing systems:

  • Direct pull with a load capacity of 1210 Kg
  • Double pull with a load capacity of 2420 Kg

Detail of petrol tank

Detail of air filter

Features and details

The Docma VF150 auto 4-gx50 winch is simple and intuitive to use, making it suitable even for the less experienced.

Using the two hooks at the back and the supplied sling, the winch can be attached to a solid handhold quickly and easily.

The throttle is located on the handle in the centre of the machine.

Using the nearby lever, you will activate the clutch, which will transmit the motor motion to the drum with the steel cable.

The main parts of the winch are:

  • Engine
  • Lifting handle

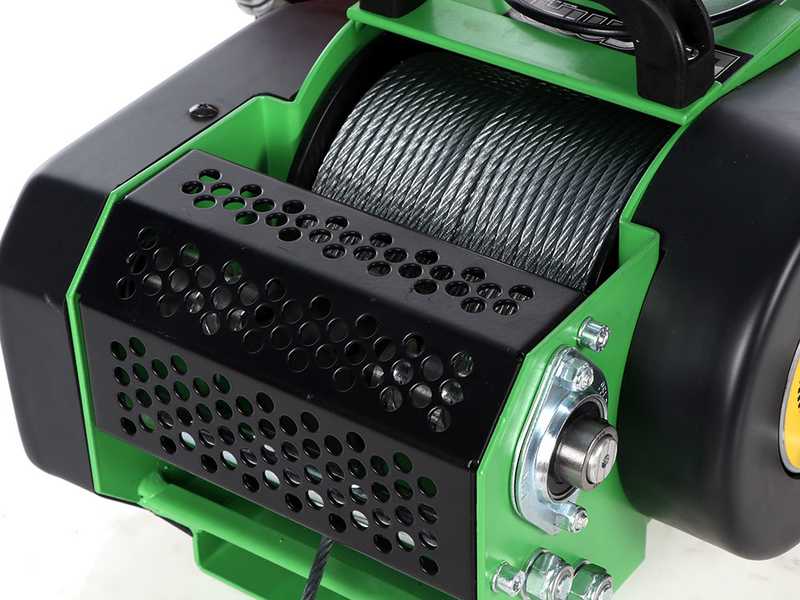

  • Drum with 80m/5mm steel cable
  • Rope guide apparatus
  • Sliding pulleys
  • Drum lock/release
  • Accelerator handle with clutch
  • Hooks for securing the machine
  • Throttle hook
Free items & Standard equipment

Free items included

The winch is shipped in its original packaging with the instructions manual.

The package also includes:

80 m/5 mm steel cable

Sling for anchoring the winch
