Docma VF15 auto-4 GX50 Ultralight - Honda Engine Forestry Winch - 80m Ø5mm Dyneema Rope

Questions & Answers (1)
ID: K607230

EAN: 8053435096430

MPN: 980010+310245+310002

Docma VF15 auto-4 GX50 Ultralight - Honda Engine Forestry Winch - 80m Ø5mm Dyneema Rope
FREE
4-stroke engine oil bottles4-stroke engine oil bottles
Green Anchorage SlingGreen Anchorage Sling
Power supply
Petrol
Motor brand
Honda
Motor Model
GX 50
Cubic capacity
47.9 cm³
Rated power
1.9 Hp
Single rope traction
1260 Kg
Traction double rope
2520 Kg
Rope type
dyneema
Cable diameter
5 mm
Cable length
80 m
Winding speed
19 m/min
Weight
25 Kg
Manufacturing country
Italy
Product Features
Model:
Docma VF155 auto-4 GX50 ultralight
Sound power level:
98 LWa av
Power supply:
Petrol
Operating mode:
Spark ignition
Rope type:
dyneema
Direct pulling capacity:
1260 Kg/N
Double pulling capacity:
2520 Kg/N
Fuel:
Petrol
Manufacturing country:
Italy
Winding speed:
19 m/min
Single rope traction:
1260 Kg
Traction double rope:
2520 Kg
Cable diameter:
5 mm
Cable length:
80 m
Motor data
Motor brand:
Honda
Motor Model:
GX 50
Cubic capacity:
47.9 cm³
No. of cylinders:
Single-cylinder
Rated power:
1.9 Hp
Manufacturing country:
Japan
Equipment
Lifting handle:
Yes
Free gifts/extra features
Instructions manual:
Yes
Dimensions and logistics

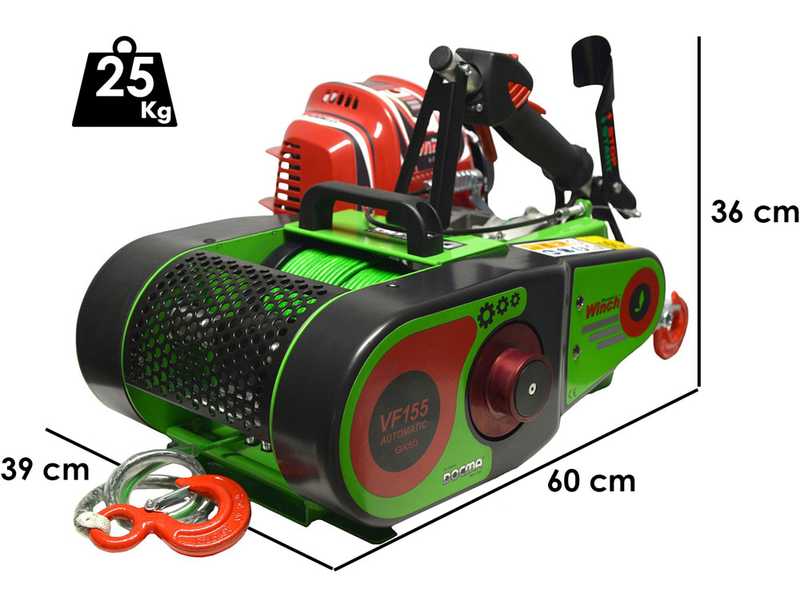

Product dimensions in cm (L x W x H):
60x39x36 cm
Net weight:
25 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
62x45x39
Gross weight (packaging included) :
30 Kg
Assembly time:
Assembled
Prompt Delivery
5 items in stock
Free Shipping
Estimated delivery: 24/05/2024 - 28/05/2024
€ 2.573,23
VAT Included
You're viewing:
Customers also viewed:
Description

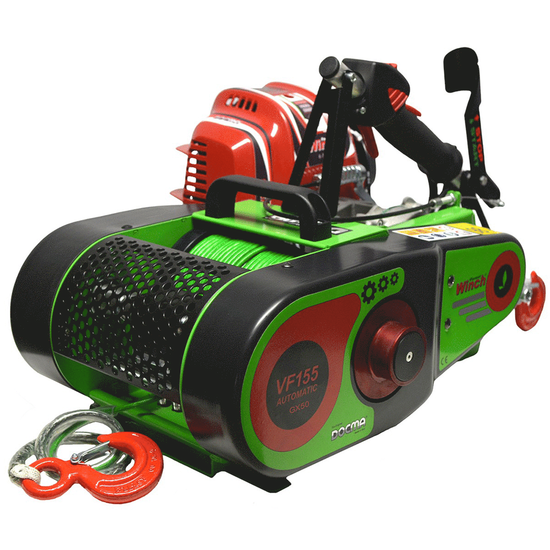

Docma VF155 auto-4 GX50 Ultralight

The VF155 AUTO-4 GX50 ULTRALIGHT winch is designed to simplify and reduce the effort involved in towing loads.

The VF155 AUTO-4 GX50 ULTRALIGHT forestry winch is renowned for its advanced rope guide mechanism, which ensures systematic and precise cable winding, eliminating the risk of knots and overlaps.

This instrument is fitted with a Honda 4-stroke GX50 engine, which demonstrates meticulous care in every construction detail.

It is distinctive for its low noise and a solid, robust drive that mounts helical gears.

Thanks to the use of first-rate, selected materials, it guarantees superior longevity.

Portable winches, specialised for forestry applications, are designed primarily for pulling stationary loads, usually positioned at an angle of about 45 degrees to the ground.

This winch is equipped with a design-leading 4-stroke Honda engine and meets the latest European environmental impact standards.

Thanks to an avant-garde gearbox, an optimised rope guide mechanism, a high-performance 4-stroke Honda GX50 engine with minimal noise emission and a customisable throttle system, it positions itself as the benchmark for design and selection of long-lasting, high-quality components.

Its applications range from the forestry sector, such as hauling wood and tractor cables, to the leisure sector, including the handling of boats, hunting activities and the like

It provides a traction of 1260 kg and a winding speed of 19 metres per minute.

It is supplied with a 80m/5mm textile rope, a rotating hook and a 4m long sling.

The machine rope is made of dyneema, a textile material made of high-density polyethylene.

This material is renowned as one of the strongest in the world in terms of tensile strength.

A distinguishing feature of this fibre is its complete lack of elasticity, thus ensuring constant maximum traction when used with the winch.

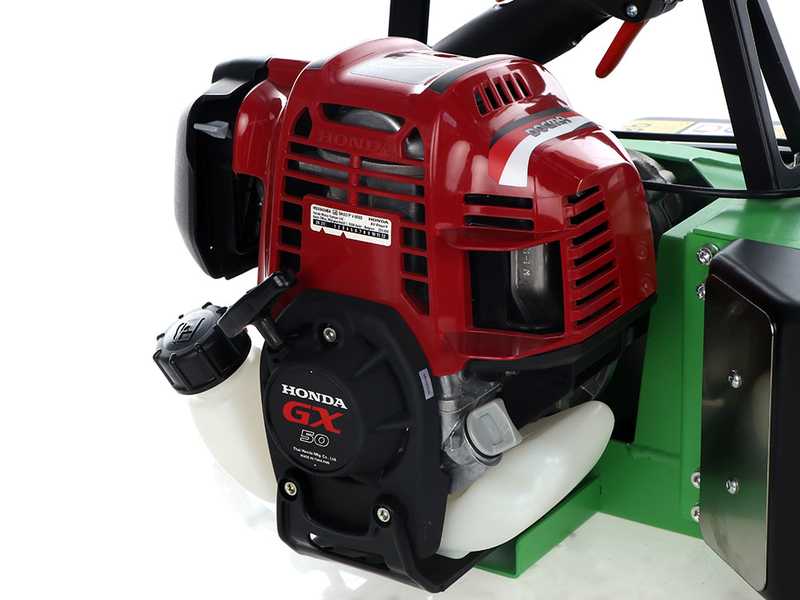

Honda GX50 4 Tempi 4-stroke engine

Equipped with a powerful 4-stroke Honda GX50 petrol engine, it is provided with state-of-the-art features in line with the latest European regulations.

A 47.9 cc engine with easy starting, it can reach a power of 1.47 kW (1.9 Hp) at 7000 rpm.

The machine's throttle is manual and is operated via the handle, from which the clutch is also engaged

Thanks to the power of this engine, the rope features a winding capacity of 19 m/min.

It is possible to chose among 2 different types of towing systems:

  • Direct pull with a load capacity of 1260 Kg
  • Double pull with a load capacity of 2520 Kg

Detail of petrol tank

Detail of air filter

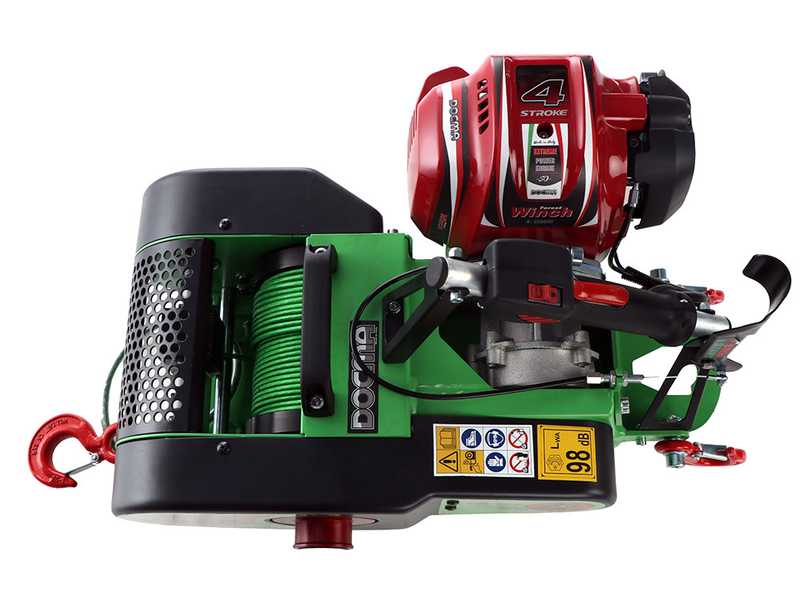

Features and details

The Docma VF150 auto 4-gx50 winch is simple and intuitive to use, making it suitable even for the less experienced.

Using the two hooks at the back and the supplied sling, the winch can be attached to a solid handhold quickly and easily.

The throttle is located on the handle in the centre of the machine.

Using the nearby lever, you will activate the clutch, which will transmit the motor motion to the drum with the steel cable.

The main parts of the winch are:

  • Engine
  • Lifting handle
  • Drum with 80m/5mm steel cable
  • Rope guide apparatus
  • Sliding pulleys
  • Drum lock/release
  • Accelerator handle with clutch
  • Hooks for securing the machine
  • Throttle hook

The machine's rope is made of dyneema, a textile material made of high-density polyethylene.

This material is renowned as one of the strongest in the world in terms of tensile strength.

A distinguishing feature of this fibre is its complete lack of elasticity, thus ensuring constant maximum traction when used with the winch

Free items & Standard equipment

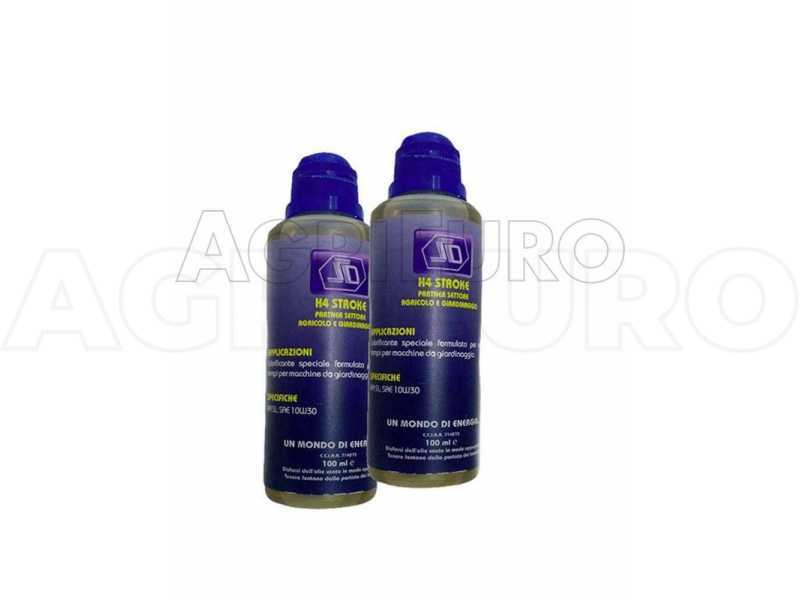

Bottles of Oil for 4-stroke Engines

2 bottles of oil suitable for all 4-stroke engines

Free items included

The winch is shipped in its original packaging with the instructions manual.

The package also includes:

60 m/6 mm steel cable

Sling for anchoring the winch
