Docma VF15 auto-4 GX50 - Honda engine Forestry Winch - 60m Ø 6mm Cable

Questions & Answers (1)
ID: K607229

EAN: 8053435096423

MPN: 980014 +310029+310002

8,0/10
After-sales assistance & Spare parts
Docma VF15 auto-4 GX50 - Honda engine Forestry Winch - 60m  Ø 6mm Cable
FREE
4-stroke engine oil bottles4-stroke engine oil bottles
Green Anchorage SlingGreen Anchorage Sling
Power supply
Petrol
Motor brand
Honda
Motor Model
GX 50
Cubic capacity
47.9 cm³
Rated power
1.9 Hp
Single rope traction
1210 Kg
Traction double rope
2420 Kg
Rope type
Galvanized steel
Cable diameter
6 mm
Cable length
60 m
Winding speed
19 m/min
Weight
28 Kg
Manufacturing country
Italy
Product Features
Model:
VF150 AUTO-4 GX50 60mt/Ø6mm
Sound power level:
98 LWa av
Power supply:
Petrol
Operating mode:
Spark ignition
Rope type:
Galvanized steel
Direct pulling capacity:
1210 Kg/N
Double pulling capacity:
2420 Kg/N
Fuel:
Petrol
Manufacturing country:
Italy
Winding speed:
19 m/min
Single rope traction:
1210 Kg
Traction double rope:
2420 Kg
Cable diameter:
6 mm
Cable length:
60 m
Motor data
Motor brand:
Honda
Motor Model:
GX 50
Cubic capacity:
47.9 cm³
No. of cylinders:
Single-cylinder
Rated power:
1.9 Hp
Manufacturing country:
Japan
Equipment
Lifting handle:
Yes
Free gifts/extra features
Instructions manual:
Yes
Dimensions and logistics

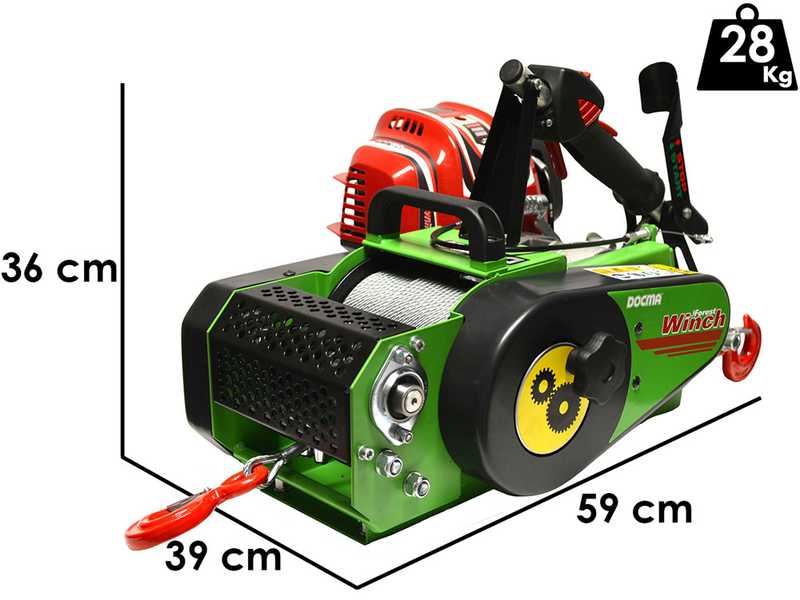

Product dimensions in cm (L x W x H):
59x39x36 cm
Net weight:
28 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
62x45x39
Gross weight (packaging included) :
30 Kg
Assembly time:
Assembled
Prompt Delivery
7 items in stock
Free Shipping
Estimated delivery: 05/08/2024 - 07/08/2024
€ 2.210,57
VAT Included
You're viewing:
Customers also viewed:
Description

Docma VF150 auto-4 gx50 Forestry Winch

The VF150 auto-4 gx50 forestry winch is known for its integrated rope guide mechanism, which enables automatic and orderly winding of the cable onto the drum, preventing knots and overlaps.

It is powered by a 4-stroke Honda GX 50 engine, reflecting the attention to detail in every aspect of the machine.

It stands out for its low noise level and strong, steady power.

By using high-quality, high-grade materials, an extended service life is ensured.

Portable winches for forestry use are designed exclusively for pulling static objects, usually inclined at about 45 degrees to the horizontal plane.

This winch is fitted with a Honda 4T engine, avant-garde in design and complies with the latest European environmental impact regulations.

With a superior gearbox and automatic rope guide mechanism, a high-performance, low-noise 4-stroke HONDA GX50 engine, as well as a user-adjustable throttle system, it represents excellence is design and choice of durable quality components.

The Docma VF150 auto-4 gx50 winch is designed to minimise the effort required to tow weights.

Its scope of use ranges from the forestry sector (towing wood, tractor ropes) to the leisure world (boat handling, hunting and the like).

It offers a traction of up to 1210 kg and a winding speed of almost 19 metres per minute.

It is supplied with a 60m/6mm steel rope, a rotating hook and a 4m sling.

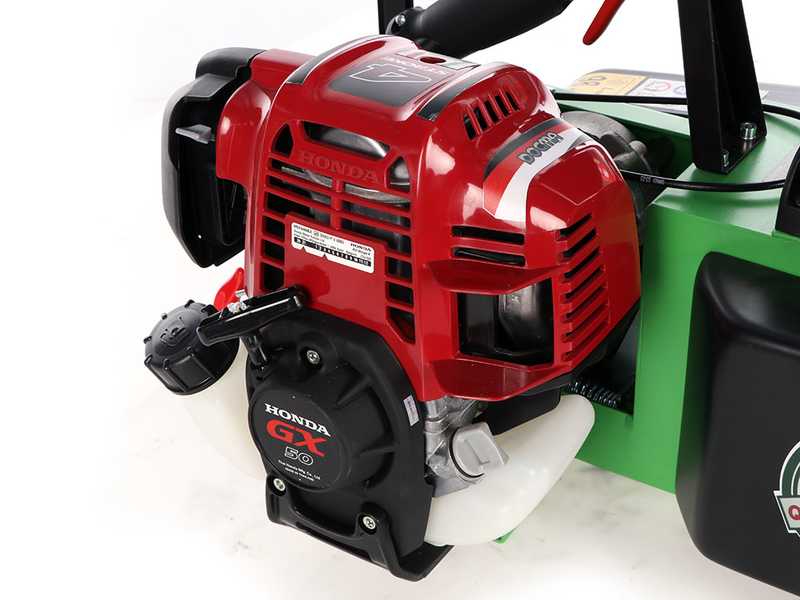

Honda GX50 4 Tempi 4-stroke engine

Equipped with a powerful 4-stroke Honda GX50 petrol engine, it is provided with state-of-the-art features in line with the latest European regulations.

A 47.9 cc engine with easy starting, it can reach a power of 1.47 kW (1.9 Hp) at 7000 rpm.

The machine's throttle is manual and is operated via the handle, from which the clutch is also engaged

Thanks to the power of this engine, the rope features a winding capacity of 19 m/min.

It is possible to chose among 2 different types of towing systems:

  • Direct pull with a load capacity of 1210 Kg
  • Double pull with a load capacity of 2420 Kg

Detail of petrol tank

Detail of air filter

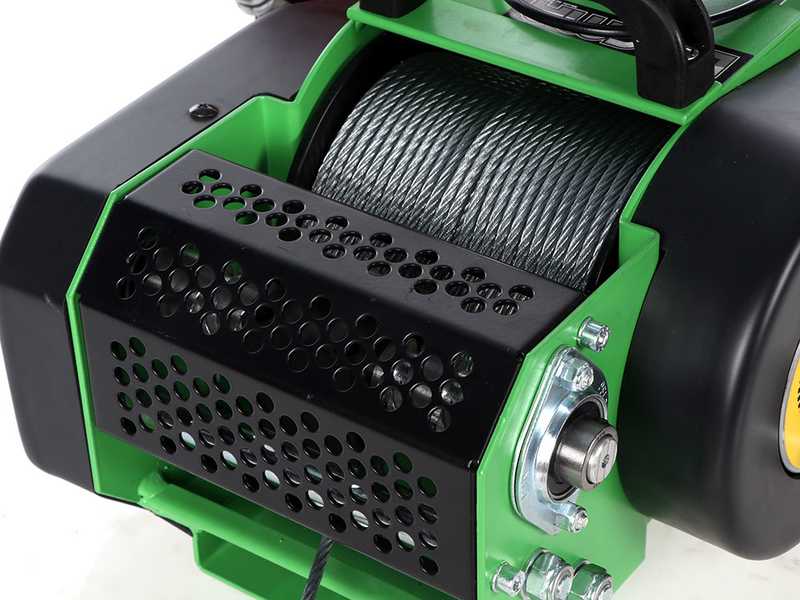

Features and details

The Docma VF150 auto 4-gx50 winch is simple and intuitive to use, making it suitable even for the less experienced.

Using the two hooks at the back and the supplied sling, the winch can be attached to a solid handhold quickly and easily.

The throttle is located on the handle in the centre of the machine.

Using the nearby lever, you will activate the clutch, which will transmit the motor motion to the drum with the steel cable.

The main parts of the winch are:

  • Engine
  • Lifting handle
  • Drum with 80m/5mm steel cable
  • Rope guide apparatus
  • Sliding pulleys
  • Drum lock/release
  • Accelerator handle with clutch
  • Hooks for securing the machine
  • Throttle hook
Free items & Standard equipment

Free items included

The winch is shipped in its original packaging with the instructions manual.

The package also includes:

60 m/6 mm steel cable

Sling for anchoring the winch
