Docma VF105 RED IRON - Forestry Winch Engine Solo HP50E-A - Complete Kit

Add a question
ID: K607529

EAN: 0793541995040

MPN: 98006+310209/210/012

8,0/10
After-sales assistance & Spare parts
Docma VF105 RED IRON - Forestry Winch Engine Solo HP50E-A - Complete Kit
FREE
2 bottles of two-stroke oil2 bottles of two-stroke oil
Supplied ratchet for anchoringSupplied ratchet for anchoring
Power supply
Fuel-oil mix
Motor Model
HP50E-A
Cubic capacity
50.8 cm³
Rated power
2.5 Hp
Single rope traction
1050 Kg
Traction double rope
2100 Kg
Rope type
Polyester
Cable diameter
10 mm
Cable length
100 m
Winding speed
20 m/min
Weight
10.5 Kg
Manufacturing country
Italy
Product Features
Model:
VF105 RED IRON
Sound pressure level:
94 Lpa av
Sound power level:
113 LWa av
Power supply:
Fuel-oil mix
Rope type:
Polyester
Direct pulling capacity:
1050 Kg/N
Double pulling capacity:
2100 Kg/N
Fuel:
Petrol
Manufacturing country:
Italy
Winding speed:
20 m/min
Single rope traction:
1050 Kg
Traction double rope:
2100 Kg
Cable diameter:
10 mm
Cable length:
100 m
Motor data
Motor brand:
Solo
Motor Model:
HP50E-A
Cubic capacity:
50.8 cm³
No. of cylinders:
Single-cylinder
Rated power:
2.5 Hp
Manufacturing country:
Germany
Equipment
Lifting handle:
Yes
Free gifts/extra features
Instructions manual:
Yes
Dimensions and logistics

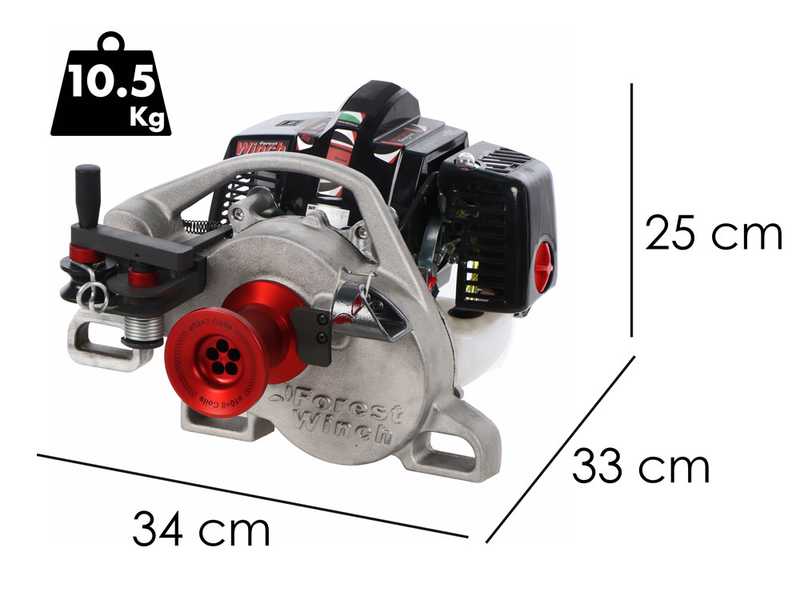

Product dimensions in cm (L x W x H):
33x34x25 cm
Net weight:
10.5 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
67X57X40
Gross weight (packaging included) :
26.9 Kg
Assembly time:
Assembled
Prompt Delivery
5 items in stock
Free Shipping
Estimated delivery: 01/08/2024 - 05/08/2024
€ 1.753,93
VAT Included
You're viewing:
Customers also viewed:
Description

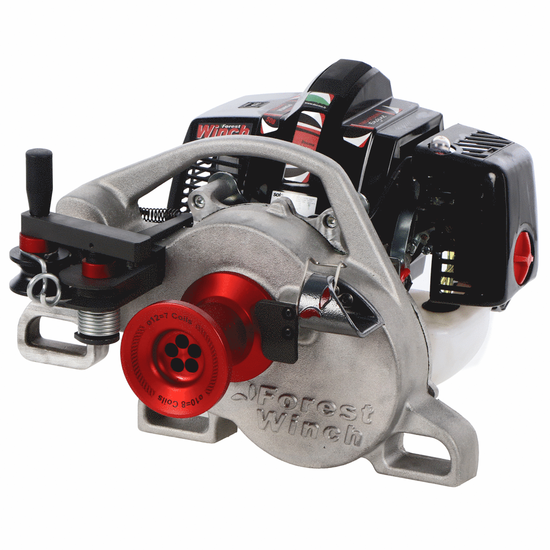

Docma VF105 RED IRON Solo HP50E-A Winch

The Docma VF105 RED IRON AL-KO is an innovative winch with a 2-stroke engine, ideal for professional and recreational applications.

Designed to excel in performance, this winch combines a high-quality Italian design with advanced Solo engine technology by AL-KO HP50E-A, ensuring low noise emission and powerful and consistent traction force.

Featuring a Made in Italy gearbox with helical gears, the VF105 RED IRON offers a superior operating experience thanks to its high-performance engine and incredible quietness.

The throttle has been designed for modular and precise control, facilitating the traction and release of the rope, with a particular focus on the durability and quality of each component.

This winch is perfect for the forestry sector, such as timber towing or use with tractors, and for recreational activities, such as loading and unloading boats or hunting.

Its power, versatility, compactness and lightness make it an excellent choice for both professionals and DIY enthusiasts.

The Solo by AL-KO 2-stroke cutting edge engine and complies with European regulations on environmental impact.

The VF105 RED IRON has a maximum traction capacity of 1050 kg and a winding speed of 26 meters per minute, also equipped with a rope guide for automatic winding and an automatic braking system, in line with European regulations.

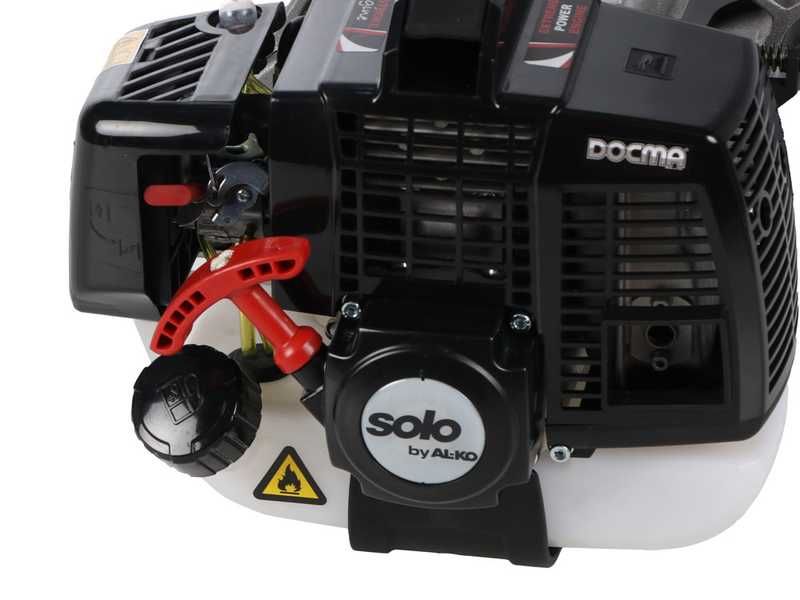

Solo Petrol Engine by AL-KO HP50E-A 2-Stroke

Equipped with a powerful Solo by AL-KO HP50E-A 2-stroke internal combustion engine, it has cutting edge features in line with the European regulations.

A 50.8 cc engine with easy starting, it can reach a power of 1.9 kW (2.58 Hp) at 9000 rpm.

Thanks to the power of this engine, the cable has a winding capacity of 20 Mt/ min

Automatic brake with rope guide.

It is possible to chose among 2 different types of towing systems:

  • Direct pull with a load capacity of 600 Kg
  • Double pull with a load capacity of 1200 Kg

Detail of the 0.75l petrol tank

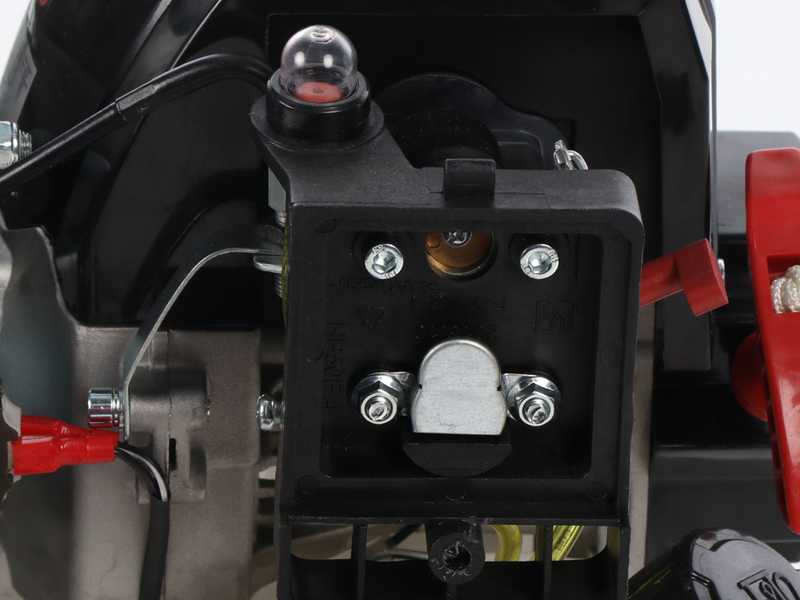

Focus on the air filter

Features and details

Controls are via a throttle control knob, which is easy to use even for not expert users.

The main parts of the winch are:

  • Engine
  • Lifting handle
  • Detail of the two support feet
  • Rope guide
  • Sliding pulleys
  • Reducer

The recommended rope is already included with the purchase of the kit

The ratchet for anchoring the machine is also supplied.

Free items & Standard equipment

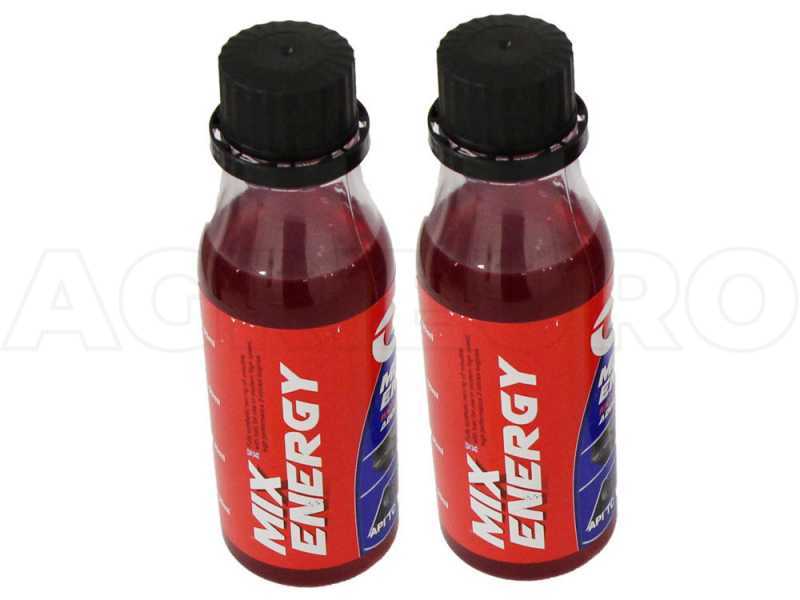

FREE GOODS: No. 2 oil bottles for 2-stroke engines of 100 ml each

FREE GOODS: No. 2 oil bottles for 2-stroke engines of 100 ml each

Free items included

The winch is shipped in its original packaging with the instructions manual.

The package also includes:

Anchoring ratchet

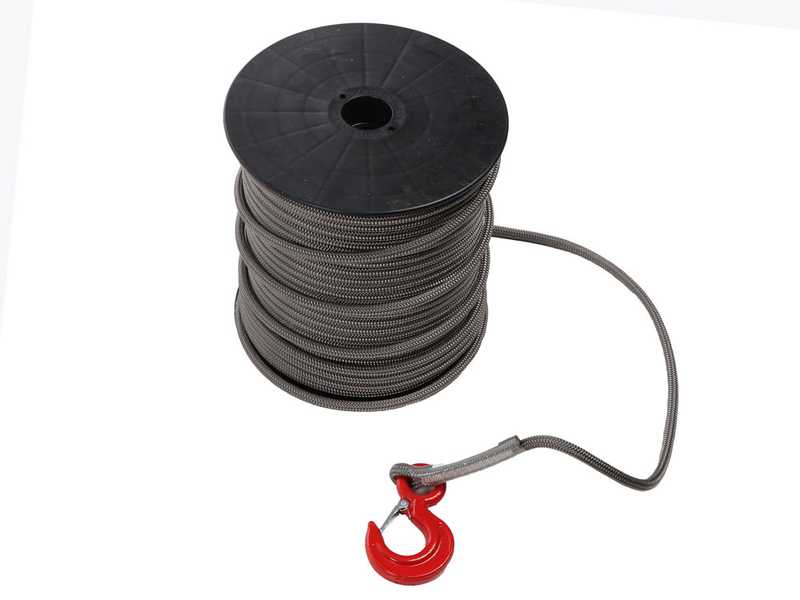

100 m of 10 mm rope with end hook
