Docma SF80 Rapid Benz Loncin G200F - Petrol Log Splitter - Vertical

Add a question
ID: K607382

EAN: 8068020721888

MPN: 910081

Docma SF80 Rapid Benz Loncin G200F - Petrol Log Splitter - Vertical
FREE
2 bottles of 1 L oil each2 bottles of 1 L oil each
Max. trunk diameter
50 cm
Log holder
Yes
Piston stroke
54.5 cm
Max. pressure
240 bar
Retractable piston for transport
Yes
Motor type
4-stroke
Motor brand
Loncin
Motor Model
G200F
Cubic capacity
196 cm³
Nominal power
6.5 HP
Nominal splitting force
11 t
Effective thrust power
8 t
Pump type
Double hydraulic
Pump
Double
Manufacturing country
Italy
Product Features
Model:
SF80 Rapid Benz Loncin
Type:
Vertical
Double speed:
No
Operating mode:
Spark ignition
Nominal splitting force:
11 t
Effective thrust power :
8 t
Piston stroke:
54.5 cm
Adjustable piston stroke (for short logs):
Yes
Worktop log cutting:
Yes
Cutting plate positions:
1
Ground splitting system:
No
High position trunk length:
54.5 cm
Manufacturing country:
Italy
Motor data
Motor brand:
Loncin
Motor Model:
G200F
Motor type:
4-stroke
Cubic capacity:
196 cm³
No. of cylinders:
1
Nominal power:
6.5 HP
Motor speed:
3600 RPM
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Oil tank capacity:
8 L
Manufacturing country:
China
Pump data
Pump type:
Double hydraulic
Max. pressure:
240 bar
Oil tank:
Yes
Hydraulic oil qty.:
8 Litres
Cutting data
Max. trunk length:
54.5 cm
Max. trunk diameter:
50 cm
Equipment
Frame:
Standard
Pump:
Double
Vertical log splitter safety lever:
Yes
Trunk lifting system:
No
Retractable piston for transport:
Yes
Stump Support Shelf:
Yes
Log holder:
Yes
CE-compliant safety switch:
CE-compliant
Wheeled trolley for transport:
Yes
Rear wheels size:
22.5
Free gifts/extra features
Oil bottle:
Yes
Instructions manual:
Yes

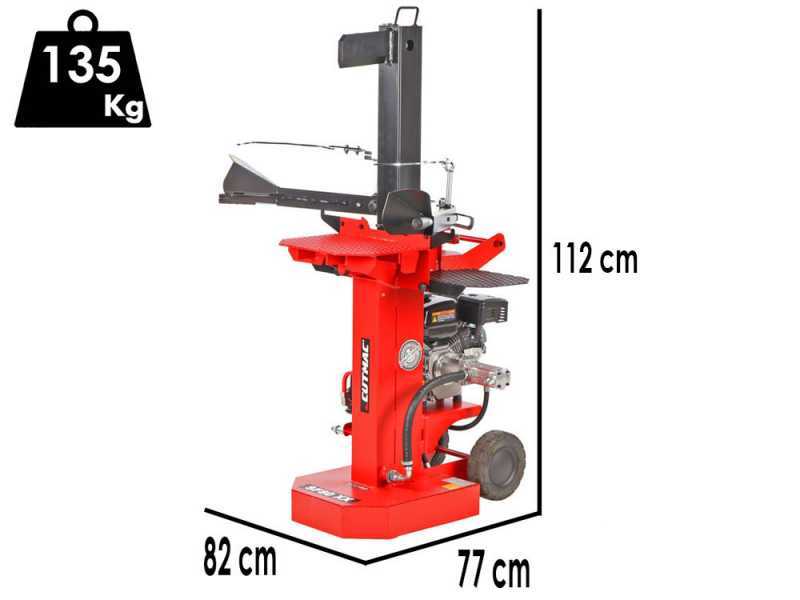

Dimensions and logistics
Net weight:
135 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
82x64x112
Gross weight (packaging included) :
150 Kg
Unloading with hydraulic tail lift:
Yes
Prompt Delivery
3 items in stock
Free Shipping
Estimated delivery: 28/05/2024 - 30/05/2024
Suggested price:
€ 1.891,53
€ 1.834,82
VAT Included
You're viewing:
Customers also viewed:
Description

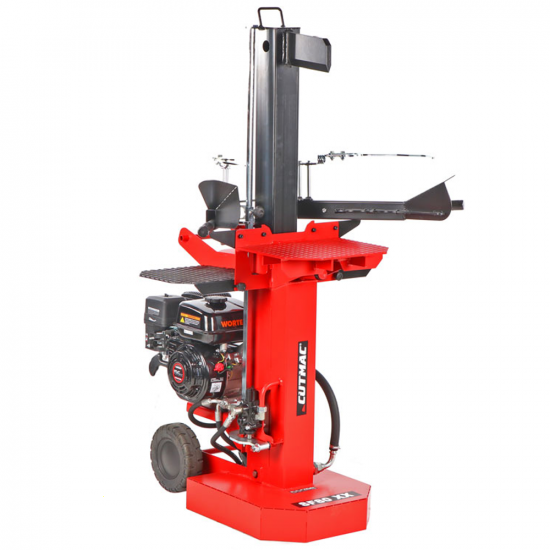

Docma SF80 Rapid Benz Loncin Petrol Log Splitter

Docma's SF80 Rapid Benz Loncin 196cc petrol log splitter is a high-quality solution for those who need an efficient and safe way for splitting wood, whether for domestic or professional purposes.

It is one of the highest-quality log splitters in its category in terms of quality/price ratio, made with top-quality materials, with a highly sturdy double-tubular reinforced frame.

Equipped with a high capacity dual pump, it guarantees a great splitting force and a high working speed. It is powered by a Loncin 196cc internal combustion engine. It is also equipped with two wheels for movement.

Main Features of the Rapid Benz Loncin 196cc (Vertical):

  • Cylinder stroke: The SF80 Rapid Benz Loncin 196cc features a cylinder stroke of 50 cm, optimising the handling of logs of different sizes with high efficiency.
  • Cutting height: : With a cutting height of 54.5 cm, this tool can handle large logs, minimising the need to pre-cut wood into smaller pieces.
  • Oil tank capacity: A dedicated 8 litre oil tank ensures continuous and smooth operation, significantly reducing interruptions for frequent refills.
  • Adjustable Column Stroke: This feature allows the operator to customise the use of the log splitter according to the size of the log being processed, ensuring maximum efficiency and precision at all times.
  • Weight: The 135 kg weight ensures stability during operation, while remaining manoeuvrable enough to be transported when needed.
  • Splitting force: 8 tons
  • Support surface: Fixed

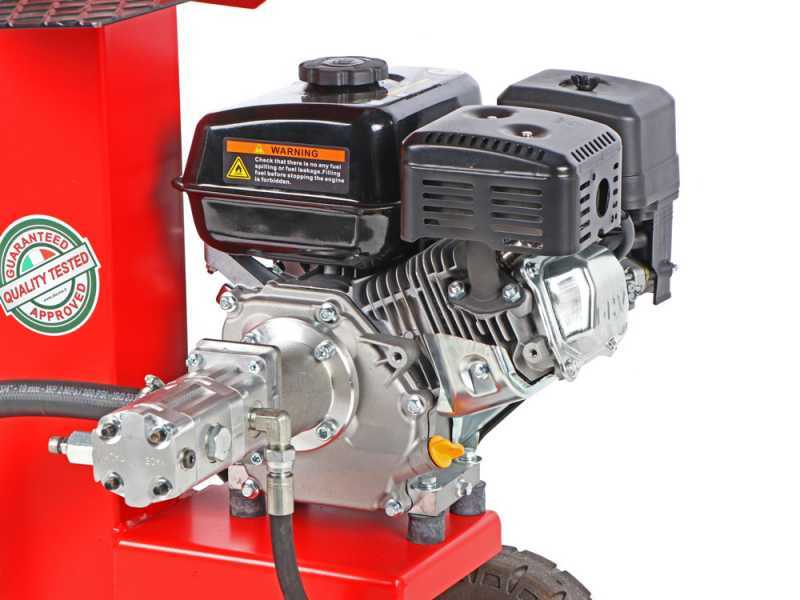

Loncin 196cc Engine

The SF80 Rapid Benz Loncin has a 196 cc Loncin engine, powered by a high performance petrol.


Features:

Engine type:
4-Stroke - OHC - single cylinder
Cylinder type:
Aluminium
Cubic capacity
196 cm³


Nominal Power: 6.5 HP
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 5.5 HP, (at 3600 rpm)
It refers to the real power of the driveshaft. This is the power indicated as official in the engine instructions manual.

* this is a figure that can vary for the same engine model depending on the rpm the equipment manufacturer has decided to have the applied engine deliver


The engine is PROVIDED WITHOUT OIL.
Please read carefully the instructions manual before starting the unit.

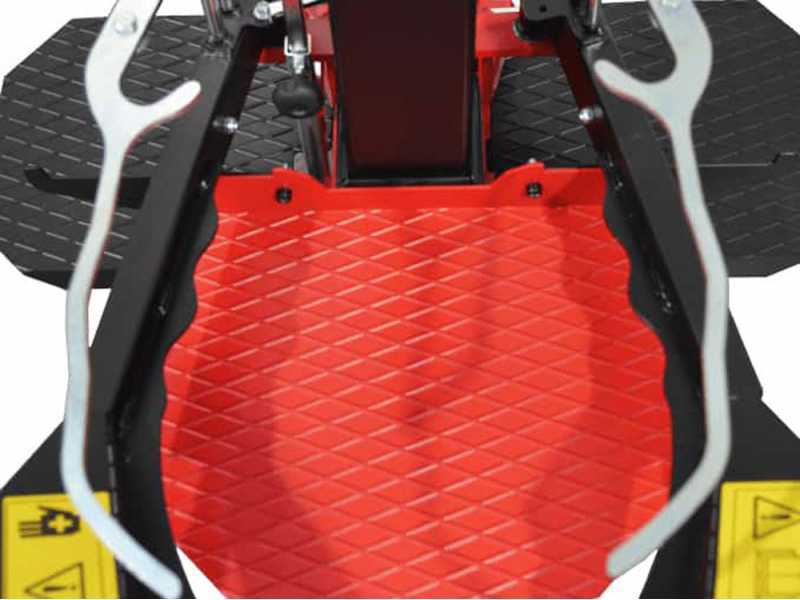

Wedge, dual control levers and cutting plate

The Docma SF80 Rapid Benz Loncin 196 cc is an indispensable product for splitting logs of various sizes. Its considerable pushing capacity of 8 tons makes it a reliable partner for handling demanding wood processing tasks with agility and precision.

Performance Characteristics:

  • Powerful 8 tons thrust: The Docma SF80 Rapid Benz offers a thrust of 8 tons, ensuring the ability to split logs of various sizes without excessive effort.
  • Split Size: This log splitter is capable of working with logs up to 54.5 cm high and 50 cm in diameter, offering extraordinary flexibility in the choice of materials.
  • Steel Wedge : The wedge of the log splitter is made of very high-strength steel, guaranteeing exceptional durability and constant performance over time.

Design and Functionality:

  • Large Work Surface: The spacious worktop offers a comfortable area to arrange and position the logs efficiently.
  • Easy and Ergonomic Control: The two hand hydraulic valve control levers allow the user to easily manage splitting operations, adapting to different work needs.
  • SAFETY GUARDS: The pair of operating handles are equipped with standardised hand guards and safety devices to ensure maximum protection for the user.
  • Integrated Log Holder: A lateral support for the seal of the log, integrated in the arms of the handles, ensures that the material to be split remains in a stable position throughout the entire operating cycle.
  • Limit switch control system: The limit switch control system is adjustable, allowing the user to customize the settings according to their preferences and work needs.

The Docma Rapid Benz Loncin 196 cc is a powerful and precise solution for splitting wood. With its 8-tons thrust, ergonomic design and advanced safety features.

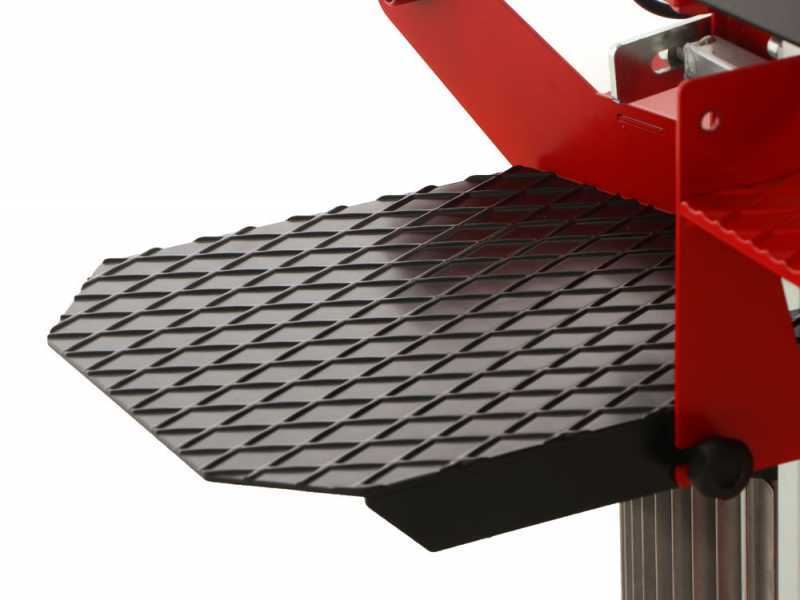

Additional features

The log splitter in question represents an advance in the field, combining strength and functionality in a sophisticated design. This tool is designed to offer longevity and ease of use, establishing itself as a reliable solution for splitting operations.

Robustness and Solidity: Our attention to detail in the selection of premium materials gives the log splitter an extraordinarily robust structure. This meticulous choice of materials ensures flawless performance even under the most demanding operating conditions, offering unrivalled reliability and safety.

Functional Design:

  • Mobility: Thanks to the integration of wheels, our log splitter offers easy handling, allowing you to position it strategically according to your needs.

  • Manoeuvrability: Its balanced structure and dedicated handle greatly simplifies the manoeuvrability of the unit.

  • Coupling Point: A special attachment point has been designed to facilitate lifting and storage of the log splitter.

  • Innovative Patented Locking System: This log splitter is equipped with an innovative patented locking system, designed to keep the log tightly secure and safe during splitting. This mechanism, the result of cutting-edge technologies, minimizes the risks of accidents, operating in full compliance with EN609-1-2017 safety standards.

Stable Support Base: The design is completed by a solid support base that ensures stability during the splitting operation, minimising the risk of unwanted movements.

Quality Components:

  • The hydraulic system of this log splitter is managed by a double hydraulic pump that guarantees a constant and controlled flow of oil for a smooth and seamless split.
  • The particular Cutmac series represents a distinctive component that contributes to the high performance of this machine.
Free items & Standard equipment

Free Items Included

Complimentary:

2 bottles of 10W40 oil, specific for 4-stroke engines

Standard equipment

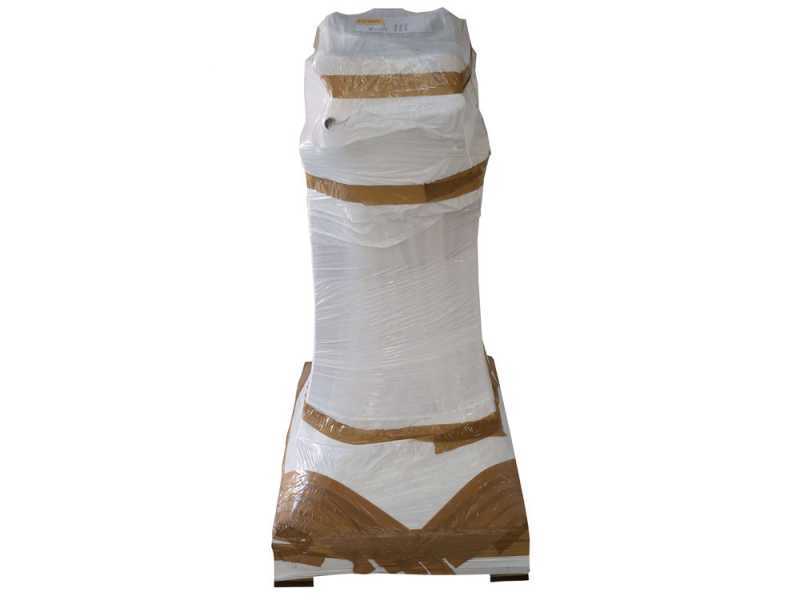

The log splitter is shipped carefully wrapped and placed on a pallet.

The maintenance and operating instructions manual is included in the packaging.
