Docma SF180 PTO XX - Tractor Mounted Log Splitter- Vertical

Add a question
ID: 112528

EAN: 8068020721987

MPN: 940041

Docma SF180 PTO XX - Tractor Mounted Log Splitter- Vertical
Max. trunk diameter
50 cm
Piston stroke
121 cm
Max. pressure
240 bar
Ground splitting system
Yes
Trunk lifting system
Yes
Retractable piston for transport
Yes
Double speed
Yes
Operating mode
Tractor-driven PTO
Nominal splitting force
22 t
Effective thrust power
18 t
Tractor three-point hitch
Yes
Product Features
Model:
Docma SF180 PTO XX
Type:
Vertical
Double speed:
Yes
Operating mode:
Tractor-driven PTO
Nominal splitting force:
22 t
Effective thrust power :
18 t
Piston stroke:
121 cm
Adjustable piston stroke (for short logs):
Yes
Worktop log cutting:
No
Cutting plate positions:
0
Ground splitting system:
Yes
High position trunk length:
121 cm
Motor data
Power supply:
Tractor-driven PTO
Oil tank capacity:
21 L
Pump data
Pump type:
Hydraulic
Max. pressure:
240 bar
Oil tank:
Yes
Hydraulic oil qty.:
21 Litres
Cutting data
Max. trunk length:
121 cm
Max. trunk diameter:
50 cm
Equipment
Frame:
Standard
Pump:
Standard
Vertical log splitter safety lever:
Yes
Retaining side arms:
Yes
Retaining side supports:
Yes
Trunk lifting system:
Yes
Retractable piston for transport:
Yes
Tractor three-point hitch:
Yes
Wheeled trolley for transport:
Yes
Rear wheels size:
30
Free gifts/extra features
Instructions manual:
Yes

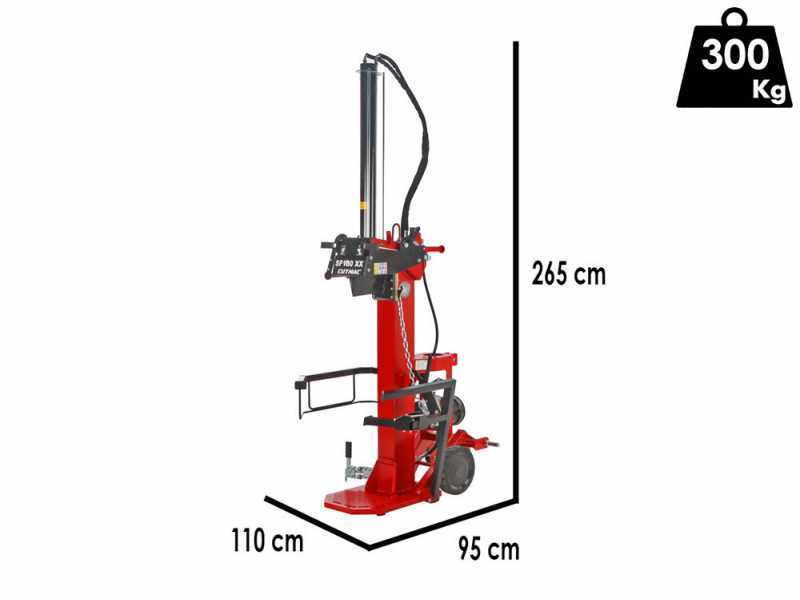

Dimensions and logistics
Product dimensions in cm (L x W x H):
110x95x265
Net weight:
300 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
120x80x196
Gross weight (packaging included) :
310 Kg
Unloading with hydraulic tail lift:
Yes
Prompt Delivery
2 items in stock
Free Shipping
Estimated delivery: 10/06/2024 - 12/06/2024
Suggested price:
€ 3.217,44
€ 3.120,92
VAT Included
You're viewing:
Customers also viewed:
Description

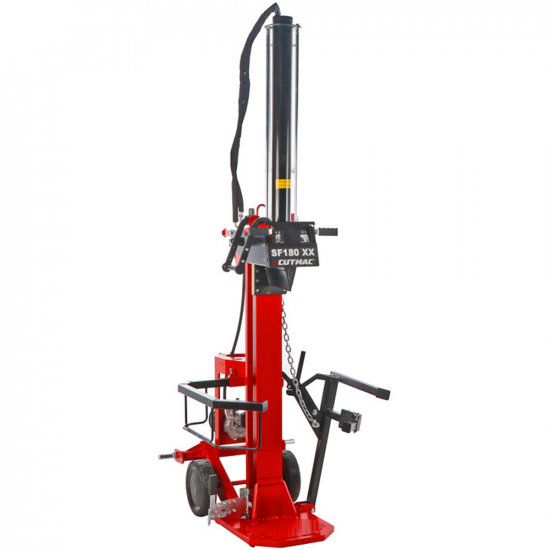

Docma SF180 PTO XX - Tractor-Mounted Log Splitter - Vertical

The SF180 PTO XX log splitter model represents an advanced solution designed to meet the needs of industry professionals, who require high quality tools for their splitting operations. This device has been carefully designed to offer precision, power, safety and efficiency during woodworking activities.

Main Features of the SF180 PTO XX (Vertical Model):

  1. Cylinder Stroke Depth: This model offers a generous cylindrical stroke of 100 cm, allowing the handling of logs of various sizes. This eliminates the need for preliminary wood preparation operations and optimizes the splitting process.

  2. Cutting height: With a cutting height of 121 cm, the appliance is able to deal with logs of considerable size without requiring further preliminary cuts.

  3. Oil capacity: The 21 litre tank ensures prolonged crack sessions, minimising interruptions and ensuring a constant and efficient workflow.

  4. Adjustable Column Stroke: This model offers the flexibility to adjust the column stroke, allowing the operator to adapt the machine to the specific dimensions of the logs being machined, ensuring accurate splitting results.

  5. Thrust force: With a significant effective thrust force of 18 tons, the SF180 PTO XX ranks among the most powerful models in its category, ensuring high efficiency and reliability in splitting operations.

In addition, it is equipped with a patented system that allows quick and efficient locking and unlocking of the cylinder, further improving its practicality and versatility during use.

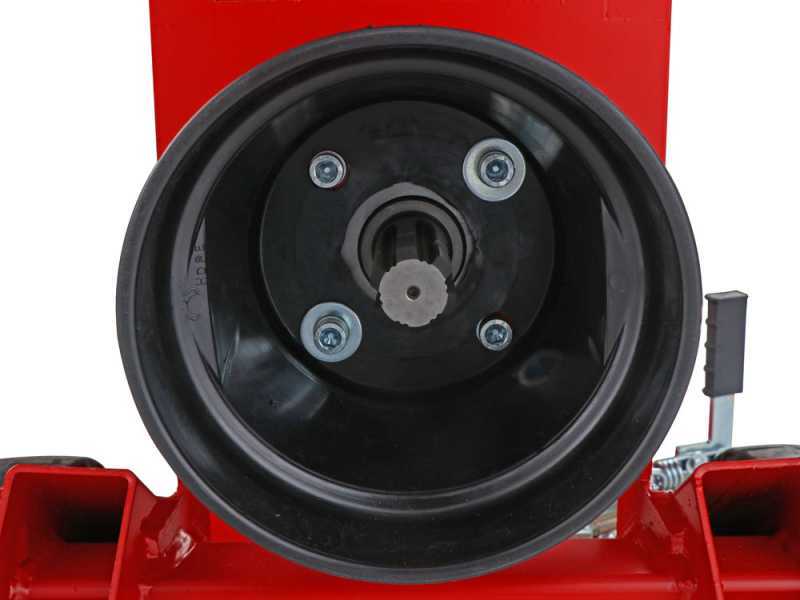

PTO Drive With Tractor

The log splitter in question has been designed to work in synergy with tractors, thanks to its ability to connect via a universal joint. This connection offers high operational efficiency, ensuring optimal power transmission from the tractor to the log splitter.

The robust design and precision chassis mechanics feature solid three-point hooks These couplings ensure a firm and secure connection to the tractor, minimising any unwanted play or movement during operation.

The hydraulic efficiency of the log splitter is guaranteed by a high-quality hydraulic pump. This pump draws oil from the integrated tank, located at the base of the machine structure, with a capacity of 21 litres.

This tank not only acts as a container for the oil, but is also an integral part of the machine body, optimizing the space and functionality of the entire unit.

The hydraulic cylinder, equipped with a powerful thrust, is activated by the pump, allowing an efficient and continuous splitting of the wood.

Finally, the multiplier plays a crucial role in power transmission. It works as a bridge between the tractor and the hydraulic pump, effectively transferring the drive torque. The universal joint acts as an intermediary in this process, ensuring that the power generated by the tractor is transferred without leakage to the hydraulic pump.

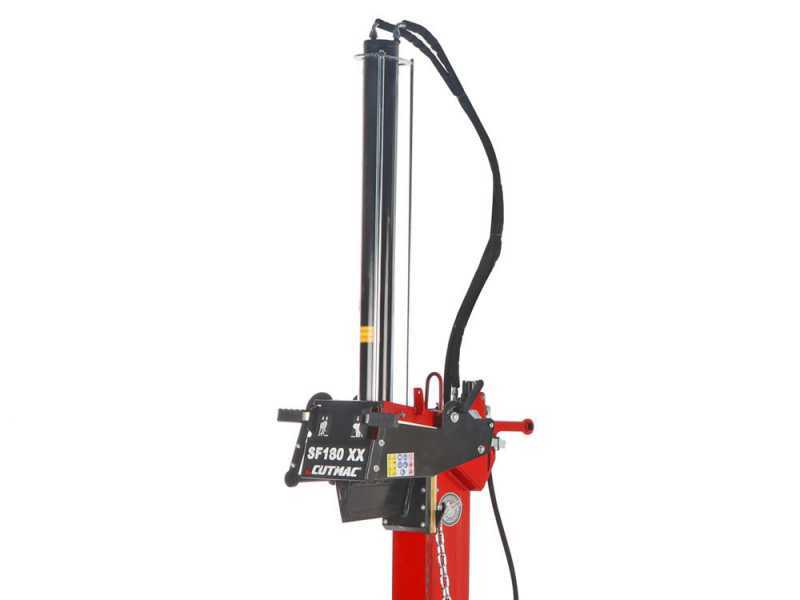

Wedge and piston

The powerful Docma SF180 PTO XX log splitter is a reliable companion for splitting logs of different sizes. With an exceptional effective thrust of 18 tons, this log splitter is designed to tackle the most demanding jobs with ease and precision.

Technical features:

  • Thrust Force: With a rated power of 18 tonnes, the Docma SF180 PTO XX ensures that logs, regardless of their size, are split with extreme ease, reducing wear on both the machine and the operator.
  • Split Dimensions: This log splitter is able to work with logs up to 121 cm high and 50 cm in diameter, offering incredible flexibility in the choice of materials.
  • High resistance steel wedge: The main components, such as the split wedge, are forged from high-strength steel, ensuring not only extraordinary longevity but also consistent performance over the years.

Design and Functionality:

  • Intuitive control The control levers, designed with ergonomic criteria, offer the operator unparalleled ease of use, allowing precise control during splitting operations.
  • Safety Measures: The design integrates various safety devices, ensuring that the operator remains protected from injury during use.
  • Ground Split: The split on the ground is one of the most traditional and effective methods for dividing wood, particularly when using a log splitter.
  • Limit switch control system: The fully adjustable limit switch control system allows detailed customisation, offering flexibility in splitting operations.
  • Lateral lifting system: The lateral lifting system for a log splitter is a very useful feature that allows the operator to handle heavy or bulky logs of wood with greater ease and safety. This system helps to position the trunk directly in the split area, significantly reducing physical fatigue and minimising the risk of injury.

The Docma SF180 PTO XX is a powerful and precise wood splitting solution. With its 18-ton nominal thrust, ergonomic design and advanced safety features, this log splitter proves to be a reliable ally to tackle every woodworking challenge.

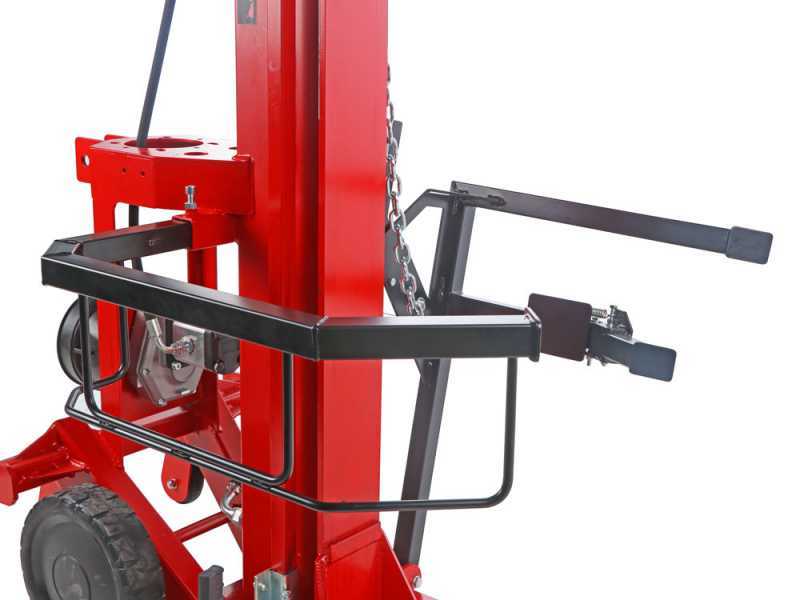

Main features

The SF180 PTO XX log splitter has a number of technical and functional features of considerable importance, each of which has been designed to ensure maximum efficiency, safety and durability.

Integrated oil tank: The base of the log splitter houses an integrated oil tank. This arrangement allows for optimal weight distribution, ensuring stability during splitting operations and facilitating maintenance operations.

LATERAL SUPPORT A sturdy lateral support for holding the log is integrated directly into the log splitter structure.

Lifting system: The machine is equipped with an innovative lifting system for the logs, complemented by an effective locking mechanism. This system facilitates the handling of heavy logs and ensures that they remain securely in place during splitting.

INCORPORATED WHEELS The base of the log splitter has integrated wheels, a fundamental detail that facilitates the transport and handling of the machine, making operations easier, especially in confined spaces or rough grounds.

3-Point attachment system: The three-point attachment, specifically designed for connection to the tractor, This configuration ensures a robust and stable connection to the tractor.

Support Platform: The machine is equipped with a support platform, designed to ensure comfort and safety for the operator during splitting operations.

Multifunction levers: One of the key elements of the log splitter are the levers, which have the task of raising the piston. This lever has also been designed to handle the double speed of the machine, allowing the user greater control and versatility during use.

Free items & Standard equipment

Standard equipment

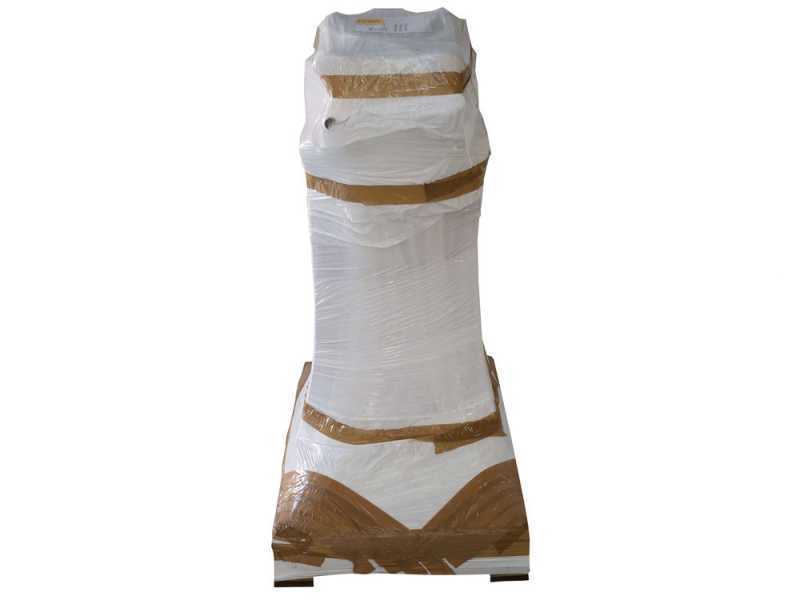

The log splitter is safely shipped in its original packaging and placed on pallet.

The maintenance and operating instructions manual is included in the packaging.
