Docma SF130 PTO XX - Tractor-Mounted Log Splitter - Vertical

Add a question
ID: 112526

EAN: 8068020722137

MPN: 940033

Docma SF130 PTO XX - Tractor-Mounted Log Splitter - Vertical
Max. trunk diameter
50 cm
Piston stroke
121 cm
Max. pressure
240 bar
Ground splitting system
Yes
Trunk lifting system
Yes
Retractable piston for transport
Yes
Double speed
Yes
Operating mode
Tractor-driven PTO
Nominal splitting force
16 t
Effective thrust power
13 t
Tractor three-point hitch
Yes
Product Features
Model:
Docma SF130 PTO XX
Type:
Vertical
Double speed:
Yes
Operating mode:
Tractor-driven PTO
Nominal splitting force:
16 t
Effective thrust power :
13 t
Piston stroke:
121 cm
Adjustable piston stroke (for short logs):
Yes
Worktop log cutting:
No
Cutting plate positions:
0
Ground splitting system:
Yes
High position trunk length:
121 cm
Motor data
Power supply:
Tractor-driven PTO
Oil tank capacity:
21 L
Pump data
Pump type:
Hydraulic
Max. pressure:
240 bar
Oil tank:
Yes
Hydraulic oil qty.:
21 Litres
Cutting data
Max. trunk length:
121 cm
Max. trunk diameter:
50 cm
Equipment
Frame:
Standard
Pump:
Standard
Vertical log splitter safety lever:
Yes
Retaining side arms:
Yes
Retaining side supports:
Yes
Trunk lifting system:
Yes
Retractable piston for transport:
Yes
Tractor three-point hitch:
Yes
Wheeled trolley for transport:
Yes
Rear wheels size:
30
Free gifts/extra features
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
110x95x265
Net weight:
300 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
120x80x196
Gross weight (packaging included) :
310 Kg
Unloading with hydraulic tail lift:
Yes
Prompt Delivery
2 items in stock
Free Shipping
Estimated delivery: 10/06/2024 - 12/06/2024
Suggested price:
€ 2.913,44
€ 2.826,04
VAT Included
You're viewing:
Customers also viewed:
Description

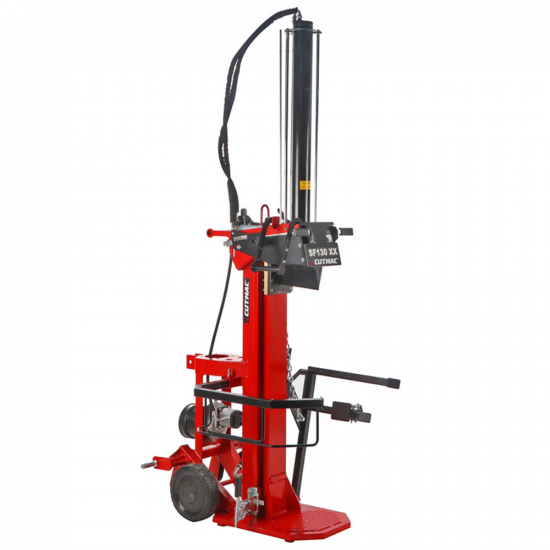

Docma SF130 PTO XX - Tractor-Mounted Log Splitter - Vertical

The SF130 PTO XX log splitter has been carefully designed to meet the needs of the most demanding woodworking professionals. Its excellent precision and power are designed to ensure efficient and safe splitting operations.

SF130 PTO XX (Vertical) Main Features:

  • Depth Cylinder Stroke: With a 100 cm stroke, the SF130 PTO XX is able to work on logs of different size, thus eliminating the need of pre-working and simplifying the splitting process.

  • Cutting Height: The 121 cm cutting height ensures that even large logs can be processed without the need for pre-cutting.

  • Oil capacity: A generous 21-litre capacity allows extended splitting operations, minimising interruptions and ensuring a continuous and smooth split.

  • Adjustable Column Stroke: This distinctive feature offers users the possibility of adjusting and adapting the machine to the specific size of the logs, thus ensuring more precise splitting.

  • Splitting Force: With a thrust force of 13 tons, the SF130 PTO XX is distinguished by its sturdiness and capacity, making it an indispensable tool for those seeking efficiency and reliability in the wood splitting process.

Furthermore, the SF130 PTO XX is equipped with a patented system that allows the cylinder to be locked and unlocked quickly and efficiently.

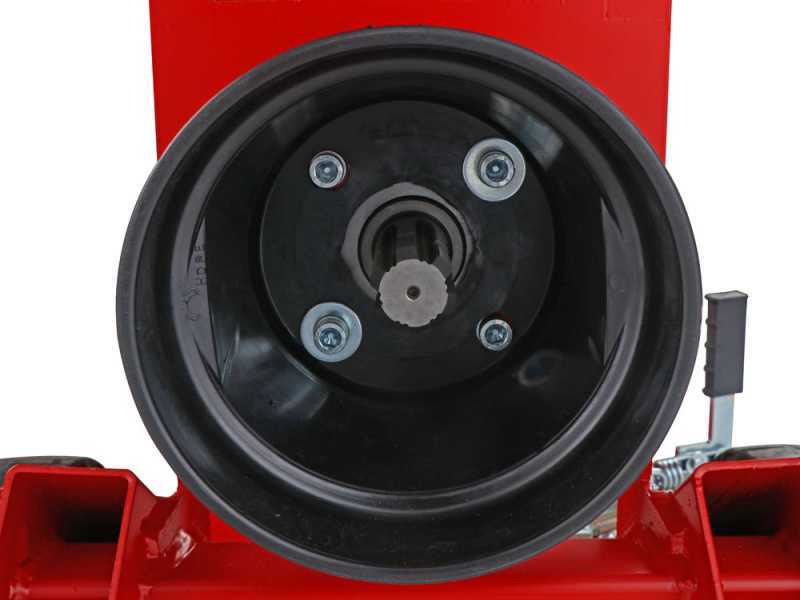

Tractor PTO cardan connection

This log splitter has been designed to work in synergy with tractors, thanks to its capacity to connect through a universal joint. This connection offers high operational efficiency, ensuring optimal power transmission from the tractor to the log splitter.

The sturdy design and precision frame mechanics are equipped with solid three-point couplings. These couplings ensure a firm and secure connection to the tractor, minimising any unwanted backlash or movement during operation.

The hydraulic efficiency of the log splitter is guaranteed by a high-quality hydraulic pump. This pump sucks oil from the integrated tank, located at the base of the machine structure, with a capacity of 21 litres.

This tank not only serves as an oil container, but is also an integral part of the machine body, optimising the space and functionality of the entire unit.

The hydraulic cylinder, equipped with a powerful thrust, is activated by the pump, allowing efficient and continuous splitting of wood.

Finally, the multiplier plays a crucial role in power transmission. It operates as a link between the tractor and the hydraulic pump, transferring the drive torque effectively. The universal joint acts as an intermediary in this process, ensuring that the power generated by the tractor is transferred without loss to the hydraulic pump.

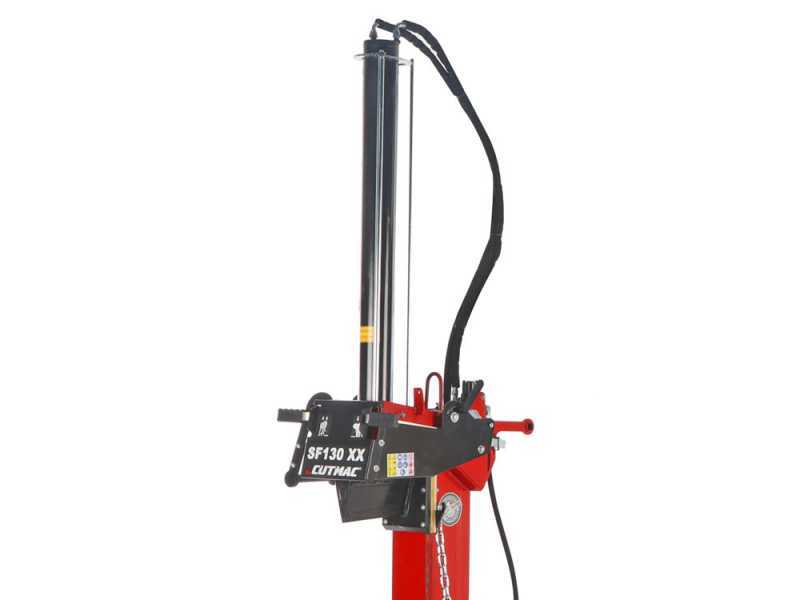

Wedge and piston

The powerful Docma SF130 PTO XX log splitter is a reliable tool for splitting logs of different sizes. With an exceptional nominal thrust of 16 tons, this log splitter is designed to tackle the toughest jobs with ease and precision.

Technical features:

  • Thrust force: With a power rating of 16 tons, the Docma SF130 PTO XX ensures that logs, regardless of their size, are split with ease, reducing wear and tear on both machine and operator.
  • Splitting Size: This log splitter is able to work with logs up to 121 cm in heigh and 50 cm in diameter, thus providing incredible flexibility during the material choice.
  • High Resistance Steel Wedge: The main components, such as the splitting wedge, are forged from high-strength steel, ensuring not only extraordinary longevity but also consistent performance over the years.

Design and Functionality:

  • Intuitive Control System: The ergonomically designed control levers offer the operator unparalleled ease of use, allowing precise control during splitting operations.
  • Safety System: In addition to standard hand protection, the design incorporates various safety devices, ensuring that the operator remains protected from injury during use.
  • Split on the ground: The splitting of wood on the ground is one of the most traditional and effective methods of splitting wood, particularly when using a log splitter.
  • Limit Switch Control System: The fully adjustable limit switch control system allows detailed customisation, offering flexibility during splitting operations.
  • Side lifting system: The side lifting system for a log splitter is a very useful feature that allows the operator to handle heavy or bulky logs with greater ease and safety. This system helps to position the log directly in the splitting area, greatly reducing physical fatigue and minimising the risk of injury.

The Docma SF130 PTO XX is a powerful and precise solution for splitting wood. With its 16 tons of thrust, ergonomic design and advanced safety features, this log splitter proves to be a reliable ally for tackling any woodworking challenge.

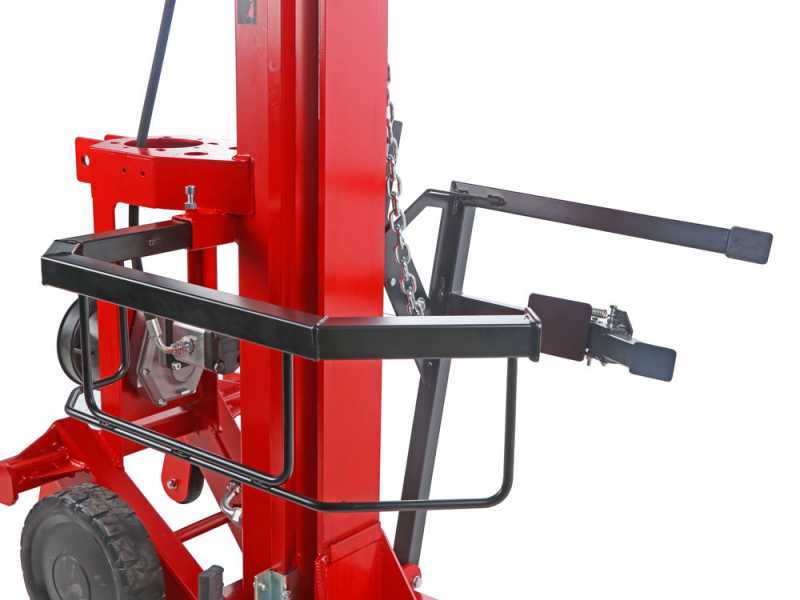

Main features

The SF130 PTO XX log splitter features a number of outstanding technical and functional features, each of which has been designed to ensure maximum efficiency, safety and durability.

Hydraulic Oil Tank: The base of the log splitter is equipped with an integrated oil tank. This layout allows optimal weight distribution, ensuring stability during splitting operations and facilitating maintenance operations.

Side Support: A sturdy side support for holding the log is integrated directly into the log splitter structure.

Lifting and Locking System: The machine is equipped with an innovative lifting system for the logs, complemented by an effective locking mechanism. This system facilitates the handling of heavy logs and ensures that they remain firmly in place during splitting.

Integrated Wheels: The base of the log splitter features integrated wheels, a key detail that facilitates transport and handling of the machine, making operations easier, especially in confined spaces or rough terrain.

3-Point Linkage System: The three-point hitch, specifically designed for connection to the tractor, This configuration guarantees a strong and stable connection to the tractor.

Support platform: The machine is equipped with a support platform, designed to provide comfort and safety for the operator during splitting operations.

Multifunctional levers: One of the key elements of the log splitter are the levers, which are responsible for raising the piston. This lever is also designed to handle the machine's dual speed, allowing the user greater control and versatility during use.

Free items & Standard equipment

Standard equipment

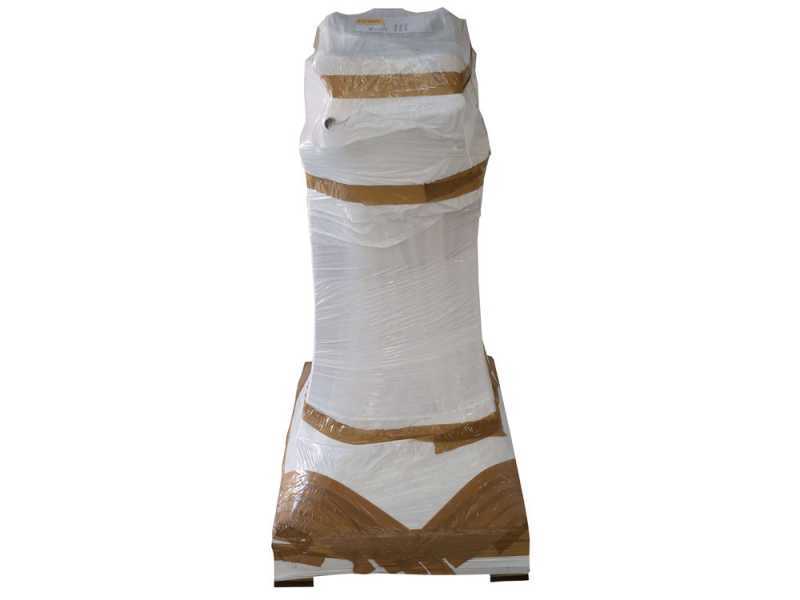

The log splitter is safely shipped in its original packaging on pallet.

The maintenance and operating instructions manual is included in the packaging.
