Docma SF100 Rapid Benz Loncin G200F - Petrol Log Splitter- Vertical

Add a question
ID: K607400

EAN: 8068020721895

MPN: 920043

8,0/10
After-sales assistance & Spare parts
Docma SF100 Rapid Benz Loncin G200F - Petrol Log Splitter- Vertical
FREE
2 bottles of 1 L oil each2 bottles of 1 L oil each
Max. trunk diameter
50 cm
Log holder
Yes
Piston stroke
54.5 cm
Max. pressure
190 bar
Retractable piston for transport
Yes
Motor type
4-stroke
Motor brand
Loncin
Motor Model
G200F
Cubic capacity
196 cm³
Nominal power
6.5 HP
Nominal splitting force
12 t
Effective thrust power
8.15 t
Pump type
Double hydraulic
Pump
Double
Manufacturing country
Italy
Product Features
Model:
SF100 Rapid Benz Loncin
Type:
Vertical
Double speed:
No
Operating mode:
Spark ignition
Nominal splitting force:
12 t
Effective thrust power :
8.15 t
Piston stroke:
54.5 cm
Adjustable piston stroke (for short logs):
Yes
Worktop log cutting:
Yes
Cutting plate positions:
1
Ground splitting system:
No
High position trunk length:
54.5 cm
Manufacturing country:
Italy
Motor data
Motor brand:
Loncin
Motor Model:
G200F
Motor type:
4-stroke
Cubic capacity:
196 cm³
No. of cylinders:
1
Nominal power:
6.5 HP
Motor speed:
3600 RPM
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Oil tank capacity:
13 L
Manufacturing country:
China
Pump data
Pump type:
Double hydraulic
Max. pressure:
190 bar
Oil tank:
Yes
Hydraulic oil qty.:
13 Litres
Cutting data
Max. trunk length:
54.5 cm
Max. trunk diameter:
50 cm
Equipment
Frame:
Standard
Pump:
Double
Vertical log splitter safety lever:
Yes
Trunk lifting system:
No
Retractable piston for transport:
Yes
Stump Support Shelf:
Yes
Log holder:
Yes
CE-compliant safety switch:
CE-compliant
Wheeled trolley for transport:
Yes
Rear wheels size:
22.5
Free gifts/extra features
Oil bottle:
Yes
Instructions manual:
Yes
Dimensions and logistics

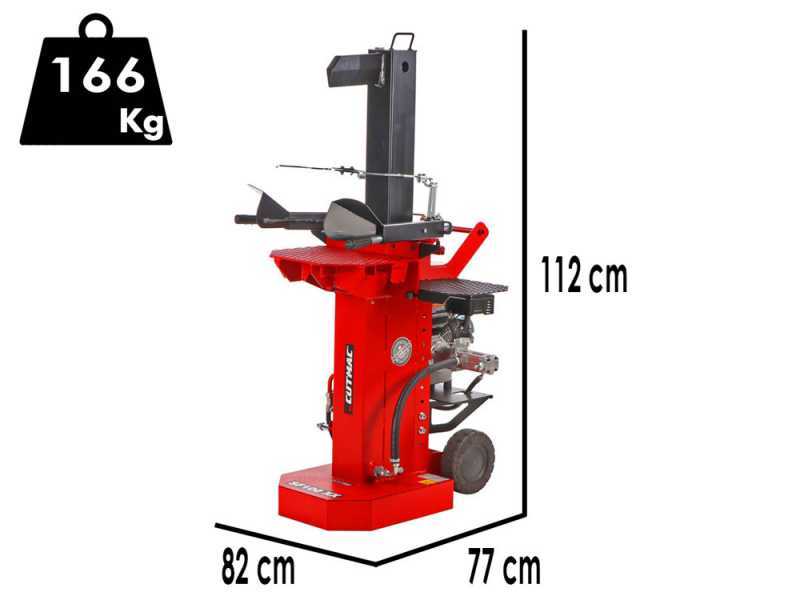

Product dimensions in cm (L x W x H):
82x77x112
Net weight:
166 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
118x80x14
Gross weight (packaging included) :
180 Kg
Unloading with hydraulic tail lift:
Yes
Prompt Delivery
3 items in stock
Free Shipping
Estimated delivery: 06/08/2024 - 08/08/2024
Suggested price:
€ 2.195,36
€ 2.129,55
VAT Included
You're viewing:
Customers also viewed:
Description

Docma SF100 Rapid Benz Loncin Petrol Log Splitter

The SF100 Rapid Benz Loncin 196cc log splitter model produced by Docma stands out as a high-quality solution, ideal for those who require efficiency and reliability in woodworking, both in the home and professionally.

This appliance is among the most competitive in its category in terms of quality and cost. Its construction uses premium materials and features a sturdy frame with a reinforced double-tubular structure.

It boasts a high-capacity double pump that ensures considerable force and superior operating speed, supported by a 196cc Loncin internal combustion engine. Its practicality is further heightened by the presence of two wheels that facilitate transport.

Main Features of the model Rapid Benz Loncin 196cc (Vertical):

  • CYLINDER STROKE: The 50 cm cylinder stroke allows optimal management of logs of various sizes, promoting high operating efficiency.
  • Cutting height: The cutting height of 54.5 cm allows the processing of logs of consistent size, minimising the need to section the wood beforehand.
  • Oil tank capacity: The 13 litre engine oil tank ensures consistent and smooth running, limiting interruptions for frequent refuelling.
  • Adjustable Column Stroke: The adjustable column stroke offers the user the possibility to adapt the operation of the log splitter to the specific dimensions of the material, ensuring constant precision and efficiency.
  • Weight: With a weight of 166 kg, the machine keeps a fundamental stability during use, maintaining sufficient practicality of transport.
  • Thrust Power: The thrust power of 8.15 tons attests to the log splitter's ability to handle even the most demanding activities.
  • Support surface: The structure includes a fixed support surface, designed to facilitate the manufacturing process.

This wood splitter combines advanced functions and reliability, proposing itself as an indispensable tool for those seeking high-level performance in woodworking.

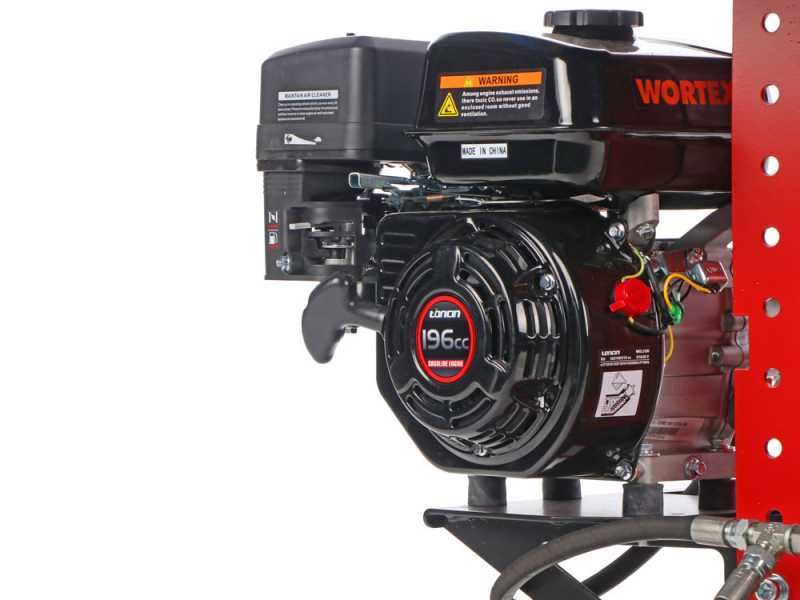

Loncin engine 196cc

The SF100 Rapid Benz Loncin has a 196 cc Loncin engine , powered by a high performance gasoline.


Features:

Engine type:
4-Stroke - OHC - single cylinder
Cylinder type:
Aluminum
Cubic capacity
196 cm³

Rated Power: 6.5 HP
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 5.5 HP ,(at 3600 rpm)
It refers to the real power of the driveshaft. This is the power indicated as official in the engine instructions manual.

* this is a figure that can vary for the same engine model depending on the rpm the equipment manufacturer has decided to have the applied engine deliver




The engine is PROVIDED WITHOUT OIL.
Please read carefully the instructions manual before starting the unit.

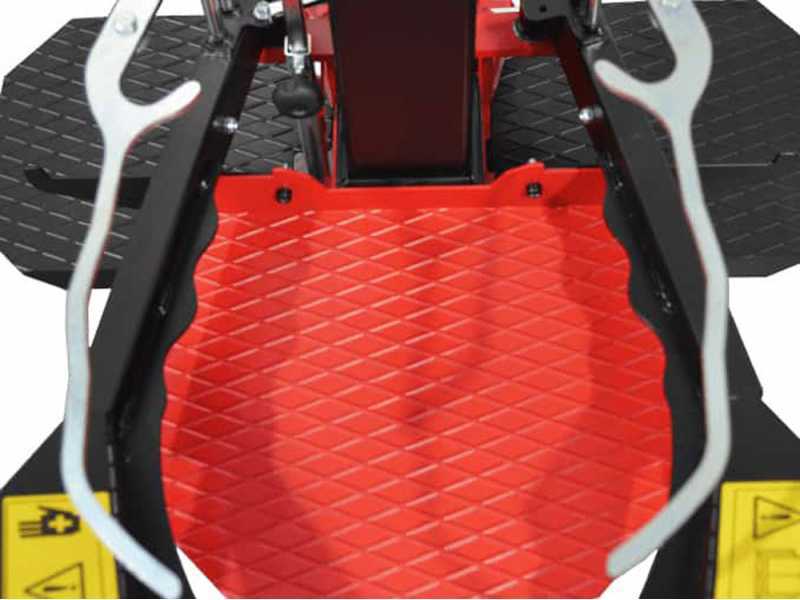

Wedge, Bimanual Levers and Table Top

This product has established itself as a crucial machine for the effective wood working of different sizes. Thanks to its impressive thrust force of 8.15 tons, it is a reliable ally to perform complex wood treatment operations with dexterity and accuracy.

Performance characteristics:

  • Thrust Force: Docma's SF100 Rapid Benz model provides an impressive thrust force of 8.15 tons, allowing the division of logs of various sizes with minimal effort.
  • Processing Capacity: The log splitter can process logs up to 54.5 cm in height and 50 cm in diameter, demonstrating high versatility in the treatment of materials.
  • Quality Wedge: The wedge, made of high-hardness steel, promises long life and uniform performance over time.

Design and Functionality:

  • Working Surface: The extensive worktop provides adequate space to accommodate and maneuver logs effectively.
  • Intuitive and Ergonomic Controls: The bimanual hydraulic valve control levers allow the user to easily manage splitting operations, adapting to different work needs.
  • Safety Measures: The handles are equipped with specific hand protections, compliant with current regulations, and safety mechanisms that ensure high protection for the operator.
  • Integrated Log Holder: The lateral support of the log, integrated in the arms of the handles, ensures that the material to be split remains stable during the operation.
  • Limit switch adjustment system: The limit switch control mechanism is customisable, allowing users to adjust the configurations according to their preferences and the specific requirements of the assignment.

Briefly, the Docma SF100 Rapid Benz Loncin 196 cc is a robust and meticulous solution for splitting wood. Its power of 8.15 tons, coupled with a user-friendly design and sophisticated safety features, makes it an invaluable asset in this area.

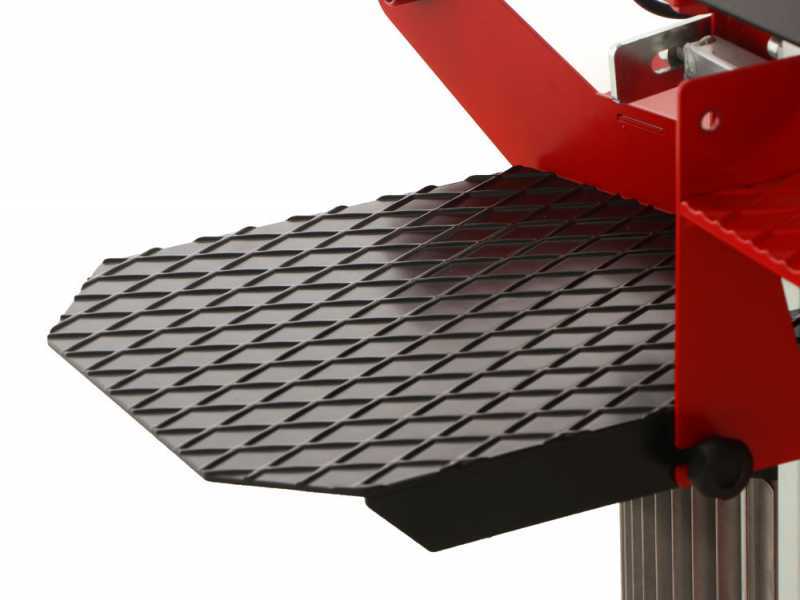

Additional features

The log splitter in question represents an advance in the field, combining strength and functionality in a sophisticated design. This tool is designed to offer longevity and ease of use, establishing itself as a reliable solution for splitting operations.

Robustness and Solidity: The commitment to the selection of high-end materials translates into a log splitter of exceptional durability. This scrupulous choice ensures superior performance even in the most challenging situations, promising unparalleled safety and reliability.

Functional Design:

  • Transport: Thanks to the integration of wheels, our log splitter offers easy handling, allowing you to position it strategically according to your needs.

  • Maneuverability: Thanks to a balanced design and a specially made handle, the transport and management of the unit are greatly simplified.

  • ATTACHMENT POINT: A special attachment point has been designed to facilitate lifting and storage of the log splitter.

  • Innovative Patented Locking System: This log splitter is equipped with an innovative patented locking system, designed to keep the log tightly secure and safe during splitting. This mechanism, the result of cutting-edge technologies, minimizes the risks of accidents, operating in full compliance with EN609-1-2017 safety standards.

Stable Support Base: The design is completed by a solid support base that ensures stability during the splitting operation, minimising the risk of unwanted movements.

Quality Components:

  • The hydraulic system of this log splitter is managed by a double hydraulic pump that guarantees a constant and controlled flow of oil for a smooth and seamless split.
  • The particular Cutmac series represents a distinctive component that contributes to the high performance of this machine.
Free items & Standard equipment

Free Items Included

Complimentary:

2 bottles of 10W40 oil, specific for 4-stroke engines

Standard Equipment

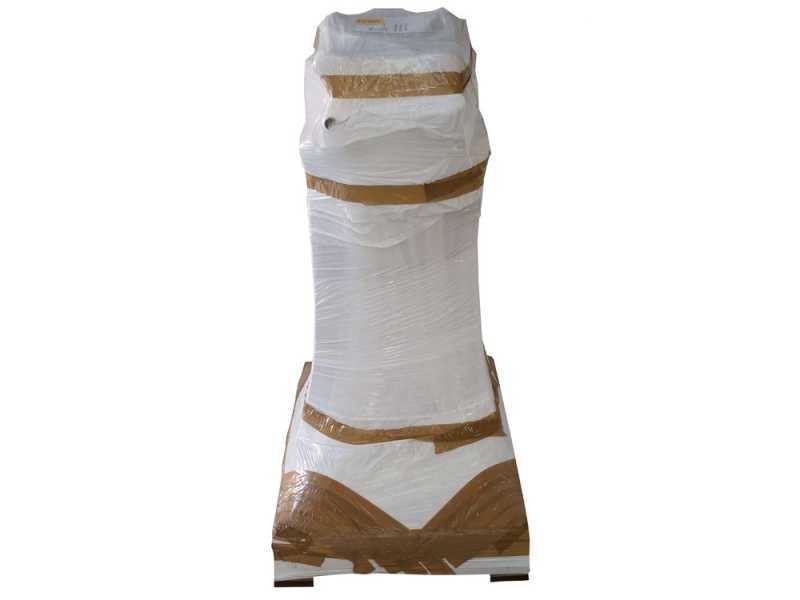

The log splitter is safely shipped in its original packaging and placed on pallet.

The maintenance and operating instructions manual is included in the packaging.
