Docma SF100 PTO XX - Tractor-mounted Log Splitter - Vertical

Add a question
ID: 112521

EAN: 8068020721932

MPN: 920030

Docma SF100 PTO XX - Tractor-mounted Log Splitter - Vertical
Max. trunk diameter
50 cm
Log holder
Yes
Piston stroke
54.5 cm
Max. pressure
190 bar
Retractable piston for transport
Yes
Operating mode
Tractor-driven PTO
Nominal splitting force
13 t
Effective thrust power
8.15 t
Tractor three-point hitch
Yes
Manufacturing country
Italy
Product Features
Model:
SF100 PTO XX
Type:
Vertical
Double speed:
No
Operating mode:
Tractor-driven PTO
Nominal splitting force:
13 t
Effective thrust power :
8.15 t
Piston stroke:
54.5 cm
Adjustable piston stroke (for short logs):
Yes
Worktop log cutting:
Yes
Cutting plate positions:
1
Ground splitting system:
No
High position trunk length:
54.5 cm
Manufacturing country:
Italy
Motor data
Power supply:
Tractor-driven PTO
Oil tank capacity:
13 L
Pump data
Pump type:
Hydraulic
Max. pressure:
190 bar
Oil tank:
Yes
Hydraulic oil qty.:
13 Litres
Cutting data
Max. trunk length:
54.5 cm
Max. trunk diameter:
50 cm
Equipment
Frame:
Standard
Pump:
Standard
Vertical log splitter safety lever:
Yes
Retaining side arms:
Yes
Retaining side supports:
Yes
Trunk lifting system:
No
Retractable piston for transport:
Yes
Tractor three-point hitch:
Yes
Log holder:
Yes
CE-compliant safety switch:
CE-compliant
Wheeled trolley for transport:
Yes
Rear wheels size:
30
Free gifts/extra features
Wooden pallet (safe shipping):
Yes
Instructions manual:
Yes
Dimensions and logistics

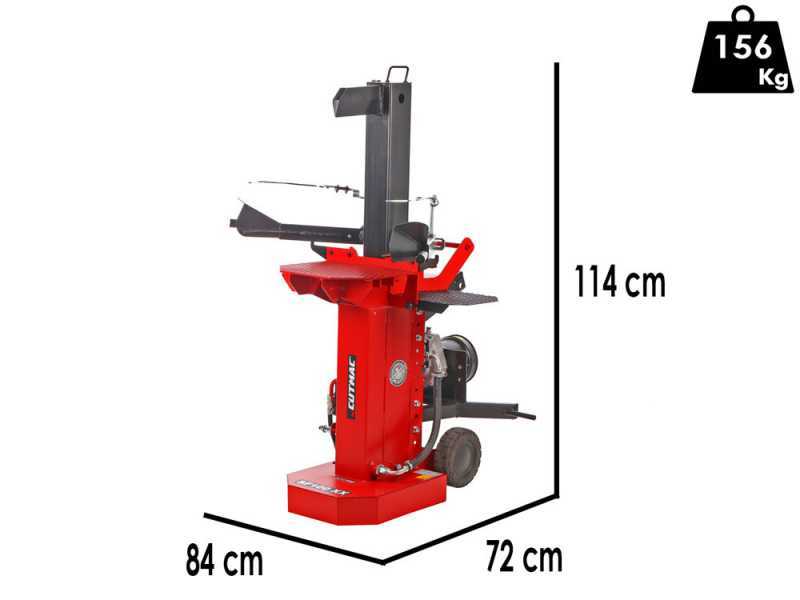

Product dimensions in cm (L x W x H):
84x72x114
Net weight:
156 Kg
Packaging:
Original packaging on pallet
Original packaging/s dimensions in cm (L x W x H):
120x80x132
Gross weight (packaging included) :
170 Kg
Unloading with hydraulic tail lift:
Yes
Prompt Delivery
3 items in stock
Free Shipping
Estimated delivery: 28/05/2024 - 30/05/2024
€ 1.992,36
VAT Included
You're viewing:
Customers also viewed:
Description

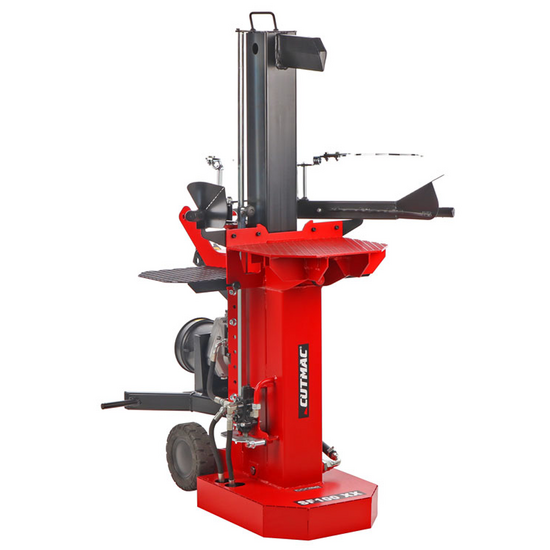

Docma SF100 PTO XX - Tractor-mounted Log splitter - Vertical

The Docma SF100 PTO XX log splitter model has been carefully designed to meet the needs of those who require a highly efficient and safe device for handling wood processing. This appliance is versatile and can be used for a variety of applications, including the production of firewood.

The structure of the SF100 PTO XX has been meticulously engineered to ensure exceptional performance, even when used with logs that exhibit significant strength or a knotty composition. This model features an oversized cylinder, supported by a robust metal structure and a piston with an 80 mm bore, factors that contribute significantly to its high operating efficiency.

Main technical Features of the SF100 PTO XX (Vertical):

  • CYLINDER STROKE: This model offers a cylinder stroke of 50 cm, a feature that allows ample flexibility in handling logs of different sizes, maximizing the efficiency of the splitting process.
  • Cutting height: The model has a cutting height of 54.5 cm, which eliminates the need for pre-cutting, allowing large logs to be processed more easily.
  • Oil tank capacity: Equipped with a hydraulic oil tank with a capacity of 13 litres, the system ensures continuous operation and minimises the frequency of interruptions for refilling fluid.
  • Adjustable Column Stroke: This feature provides additional versatility, allowing the user to adjust the machine to the specific dimensions of the logs to be processed.
  • Weight: With a total weight of 156 kg, the SF100 PTO XX offers an ideal balance between stability and ease of handling. This aspect makes it possible to transport it with relative simplicity when required.
  • Splitting force: 8.15 tons
  • Support surface: Home

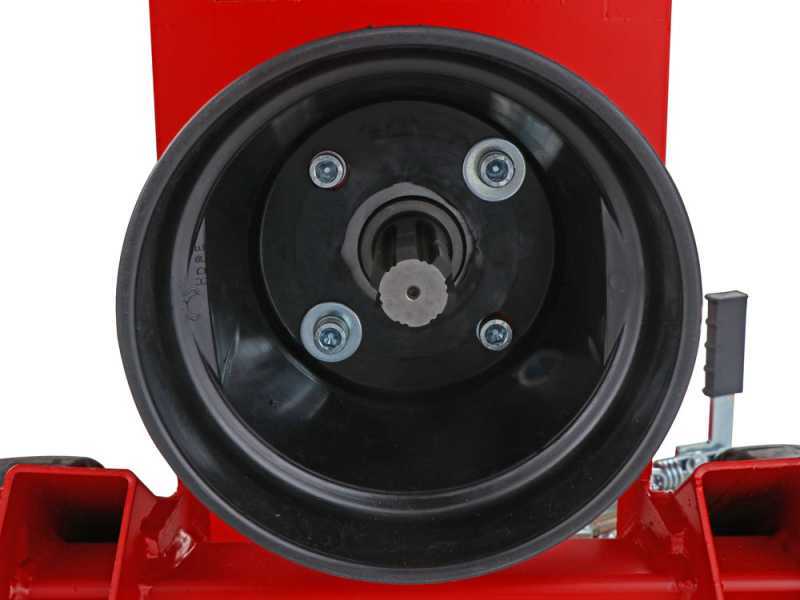

PTO drive with tractor

The log splitter in question has been developed to work in synergy with tractors, thanks to its ability to interface via of use a universal joint. This type of connection results in a high degree of operational efficiency, ensuring highly optimized power transmission from the tractor to the log splitter.

The structural strength of the unit is evident in both the design and precision mechanics of the chassis.

From the point of view of the hydraulic system, efficiency is guaranteed by a high-quality hydraulic pump. This component is in charge of sucking the oil from the integrated tank, which is strategically positioned at the base of the machine structure. The tank has a capacity of 13 litres and performs a dual function: it acts not only as a storage container for the oil, but also as an integrated structural element that contributes to the optimisation of space and the overall functionality of the apparatus.

The hydraulic cylinder is another crucial component, characterized by a powerful pushing force. Once activated by the hydraulic pump, the cylinder is able to provide both an efficient and continuous wood splitting process.

Finally, the role of the multiplier in the system is indispensable for power transmission. This component acts as a link between the tractor and the hydraulic pump, transferring the drive torque in an extremely efficient manner. It is precisely in this context that the universal joint takes on an intermediate function, ensuring that the power generated by the tractor is transferred to the hydraulic pump directly and without significant energy losses.

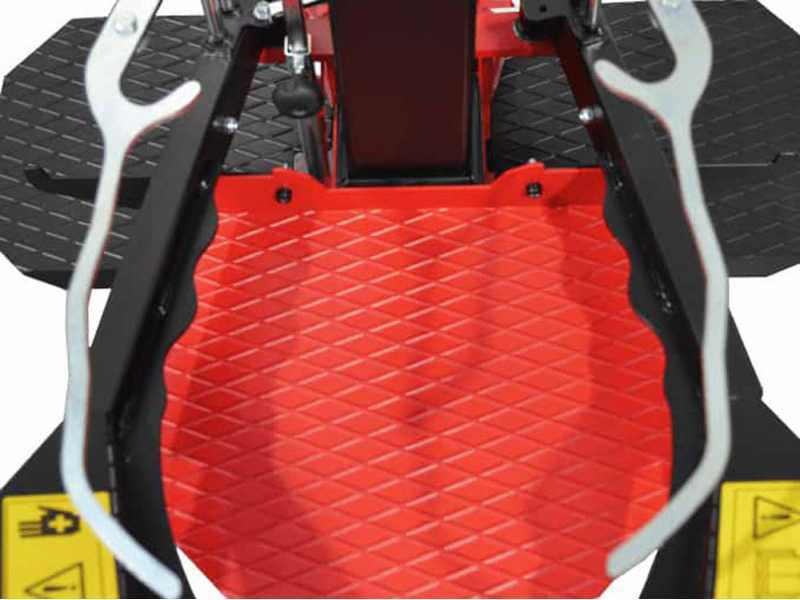

Wedge, dual control levers and cutting plate

The Docma SF100 PTO XX log splitter is a fundamental element for those engaged in wood log splitting operations. With a thrust force of 8.15 tons, this device has been designed to deal with the most demanding splitting tasks with efficiency and precision.

Performance characteristics:

  • Thrust Capacity: Equipped with a thrust force of 8.15 tons, the SF100 PTO XX model is designed to easily handle logs of various diameters, ensuring a precise and effective splitting action.
  • Split Dimensions: This machine is able to work with logs that reach dimensions up to 54.5 cm in height and 50 cm in diameter. This feature offers a high degree of flexibility in the choice of materials to be processed.
  • High resistance steel wedge: The log splitter is equipped with a high-strength steel wedge, which ensures long life and uniform performance over time.

Design and Functionality:

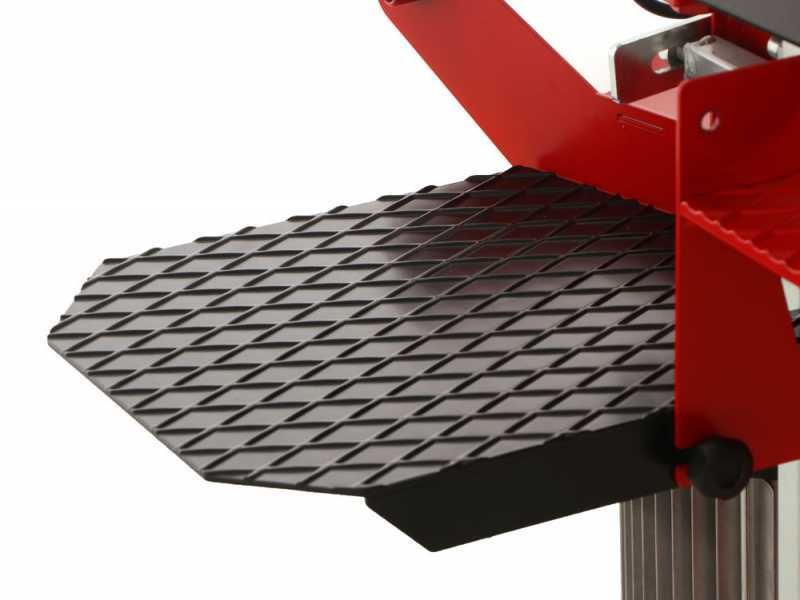

  • Large Work Surface: The model features a spacious working area that provides an optimal surface for the preparation and placement of the logs to be split.
  • Easy and Ergonomic Control: The dual control hydraulic valve control levers allow the user to easily manage splitting operations, adapting to different work needs.
  • SAFETY GUARDS: The pair of operating handles are equipped with standardised hand guards and safety devices to ensure maximum protection for the user.
  • Integrated Log Holder: A lateral support for the seal of the log is integrated in the arms of the handles, ensuring that the material to be split remains in a stable position throughout the entire operating cycle.
  • Limit switch control system: The limit switch control system is adjustable, allowing the user to customize the settings according to their preferences and work needs.

The SF100 PTO XX is a powerful and precise wood splitting solution. With its 8.15-ton thrust, ergonomic design and advanced safety features, this log splitter proves to be a reliable ally to tackle every woodworking challenge.

Additional features

The log splitter in question represents an advance in the field, combining strength and functionality in a sophisticated design. This tool is designed to offer longevity and ease of use, establishing itself as a reliable solution for splitting operations.

Robustness and Solidity: Made of high quality materials, the log splitter is characterized by a solid and resistant construction. This feature ensures that it can handle the most demanding operations effectively, providing consistent and confident results.

Functional Design:

  • Mobility: Thanks to the integration of wheels, our log splitter ensures easy handling, allowing you to position it strategically according to your needs.

  • Manoeuvrability: Its balanced structure and dedicated handle make it easy to move the unit.

  • ATTACHMENT POINT: A special attachment point is provided to facilitate lifting and storage of the log splitter.

  • Innovative Patented Locking System: This log splitter is equipped with an innovative patented locking system, designed to keep the log tightly secure and safe during splitting. This mechanism, the result of cutting-edge technologies, minimizes the risks of accidents, operating in full compliance with EN609-1-2017 safety standards.

Stable Support Base: The design is completed by a solid support base that ensures stability during the splitting operation, minimising the risk of unwanted movements.

Quality Components:

  • The hydraulic system of this log splitter is managed by a double hydraulic pump that guarantees a constant and controlled flow of oil for a smooth and seamless split.
  • The particular Cutmac series represents a distinctive component that contributes to the high performance of this machine.
Free items & Standard equipment

Standard equipment

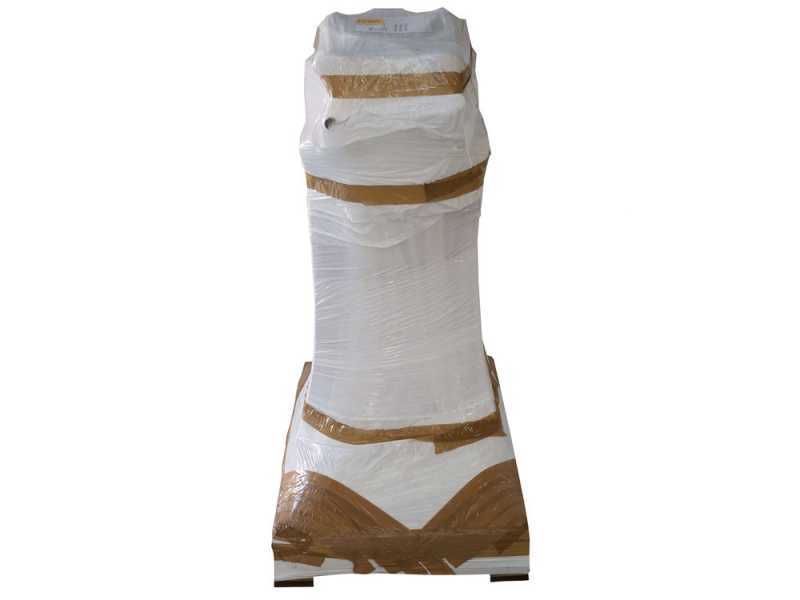

The log splitter is safely shipped in its original packaging on pallet.

The maintenance and operating instructions manual is included in the packaging.
