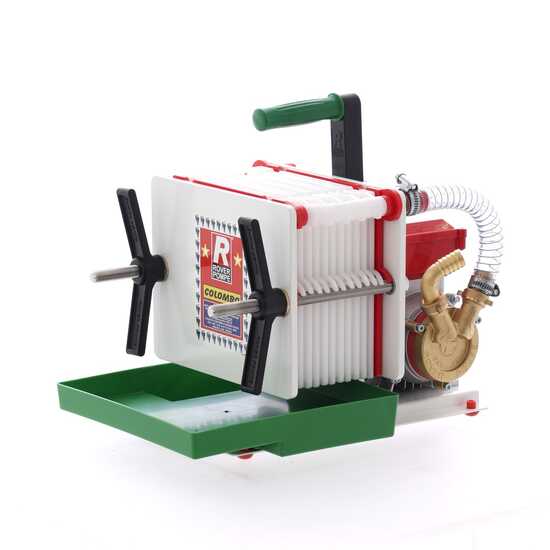

Rover Colombo 12 - Plate-and-Sheet Filter - Bronze Pump

The Rover Colombo 12 plate-and-sheet filter pump is designed to filter wine and other food-grade liquids, as well as to carry out decanting operations. The filter unit accommodates up to 12 sheets measuring 20 × 20 cm and achieves a flow rate of between 350 and 500 L/h.

During the operating cycle, the bronze pump draws in the liquid and conveys it through the filter sheets installed between the plates. The different layers retain impurities according to the filtration rating of the selected sheets. The Rover Colombo 12 filter pump can also operate with fewer than 12 filter sheets, by removing any plates that are not required. In this configuration, the hourly output decreases in proportion to the number of layers used. By separating the pump from the filter unit, the machine can also be used for transfer only.

The main technical specifications of the Rover Colombo 12 plate-and-sheet filter pump include:

• Filter unit: accommodates up to 12 filter sheets measuring 20 × 20 cm. The number of sheets can be reduced depending on the volume of liquid to be treated.
• Filtration flow rate: varies from 350 to 500 L/h depending on the filter sheets installed. The degree of filtration depends on the characteristics of the chosen filter material.
• Bronze pump: provides suction and circulates the liquid through the filter layers. It can be disconnected from the filter to carry out decanting operations.
• Induction motor: delivers 0.34 kW (approximately 0.5 HP), with a single-phase power supply of 230 V and 50 Hz. It drives the pump during filtration and transfer.
• Fittings and suction depth: the suction and discharge use 20 mm diameter connections. The maximum stated suction depth is 4 m.
• Dimensions and weight: it measures 430 × 270 × 280 mm and weighs approximately 16–16.8 kg. Its compact dimensions make it easy to position within the cellar’s working areas.

The Rover Colombo 12 is fitted with a bronze pump, connected to a 0.34 kW induction motor, equivalent to approximately 0.5 HP.

The pump operates on a single-phase 230 V – 50 Hz supply and is fitted with 20 mm diameter suction and discharge connections.

Key features include:

• Bronze pump body
• Motor power: 0.34 kW / approximately 0.5 HP
• Induction motor
• Power supply: 230 V single-phase – 50 Hz
• Suction and delivery connection diameter: 20 mm
• Maximum suction head: 4 metres

The pump circulates the liquid through the filter unit, ensuring the necessary flow rate during filtration operations.

It can also be disconnected from the plate filter system and used independently as a transfer pump, allowing wine and other compatible food-grade liquids to be transferred even without using the filter.

The Rover Colombo 12 is fitted with a 0.34 kW induction motor, equivalent to approximately 0.5 HP, designed to drive the pump during filtration and decanting operations.

The electric motor operates on a single-phase 230 V – 50 Hz supply, compatible with a standard domestic mains supply.

Key features include:

• Motor type: induction motor
• Power: 0.34 kW
• Equivalent power: approximately 0.5 HP
• Power supply: single-phase
• Voltage: 230 V
• Frequency: 50 Hz

The induction motor drives the pump directly, ensuring the flow required to convey the liquid through the filtration system and for normal transfer operations.

Plate and sheet filtration system

The Rover Colombo 12 uses a plate filtration system designed to accommodate up to 12 filter sheets measuring 20 × 20 cm.

The liquid is conveyed by the pump through the various filter sheets, which progressively retain impurities. The filtration flow rate ranges from 350 to 500 litres per hour, depending on the type of filter sheet installed and its filtration rating.

Key features of the filtration system include:

• Maximum number of filter sheets: 12
• Filter sheet size: 20 × 20 cm
• Filtration flow rate: 350–500 litres per hour
• Adjustable filtration: depending on the type of filter cartridge used
• Option to use fewer filter sheets

It is possible to use the machine with fewer filter sheets by removing the unnecessary plates. In this way, the degree of filtration remains determined by the chosen cartridge, while the volume of liquid that can be filtered per unit of time decreases proportionally.

This configuration allows the system to be adapted both to the type of liquid to be treated and to the quantity to be filtered, using only the number of filter sheets required for the process.

The COLOMBO® FILTER consists of a special electric pump and a filtration system known as "pressurised multi-layer filtration system".

This particular type of filtration achieves excellent purification without altering the fundamental characteristics of the liquid being filtered. For this reason, it is particularly valued for domestic filtration, but also in the professional sector, such as in wineries, pharmaceutical factories and laboratories.

A particularly sturdy frame made from thick enamelled steel.

Detail of the main switch for operating the electric motor.

Detail of the filter clamping handles

Drain liquid collection tray with a tube for the immediate return of the drain liquid to the main container.

Detail of the foldable lifting handle.
