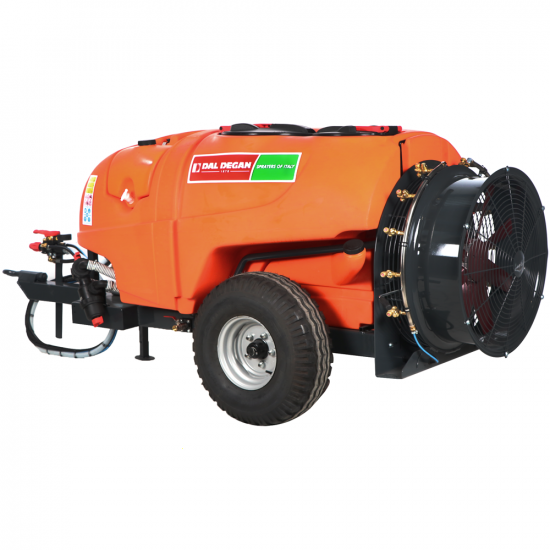

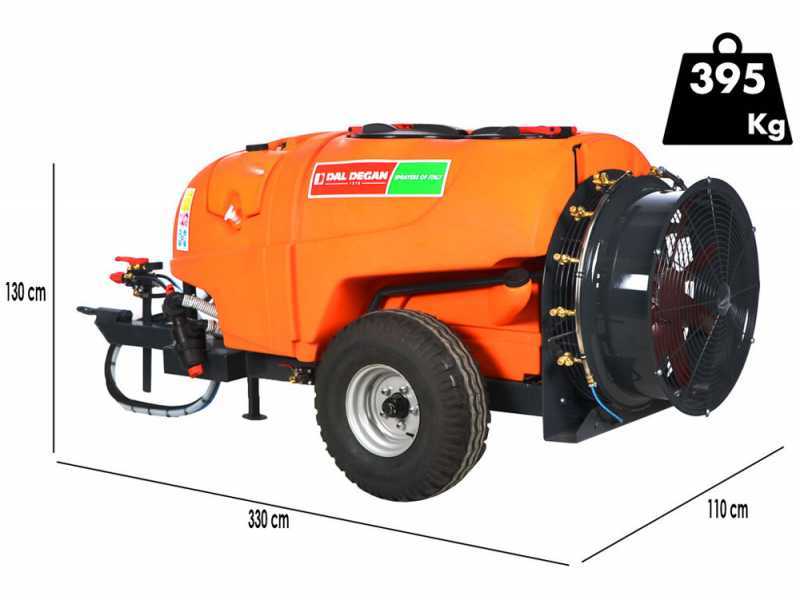

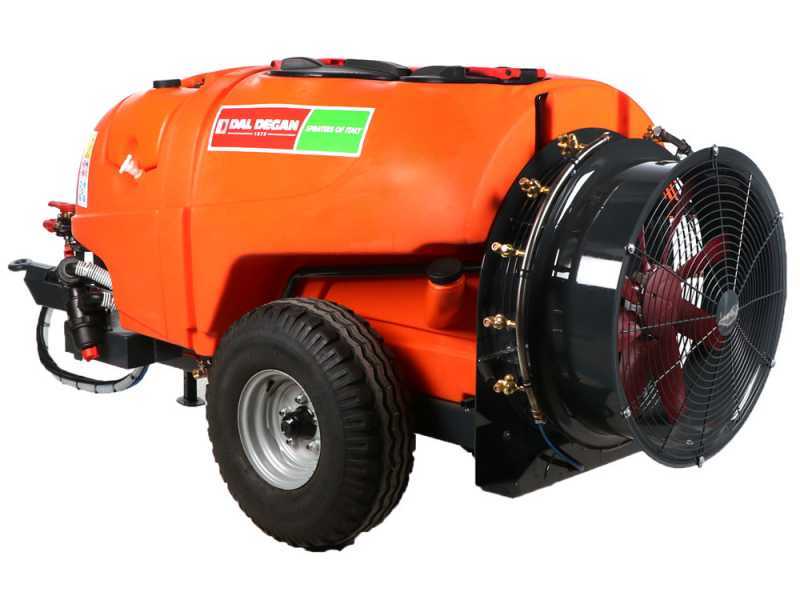

Dal Degan Sofiano - Trailed tractor-mounted sprayer - 800L - APS 96 pump

The Dal Degan Sofiano trailed sprayer is a device used in the irrigation of plant protection products and plant care chemicals.

• Efficient Spraying System: The product, mixed with water in the tank, is sprayed onto the plants via a 700 mm fan. This creates a strong circular jet of air that evenly distributes the pulverised droplets.

• Double nozzles with anti-drip : Designed to generate a very fine mist, they ensure even and complete coverage over the surface of the plants.

• Large Ground Cover: Its design allows it to be towed by a farm tractor, covering large areas quickly and increasing operational efficiency.

• Versatile and Adaptable: It can be used on different crops and soil types, and is easily adapted to the specific needs of farmers. In addition, it can be coupled to less powerful machines due to the presence of wheels.

• Enamelled Steel Frame: It offers resistance to rust, ensuring durability and reliability.

• Multiplier CMV Made in Italy: Integrated to maximise efficiency and ensure long product life, with the guaranteed quality of Italian manufacture.

• Pump Comet APS 96: High-quality component, ensuring optimal performance and reliability.

• 800L polyethylene tank: Large capacity that reduces the need for frequent recharging, improving work efficiency.

• Tractor hitch with 3-level adjustable drawbar: It allows easy coupling and optimum adaptation to different tractor types.

The responsible use of the atomiser, in compliance with safety and environmental regulations, is crucial. Thanks to its versatility and ability to cover large areas quickly and efficiently, make a popular choice among farmers around the world.

The fan is the essential element that determines the power of the sprayer, hence it determines the ability to push the atomised product in width and height. Shovels made of nylon that provide excellent weather resistance.

Enamelled steel fan unit, equipped with oil-bath gearbox.

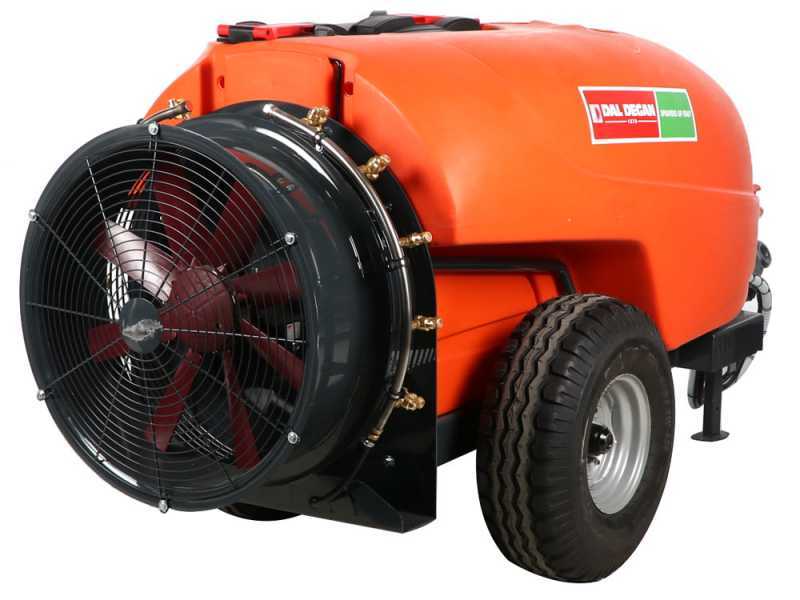

700 mm diameter rear suction axial fan (8 blades).

The blades are adjustable in 7 positions. Detail of the propeller blade rotation system.

The aerodynamic profile with adjustable tilting gives the Operator the possibility to freely customize the machine.

Thanks to the fan's features, the product can be used in the following fields:

• Citrus groves
• Orchards
• Vineyards
• Greenhouse crops
• Olive grove
• Tall trees
• Berries, blueberries, avocados
• Banana groves

The sprayer's transmission is an oil-bath gearbox for maximum reliability over time.

The gearbox is manufactured in Italy by CMV of Lonigo. (Box made of cast iron)

Made in Italy guarantees excellent construction quality and materials for this component, as well as easy availability of spare parts if needed.

Detail of fan drive engagement lever with speed 1st e 2nd + neutral position.

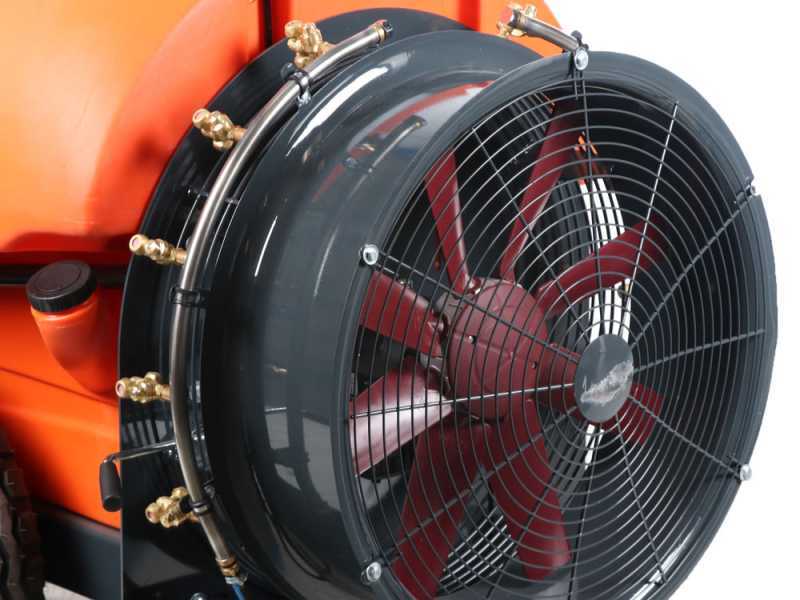

Stainless steel spray rods divided into two sectors, a left one with 5 jets and a right one with the other 5 jets.

Double brass spray nozzles with anti-drop and quick-closing system.

Ceramic nozzles 1.0 / 1.2

Provided with three steps that coincide with the positions:

• Nozzle with larger hole (higher liquid delivery)
• Central position = closed jet
• Nozzle with smaller hole (less liquid delivery)

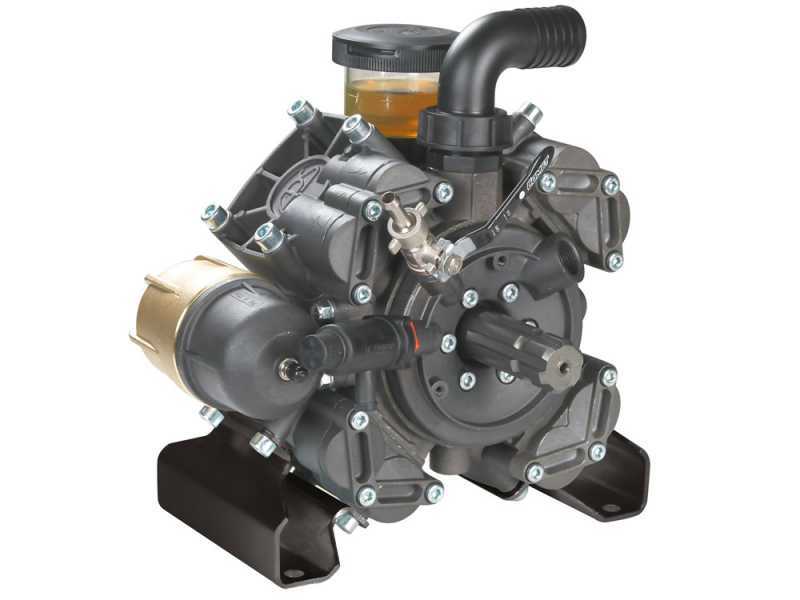

The APS 96 motor pump is a high quality product designed by Comet for spraying treatments in medium to large crops.

The motor pump is equipped with 4 membranes made of NBR, a material resistant and durable to the chemicals used in plant protection treatments, this ensures consistent and reliable performance.

The parts of the motor pump that come into contact with the liquid are made of anodised aluminium. This material offers superior resistance to corrosion and wear.

The Comet APS 96 motor pump is equipped with a pressure accumulator and safety valve as standard.

General features:

No. of membranes: 4

Pressure: 50 bar

RPM: 550

Flow rate: 88 l/min

Power: 11.7 HP

PTO detail

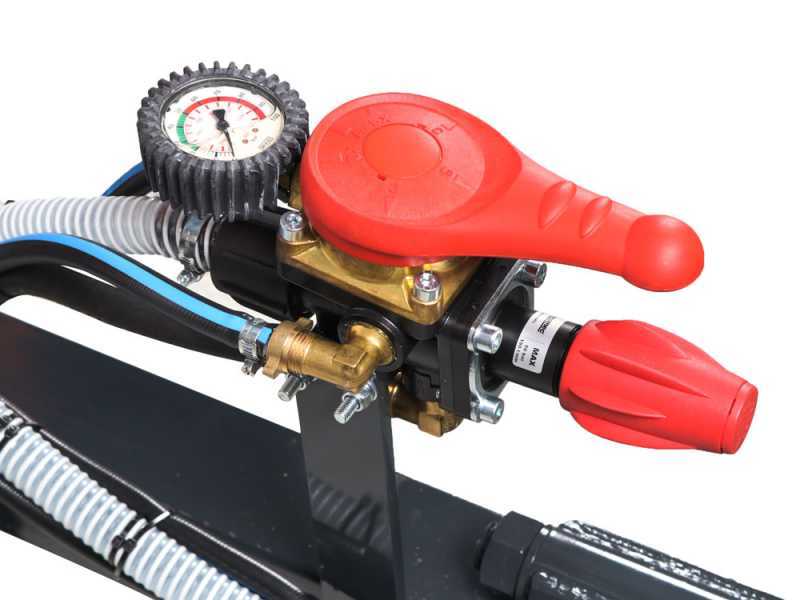

Comet Alfa 2 control unit with three-way pressure regulation.

Pressure adjustment knob.

Pressure gauge.

The two side taps supply respectively the right-hand sector of the fan and the left-hand sector.

Control lever for opening or closing pressure.

This means that the two sectors can also be switched on separately, i.e. only the nozzles on the right-hand side or only on the left-hand side (e.g. when you are on the edge of your plot).

Remote control unit equipped with very long cables, which allows the control unit to be brought right up to the tractor.

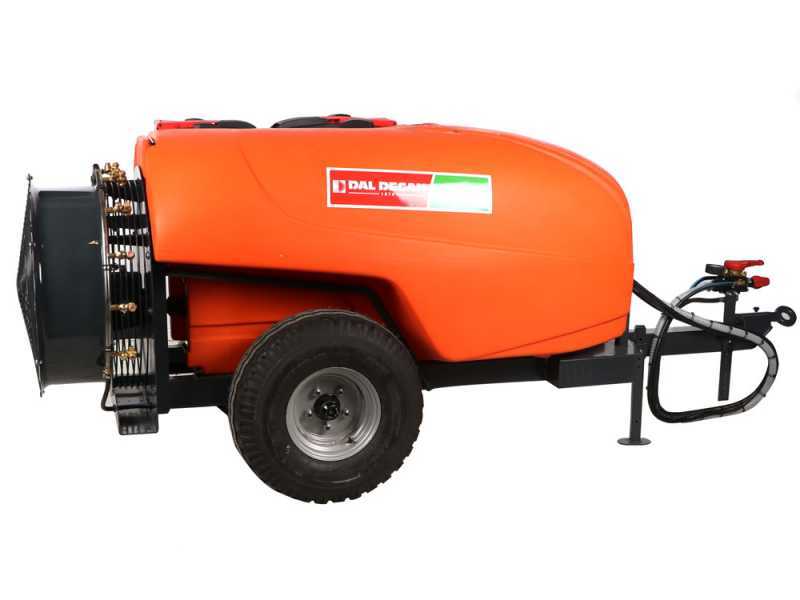

Reinforced enamelled steel frame that makes the machine highly resistant to wear and tear over time.

Drawbar with adjustable coupling up to 3 levels.

Adjustable foot for stable ground support of the machine at rest

The wheels of the trailed sprayer play a key role in the operation and mobility of the equipment, ensuring maximum grip on the ground to cope with rough and uneven terrain typical of agricultural areas.

Adjustable axle width for greater machine stability on more uneven terrain.

Polyethylene full-emptying tank, capacity (L) 800.

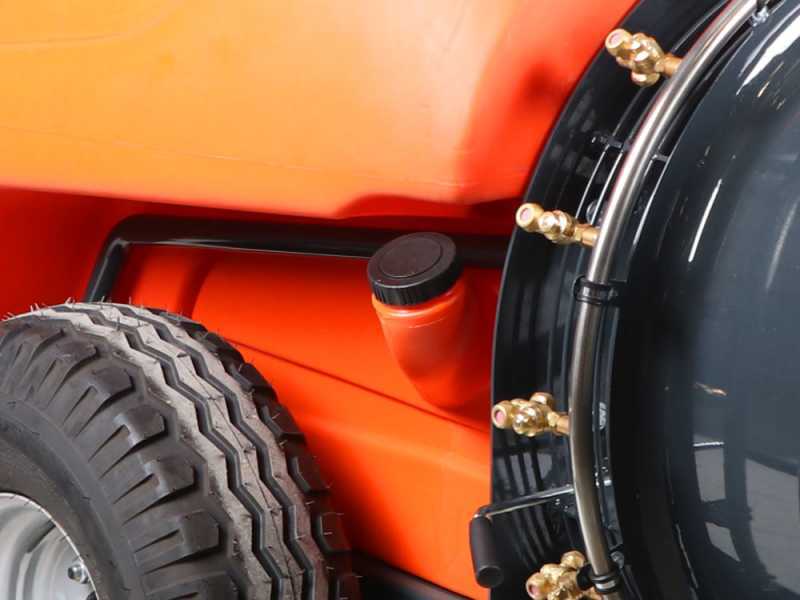

Additional cistern for circuit washing

Detail of the external level with graduated scale

Detail of the lever for emptying the bottom tank for total emptying. Multi-volume

hydraulic agitator, for constantly mixing the solution inside the tank, equipped with a high-pressure jet that shoots to the centre of the tank.

Equipped with a self-filling system (the tube for self-filling the tank must be purchased additionally).

Focus on the inlet water filter.

Machine in accordance with CE standards
