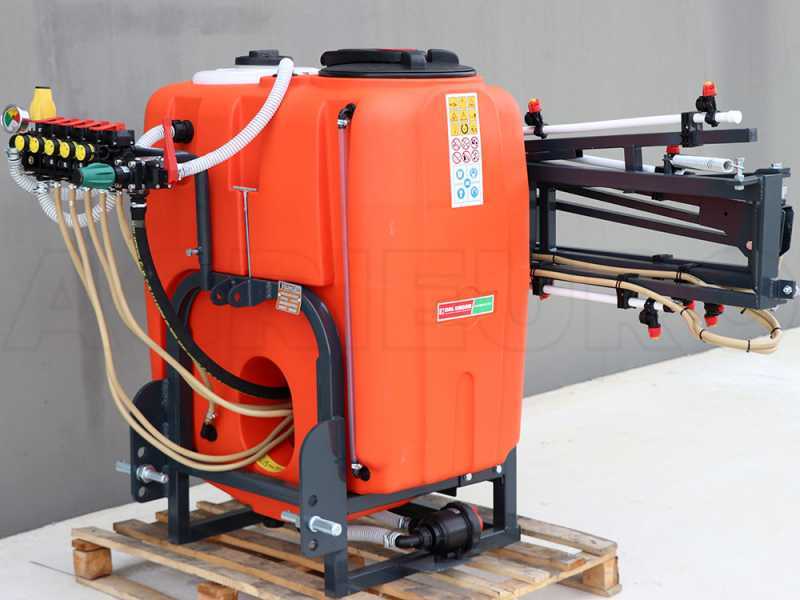

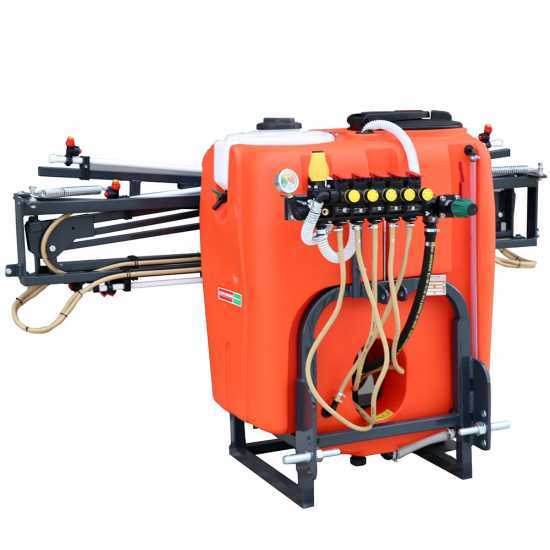

MANDA 300 L is a mounted weed sprayer equipped with a 10 m boom with 10+10 nozzles, with which you can treat medium and large crops.
This mounted weed sprayer has a four-way constant pressure volumetric distributor which allows to better adjust liquid delivery.
Equipped with a DAL DEGAN YP70 pump with a maximum pressure of 50 Bar and 70L flow rate per minute.
The total-emptying tank is made of polyethylene with a capacity of 300 L
HEAVY PROFILE enamelled steel frame.
MANDA 300 L is a mounted weed sprayer equipped with a 10 m weeding boom with 10+10 nozzles, with which you can treat medium and large crops.

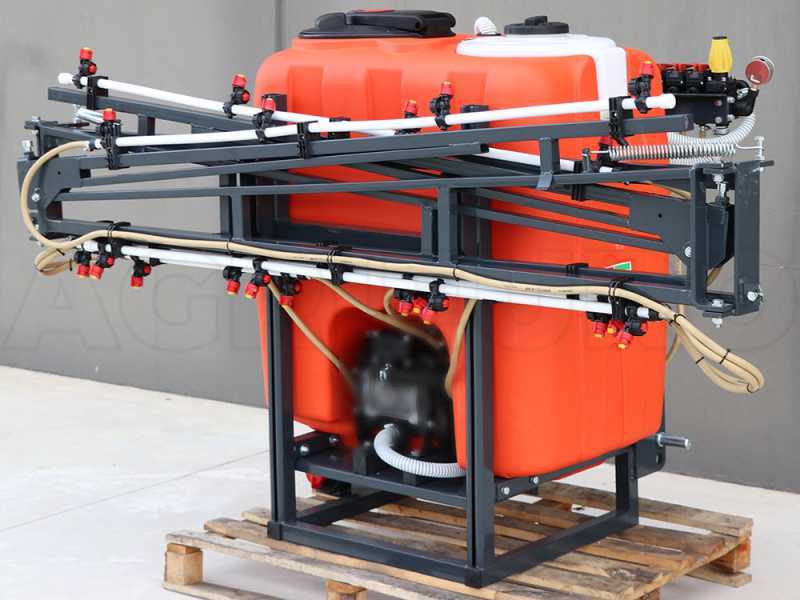

The boom folds into 4 sections thanks to a spring system
Focus on the easy-to-clean nozzles.

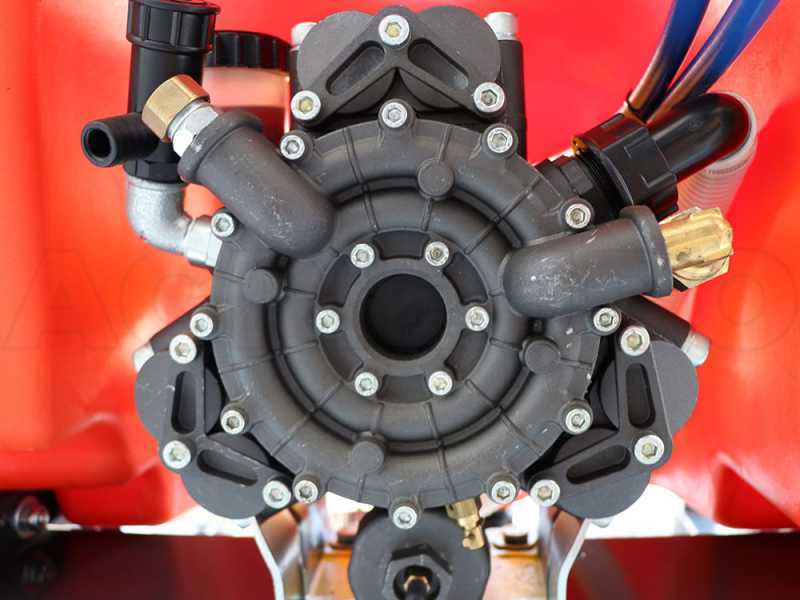

DAL DEGAN YP 70 high-pressure pump has three membranes, compact size, suitable for spraying, weeding and pest control using pesticides and plant protection products.
The finishing is anodized.
This mounted weed sprayer has a four-way constant pressure volumetric distributor.
VOLUMETRIC = it maintains a perfectly constant liquid supply for each nozzle even when the pump speed varies or when the speed changes.
CONSTANT PRESSURE = it maintains a perfectly constant pressure on each of the outlets, so that every nozzle will deliver the same amount of liquid.
These two systems provide a distribution of the treatment as even and regular as possible, without waste, minimizing costs and reducing the damage on the environment.
Focus on the adjustable compensators (Through a special front wheel) of which each of the four outputs is equipped, allows the calibration of the individual sections.

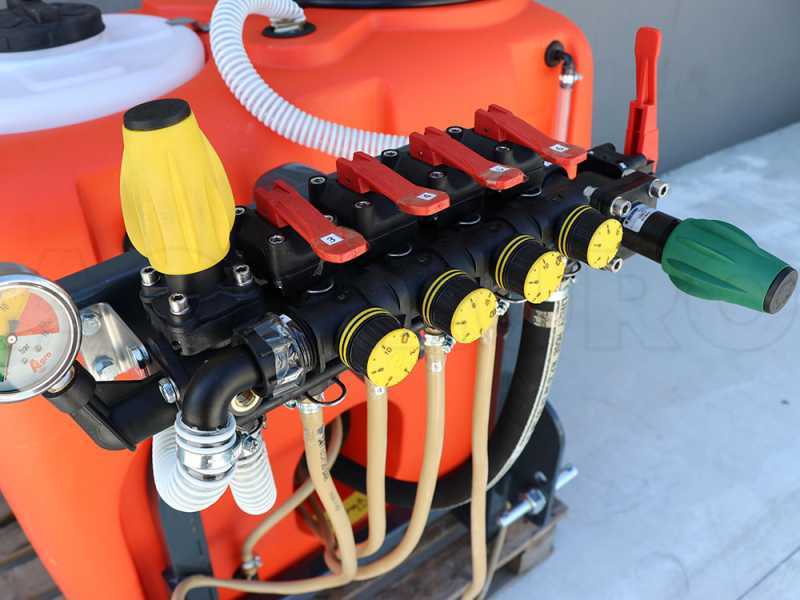

Pressure adjustment knob and Bypass lever that opens and closes the inflow of liquid to the boom.
Proportional valve to adjust the overall working pressure and pressure gauge.
Polyethylene full-emptying tank, capacity (L) 300.
Additional tank for hand washing
Focus on the external level with graduated scale.
Hydraulic agitator, to constantly mix the solution within the tank. It has a high-pressure jet in the centre of the tank.
External suction filter equipped with self-filling system (the hose for tank self-filling is sold separately, you can find it in the related accessories section).
Enamelled steel section frame.
Focus on the three-point linkage.
.jpg)

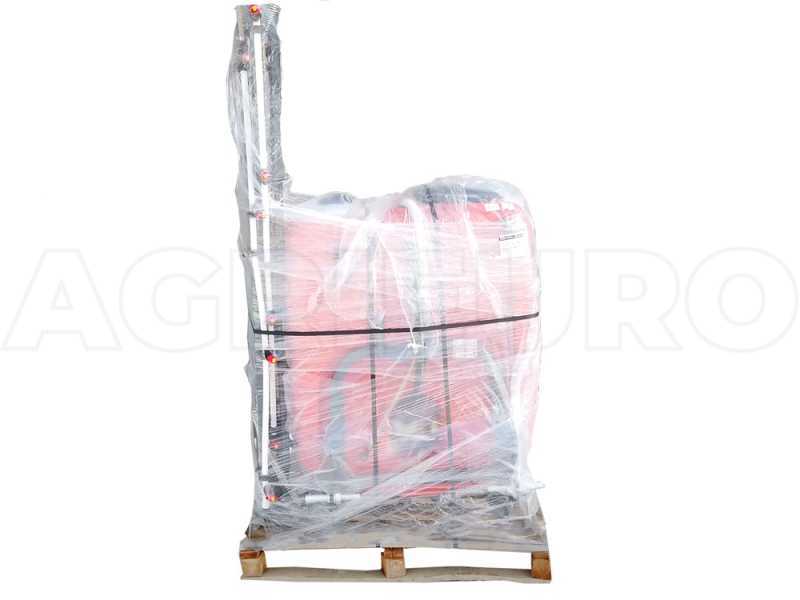

The machine is shipped on pallet and carefully packaged, including instruction manual and tightening screws.
10 meters weeding bar
