Dal Degan ILEO 300 L - Compact tractor-mounted sprayer unit - YP 70 pump

Semi-Pro
Questions & Answers (8)
ID: 106080

EAN: 8014060485990

MPN: 8730612800082

Dal Degan
Catalog Dal Degan
7,1/10
After-sales assistance & Spare parts
65Pictures
3Videos
4Customer pics
Dal Degan ILEO 300 L - Compact tractor-mounted sprayer unit - YP 70 pump
Dal Degan ILEO 300 L - Compact tractor-mounted sprayer unit - YP 70 pump
Dal Degan ILEO 300 L - Compact tractor-mounted sprayer unit - YP 70 pump
Dal Degan ILEO 300 L - Compact tractor-mounted sprayer unit - YP 70 pump
Dal Degan ILEO 300 L - Compact tractor-mounted sprayer unit - YP 70 pump
Dal Degan ILEO 300 L - Compact tractor-mounted sprayer unit - YP 70 pump
+100 sold
Tank capacity
300 l
Pressure regulator
Yes
Flow rate
70 L/min
Max. operating pressure
50 bar
Tool boom
In steel
Hand washing tank
Yes
Manufacturing country
Serbia
Product Features
Model:
ILEO 300
Type:
For spraying treatments
Operating mode:
Tractor mounted
Frame type:
Enamelled steel
Flow rate:
70 L/min
Max. operating pressure:
50 bar
Tank capacity:
300 l
Tank capacity:
300 L
Fixed 3-point hitch:
Yes
Manufacturing country:
Serbia
Pump data
Pump brand:
Dal Degan
Pump brand:
Dal Degan
Model:
YP70
Pump type:
a tre membrane
Flow rate:
70 lt/min
Operating pressure:
50 bar
Pressure regulator:
Yes
Manufacturing country:
Turkey
Equipment
Equipment:
Optional accessories
Tool boom:
In steel
Internal hydraulic shaker:
Yes
Distributor:
Standard
Hand washing tank:
Yes
Free gifts/extra features
Kit for bracket assembly:
Yes
Self-filling joint:
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
130x95x130 cm
Net weight:
95 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
70x90x134 cm
Gross weight (packaging included) :
95 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
15 minutes
Out of stock
Notify me when available
Free Shipping
Free returns (up to 30 days after receipt) *
€ 1.284,91
VAT Included
5% off from the second item in your cart
Are you a business? Check out prices tailored to you!
You're viewing:
Customers also viewed:
Description

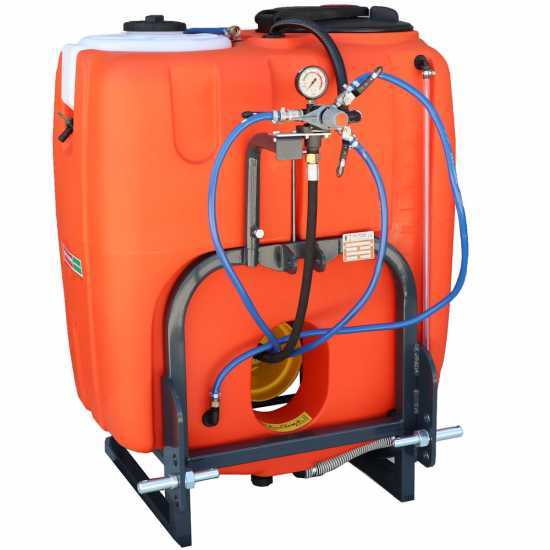

DAL DEGAN 300 L Tractor-mounted Sprayer

DAL DEGAN 300 L mounted sprayer with 70 L/min YP70 pump is a spraying unit suitable for medium and large crops.

It is equipped with main total-emptying polyethylene tank and hand-washing tank, also made of polyethylene.

It connects to the tractor via the 3-point linkage on the enamelled steel frame.

The tank is equipped with high-pressure YP70 DAL DEGAN pump, with three membranes, complete with three-outlet pressure regulator.

Attention: universal joint for tractor PTO connection not included.

USES:

  • Horticultural crops
  • Cereal crops
  • Espalier orchard
  • Espalier vineyard
  • Kiwi gdc
  • Tendone vineyard and kiwi
  • Olive grove greenhouse
Dal Degan ILEO 300 L - Compact tractor-mounted sprayer unit - YP 70 pump
Dal Degan ILEO 300 L - Compact tractor-mounted sprayer unit - YP 70 pump Dal Degan ILEO 300 L - Compact tractor-mounted sprayer unit - YP 70 pump Dal Degan ILEO 300 L - Compact tractor-mounted sprayer unit - YP 70 pump Dal Degan ILEO 300 L - Compact tractor-mounted sprayer unit - YP 70 pump Dal Degan ILEO 300 L - Compact tractor-mounted sprayer unit - YP 70 pump Dal Degan ILEO 300 L - Compact tractor-mounted sprayer unit - YP 70 pump Dal Degan ILEO 300 L - Compact tractor-mounted sprayer unit - YP 70 pump Dal Degan ILEO 300 L - Compact tractor-mounted sprayer unit - YP 70 pump Dal Degan ILEO 300 L - Compact tractor-mounted sprayer unit - YP 70 pump Dal Degan ILEO 300 L - Compact tractor-mounted sprayer unit - YP 70 pump Dal Degan ILEO 300 L - Compact tractor-mounted sprayer unit - YP 70 pump Dal Degan ILEO 300 L - Compact tractor-mounted sprayer unit - YP 70 pump Dal Degan ILEO 300 L - Compact tractor-mounted sprayer unit - YP 70 pump Dal Degan ILEO 300 L - Compact tractor-mounted sprayer unit - YP 70 pump Dal Degan ILEO 300 L - Compact tractor-mounted sprayer unit - YP 70 pump Dal Degan ILEO 300 L - Compact tractor-mounted sprayer unit - YP 70 pump

Tank Accessories Sold Separately

These are some of the accessories that can be mounted on DAL DEGAN sprayer tanks.

The two horizontal bars are suitable to mount any type of accessory on the market, in several positions.

Here are some examples of single mounting accessories:

  • Steel hose reel with 100 m blue netted high-pressure hose (25 bar) and brass lever lance. You can pair the steel hose reel to the "mitra" lance or to the spray gun tall trees.
  • Stainless steel spray guns with 4+4 brass butterfly nozzles
  • Spray guns

Many customization options:

  • Steel hose reel with 100 m blue netted high-pressure hose (25 bar) and spray guns
  • Pair of stainless steel spray booms with 4+4 brass butterfly nozzles and spray guns
  • There is enough space in the bars to mount all the accessories available, so they are always handy

All the accessories are available in the RELATED PRODUCTS section.

The photos with the accessories are purely illustrative.

Dal Degan ILEO 300 L - Compact tractor-mounted sprayer unit - YP 70 pump
Dal Degan ILEO 300 L - Compact tractor-mounted sprayer unit - YP 70 pump Dal Degan ILEO 300 L - Compact tractor-mounted sprayer unit - YP 70 pump Dal Degan ILEO 300 L - Compact tractor-mounted sprayer unit - YP 70 pump Dal Degan ILEO 300 L - Compact tractor-mounted sprayer unit - YP 70 pump Dal Degan ILEO 300 L - Compact tractor-mounted sprayer unit - YP 70 pump Dal Degan ILEO 300 L - Compact tractor-mounted sprayer unit - YP 70 pump Dal Degan ILEO 300 L - Compact tractor-mounted sprayer unit - YP 70 pump Dal Degan ILEO 300 L - Compact tractor-mounted sprayer unit - YP 70 pump Dal Degan ILEO 300 L - Compact tractor-mounted sprayer unit - YP 70 pump Dal Degan ILEO 300 L - Compact tractor-mounted sprayer unit - YP 70 pump Dal Degan ILEO 300 L - Compact tractor-mounted sprayer unit - YP 70 pump Dal Degan ILEO 300 L - Compact tractor-mounted sprayer unit - YP 70 pump

DAL DEGAN YP70 Pump

DAL DEGAN YP 70 high-pressure pump has three membranes, compact size, suitable for spraying, weeding and pest control using pesticides and plant protection products.

The finishing is anodized.

Performance

  • N. membrane / pistons: 3
  • Flow rate: 70 L/min
  • Pressure: 50.0 bar
  • Power: 12 HP
  • RPM: 540
  • Kerb weight: 17
Dal Degan ILEO 300 L - Compact tractor-mounted sprayer unit - YP 70 pump
Dal Degan ILEO 300 L - Compact tractor-mounted sprayer unit - YP 70 pump Dal Degan ILEO 300 L - Compact tractor-mounted sprayer unit - YP 70 pump Dal Degan ILEO 300 L - Compact tractor-mounted sprayer unit - YP 70 pump Dal Degan ILEO 300 L - Compact tractor-mounted sprayer unit - YP 70 pump Dal Degan ILEO 300 L - Compact tractor-mounted sprayer unit - YP 70 pump Dal Degan ILEO 300 L - Compact tractor-mounted sprayer unit - YP 70 pump Dal Degan ILEO 300 L - Compact tractor-mounted sprayer unit - YP 70 pump Dal Degan ILEO 300 L - Compact tractor-mounted sprayer unit - YP 70 pump

Three-way Comet SIRIUS Regulation Unit

The 3-way pressure regulation unit has 3 outlets, 2 available, each equipped with a valve, suitable for the most varied uses.

Usually, the two horizontal outlets are used to connect, for example, a pair of spray guns for orchards/olive groves, or stainless steel booms for vineyard, etc...

Instead, the central valve facing downwards mounts the hydraulic agitator.

Dal Degan ILEO 300 L - Compact tractor-mounted sprayer unit - YP 70 pump
Dal Degan ILEO 300 L - Compact tractor-mounted sprayer unit - YP 70 pump Dal Degan ILEO 300 L - Compact tractor-mounted sprayer unit - YP 70 pump Dal Degan ILEO 300 L - Compact tractor-mounted sprayer unit - YP 70 pump Dal Degan ILEO 300 L - Compact tractor-mounted sprayer unit - YP 70 pump Dal Degan ILEO 300 L - Compact tractor-mounted sprayer unit - YP 70 pump Dal Degan ILEO 300 L - Compact tractor-mounted sprayer unit - YP 70 pump Dal Degan ILEO 300 L - Compact tractor-mounted sprayer unit - YP 70 pump Dal Degan ILEO 300 L - Compact tractor-mounted sprayer unit - YP 70 pump

Heavy Enamelled Steel Frame

Heavy enamelled steel frame, complete with 3-point linkage for tractor mounting.

The attachment points to the lifter are complete with pins.

This tank is equipped with two horizontal bars to apply any accessories.

These brackets can be applied in several positions, making them suitable for any type of accessory on the market.

Dal Degan ILEO 300 L - Compact tractor-mounted sprayer unit - YP 70 pump
Dal Degan ILEO 300 L - Compact tractor-mounted sprayer unit - YP 70 pump Dal Degan ILEO 300 L - Compact tractor-mounted sprayer unit - YP 70 pump Dal Degan ILEO 300 L - Compact tractor-mounted sprayer unit - YP 70 pump Dal Degan ILEO 300 L - Compact tractor-mounted sprayer unit - YP 70 pump Dal Degan ILEO 300 L - Compact tractor-mounted sprayer unit - YP 70 pump Dal Degan ILEO 300 L - Compact tractor-mounted sprayer unit - YP 70 pump Dal Degan ILEO 300 L - Compact tractor-mounted sprayer unit - YP 70 pump Dal Degan ILEO 300 L - Compact tractor-mounted sprayer unit - YP 70 pump

General Features

Polyethylene total-emptying tank

Additional tank for hand washing

Focus on the external hose with graduated scale for a quick checking of the liquid level inside the tank.

Hydraulic agitator, to constantly mix the solution within the tank. It has a high-pressure jet in the centre of the tank.

External suction filter equipped with self-filling system (the hose for tank self-filling is sold separately, you can find it in the related accessories section).

Internal filter that cleans the liquid from any possible residue or dirt during the tank filling phase.

Discharge plug for complete emptying

Focus on the PTO

Dal Degan ILEO 300 L - Compact tractor-mounted sprayer unit - YP 70 pump
Dal Degan ILEO 300 L - Compact tractor-mounted sprayer unit - YP 70 pump Dal Degan ILEO 300 L - Compact tractor-mounted sprayer unit - YP 70 pump Dal Degan ILEO 300 L - Compact tractor-mounted sprayer unit - YP 70 pump Dal Degan ILEO 300 L - Compact tractor-mounted sprayer unit - YP 70 pump Dal Degan ILEO 300 L - Compact tractor-mounted sprayer unit - YP 70 pump Dal Degan ILEO 300 L - Compact tractor-mounted sprayer unit - YP 70 pump Dal Degan ILEO 300 L - Compact tractor-mounted sprayer unit - YP 70 pump Dal Degan ILEO 300 L - Compact tractor-mounted sprayer unit - YP 70 pump Dal Degan ILEO 300 L - Compact tractor-mounted sprayer unit - YP 70 pump Dal Degan ILEO 300 L - Compact tractor-mounted sprayer unit - YP 70 pump Dal Degan ILEO 300 L - Compact tractor-mounted sprayer unit - YP 70 pump Dal Degan ILEO 300 L - Compact tractor-mounted sprayer unit - YP 70 pump
Free items & Standard equipment

Free Items Included

The machine is shipped on pallet, carefully packed, with instruction manual and tightening screws included

Dal Degan ILEO 300 L - Compact tractor-mounted sprayer unit - YP 70 pump
Dal Degan ILEO 300 L - Compact tractor-mounted sprayer unit - YP 70 pump Dal Degan ILEO 300 L - Compact tractor-mounted sprayer unit - YP 70 pump
