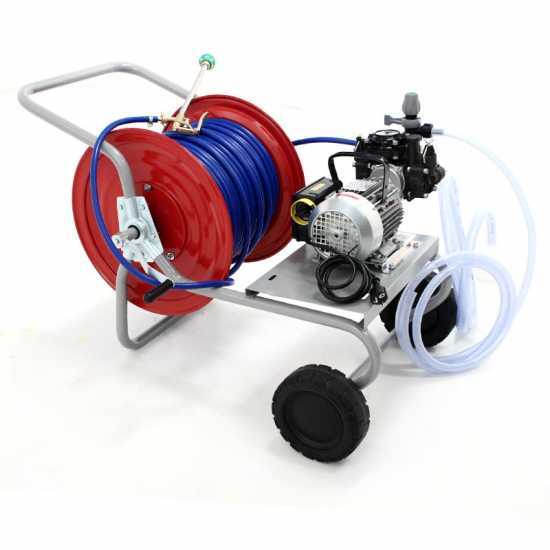

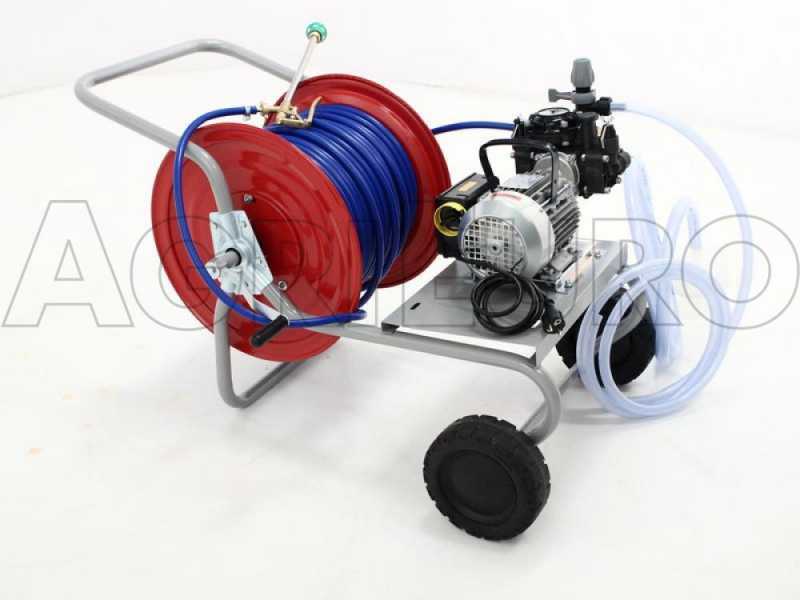

Comet MC 20/20 - Wheeled Electric Sprayer Pump Kit - Single-phase Motor

Questions & Answers (4)
ID: K0095

EAN: 8080546014145

MPN: 33001-00084

9,0/10
After-sales assistance & Spare parts
Comet MC 20/20 - Wheeled Electric Sprayer Pump Kit - Single-phase Motor
+100 sold
Configuration
Trolley and hose reel
Water pump type
Diaphragm
Number of diaphragms
2
Flow rate
18 L/min
Max. operating pressure
20 bar
Pipe average pressure
20 bar
Motor type
Electric
Nominal power
1.2 HP
Pressure regulator
Yes
Hose reel
Manufacturing country
Italy
Product Features
Model:
MC 20/20 single-phase
Configuration:
Trolley and hose reel
Motor type:
Electric 230 V
Operating mode:
Electric 230 V
Configuration:
Pump+trolley
Flow rate:
18 L/min
Max. operating pressure:
20 bar
Wheeled trolley:
Yes
Pipe average pressure:
20 bar
Manufacturing country:
Italy
Motor data
Motor type:
Electric
Nominal power:
1.2 HP
Manufacturing country:
Italy
Pump data
Pump brand:
Comet
Number of diaphragms:
2
Water pump type:
Diaphragm
Flow rate:
18,5 L/min
Pressure regulator:
Yes
Manufacturing country:
Italy
Equipment
Hose reel:
Free gifts/extra features
Hose length:
100 m
Instructions manual:
Yes
Dimensions and logistics
Packaging:
Original packaging
Assembly time:
5 minutes
Prompt Delivery
2 items in stock
Free Shipping
Estimated delivery: 22/10/2024 - 24/10/2024
€ 929,09
VAT Included

You're viewing:
Customers also viewed:
Description

Comet MC20/20 pump with single-phase electric motor

This trolley sprayer pump avoids lugging around a heavy wheelbarrow containing the liquid. Put the hoses in a tank near the machine, so that you only need to hold the lance to reach all the points to treat, without carrying around heavy equipment. The hose reel can hold up to 200 metres of hose. You can find additional hoses among the related products.

Items included:

  • Trolley with steel hose reel
  • Lever lance in professional brass
  • Comet MC20/20 pump with single-phase electric motor
  • Set of hoses and filters
  • 100 m of heavy-duty BLUE high-pressure 20 bar netted hose (burst pressure 60 bar)

This kit is ideal for spraying (or weeding) treatments, in small and medium-sized crops, parks, gardens, orchards, greenhouses and spreading of detergents and colours in water solution.

Equipped with flanged pump, electric motor with speed reducer and control unit (for pressure adjustment). Ideal if you have electricity in your plot.

Main advantages of this trolley kit with hose reel and pump:

  • ease of transport
  • lower weight due to the absence of the tank

NOTE:

If products containing minerals such as kaolin, zeolite, basalt, etc. are used, washing should be carried out at the end of each treatment and at the end of each season to avoid long-term damage to the internal components of the pump. It is advisable to disassemble several parts of the pump, such as valves, heads and diaphragms, in order to clean out any agglomerated residues sedimented by the minerals.
These procedures will ensure a long life of the pump even if the above minerals are used.

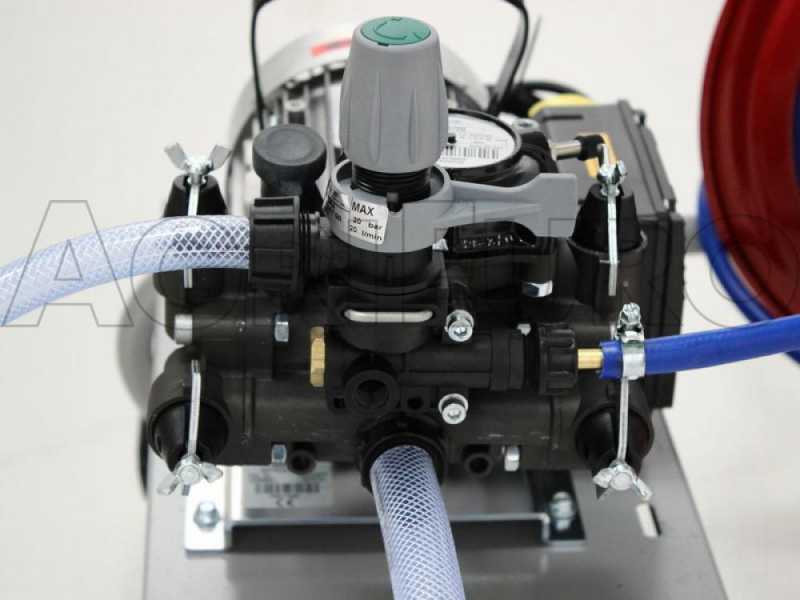

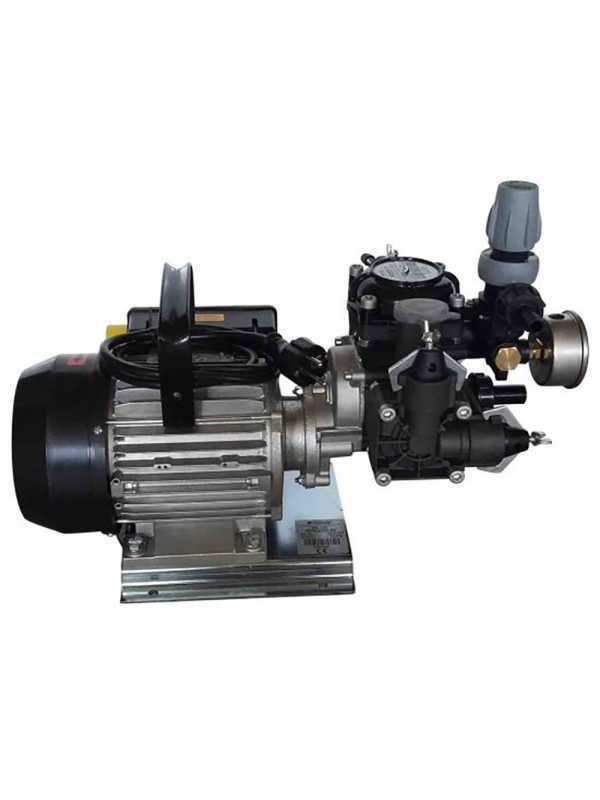

Comet MC20/20 Pump

Flanged pump, electric motor with speed reducer, equipped with control unit for pressure adjustment.

PERFORMANCE:

  • bar: 20 (adjustable)
  • flow rate: 18.5 L/min

Medium-sized model for semi-professional use. It can work continuously for many hours at a time.

Grey lever: bypass system, it allows going from low pressure (in which the pump performs a simple water recirculation function) to high pressure for treatments.

Grey knob: pressure adjustment (up to 20 bar)

Single-phase Electric Motor

220 volts 1.25 hp powerful electric motor

If you have electricity in your plot, this electric pump is the ideal choice because it does not have all the problems of 2 or 4-stroke engines:

  • starting problems (spark plugs, filters, old or dirty fuels, etc...)
  • constant fresh fuel supply
  • significantly higher consumption
  • constant maintenance etc...

Assembly

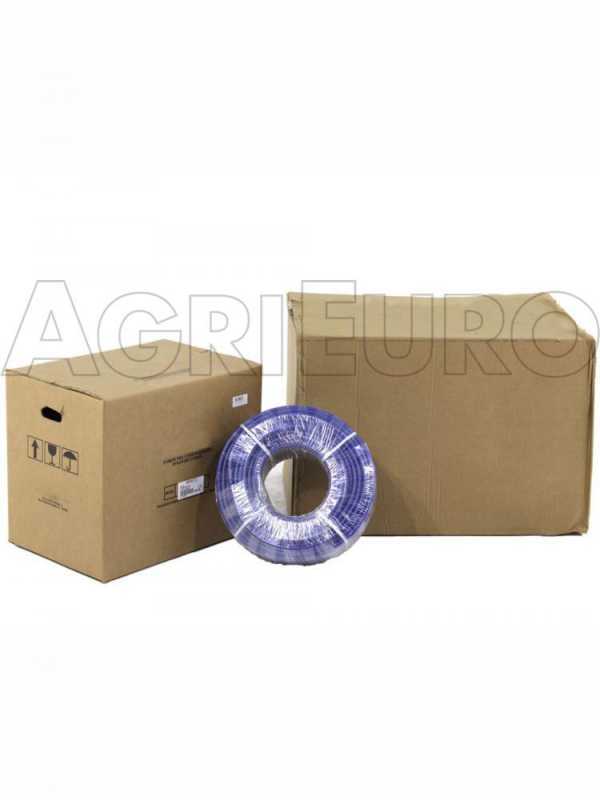

The hose reel on trolley comes already assembled. The product comes in 3 packages.

  • The hose
  • The trolley, already assembled
  • The sprayer pump (the picture has illustrative purposes)

Assembly operations required:

  • wrap the hose around the hose reel (by simply performing the same operation for storage)
  • screw the 4 bolts of the pump on the base of the trolley
  • cut and use about half a metre of the tube, to connect the pump to the external side fitting of the hose reel.
  • Connect the two suction and overflow hoses and lance on the blue hose

The operation takes 30 minutes

Kit Components

Hose reel on trolley

Reinforced large wheels for easy movement. The hose is easy and quick to assemble.

Lance

Heavy-duty lance made of stainless steel and brass, 600 mm long.

Hose kit

  • 3 mt suction hose with filter
  • 3 mt overflow hose

100 m 20 bar hose (burst pressure 60 bar)

Heavy-duty high-pressure netted hose made of soft and flexible rubber, provides excellent handling and long duration (unlike the standard fertene "white" hose provided by most manufacturers with this kind of sprayer pumps, which is very rigid and not at all easy to handle. Also, it should be replaced every 2-3 years since it easily deteriorates)

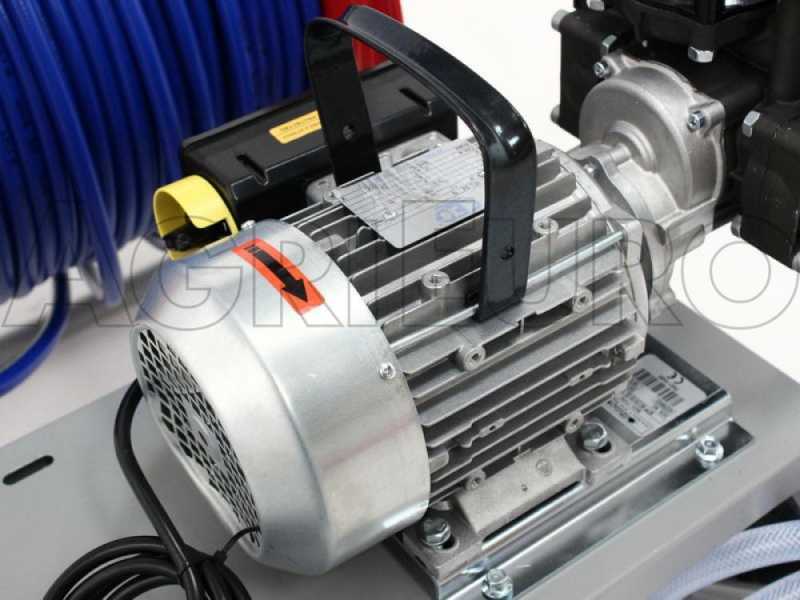

Electric single-phase motor

Powerful 220V 1.25 HP electric motor
