Comet APS 41 Sprayer Pump - Honda GP 160 Petrol Engine and Trolley Kit

Questions & Answers (3)
ID: K4652

EAN: 8080546014244

MPN: 33001-00164

9,0/10
After-sales assistance & Spare parts
Comet APS 41 Sprayer Pump - Honda GP 160 Petrol Engine and Trolley Kit
+50 sold
FREE
2 bottles of 600 ml engine oil each2 bottles of 600 ml engine oil each
Configuration
Trolley and hose reel
Water pump type
Diaphragm
Number of diaphragms
3
Flow rate
40 L/min
Max. operating pressure
40 bar
Pipe average pressure
40 bar
Motor type
4-stroke
Motor brand
Honda
Motor Model
GP 160
Cubic capacity
163 cm³
Nominal power
4.8 HP
Pressure regulator
Yes (semi-professional)
Heavy-duty mitra lance
Yes
Hose reel
Manufacturing country
Italy
Product Features
Model:
APS 41 - GP 160
Configuration:
Trolley and hose reel
Operating mode:
Petrol
Motor type:
4-stroke
Operating mode:
Spark ignition
Flow rate:
40 L/min
Max. operating pressure:
40 bar
Pipe average pressure:
40 bar
Manufacturing country:
Italy
Motor data
Motor Model:
GP 160
Motor type:
4-stroke
Cubic capacity:
163 cm³
Nominal power:
4.8 HP
Fuel:
Petrol
Engine lubrication system:
Oil bath
Pump data
Pump brand:
Comet
Number of diaphragms:
3
Water pump type:
Diaphragm
Flow rate:
38 L/min
Pressure regulator:
Yes (semi-professional)
Manufacturing country:
Italy
Equipment
Hose reel:
Free gifts/extra features
Heavy-duty mitra lance:
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
70x100x75 cm
Packaging:
Original packaging
Assembly time:
5 minutes
Prompt Delivery
17 items in stock
Free Shipping
Estimated delivery: 22/10/2024 - 24/10/2024
€ 1.399,00
VAT Included

You're viewing:
Customers also viewed:
Description

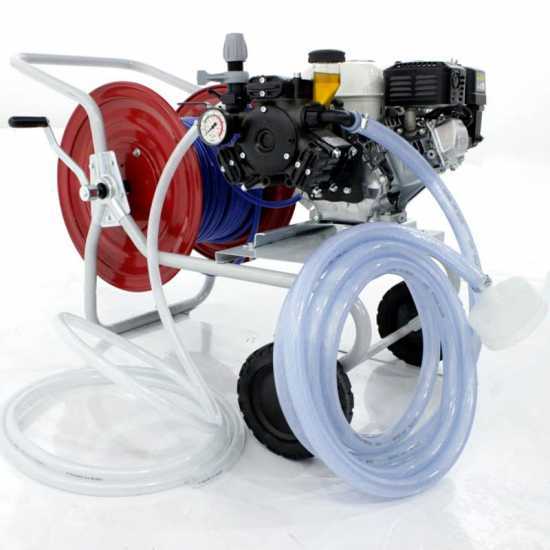

Comet APS41 Pump on Trolley with Honda GP 160 Engine

This trolley sprayer pump avoids lugging around a heavy wheelbarrow containing the liquid. Put the hoses in a tank near the machine, so that you only need to hold the lance to reach all the points to treat, without carrying around heavy equipment. The hose reel can hold up to 200 metres of hose. You can find additional hoses among the related products.

Items included:

  • Trolley with steel hose reel
  • Mitra lance in professional brass
  • Comet APS41 pump with Honda GP 160 engine
  • Set of hoses and filters
  • 100 m of heavy-duty BLUE high-pressure netted hose 40 bar (burst pressure 120 bar)

This kit is ideal for spraying (or weeding) treatments, in small and medium-sized crops, parks, gardens, orchards, greenhouses and spreading of detergents and colours in water solution.

Equipped with flanged pump, electric motor with speed reducer and control unit (for pressure adjustment).

Main advantages of this trolley kit with hose reel and pump:

  • ease of transport
  • lower weight due to the absence of the tank

NOTE:

If products containing minerals such as kaolin, zeolite, basalt, etc. are used, washing should be carried out at the end of each treatment and at the end of each season to avoid long-term damage to the internal components of the pump. It is advisable to disassemble several parts of the pump, such as valves, heads and diaphragms, in order to clean out any agglomerated residues sedimented by the minerals.
These procedures will ensure a long life of the pump even if the above minerals are used.

Kit Components

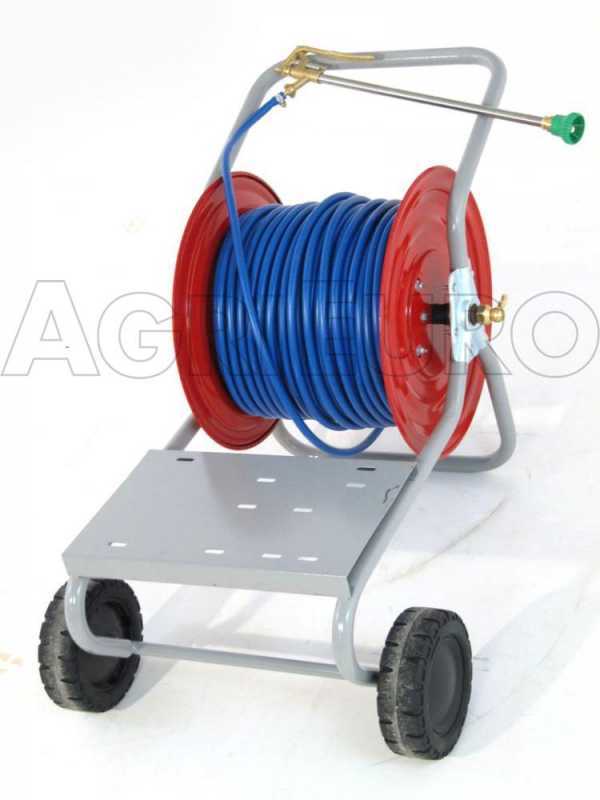

Hose reel on trolley

Super-reinforced large wheels for easy movement. Easy and quick to assemble

MITRA lance

Stainless steel and brass MITRA lance.

Hose kit

  • 3 mt suction hose with filter
  • 3 mt overflow hose

100 m 40 bar hose (burst pressure 120 bar)

Heavy-duty high-pressure netted hose made of soft and flexible rubber, provides excellent handling and long duration (unlike the standard fertene hose provided by most manufacturers with this kind of sprayer pumps, which is very rigid and not at all easy to handle. Also, it should be replaced every 2-3 years since it easily deteriorates)

Comet sprayer pump

COMET pump with petrol engine: the largest and most prestigious worldwide manufacturer of membrane pumps. Comet brand is 100% made in Italy

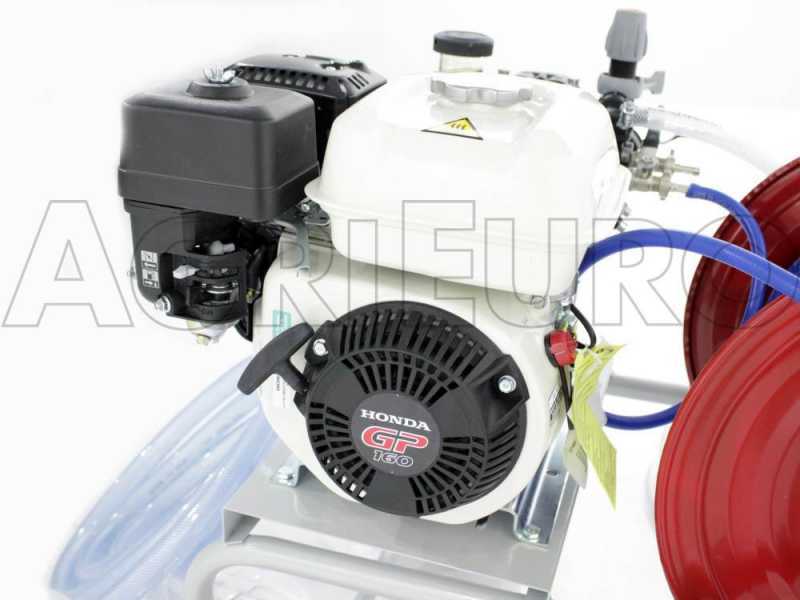

Honda GP 160 Engine

Honda GP 160 engine is light and high performing, suitable for jobs requiring power, obtained thanks to the 163 cc displacement.


Main features:

Engine type
Single-cylinder 4-stroke - OHV
Cylinder type
Cast iron
Cubic capacity
163cm³
Compression ratio
8.5: 1
Max. rpm
3600 rpm
Fuel tank capacity
3.1 L
Consumption
1.4 L/h 3600 rpm
Dry weight
15.1 kg

Latest-generation 4-stroke petrol engine with "OHV” overhead valves - horizontal shaft, cycle eight, 4-stroke, 25° inclined cylinder, forced air cooling, cast iron cylinder

Nowadays, most of agricultural and gardening equipment available on the market mounts unbranded (or by unknown brands) engines made in China.


WARNING!

The engine is PROVIDED WITHOUT OIL.
Please carefully read the instruction manual before starting the unit.

Comet APS41 Pump

Equipped with flanged pump, electric motor with speed reducer and control unit for pressure adjustment.

PERFORMANCE:

bar: 40 (adjustable)

flow rate: 38 L/min

Medium-sized model for heavy-duty use. It can work continuously for many hours at a time.

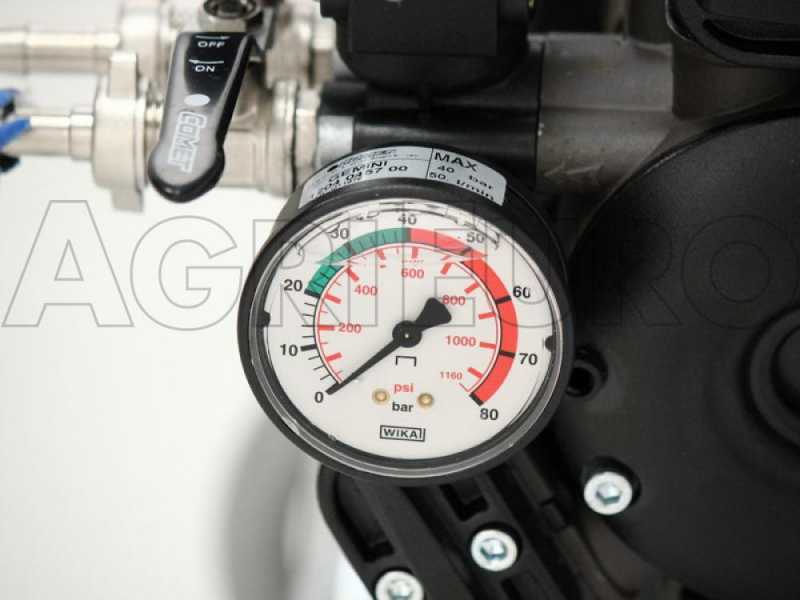

Equipped with PRESSURE GAUGE in a glycerine bath fitted as standard.

By-pass lever: allows going from low pressure (in which the pump performs a simple water recirculation function) to high pressure for treatments.

Pressure adjustment knob (up to 40 bar)

2 standard outlets with valve

Assembly

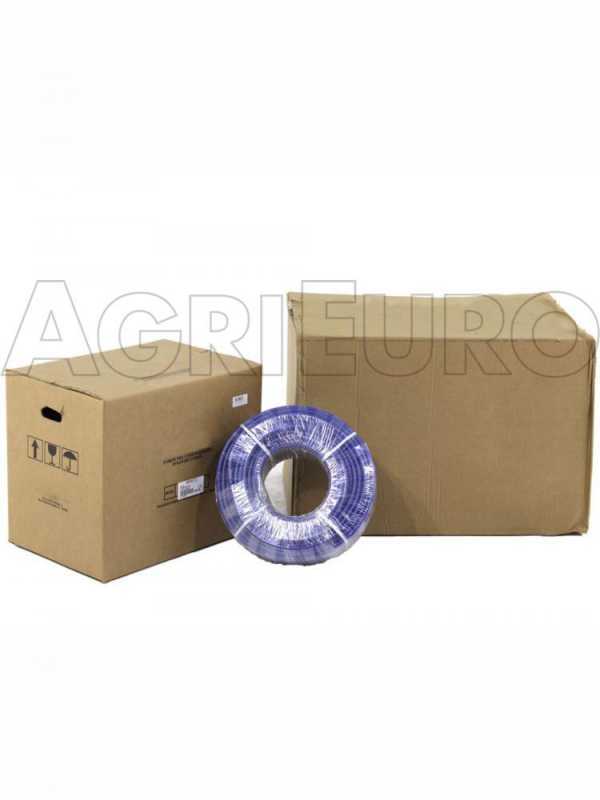

The hose reel on trolley comes already assembled. The product comes in 3 packages.

  • The hose
  • The trolley, already assembled
  • The sprayer pump (the picture has illustrative purposes)

Assembly operations required:

  • wrap the hose around the hose reel (by simply performing the same operation for storage)
  • screw the 4 bolts of the pump on the base of the trolley
  • cut and use about half a metre of the tube, to connect the pump to the external side fitting of the hose reel.
  • Connect the two suction and overflow hoses and lance on the blue hose

The operation takes 30 minutes

Free items & Standard equipment

COMPLIMENTARY: 2 Oil Bottles

TWO oil bottles for 4-stroke engines
