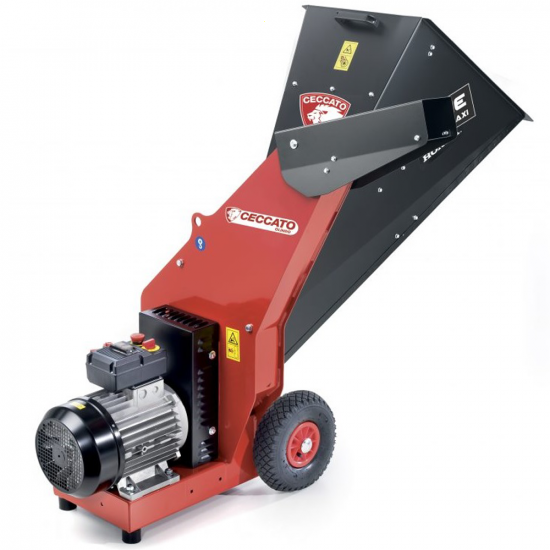

Ceccato Tritone Maxi Electric - Garden Shredder with electric motor - Three-phase 7.5 HP

The Ceccato TRITONE MAXI electric three-phase 7.5 H garden shredder is a heavy-duty wood chipper intended for professional use and can easily shred branches with a 7 cm diameter. The machine equals the models of the shredders belonging to the MAXI series but it stands out for its electric motor.

It is an Italian top-quality motor, fitted with reinforced copper coating , where all the components are Ceccato Olindo branded.

Garden shredders allow reducing weeds and twigs in an easy to handle and suitable size for composting. Shredding operations also allow reducing the material decomposing time.

The large steel hopper can process even very bulky branches and leaves without having to pre-shred them. Thus, it also features a higher capacity that allows entering a large amount of material at a time.

Cutting diameter: 60/70 mm

This wood chipper is MADE IN ITALY, featuring the quality of large-sized shredders, thus ensuring maximum results in terms of cutting, speed and reliability.

The machine is compliant with the CE standards.

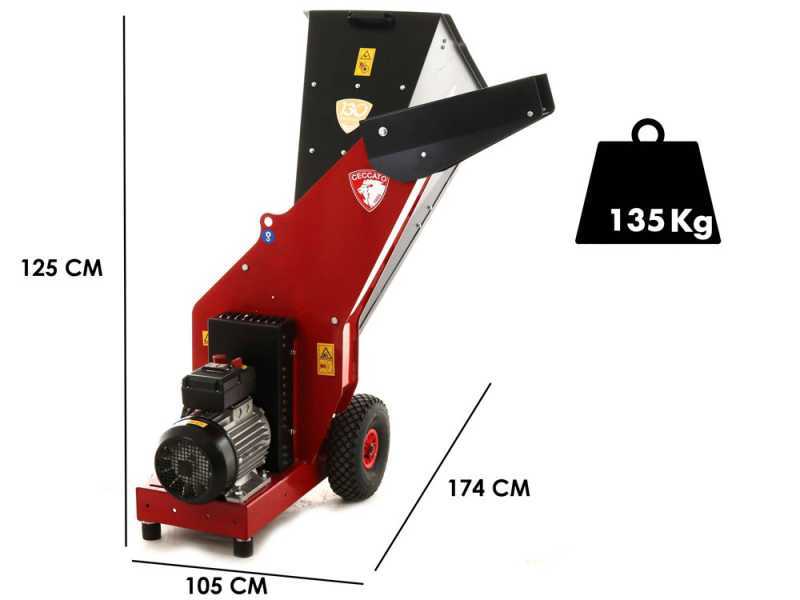

The overall weight of the unit is 135 Kg.

Warning: Like all wood chippers and garden shredders, it is not suitable for shredding grass, leaves, pine needles, etc.… (it is designed to shred branches, but it can also grind the leaves, needles and other vegetation that may be attached to them).

Garden shredders intended use:
- The wood chipper must grind only green branches and not dried ones (which would limit its shredding capacity and lead to quick deterioration of the blades);
- The branches must be preferably long, smooth and not knobby (otherwise the cutting diameter would be reduced);
- The branch cutting diameter indicated is the maximum, so it is advised not to shred larger branches. In this case it would be better to purchase a shredder with a larger branch cutting diameter;
- The cutting diameter can vary according to the amounts of wood (e.g: oak, olive, plum and peach are hardwood and can reduce the cutting capacity of the wood chipper);

The machine is able to process even very bulky branches and leaves, without having to pre-shred them.

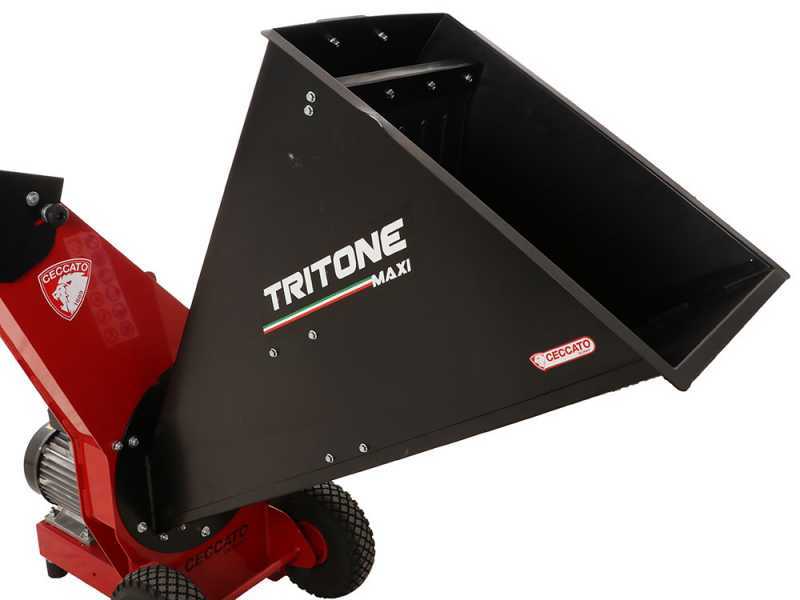

• UNIFIED HOPPER:

It considerably simplifies and speeds up the operations.
It avoids the Operator to separate large branches from smaller and green ones (before shredding), while each of them must be entered in their own hopper in standard garden shredders with 2 separate hoppers.

• SELF-FEEDING:

Once introduced the branches into the hopper, the shredder pulls them inside the shredding unit autonomously thanks to the hopper vertical design. Thanks to the gravitational force, the mechanism can pull inside the branches to be shredded.

WARNING: the branches must not be too bulky because this may limit the functionality of the machine.

Focus on the transparent rubber bulkheads placed on hopper opening.

Hopper size: (Width x Height ) 42 x 53 cm

Focus on the wood chipper handle for easy transport.

The outer shredding chamber is proportionate to the rotor it includes. It guarantees excellent productivity, as well as the durability of the system. The machine structure is 100% made of steel. No plastic has been used.

The central rotor is composed of 2 steel flywheels firmly assembled together. These then represent a sturdy unit (the main component of the garden shredder) of truly superior size, strength and performance.

Reinforced shredding blades: 2 large shredding blades. These blades pre-shred the material into the hopper creating a coarse wood chip (the blades are highly thick and fixed with 4 stainless steel bolts).

Focus on the hammer: 8 hardened steel shredding blades (or hammers) rotating at high speed. Thanks to their centrifugal motion they shred the branches in small wood chips.

Focus on the counter-blades: Once assembled the hopper, they’ll be placed near the 2 rotating cutting blades fixed on the rotor. Thus, the "Blade + Counter-blade" system makes shredding operations easier and more efficient, reducing motor effort at the same time.

Focus on the sieve: this model of garden shredder is almost the only machinery equipped with a discharge chute featuring an openable and closable sieve, which allows the wood chips to be discharged exclusively once perfectly shredded by the 8 hammers. The sieve is equipped with a pivoting pin and a knob that allows it to be engaged to or disengaged from the chute. Lifting the sieve produce coarser fragments, maximising the hourly output of the shredder. By lowering the sieve, on the other hand, will maximise the shredding capacity of the machine, producing smaller wood chips.

INTERMEDIATE REINFORCED BELT DRIVE.

This transmission gives the machine an extraordinary sturdiness, protecting both the motor and the internal shredding rotor from any kind of internal shock or kickback.

High-quality single-phase electric motor featuring 7.5 Hp of power that guarantees perfect shredding results.

In case of a rotor clogging caused, for example, by a too large branch, stones, etc.. there is no risk of breaking the drive shaft and the motor, but the intermediate belt will slip or at least will brake down.

Higher durability over time compared to the standard system of all the manufacturers of petrol-powered machineries, as the transmission is directly connected to the shredding cutting system.

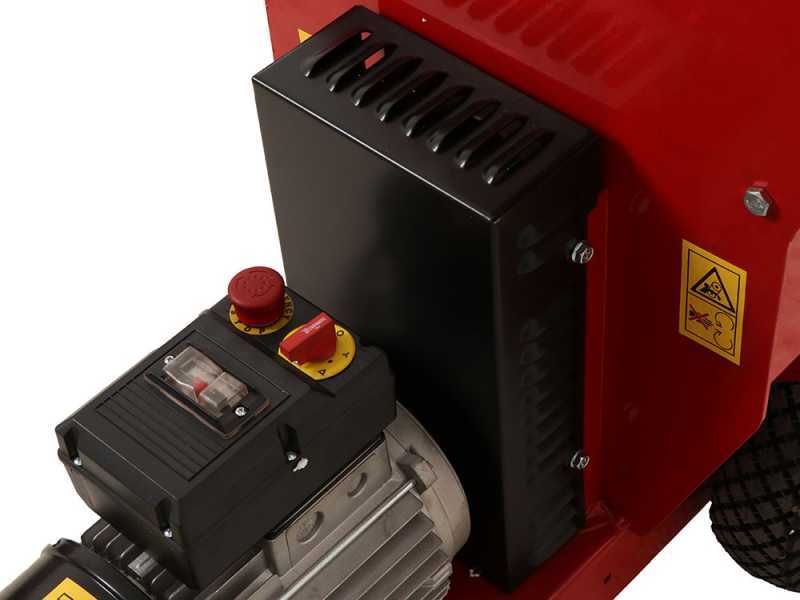

Focus on the on/off buttons.

Focus on the three-phase connection

Equipped with vibration rubbers and pneumatic wheels for easy transport.
