Description

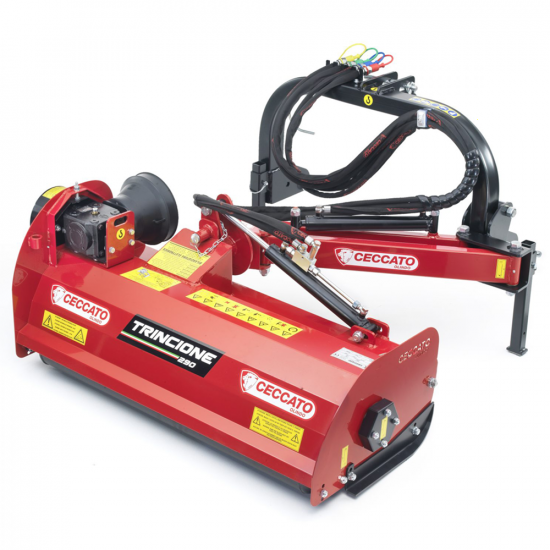

Side-arm flail mower for tractor

The Trincione 290 ARGINI, created by Olindo Ceccato, is a versatile machine intended for the maintenance of green areas along roads, ditches and hedges of medium strength.

The G2T1400F is renowned for its high flexibility, able to move both horizontally and vertically thanks to a fully hydraulic system.

The medium-strong structure of the Trincione 290 ARGINI is ideal for shredding light pruning, grass and small shrubs. The machine is equipped with:

An electronically balanced rotor
An adjustable idler roller
Adjustable standard slides

Its multiple functions include:

Grass mowing
Stalks chopping
Pruning waste chopping
Hedge cutting
Suitable for work on ditches, embankments and sloping terrain.

To ensure greater durability, the machine has robotically welded reinforcements at various critical points. It is versatile in its functions, ideal for various green maintenance activities.

Both the vertical and lateral hydraulic movement of the Trincione is supported by two powerful pistons, one mounted directly on the machine and the other on the arms that connect to the three-point linkage.

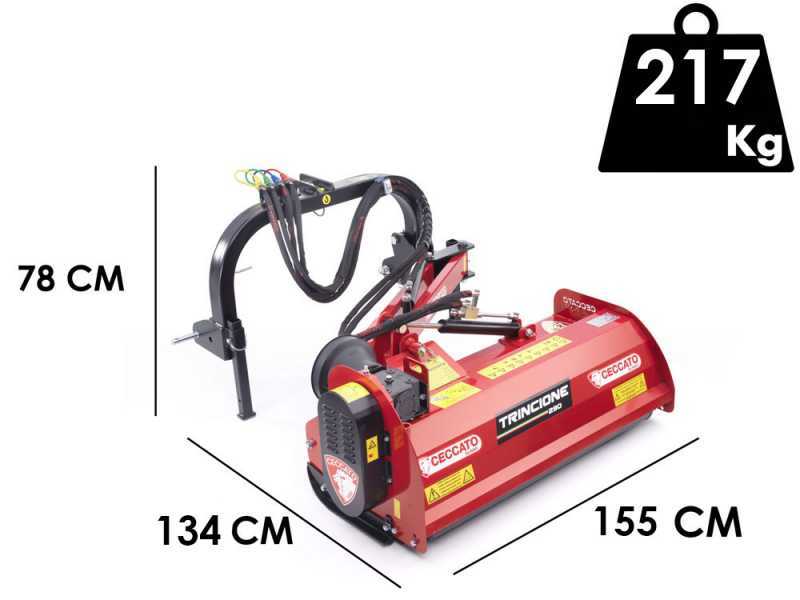

The technical data of the Trincione 290 ARGINI are:

Effective working width 140 cm
Effective overall width(with side skids fitted): 155 cm
Weight: 217 Kg
Equipped with a Rear support roller
52 knives for effective chopping

Ceccato trincione 290 Argini 1400 - Tractor-mounted side flail mower - with knives - Light series

Hydraulic side and vertical shift

Vertical and side hydraulic shift is operated by 2 pistons.

Equipped with 4 hoses connected to the hydraulic connections on the tractor.

A very sturdy shift system. It consists of articulated arms.

The machine has obvious reinforcement welds in several places.

The two pivots work on lubricated bronze bushings.

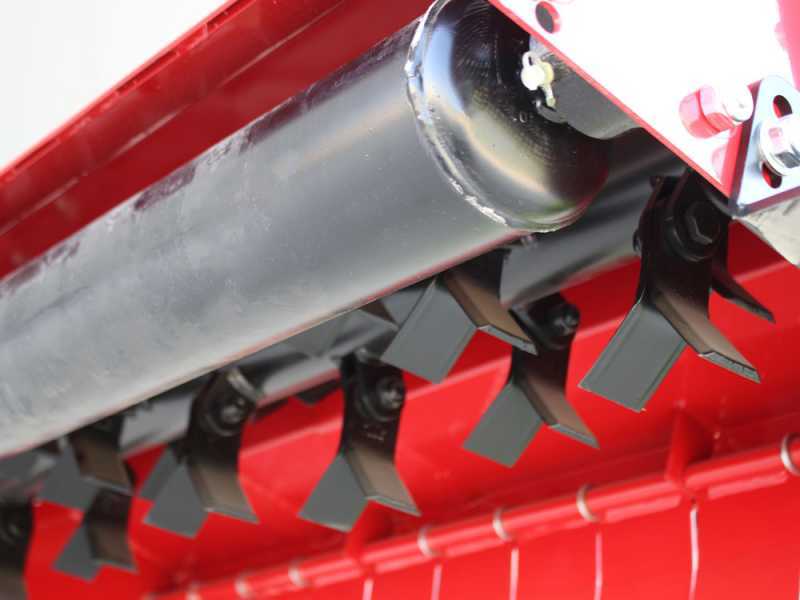

Cutting tools: hammer flails

Number of hammer flails fitted as standard equipment: 52

Focus on one of the hammer flails mounted on supports welded to the rotor.

Focus on the side support with hammer flails, rotor inner fixing bearing.

This Ceccato flail mower belongs to the light series, suitable for predominantly light work.

Rotor, hammer flails supports, side bearings

It finely shreds grass and twigs, while simultaneously rolling the turf.

Thanks to the high number of rotor revolutions and high number of flail blades, it allows reducing the wave impact of the grass cover and performing excellent shredding operations.

Thanks to the sharpened knives it ensures high-quality results in gardens, lawns and urban areas.

The flail mower is connected to the 3-point hitch on the rear part of the tractor.

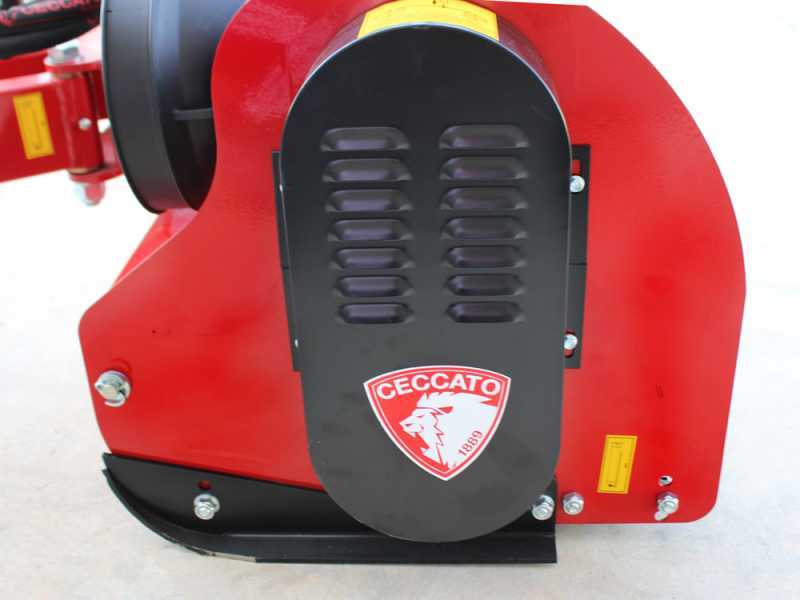

Side belt transmission and gearbox

Reduction gearbox in oil bath.

2-belt side transmission featuring large section with belt's protective side covering, equipped with many vents (for proper cooling).

Standard 1 3/8” z6 PTO (suitable for all current and recently manufactured tractors): whether you own a particularly old tractor, make sure that it s equipped with the same PTO and with standard clockwise rotation (right-side).
