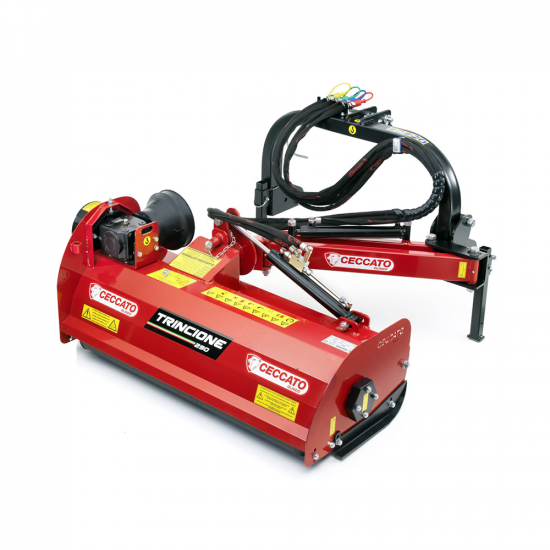

Side-arm flail mower for tractor

The Trincione 290 ARGINI tractor-mounted arm-mounted flail mower, made by Olindo Ceccato, is a machine designed for maintenance of green areas along roads, ditches and hedges of light strength.

This model, the G2T1200FM, is remarkable for its high degree of flexibility, being able to move both horizontally and vertically through a fully hydraulic mechanism.

Its structure is of medium strength and elasticity, suitable for shredding light pruning, grass and small shrubs.

The machine is equipped with an electronically balanced rotor, an adjustable idler roller and standard slides that are also adjustable.

It is suitable for different operations, such as:

Grass mowing
Stalks chopping
Pruning waste chopping
Hedge cutting
Ideal for ditches, embankments and sloping terrain

It also has robotically welded reinforcements at various points for greater durability.

It is versatile in its functions, being able to perform grass cutting, stalk cutting, pruning and hedge trimming, making it ideal for work on ditches, embankments and sloping ground.

Its vertical and lateral hydraulic movement is facilitated by two powerful pistons, one mounted on the flail mower and the other on the two arms connected to the three-point hitch.

TECHNICAL DATA (brief overview):

Real working width: 120 cm
Effective overall width (with side skids fitted): 135 cm
Weight: 205 Kg
Rear supporting roller
22 hammers

Ceccato trincione 290 Argini 1200 - Tractor-mounted side verge flail mower with Arm - with hammers - Light series

Hydraulic side and vertical shift

Vertical and side hydraulic shift is operated by 2 pistons.

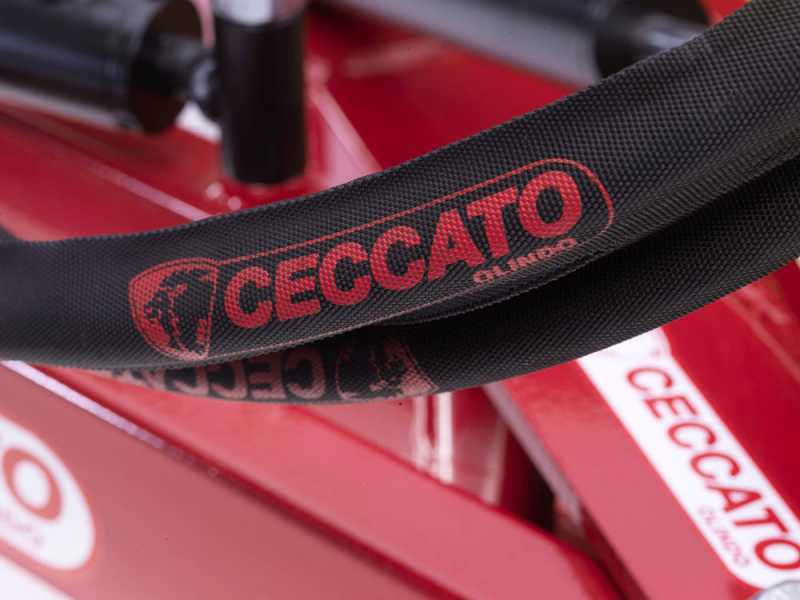

Equipped with 4 hoses that are connected to the hydraulic couplings on the tractor.

It is a very robust displacement system. It is structured on articulated arms.

The machine has obvious reinforcement welds in several places.

The two pivots work on lubricated bronze bushings.

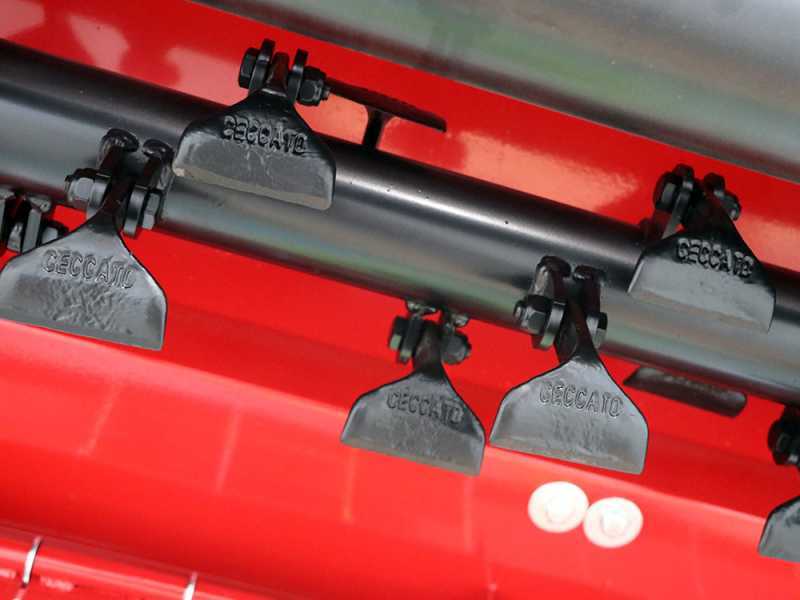

Hammer cutting tools

Number of hammers fitted as standard: 22

Close-up of one of the hammers, mounted on supports welded to the rotor.

Detail of the side support with internal fixing bearing of the hammer rotor.

This Ceccato flail mower belongs to the light series, suitable for predominantly light work.

Rotor, hammer flails supports, side bearings

It finely shreds grass and twigs, while simultaneously rolling the turf.

Thanks to the high number of rotor revolutions and the number of hammers, it reduces the ripple effect of the turf and has an excellent shredding action.

Thanks to the razor-sharp mallets, an excellent cut is achieved in gardens, lawns and urban areas.

The flail mower is connected to the 3-point hitch on the rear part of the tractor.

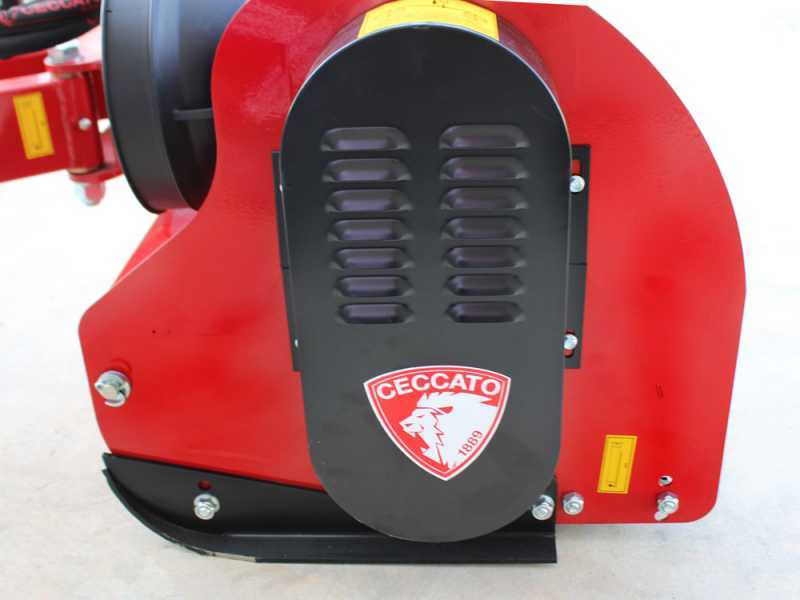

Lateral belt drive and gear reducer unit

Gearbox with gears in oil bath.

2-Belt side drive with large section belt guard, equipped with various ventilation openings (for regular cooling)

Standard 1 3/8” z6 PTO (suitable for all current and recently manufactured tractors): whether you own a particularly old tractor, make sure that it s equipped with the same PTO and with standard clockwise rotation (right-side).

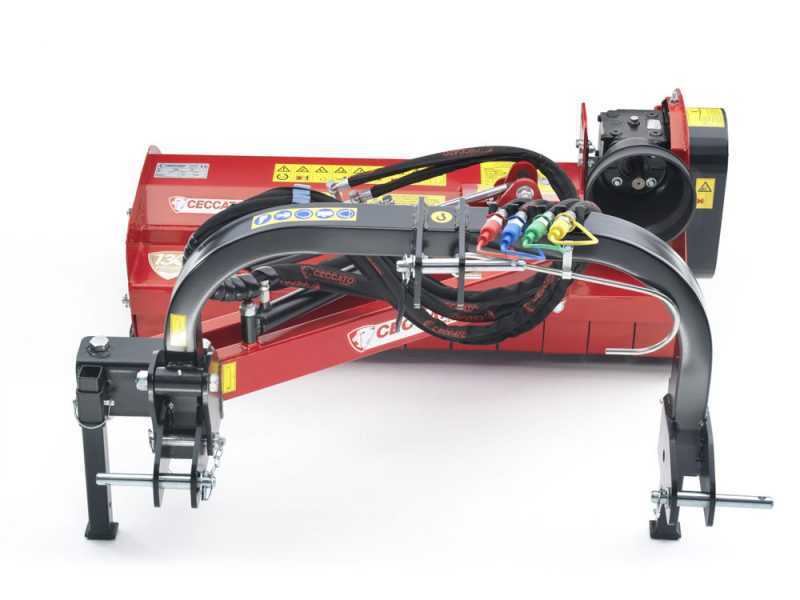

Stabilising accessories - rear roller - three-point hitch

Rear support roller

Sturdy set of front protective plates.

Support feet.

Support slides

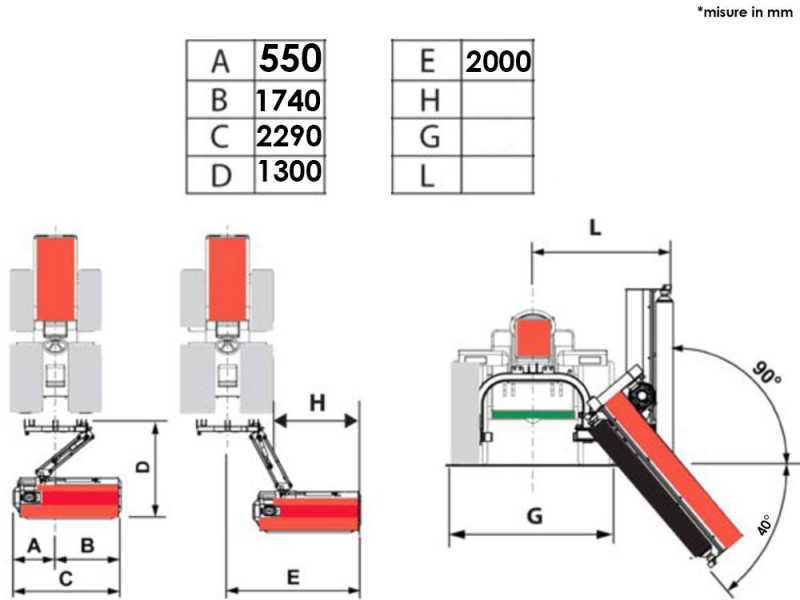

The three-point hitch has a wheelbase of 92 cm, the third point is located 43 cm higher than the others.

Recommendations for Use - Tractor-mounted Fixed Flail Mowers

To ensure correct operation, a longer service life and safe working conditions, it is essential to use the tractor-mounted flail mower in accordance with the instructions set out in the user manual and the machine’s technical specifications. Incorrect use may result in premature wear of components, reduced performance or damage not covered by the warranty.

Before starting work, always check that the tractor is compatible with the flail mower by verifying the required power, hitch type and intended operating conditions. Correct matching of the machine and the tractor ensures optimum performance and prevents the transmission from being overloaded.

Use the flail mower exclusively on suitable surfaces: the machine is designed for grass shredding, wild vegetation, plant residues and materials compatible with the machine’s category. Avoid contact with unintended objects such as stones, metal, plastic or other foreign bodies.
Adjust the working height correctly: maintaining an adequate distance from the ground reduces the impact on the cutting units and limits excessive stress on the machine’s structure.
Do not operate the machine where there are hidden obstacles or unsuitable ground conditions: ditches, stumps, exposed roots, loose stones or uneven ground can cause sudden impacts and damage to the cutting parts or transmission components.
Do not use the flail mower for operations other than shredding: the machine must not be used for earthmoving, ground levelling or other applications not specified by the manufacturer.
Always adjust the forward speed to suit the working conditions: excessive speed can reduce the quality of the shredding, increase vibrations and subject the machine to stresses greater than those for which it was designed.
Avoid using the machine on excessively damp material: wet grass or particularly damp vegetation can cause material to build up inside the machine, reducing its efficiency.
Do not force the tractor forward: if the rotor slows down, vibrations increase or cutting capacity decreases, speed must be reduced and the work adapted to the conditions of the ground and vegetation.
Check the condition of the cutting components regularly: worn, damaged or missing blades, hammers or other cutting elements can compromise the machine’s operation and increase vibrations during use.
Carry out periodic checks and routine maintenance: check that components are correctly tightened, inspect the condition of the transmission components and ensure the machine is generally clean to maintain its efficiency and safety.

Use of the power take-off (PTO):

The tractor’s power take-off (PTO ) must be used in accordance with the rotational speed specified by the flail mower manufacturer. An incorrect rotational speed may compromise the machine’s operation, causing overheating, accelerated wear or excessive stress on mechanical components.

When attaching and detaching the flail mower, the power take-off must always be disengaged and the tractor switched off. It is also necessary to check that the PTO shaft is correctly installed and has sufficient clearance to move freely while working.
