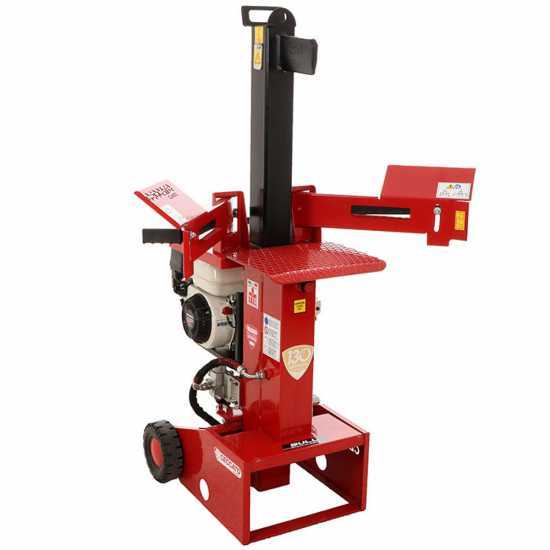

Ceccato SPL10H GP160 - Petrol Log Splitter - Vertical

The Ceccato Olindo Bull SPL10H petrol log splitter is a vertical log splitter powered by a Honda GP160 petrol engine, entirely Made in Italy and designed for domestic use.

It is one of the highest-quality log splitters in its category in terms of quality/price ratio, made with top-quality materials, with a highly sturdy double-tubular reinforced frame.

The Ceccato SPL10H log splitter features 10 tons splitting force and reinforced robot-welded double-tubular frame, which allows splitting knotty logs of different size up to max. 54 cm height.

It is equipped with a high capacity two-stage pump which guarantees a great splitting force and a double working speed. It is powered by a 5 Hp Honda GP160 petrol engine. It is also equipped with two wheels for transport made of a special rubber mixture that prevents stones from getting stuck.

The machine is provided with hydraulic hoses with Ceccato Olindo screen-printed canvas sheathing, and with couplings that fully comply with the latest EC regulations.

This ceccato Olindo BULL SPL10H log splitter complies with CE safety at work regulations.

Splitting force: 10 tons

Log diameter: from 10 to 50 cm

Logs height: from 18 to 50 cm

Piston stroke: 54 cm

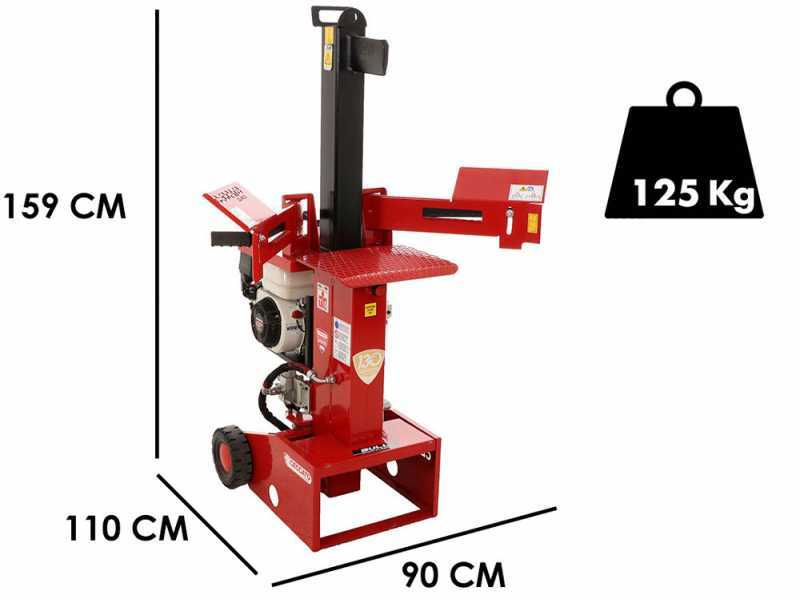

Overall dimensions: 110x90x159 cm

Weight: 125 Kg

Ceccato Bull log splitter is entirely made in Italy.

This machine is part of the Bull log splitter Series by Ceccato Olindo.

LOG SPLITTER MODEL 10/12 TONS

WEDGE: cutting wedge with 3° tilt towards the frame.

LOWER CONTROL ARM LEVERS: shortened levers on the log supporting arms. Thus, their positioning in compliance with the height measures stated in the Directive. The indicative shape has been specifically selected to prevent the possible fall of the log towards the Operator.

HYDRAULIC HOSES: we have increased the hose diameter for ensuring a lower oil temperature. Cable protection and shielding with Ceccato Olindo screen-printed canvas sheathing with steel studs. In case of damage or burst of the hose, this holds the oil and vaporises it without any risk of injury.

Each machine model features all the specifications required in accordance with the Directive. Thus, all the use and maintenance instructions are properly upgraded.

The Ceccato log splitter is in compliance with the DIN EN 609-1: 2017 Directive.

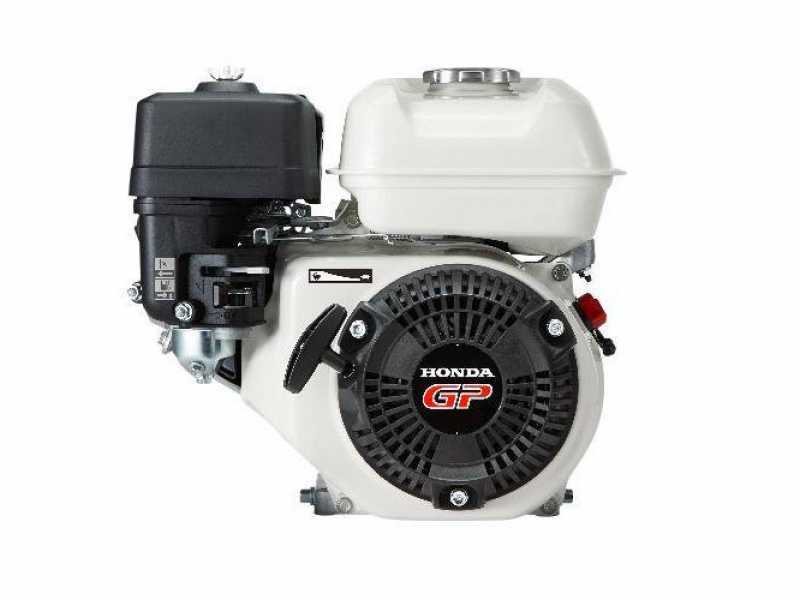

The Honda GP 160 engine is powerful and professional, with the latest generation technology in OHV valve head.

Features:

• Engine type: 4-Stroke - OHV - single cylinder
• Cylinder type: Cast iron
• Cubic Capacity: 163 cm³
• Fuel tank capacity: 3.1 L
• Consumption: 1,3 L/h at 3000 rpm

The Honda “GP” series is semi-professional and was developed for heavy duty jobs in building and agricultural field for generators, welders etc., characterised by great durability and reliability.

Nominal Power: 5 Hp
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 3.79 Hp (at 3600 rpm)
It refers to the real power of the engine. This is the power indicated as official in the manual or in the technical data of the engine manufacturer.

* This technical feature may vary from a an engine model to another according to the rotation speed provided by the manufacturer.

WARNING

The engine is PROVIDED WITHOUT OIL.
Make sure to carefully read the instructions manual before starting the unit.

With its 10 tons splitting force, this Ceccato log splitter can break knotty logs of different sizes up to max. 50 cm height and 50 cm diameter.

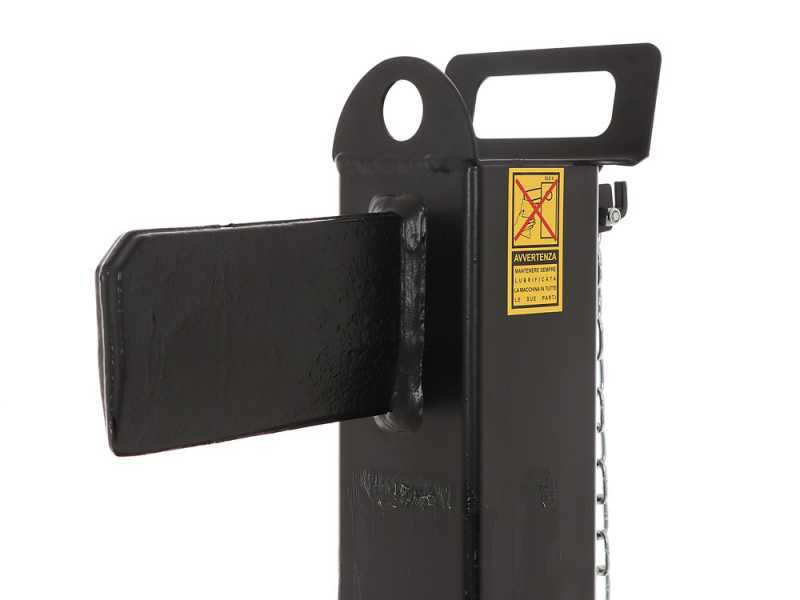

The cutting wedge is made of highly sturdy steel.

Large cutting plate: 39 x 30 cm

The user can operate the machine simply by means the dual control levers of the log splitter hydraulic valve.

The levers unit is equipped with proper hand guards and all safety devices to protect the Operator during use.

Adjustable end-of-stroke control system

The log splitter is equipped with an oversized, reinforced steel double-tube frame. Highly-sturdy and resistant frame.

This log splitter is provided with wheels to make transport easier and it is perfectly balanced. Even just one Operator can transport the machine by means the tilting handle.

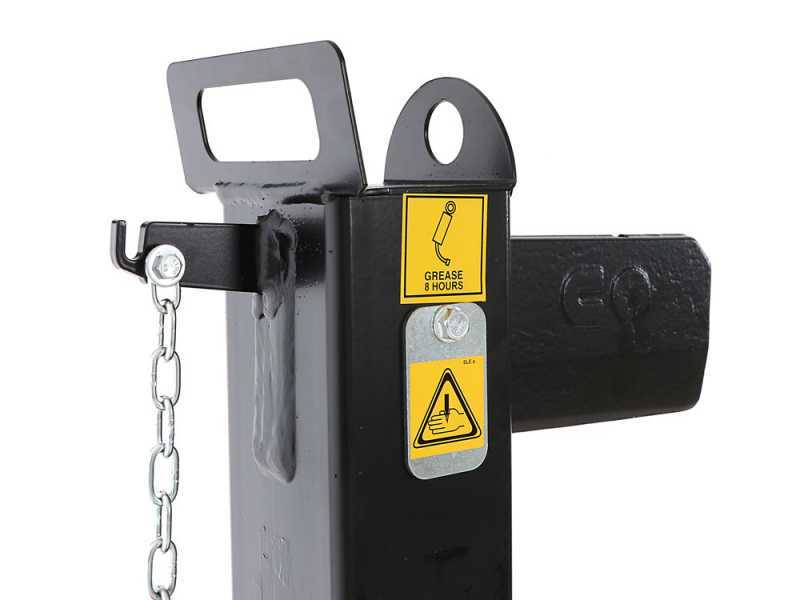

Furthermore, it is equipped with specific lifting hook.

Sturdy support platform.

This machine complies with the security Directives in order to guarantee a completely safe operation.
