Ceccato Olindo SGTMONO - Electric log saw - Single-phase table saw

Add a question
ID: 112803

EAN: 8053435096959

MPN: SEGONE

Ceccato Olindo SGTMONO - Electric log saw - Single-phase table saw
Body material
Enamelled steel
Nominal power (W)
2200 W
Disc blades diameter
600 mm
Max. trunk diameter
28 cm
Operating mode
Single-phase 230 V
Manufacturing country
Italy
Product Features
Model:
SGTMONO
Body material:
Enamelled steel
Operating mode:
Single-phase 230 V
Operating mode:
Electric 230 V
Disc blades diameter:
600 mm
Manufacturing country:
Italy
Motor data
Motor type:
Electric single-phase
Nominal power (W):
2200 W
Cutting data
Max. trunk length:
160 cm
Max. trunk diameter:
28 cm
Blade movement:
Rotating
Disc blade diameter :
600 mm
Equipment
CE-compliant safety switch:
CE-compliant
Disc blade safety protective cover:
Yes
Log carriage side extension:
Yes
Rocking log carriage for transport:
Yes
Free gifts/extra features
Instructions manual:
Yes
Dimensions and logistics

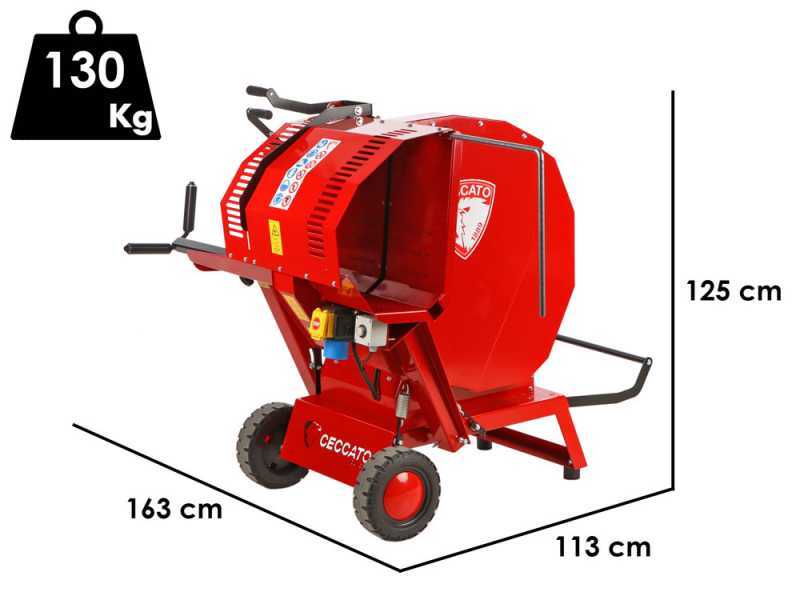

Product dimensions in cm (L x W x H):
163x113x125
Net weight:
130 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
120x80x145
Gross weight (packaging included) :
150 Kg
Unloading with hydraulic tail lift:
Yes
Out of stock
Free Shipping
€ 1.677,72
VAT Included
TOP QUALITYTOP QUALITY
You're viewing:
Customers also viewed:
Description

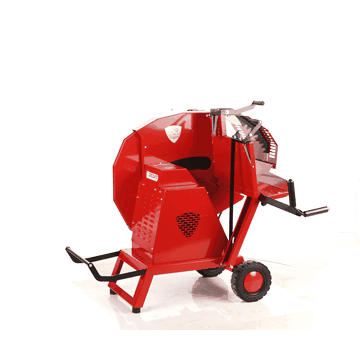

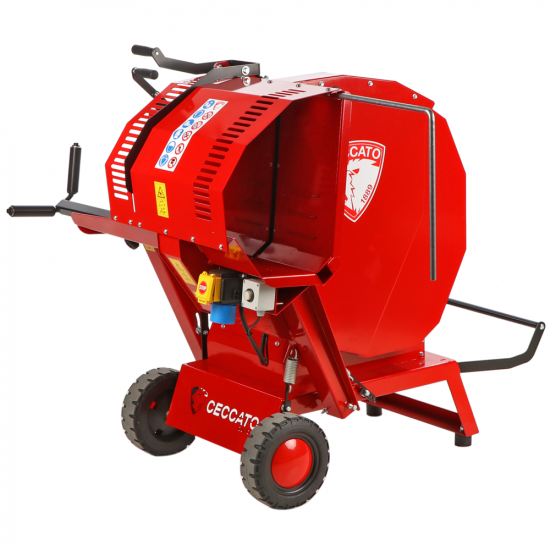

SGTMONO Ceccato Olindo circular saw log cutter

The Ceccato Olindo Circular Saw Bench SGTMONO represents a technologically advanced and solidly built solution for the efficient cutting of logs. Designed with a robust sheet steel frame, bent and welded entirely with robotic technology

Safety is a top priority: a screwed and closed front guard has been installed to prevent wood splinters from escaping, ensuring a safe and controlled working environment.

This tool is designed to significantly reduce the physical effort of the operator, thanks to its engineering focused on ease of use and portability. Equipped with a wheeled system and integrated wheels, the SGTMONO guarantees easy movements and handling, making it ideal for jobs that require flexibility and mobility.

The SGTMONO is powered by a 2200W electric engine, which ensures powerful operation and high performance.

In terms of functionality, the saw bench makes uses a 600 mm diameter cemented carbide disc blade with 40 teeth, manufactured using last generation laser technology, ensuring superior cuts and unparalleled precision.

The shape of the blade notch, filled with sound-absorbing polymer, reduces vibrations and noise by 25% compared to standard blades, this blade is able to handle logs with a maximum cutting capacity of 240 mm and accommodate material to be processed of lengths between 800 and 1600 mm.

Its structure, completely made of enamelled steel, not only promises considerable longevity, but also stands out for its ease of movement, thanks to the integrated wheels.

It is the ideal solution for those looking for a fast, practical and less strenuous way to work logs, offering added value in terms of productivity and comfort.

Technical Features

Technical Specifications and construction details of the log cutter:

  • Disc diameter: 600 mm
  • Maximum Allowable Log Diameter::: 240 mm
  • Adjustable Log Length: including between 800 and 1600 mm

Distinctive Elements and Safety Features:

  • Blade: Made of cemented carbide metal, equipped with 40 teeth, it ensures a precise and clean cut.
  • Protective Casing:: Designed to ensure maximum operator safety, it has a fixed structure to ensure the safety of the operator.
  • Details of the handles: Designed with particular attention to user safety, the handles are used to block and open the opening of the casing.
  • Saw Bench Base stabilizes the unit during use, ensuring vital solidity during the cutting operating.
  • Closing Hook: A closing system for the cutting device, designed to simplify the phases of inactivity and storage of the log cutter.
  • Wheels Designed to facilitate the movement of the device, the wheels are a very useful detail in the operational logistics of the tool.

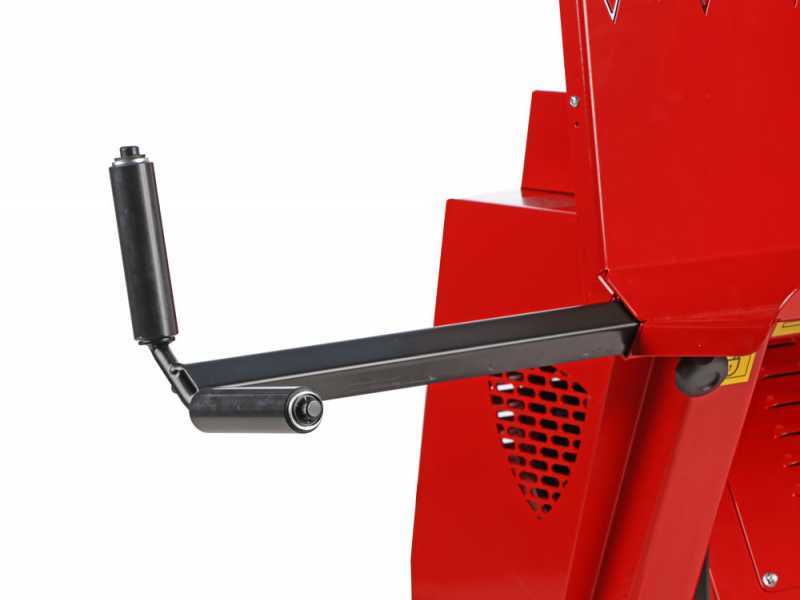

  • Adjustable support for long pieces.
  • Cutting length adjuster:
  • Toothed sheet metal log lock

The design and features of this log cutter have been designed and manufactured not only to enhance the functionality and efficiency of the tool, but also to highlight the safety and practicality of use for the operator.

Every construction element and every detail is the result of careful design and engineering oriented towards usability and durability.

Electric Engine

High Efficiency Electric Engine: 230 V

This machine is powered by an engine of high quality and durability, operating at 230V. It includes a brake capable of stopping the blade in just 10 seconds. These motors are built with special copper windings, offering superior resistance to stress and ensuring long-lasting performance.

This component has been chosen and installed with the aim of providing constant high power and ensuring optimal and smooth operation during all operational phases.

Robust Power: 2200 W

With a power of 2200 watts, the saw bench is able to handle even the most demanding jobs and the most resistant materials effortlessly. The remarkable power ensures a clean and precise cut, reducing the risk of lacerations and ensuring clean and professional results. Every activity, from the cutting of massive logs to the most detailed operations, is carried out with extreme efficiency, ensuring optimized operating times and a high degree of satisfaction for every professional and DIY enthusiast.

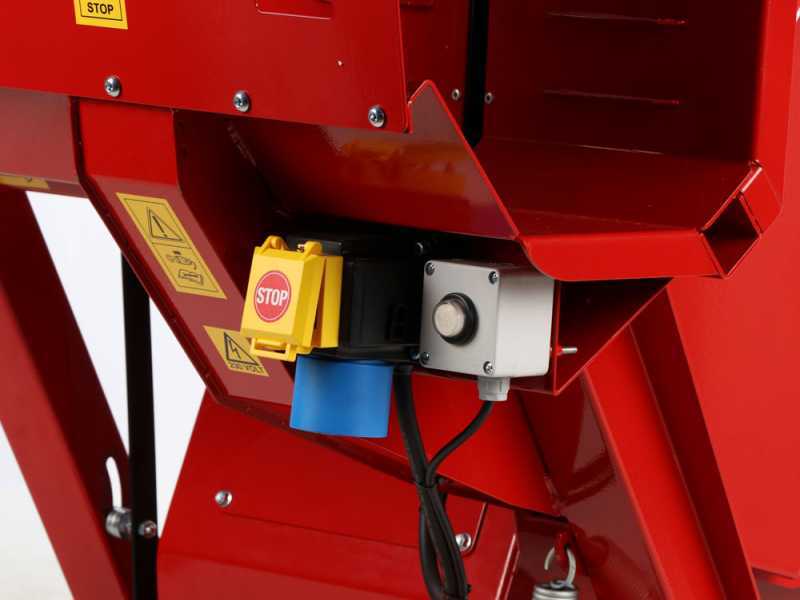

Engine start/stop button Safety and Practicality:

Safety and ease of use are at the centre of our attention. The detailed design of the power/stop button has been designed to be intuitive and, at the same time, maximise user safety during the entire working operation. The accessibility and clear signal of the button allow quick interaction, making it easier to start up and shut down the device safely and immediately. The switch is also designed to prevent accidental starts, offering an additional layer of protection when using the saw bench.

  • HIGH POWER: 2200W dedicated to guaranteeing clean and precise cuts.
  • Electric engine: Constant operation, reduced maintenance and respect for the environment.
  • Maximised Safety: Ignition and shut down designed to be safe.

With this machine, you have the assurance of a job well done, professional results and the highest attention to safety and quality.

Free items & Standard equipment

Free Items Included

The product is shipped on pallet in its original packaging

Including operator’s manual
