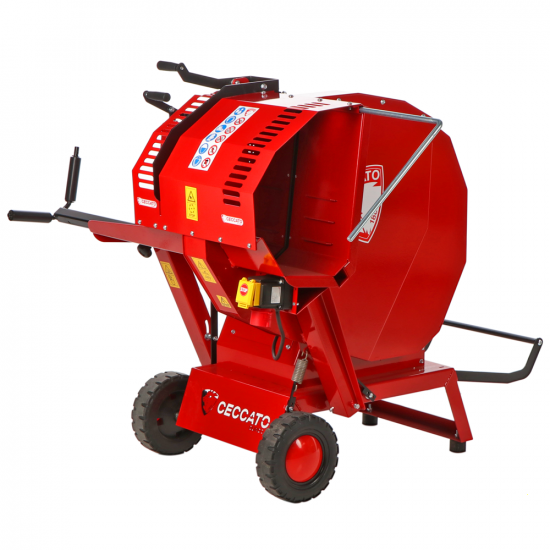

Ceccato Olindo SGT TRI - Electric Log Saw - Professional Three-Phase Bench Circular Saw

The Ceccato Olindo SGT TRI Circular Saw Bench represents a technologically advanced and solidly built solution for efficient log cutting. Designed with a robust frame made in sheet steel, bent and welded entirely by robotic technology.

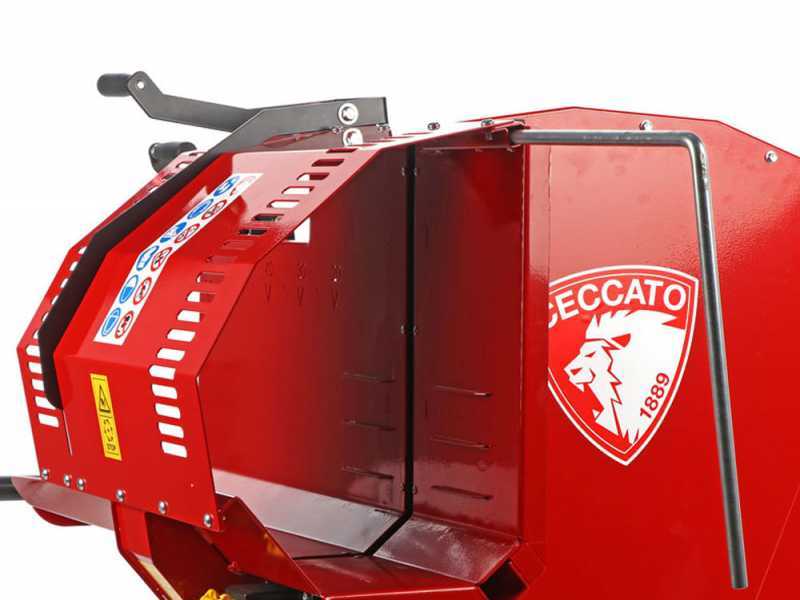

Safety is a top priority: a sealed and screwed front guard has been installed to prevent wood splinters from escaping, ensuring a safe and controlled working environment.

This instrument is designed to significantly reduce operator physical exertion, due to its engineering focused on handiness and portability. Equipped with a wheeled system and integrated wheels, the SGT TRI provides easy movement and handling, making it ideal for jobs that require flexibility and mobility.

The SGT TRI is powered by a 3000W electric motor, which ensures powerful operation and high performance.

In terms of functionality, the saw table makes use of a 600mm-diameter, 40-tooth carbide widia disc blade made with state-of-the-art laser technology, ensuring superior cuts and unparalleled precision.

The shape of the blade notch, filled with sound-absorbing polymer, reduces vibration and noise by 25 percent compared to standard blades, this blade is capable of handling logs with a maximum cutting capacity of 280mm (diameter) and accommodating material to be processed of lengths between 800 and 1600 mm.

Its all-enamelled steel frame not only promises remarkable longevity, but also asserts itself by being easy to move, thanks to its built-in wheels.

It is the ideal solution for those looking for a fast, practical and less tiring way to process logs, offering added value in terms of productivity and comfort.

Technical Specifications and Construction Details of the Log Cutter:

• Disk Diameter : 600 mm
• Maximum Allowable Boot Diameter : 280 mm
• Adaptable Boot Length: Between 800 and 1600 mm

Distinctive Elements and Security Features:

• Blade: Made of carbide widia and equipped with 40 teeth, it ensures a clean and precise cut.
• Protective Carter: Designed to ensure maximum operator safety, it features a fixed structure to ensure the operator's safety.
• Detail of the Handles: Designed with an emphasis on user safety, the handles are used to lock and open the casing opening.
• Base of the Saw Bench: It stabilizes the unit during operation, ensuring fundamental solidity during cutting operations.
• Closure Hook: A re-closing system for the cutting device, designed to simplify the idle and storage phases of the log cutter.
• Wheels: Designed to facilitate the handling of the device, the wheels are a distinctly useful detail in the operational logistics of the tool.
• Adjustable support for long pieces.
• Cutting length adjuster.
• Trunk-blocking toothed plate.

The design and features of this log cutter were conceived and created not only to enhance the functionality and efficiency of the tool, but also to put operator safety and convenience at the forefront.

Every building element and detail is the result of careful design and engineering directed towards usability and durability.

High Performance Electric Motor: 400V

This machine is powered by a high-quality and durable motor operating at 400V. Includes a brake capable of stopping the blade in just 10 seconds. These motors are constructed with special copper windings, offering superior resistance to exertion and ensuring long-lasting performance.

This component was chosen and installed with the aim of providing constant high power and ensuring optimal and smooth operation during all phases of operation.

Robust Power: 3000W

With a power output of 3000 watts, the saw bench can effortlessly handle even the most demanding jobs and the toughest materials. Considerable power ensures a clean and precise cut, reducing the risk of tearing and guaranteeing clean and professional results. Every task, from massive logging to more detailed operations, is carried out with extreme efficiency, ensuring optimized operating time and a high degree of satisfaction for every professional and do-it-yourselfer.

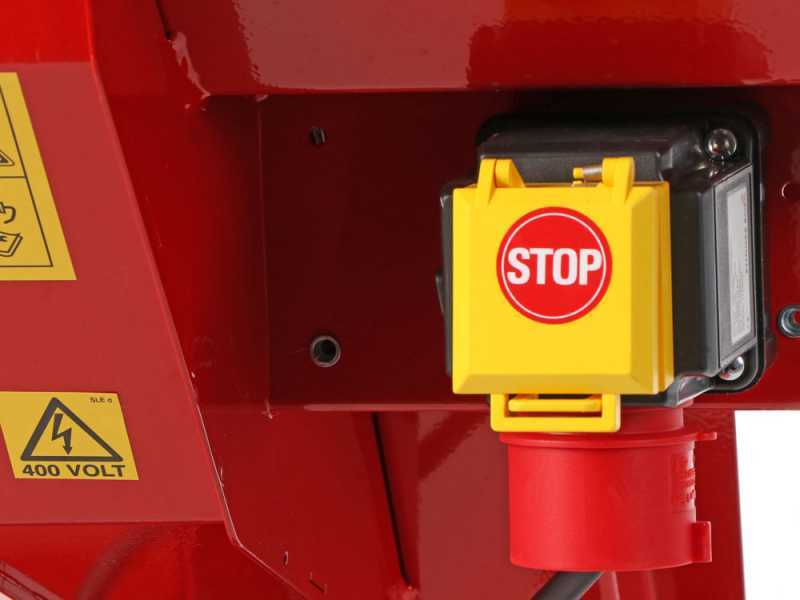

Power and Stop button: Safety and Practicality

Safety and ease of use are the focus of our attention. The detailed design of the on/off button is designed to be intuitive while maximizing user safety during the entire work operation. Accessibility and clear button signalling allow for quick interaction, facilitating safe and immediate startup and shutdown of the device. The switch is also designed to prevent accidental starts, providing an extra layer of protection while using the saw bench.

• High Power: 3000W dedicated to ensuring clean and precise cuts.
• Electric Motor: Constant operation, low maintenance, and respect for the environment.
• Maximized Security: Ignition and shutdown designed to be safe.

With this machine, you have the assurance of a job well done, professional results, and the utmost attention to safety and quality.

Recommendations for use

To ensure the maximum service life and efficiency of the machine, the following instructions must be strictly observed. Failure to comply with them constitutes improper use, carrying a serious risk of damage to the product (this type of damage is not covered by the warranty).

• Intended use of materials: The machine is designed exclusively for cutting logs. It is strictly forbidden to feed any other type of object or material into the cutting system. In particular, the following material must never be cut, including but not limited to:

1. Contaminated wood: logs with excessive amounts of soil, stones or foreign metal objects (nails, screws, staples, barbed wire or remnants of fencing).
2. Building materials: timber planks soiled with concrete, bricks, plasterboard or composite panels.
3. Synthetic and metal materials: plastic pipes (PVC, PE), metal profiles, light alloys or electrical cables.
4. Inert materials: rocks, glass, ceramics or mineral materials.

Impact with unsuitable materials could deform the blade, damage the flange/shaft and cause vibrations that damage bearings and supports.

• Suitability of extension leads: Avoid using unsuitable extension leads. Given the  high motor power, it is essential to ensure a constant power supply. Undersized cabling causes voltage drops that prevent the motor from reaching the correct speed, leading to abnormal overheating and permanent damage to electrical components. Use only cables with a minimum cross-section of 2.5 mm². This requirement is essential to correctly manage the high current absorption, particularly during start-up and during cutting operations under load, thereby preventing voltage drops and motor overheating.
• Log dimensions: do not exceed the maximum capacities. Do no cut logs larger than Ø 170 mm or outside the 300–1000 mm range length to prevent motor overloading.
• Load stability: the section of log or branch must be positioned so that the grain is perpendicular to the cutting disc.
• Never use the machine to cut more than one log or branch at a time: Stacking multiple pieces can cause sudden, uncontrolled movements of the material against the cutting disc, resulting in a risk of deformation or breakage of the disc.
• Cutting feed and motor load: Do not force the log through the cut to the point where the blade’s rotation slows significantly or stops. Stalling or prolonged operation under excessive load causes high absorption and abnormal overheating, posing a risk of permanent damage to the motor and electrical components (e.g. starting capacitor).
• Mains voltage stability: Do not connect the machine to electrical circuits where other heavy loads are operating simultaneously (e.g. air compressors, welding machines or air conditioners). Continuous voltage fluctuations can burn out the capacitor or the internal components of the electric motor.
• Cleaning the ventilation openings: Ensure that the motor’s ventilation grilles are always free from accumulations of sawdust or dust. A restricted air flow prevents heat dissipation, leading to deterioration of the windings’ insulation.
