Ceccato Olindo Honda GP160 - Petrol log saw - Circular trestle saw

Add a question
ID: K607593

EAN: 8053435098250

MPN: SGTGP160

Ceccato Olindo Honda GP160 - Petrol log saw - Circular trestle saw
FREE
2 bottles of 600 ml engine oil each2 bottles of 600 ml engine oil each
Replacement spark plug kitReplacement spark plug kit
Foam air filterFoam air filter
Foam air filterFoam air filter
Body material
Enamelled steel
Motor type
4-stroke
Cubic capacity
163 cm³
Nominal power
4.8 HP
Disc blades diameter
600 mm
Max. trunk diameter
28 cm
Motor brand
Honda
Motor Model
GP 160
Manufacturing country
Italy
Product Features
Model:
Honda GP160
Body material:
Enamelled steel
Operating mode:
Spark ignition
Operating mode:
Spark ignition
Disc blades diameter:
600 mm
Manufacturing country:
Italy
Motor data
Motor brand:
Honda
Motor Model:
GP 160
Motor type:
4-stroke
Cubic capacity:
163 cm³
No. of cylinders:
1
Nominal power:
4.8 HP
Rated power (HP):
3.9 HP
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Manufacturing country:
Japan
Cutting data
Max. trunk length:
160 cm
Max. trunk diameter:
28 cm
Blade movement:
Rotating
Disc blade diameter :
600 mm
Equipment
CE-compliant safety switch:
CE-compliant
Recoil start system (with rope):
Yes
Disc blade safety protective cover:
Yes
Log carriage side extension:
Yes
Rocking log carriage for transport:
Yes
Free gifts/extra features
Engine oil bottle for free:
2
Instructions manual:
Yes
Dimensions and logistics

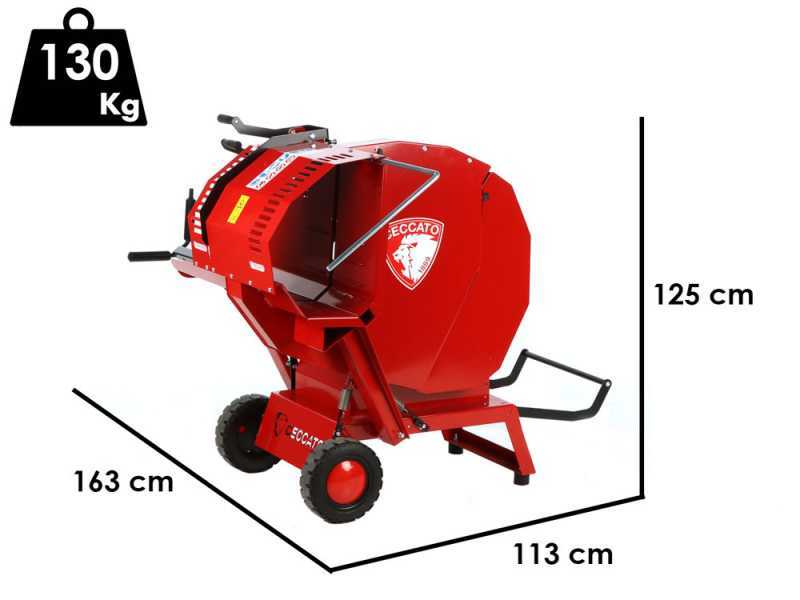

Product dimensions in cm (L x W x H):
163x113x125
Net weight:
130 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
110x90x145
Gross weight (packaging included) :
145 Kg
Unloading with hydraulic tail lift:
Yes
Out of stock
Free Shipping
€ 1.701,71
VAT Included
TOP QUALITYTOP QUALITY
You're viewing:
Customers also viewed:
Description

Ceccato olindo Honda GP160 - Circular saw bench with stand - Petrol log cutter

The Ceccato Olindo Honda GP160 Circular Saw Bench is a cutting-edge solution for efficient log cutting, ideal for professionals looking for high-quality equipment.

Its construction is characterised by a robust design, with a sheet steel frame, bent and welded with robotic precision, ensuring durability and strength.

Safety in use is a key feature of this saw bench. A screwed and closed front protection prevents splinters from escaping, ensuring a safe and controlled working environment. This safety measure is essential to prevent accidents and ensure operator peace of mind.

One of the most innovative aspects of this saw bench is its design, which reduces the physical effort required. With a structure designed for ease of use and portability, this tool features a wheeled system and integrated wheels, making it extremely manoeuvrable and versatile, perfect for jobs requiring mobility.

The Honda GP160 internal combustion engine powers this saw bench, offering high performance and powerful operation, which is crucial for intensive and prolonged work.

From a technical point of view, the saw bench is distinguished by its carbide widia disc blade, 600 mm in diameter and 40 teeth, manufactured using cutting-edge laser technology. This blade guarantees high quality cuts and unrivalled precision, key elements for professional results.

The blade is also designed to reduce noise and vibration, thanks to the use of a sound-absorbing polymer that reduces these factors by 25 per cent compared to standard blades.

With a maximum cutting capacity of 280 mm diameter and a workable material length between 800 and 1600 mm, this saw bench easily handles logs of various sizes.

The enamelled steel construction not only guarantees a long service life, but also facilitates movement thanks to the integrated wheels. This makes the Ceccato Olindo Honda GP160 Circular Saw Bench an ideal solution for those looking for a fast, practical and less tiring way to process logs, offering added value in terms of productivity and comfort.

In conclusion, the Ceccato Olindo Honda GP160 Circular Saw Bench is a smart investment for professionals who want efficiency, safety and superior quality in their log-cutting work.

Technical Features

Technical Specifications and construction details of the log cutter:

  • Disc diameter: 600 mm
  • Maximum Allowable Log Diameter::: 280 mm
  • Adjustable Log Length: including between 800 and 1600 mm

Distinctive Elements and Safety Features:

  • Blade: Made of cemented carbide metal, equipped with 40 teeth, it ensures a precise and clean cut.

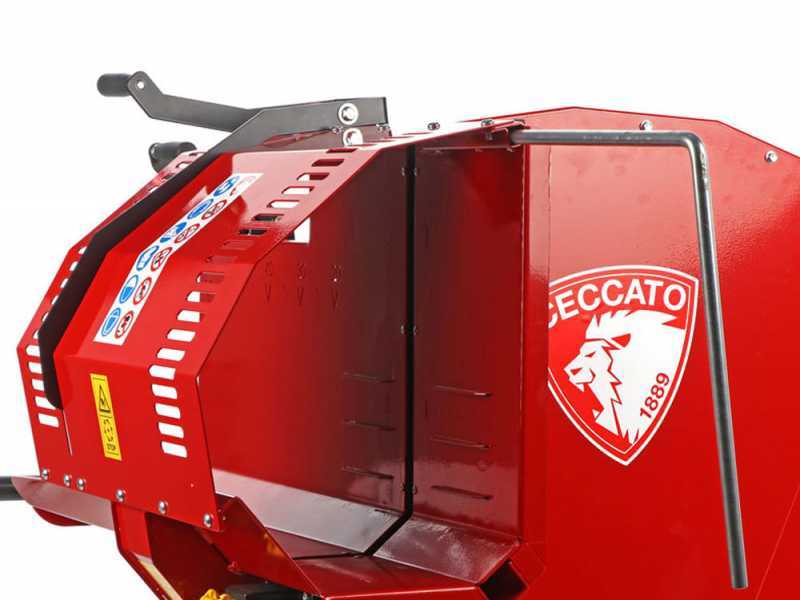

  • Protective Casing:: Designed to ensure maximum operator safety, it has a fixed structure to ensure the safety of the operator.
  • Details of the handles: Designed with particular attention to user safety, the handles are used to block and open the opening of the casing.
  • Saw Bench Base stabilizes the unit during use, ensuring vital solidity during the cutting operating.
  • Closing Hook: A closing system for the cutting device, designed to simplify the phases of inactivity and storage of the log cutter.
  • Wheels Designed to facilitate the movement of the device, the wheels are a very useful detail in the operational logistics of the tool.
  • Adjustable support for long pieces.
  • Cutting length adjuster:
  • Toothed sheet metal log lock

The design and features of this log cutter have been designed and manufactured not only to enhance the functionality and efficiency of the tool, but also to highlight the safety and practicality of use for the operator.

Every construction element and every detail is the result of careful design and engineering oriented towards usability and durability.

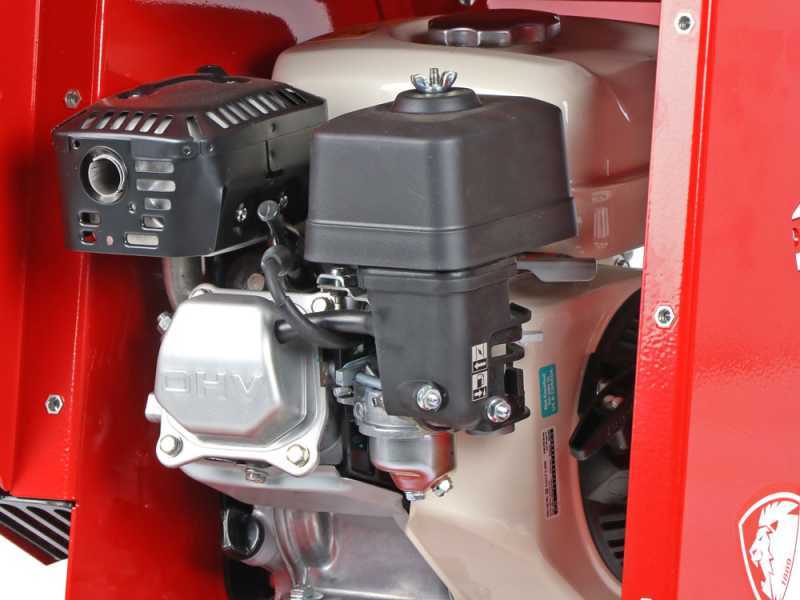

Honda GP 160 engine

The 163 cc Honda GP 160 engine is light and high performing, suitable for operations requiring great power.


Features:

Engine type:
4-Stroke - OHV - single cylinder
Cylinder type:
Cast iron
Cubic capacity
163 cm³
Compression ratio:
8.5: 1
Max. rpm:
3600 rpm
Fuel tank capacity:
3.1 L
Consumption:
1.4 L/h 3600 rpm
Dry weight
15.1 kg

Latest generation 4-stroke petrol engine with "OHV” overhead valves - horizontal shaft, cycle eight, 4-stroke, 25° tilted cylinder forced air cooling system, cast iron cylinder.

Nowadays, the great majority of agricultural and gardening equipment available on the market are fitted with engines with unknown brands or motors Made in China.

Nominal Power: 4.8 HP
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 3.9 Hp
It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

* this is a figure that can vary for the same engine model depending on the rpm the equipment manufacturer has decided to have the applied engine deliver


The engine is PROVIDED WITHOUT OIL.
Please read carefully the instructions manual before starting the unit.

Free items & Standard equipment

1° GIFT: Engine spare parts and maintenance kit

COMPLIMENTARY:

Spare parts set and accessories for the maintenance of the following engines.

  • Honda GX 120/GX 160/GX 200
  • Honda GP160/GP 200
  • Loncin 120/160/196 cc
  • Axo 120/160/196 cc
  • Briggs & Stratton 950 series

The set includes:

No. 1 GeoTech spark plug

No. 01 professional joint spark plug wrench specific for riding-on mowers, flail mowers and lawn mowers heavy-duty engines.

No. 01 Spare elliptical pleated paper air filter with sponge cover

No. 01 round foam air filter for engines with oil bath filter unit

WARNING: This kit can’t be used for other brands or models on the market. We don’t provide different kit from the ones offered on our website. We do not guarantee that this kit is valid on products not purchased on our website

2° GIFT: 600 ml Bottles of Engine Oil

COMPLIMENTARY: two 600 ml sae 15W 40 oil bottles. Specific lubricant for 4-stroke gardening machinery with up to 10 Hp of power. Good cleansing and dispersion.

Free Items Included

The product will be shipped on a security pallet.

Including operator’s manual.
