Ceccato Olindo BULL PTO SPLT11-POL - Tractor log splitter - Multi-position

Bull PTO SPLT11-POL log splitter by Ceccato Olindo is a tractor-mounted multi-position log splitter with 4 different operating positions that allow choosing between vertical, horizontal and 30° or 60° tilted positions.

With its 11 ton splitting force, it can break knotty logs of different sizes up to max. 54 cm in height and a max. diameter of 50 cm.

It is equipped with a large capacity pump that ensures high splitting force and operating speed and provided with adjustable end-of-stroke automatic control system.

This PTO SPLT11-POL heavy-duty log splitter can operate very quickly, and it is equipped with special safety devices to protect the Operator while working.

Moreover, its multi-position configuration makes it extremely easy to transport. When it comes to the horizontal or tilted configuration, transporting the log splitter requires minimum effort.

Ceccato Bull log splitter is entirely made in Italy.

This machine is part of the Bull log splitter Series by Ceccato Olindo.

ATTENTION:

The log splitters in this category are not suitable for working with wood with particularly twisted fibres, such as poplar or pine, with large diameters and, in any case, types of wood with frequent knots. In this case, it is advisable to opt for professional models. In addition, logs should only be split once they have been dried, and not when they are green; when wood is green, it is less likely to split and open up and is therefore less suitable for use with a log splitter. Once dried, however, it can be split and is ready for use in fireplaces, stoves, ovens, etc.

LOG SPLITTER MODEL 10/12 TONS

WEDGE: cutting wedge with 3° tilt towards the frame.

LOWER CONTROL ARM LEVERS: shortened levers on the log supporting arms. Thus, their positioning in compliance with the height measures stated in the Directive. The indicative shape has been specifically selected to prevent the possible fall of the log towards the Operator.

HYDRAULIC HOSES: we have increased the hose diameter for ensuring a lower oil temperature. Cable protection and shielding with Ceccato Olindo screen-printed canvas sheathing with steel studs. In case of damage or burst of the hose, this holds the oil and vaporises it without any risk of injury.

LOG GUARD: in order to prevent cut logs from hitting the Operator when the machine is used in horizontal position.

OIL FILTER: To make it easier to clean the oil filter ensuring a longer service life for the hydraulic system, we have replaced the former wire mesh filter mounted inside the tank with a high-quality external hydraulic filter with a 25 NM-B>2 filtration degree.

Each machine model features all the specifications required in accordance with the Directive. Thus, all the use and maintenance instructions are properly upgraded.

The Ceccato log splitter is in compliance with the DIN EN 609-1: 2017 Directive.

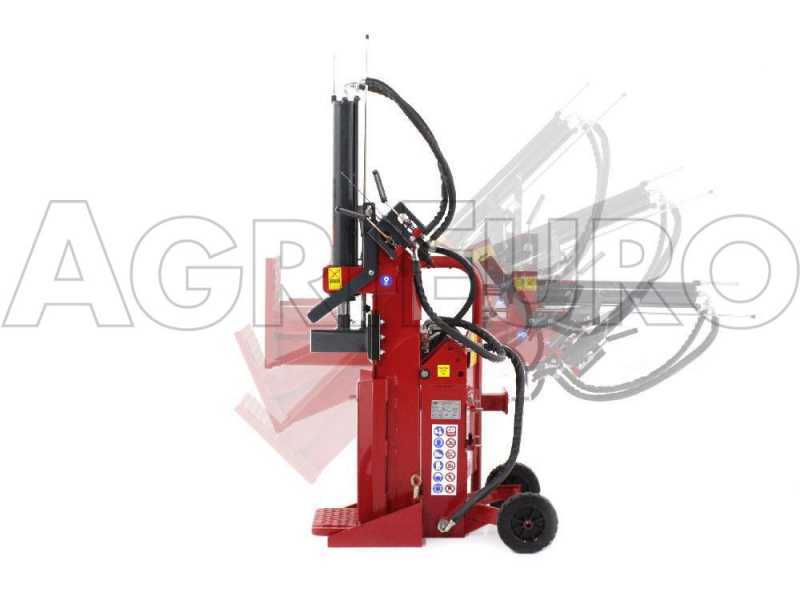

This log splitter features 4 different operating positions.

Indeed it is provided with an adjustable log tilt system featuring 4 different configurations that allow operating in vertical, horizontal and 30° or 60° tilted positions.

It is a very versatile machine allowing the Operator to choose between different working positions based on his/her own need depending on the logs dimensions and weight.

• Horizontal position
• 60° tilted position
• 30° tilted position
• Vertical position

Focus on the housing of the pin for setting the operating position of the log splitter.

Simply place the pin into the proper hole according to the position desired.

Moreover, its multi-position configuration makes it extremely easy to transport: it is recommended to move the log splitter in horizontal or tilted position because it requires minimum effort.

This log splitter is tractor-mounted and can be connected to the tractor via a cardan universal joint.

The log splitter operates by using the high-performance double hydraulic pump operation, which achieves 180 bar working pressure and can pump 20 L/min, supplying oil, drawn from the tank, to the hydraulic cylinder which acts as a pusher.

The frame of the machine structure itself acts as the hydraulic oil tank.

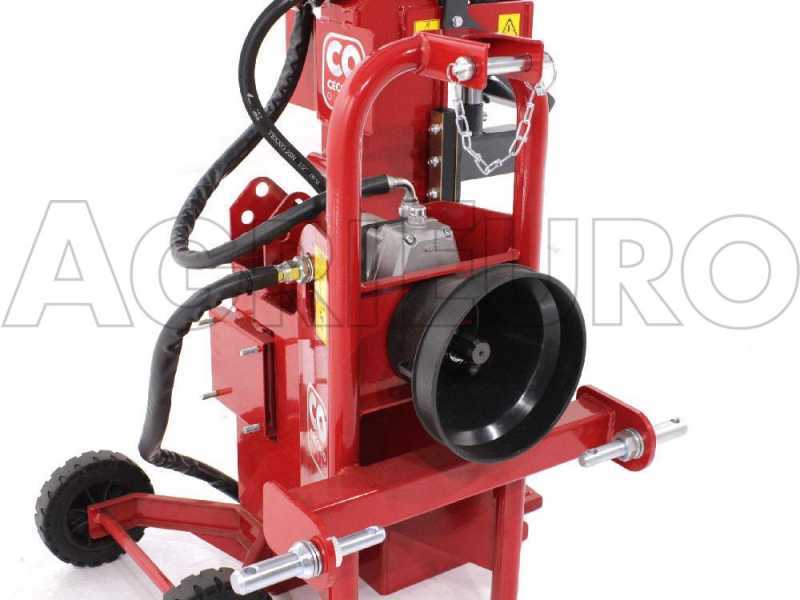

The log splitter can be connected to the tractor by means the three-point linkage on the sturdy machine frame.

Focus on the oil-bath hardened steel multiplier gearbox coated with cast aluminium.

The multiplier gearbox transfers torque from the tractor to the hydraulic pump by means of the cardan universal joint.

This log splitter is made with thick enamelled steel sections that compose the highly sturdy boxed frame.

Most log splitters on market mount an “H” shaped frame but this Ceccato log splitter mounts a boxed frame, which is reinforced with front plate where the wedge slides.

This plate is made of high-strength tempered steel, which is harder than the steel used for the frame.

This means that the frame and the support platform are very sturdy and strong.

The log splitter is equipped with wheels for easy transport and it is well-balanced.

Log splitter horizontal position size: 170x80x95 cm

Log splitter vertical position size: 80x90x170 cm

This machine complies with the security Directives in order to guarantee a completely safe operation.

The log splitter is equipped with a built-in variable speed cylinder drive circuit.

The dual control levers for operating the machine must necessarily be operated by the Operator using both hands, for avoiding any kind of injury.

Simply pull the levers toward you to operate the machine: when light pressure is applied, the log splitter makes the pushing cylinder move quickly until it comes into contact with the log.

By applying more pressure on the control handles, the piston considerably slows down its speed and increases the wedge splitting force of up to 11 tons.

Single or double speed can be selected by simply pressing down on the control handles with more or less pressure.

Once the wedge will contact the log, the Operator will automatically know how much pressure to apply on the handles so that the wedge concentrates all the power of the log splitter for splitting the log.

Adjustable piston stroke: you can adjust the piston stroke by means of the proper wrench. It is intended for short logs and for reducing the operating times.

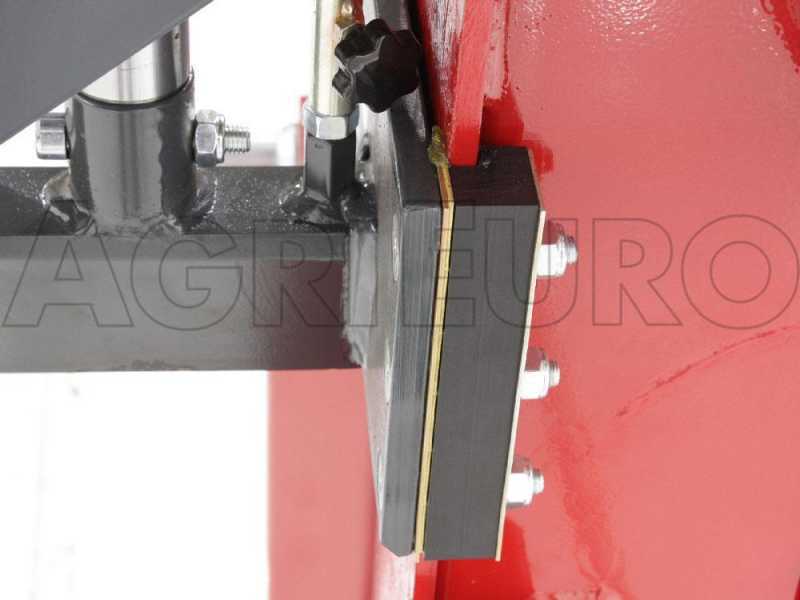

Focus on the sturdy high-density ABS piston side guides. High-density ABS piston side guides Self-lubricating and long-lasting material (it will never be necessary to replace them), and mostly, unlike the bronze ones, they won't wear the steel plate after years use.

Wedge lift locking device. Pressing this upper support automatically stops the piston from rising. This allows you to safely use the log splitter, avoiding the risk of injury to hands and wrists.

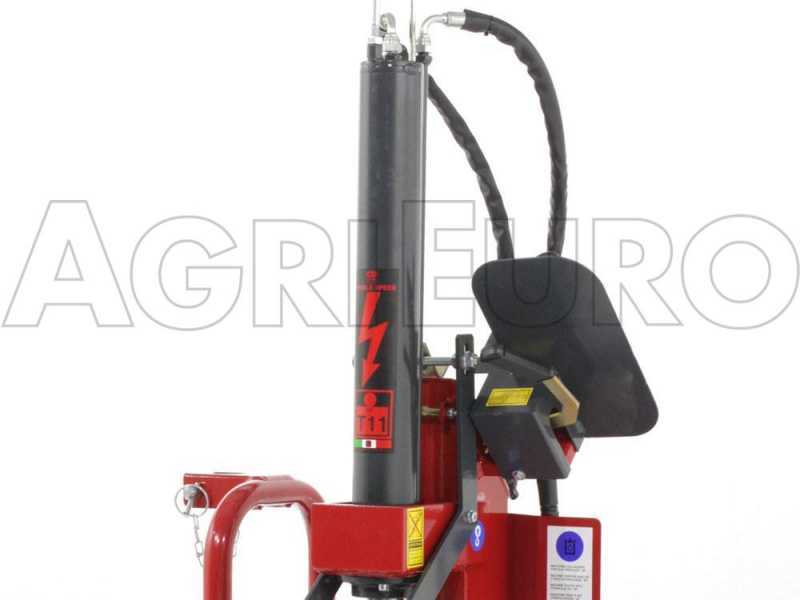

Hydraulic cylinder

Focus on the hydraulic distributor connected to the control levers

Focus on the side supports for holding the logs.

Focus on the hydraulic oil drain plug.

Focus on the support platform

Focus on the wedge.
