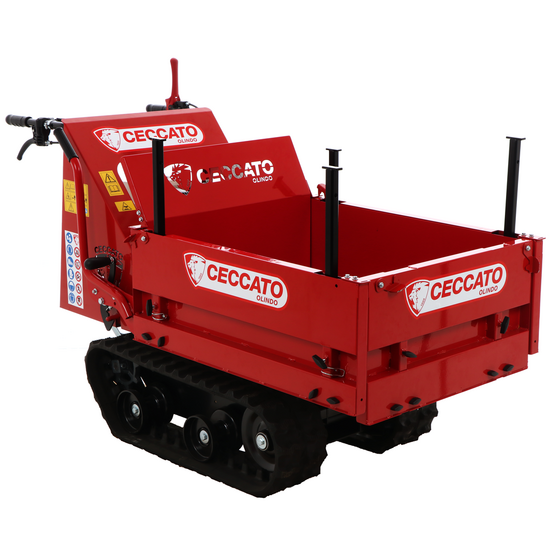

CECCATO CINGOLONE Tracked Power Barrow - Extendable body - 350 kg Load capacity

The Ceccato tracked power barrow is a very sturdy machine, suitable for transporting all types of material in agriculture, construction and forestry. It stands out to be a tracked power barrow with an effective load capacity of 350 Kg. This Cingolone is a machine built with a professional concept but also suitable for private users with ambitious demands. The body of the Ceccato Cingolone power barrow is the most innovative on the market. It is equipped with a new, simple and safe mechanical system that provides, together, 2 different advantages: it is expandable and removable.

Equipped with extendable body, which allows to significantly increase the load capacity. To extend the barrow body, it will be necessary to loosen the aluminium knobs and open the sides according to your needs. The dumper can be easily folded down thanks to a lever on the rear side. The sturdy steel frame and the manual gear shifting system with three forward and two backward speed gears make this power barrow versatile and high performing.

Thanks to its tracks and to the Honda engine this power barrow is capable of carrying loads of 350 Kg even on sloping grounds, thus being an indispensable tool for all types of transport, which is useful in many different fields of use from agriculture to livestock up to construction and gardening. Ensuring stability and safety when using the machine even with heavy loads and slopes that normal power barrows cannot cope with.

Thanks to the traction on the tracks and to the 4.8 HP 163 cc engine, this power barrow is able to carry loads:

• Up to a maximum of 350 kg on flat grounds
• Up to a maximum of 350 kg on soils with a maximum slope of 20%, making it an indispensable tool for all types of transport.

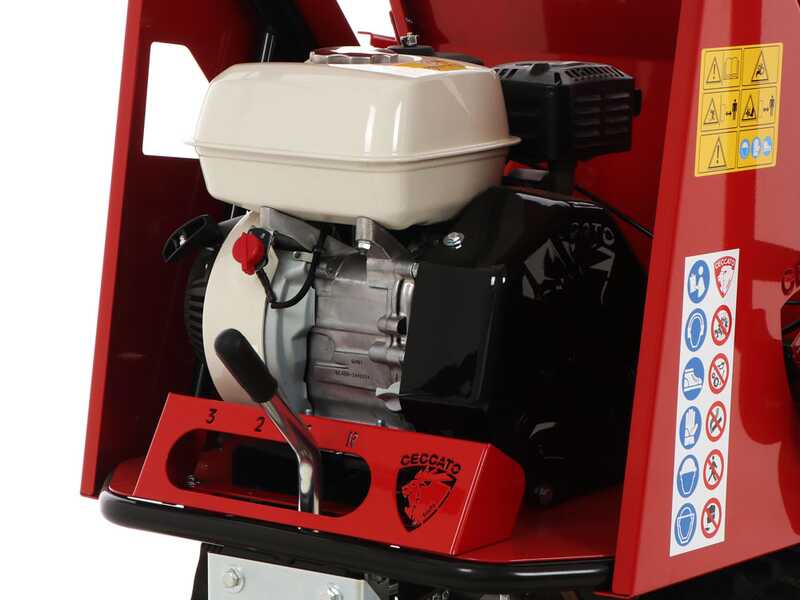

The HONDA GP160 engine with which the wheelbarrow is equipped guarantees excellent longevity and reliability of the machine.

We remind that it is always good to:
1) check the engine oil level
2) put oil in the filter because it is not present (in case of filter in oil bath)
3) carefully read the instructions manual before carrying out any oil check and topping up operation (the manufacturer can modify the supply modalities specified in the two upper points without any prior notice).

The HONDA GP160 engine guarantees high performances and it is suitable for works where high power is required, achieved thanks to the high displacement of 163 cc.

Features:

Brand new 4-stroke engine (overhead valve shaft OHV - recoil ignition ).

Easy re-coil start thanks to the automatic fuel priming system.

WARNING!
The engine is PROVIDED WITHOUT OIL.
Please carefully read the instruction manual before starting.

Nominal Power: 5 HP
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Effective power: HP 4 (3600 rpm rotation speed)
It is the real power of the engine shaft. This is the power indicated as official in the engine instructions manual.

* This technical feature may vary from a an engine model to another according to the speed of rotation provided.

Gearbox: large, reliable and accurate.

Gears:
3 forward gears
1 reverse gear

Parking brakes:
connected to the gearbox, for greater stability and security.
These are automatically activated when the controls are released (if the machine is left in neutral position, even on a steep slope, it remains perfectly locked).

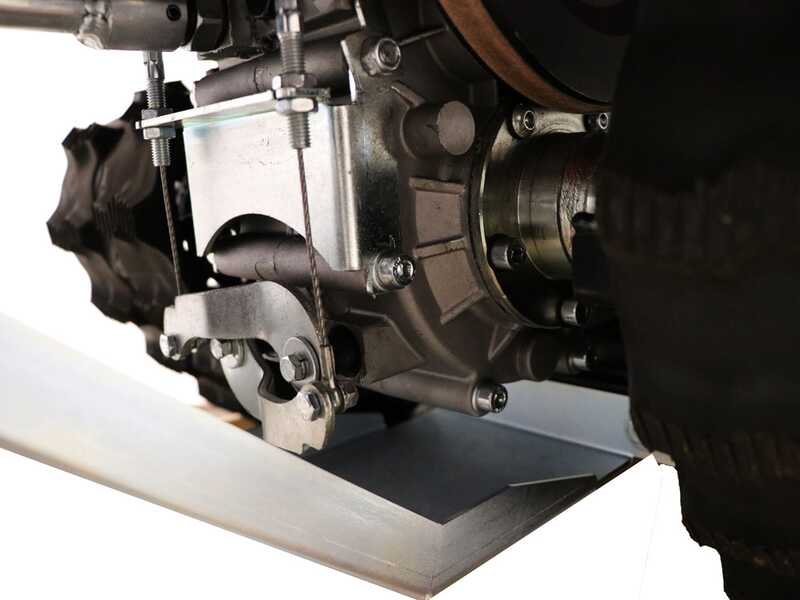

Transmission:
Sturdy and resistant, it allows managing the steering by acting on the single track, deactivating its rotation.

Thanks to the width and the tread configuration, they guarantee perfect grip and stability on all types of terrain. Made of special reinforced rubber with excellent grip, they are able to tackle any type of surface or step.

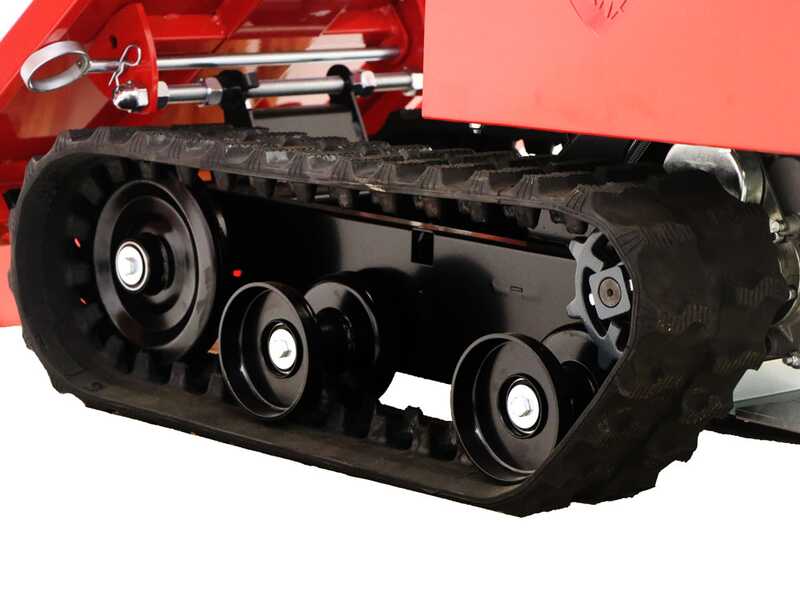

Total track width: 180 mm

Thanks to the width and the tread configuration, they guarantee perfect grip and stability on all types of terrain. Tracks made in high-density rubber to ensure longer life and greater efficiency, with teeth designed to have a good adhesion on rough terrains, provided with 3 Rollers.

Rear side of the crawler track with a pointed 'tank-like' upper corner that allows it to climb steps or other obstacles with ease.

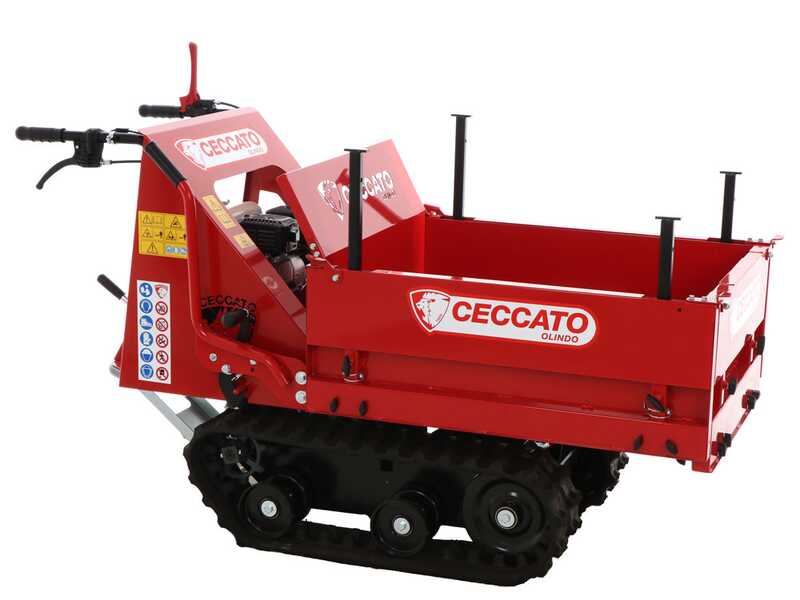

The sturdy frame with steel structure in high thickness which limits the vibrations and noise. The low center of gravity also ensures an optimal stability during the work the position of the engine and the transmission facilitates maintenance

Adjusting the track tension thanks to the tension springs.

Body made in high-resistance steel, is reinforced with tubular cross members in the lower part, which make it suitable for any load or stress. The loading platform is very close to the ground in order to make loading/unloading operations easier.

Mechanical tipping: use the proper rubber lever with spring to release it by hand. It is easy to use even with heavy loads by means of the tipping control lever on the side.

Closed barrow dimensions: 900 x 190 x 290 mm

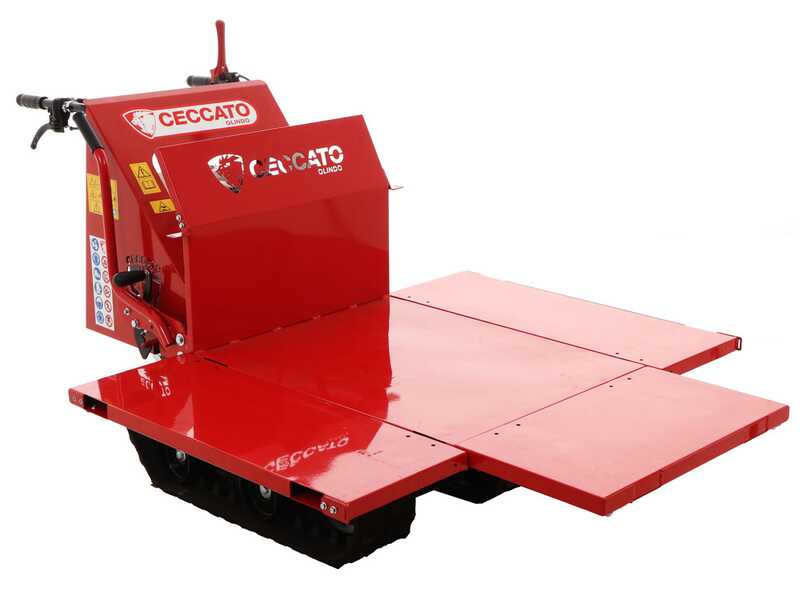

The load capacity can be increased considerably thanks to the extendable tailgates.
In addition to the classic wing nuts under the body, the power barrow is equipped with strong hinges that secure the tailgates to each other.

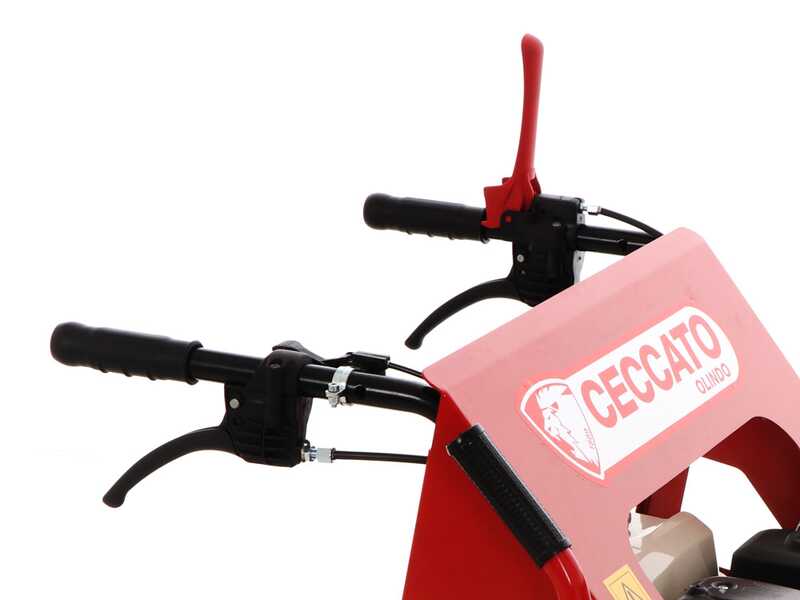

Controls: easy to operate and ergonomic, they offer precision and controllability in the work

Large red lever for motion activation.

The two lower levers are for the steering, respectively right and left.

The steering can be adjusted depending on the control lever and it allows moving smoothly. By partially pulling either lever, the steering of the track concerned, right or left, will also be partial.
This allows the mini-transporter to be steered extremely smoothly, without causing abrupt movements.

Safety brake allowing immediate stop.
