Ceccato BULL SPLT16R4 16 Tons Tractor-mounted Vertical Log Splitter - 500 mm Piston Stroke

Questions & Answers (2)
ID: 3743

EAN: 9993089183522


After-sales assistance & Spare parts
Ceccato BULL SPLT16R4 16 Tons Tractor-mounted Vertical Log Splitter - 500 mm Piston Stroke
Max. trunk diameter
60 cm
Piston stroke
50 cm
Max. pressure
230 bar
Retractable piston for transport
Double speed
Operating mode
Tractor-driven PTO
Nominal splitting force
16 t
Tractor three-point hitch
Manufacturing country
Product Features
Double speed:
Operating mode:
Tractor-driven PTO
Nominal splitting force:
16 t
Piston stroke:
50 cm
Adjustable piston stroke (for short logs):
Worktop log cutting:
Cutting plate positions:
Ground splitting system:
Manufacturing country:
Motor data
Motor speed:
540 RPM
Power supply:
Tractor-driven PTO
Manufacturing country:
Pump data
Pump type:
Flow rate:
40 L/min
Max. pressure:
230 bar
Oil tank:
Hydraulic cylinder outer diameter:
100 mm
Piston diameter:
60 mm
Piston speed:
26 cm/s
Piston speed (2):
10 cm/s
Retracting speed:
16 cm/s
Manufacturing country:
Hydraulic oil qty.:
16 Litres
Cutting data
Max. trunk length:
50 cm
Max. trunk diameter:
60 cm
Covered with front plate
Vertical log splitter safety lever:
Retaining side arms:
Trunk lifting system:
Retractable piston for transport:
Stump Support Shelf:
Tractor three-point hitch:
Replaceable wedge guides:
Cartridge oil filter :
Wheeled trolley for transport:
Rear wheels size:
27 cm
Free gifts/extra features
4-way wedge:
Splitting wedge:
Instructions manual:
Dimensions and logistics
Product dimensions in cm (L x W x H):
78x62x215 cm
Net weight:
236 Kg
On pallet
Original packaging/s dimensions in cm (L x W x H):
80x80x200 cm
Gross weight (packaging included) :
246 Kg
Unloading with hydraulic tail lift:
Assembly time:
15 minutes
Prompt Delivery
2 items in stock
Free Shipping
Estimated delivery: 25/07/2024 - 29/07/2024
Suggested price:
€ 2.480,32
€ 2.306,70
VAT Included
You're viewing:
Customers also viewed:

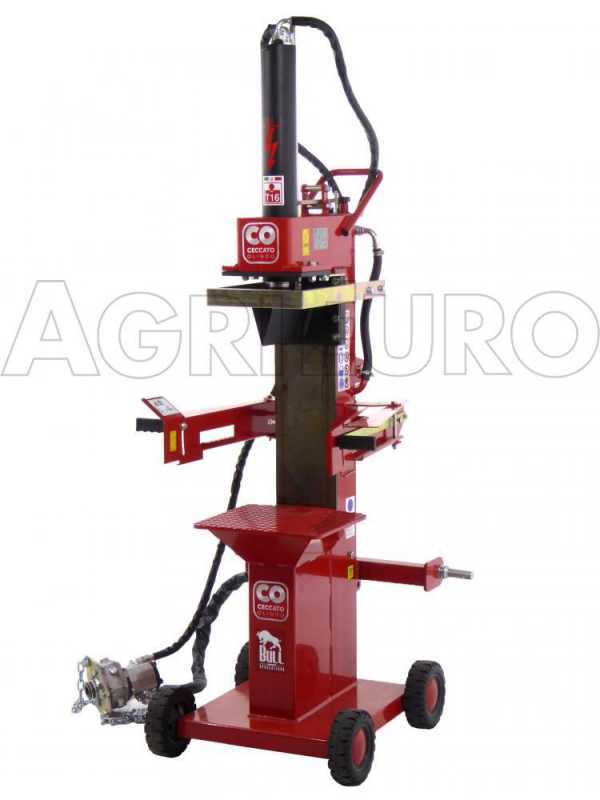

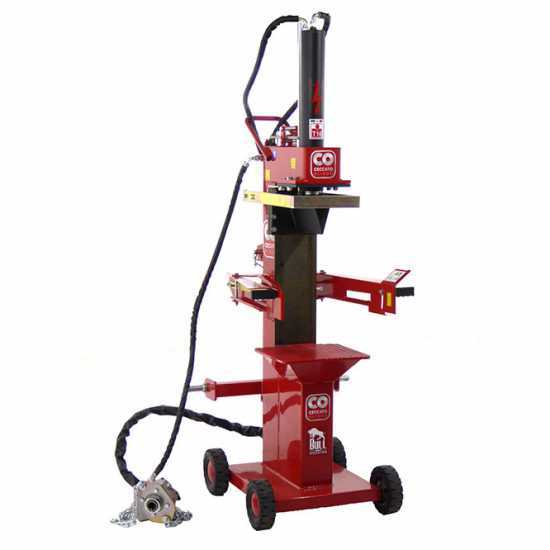

SPLT16R4 tractor-mounted vertical log splitter

Ceccato Olindo Bull SPLT16R4 is a vertical log splitter with mobile pump intended for intensive uses and for the ones who want a high-quality and high-performing product.

It comes with a large wedge made of highly sturdy cast steel. It slides on a thick steel guide which prevents the cylinder from wear.

The Bull SPLE16R4 is tractor-mounted log splitter that can be connected to the tractor by means of the mobile pump which is directly linked to the PTO. It is NOT necessary using a cardan shaft. Pump unit and multiplier gearbox are directly connected to the tractor PTO for extra splitting force and working speed.

With its 16 ton splitting force it can break knotty logs of different sizes up to max. 52 cm in height.

It is provided with a safety arch and adjustable end-of-stroke automatic control system. The piston can be closed for storage allowing to reduce the log splitter size.

This heavy-duty log splitter can operate very quickly and it is equipped with special safety devices to protect the Operator while working.

This machine is part of the Bull log splitter Series by Ceccato Olindo and it is completely Made in Italy.

Highest safety ensured by the Ceccato Olindo log splitter

WEDGE: cutting wedge with 3° tilt towards the frame.

LOWER CONTROL ARM LEVERS: shortened levers on the log supporting arms. Thus, their positioning in compliance with the height measures stated in the Directive. The indicative shape has been specifically selected to prevent the possible fall of the log towards the Operator.

HYDRAULIC HOSES: we have increased the hose diameter for ensuring a lower oil temperature. Cable protection and shielding with Ceccato Olindo screen-printed canvas sheathing with steel studs. In case of damage or burst of the hose, this holds the oil and vaporises it without any risk of injury.

SUPPORT PLATFORM HEIGHT: the height of the support platform from the ground has been increased by changing the platform and assembling four wheels with a larger diameter, making it easier to move and sturdier.

Each machine model features all the specifications required in accordance with the Directive. Thus, all the use and maintenance instructions are properly upgraded.

The Ceccato log splitter is in compliance with the DIN EN 609-1: 2017 Directive.

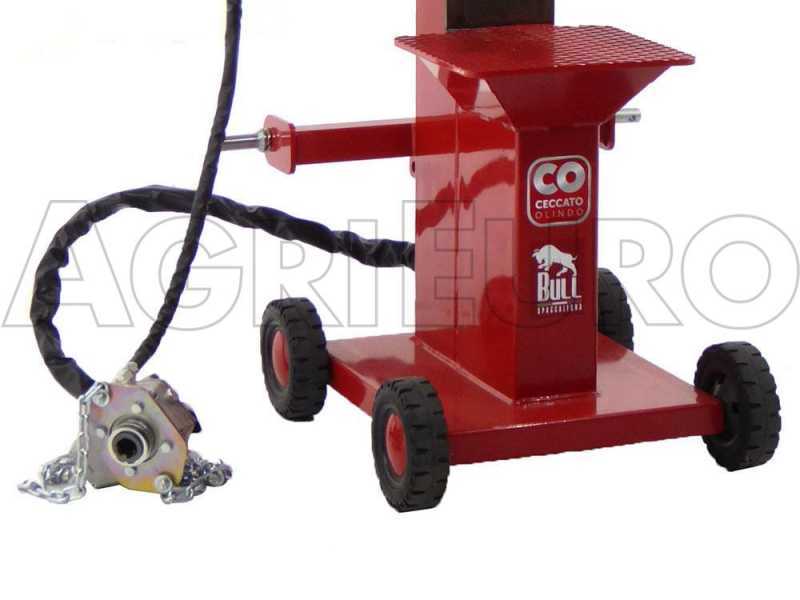

Tractor-driven: mobile hydraulic pump

This log splitter can be operated directly connecting it to the tractor, thanks to the mobile pump.

Indeed, the SPLT16R4 is provided with pump unit and multiplier gearbox are directly connected to the tractor PTO for extra splitting force and high working speed.

The multiplier gearbox transfers the drive torque from the tractor to the mobile hydraulic pump, which operates at a pressure of 230 bar (max.) and pumps 40 L/min of oil to the hydraulic cylinder.

The frame of the machine structure itself acts as the hydraulic oil tank.

The log splitter can be connected to the tractor by means the three-point linkage on the sturdy machine frame and the mobile pump safety chains.

If you use the mobile pump it is NON using the cardan shaft, as usual for others tractor-mounted log splitters on market.

Two-stage pump fully made in Italy.

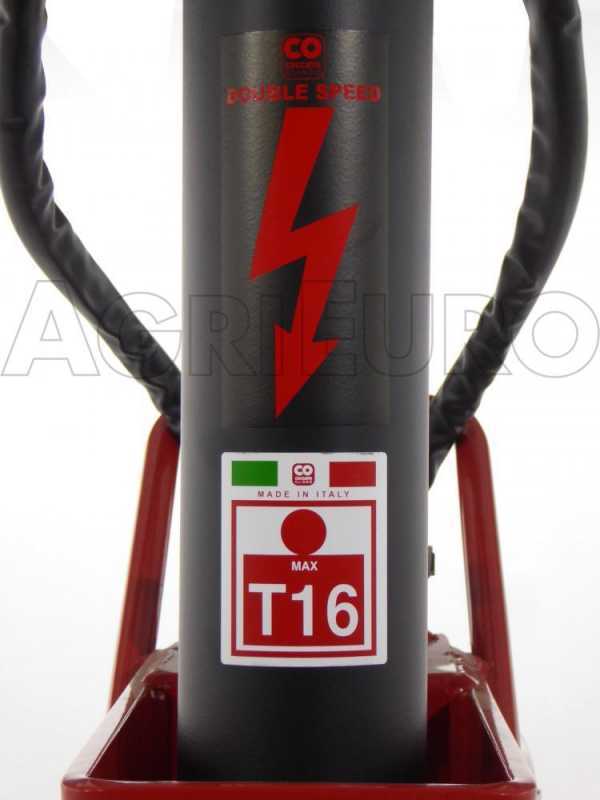

Wedge and piston

With its 16 ton splitting force it can break knotty logs of different sizes up to max. 52 cm in height.

This is possible thanks to the very sturdy and large piston, which features a 100 mm outer diameter and a 60 mm internal diameter.

The piston slides on a steel guide in order to preserve the cylinder even under extra load. Moreover, it comes with a high-density ABS piston side guides with bronze plate.

Highly wear-resistant guides. Their bronze sliding plate prevents the steel log support from wear.

The cutting wedge is made of highly sturdy melted pressed steel.

Adjustable piston stroke: you can adjust the piston stroke by mounting the cylinder provided.

You can disassemble and close the piston to limit the log splitter size for easy storage.

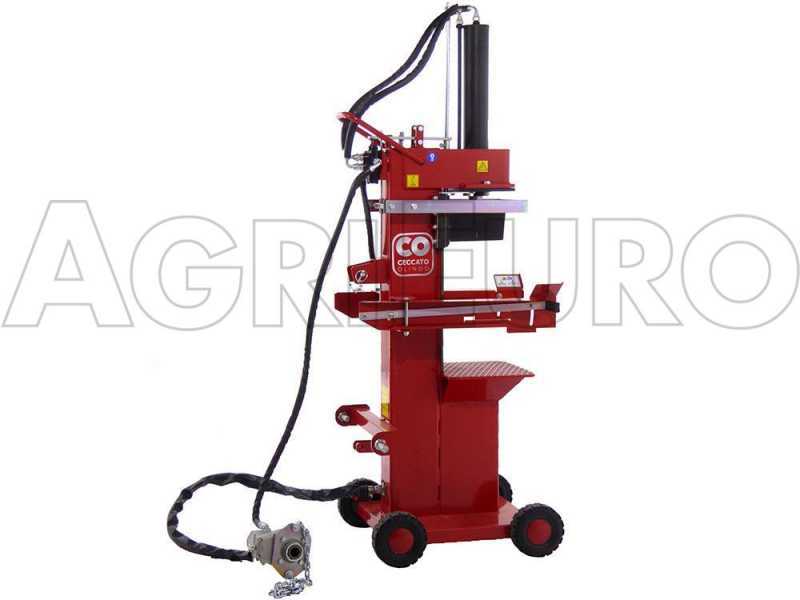

Controls and operating speed adjustment

The log splitter is equipped with a built-in variable speed cylinder drive circuit.

The control levers for operating the machine must necessarily be operated by the Operator using both hands, for avoiding any kind of injury.

When light pressure is applied, the log splitter makes the pushing cylinder move quickly until it comes into contact with the log.

By applying more pressure on the control handles, the piston considerably slows down its speed and increases the wedge splitting force of up to 16 tons.

Single or double speed can be selected by simply pressing down on the control handles with more or less pressure. Once the wedge will contact the log, the Operator will automatically know how much pressure to apply on the handles so that the wedge concentrates all the power of the log splitter for splitting the log.

Main features

This log splitter is made with thick enamelled steel sections that compose the highly sturdy boxed frame. Most log splitters on market are equipped with a “H” shaped frame but this Ceccato log splitter is provided with a boxed frame, which is reinforced with front plate where the wedge slides. This plate is made of high-strength tempered steel, which is harder than the steel used for the frame. This means that the frame and the support platform are very sturdy and strong.

This log splitter comes with wheels to make transport easier and it is perfectly balanced. Even just one Operator can transport the machine even if it weights around 200 Kg.

Focus on the 27 cm transport wheels.

Focus on the log lifting connection.

Focus on the upper three-point linkage

Focus on the lower three-point linkage

This machine complies with the security Directives in order to guarantee a completely safe operation.

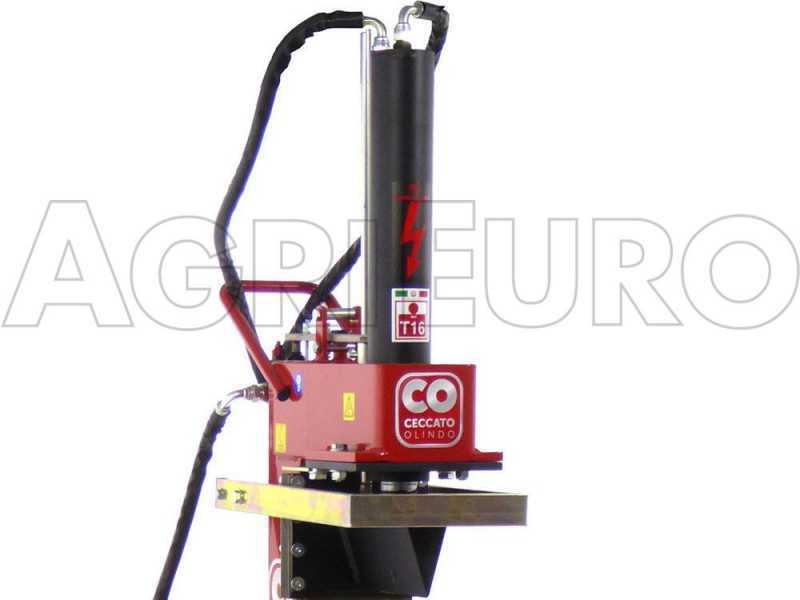

Other features

Wedge lift locking device. Pressing this upper support automatically stops the piston from rising. This allows you to safely use the log splitter, avoiding the risk of injury to hands and wrists.

Focus on the wedge.

Focus on the heavy-duty hydraulic distributor.

Focus on the hydraulic oil drain plug.

Focus on the hydraulic oil level.

Focus on the highly thick cutting plate.

Adjustable piston stroke: you can adjust the piston stroke by means of the proper wrench. It is intended for short logs and for reducing the operating times.

Focus on the high-density ABS piston lateral guides featuring bronze plate.

Free items & Standard equipment

Standard equipment

The log splitter is safely shipped in its original packaging on pallet.

The maintenance and operating instructions manual is included in the packaging.
