Ceccato BULL SPLT13.11 13 Tons Tractor-mounted Vertical Log Splitter - 1100 mm Piston Stroke

Questions & Answers (4)
ID: 3736

EAN: 9993089183454

MPN: SPLT13.11

8,5/10
After-sales assistance & Spare parts
Ceccato BULL SPLT13.11 13 Tons Tractor-mounted Vertical Log Splitter - 1100 mm Piston Stroke
+50 sold
Max. trunk diameter
60 cm
Piston stroke
110 cm
Max. pressure
230 bar
Ground splitting system
Yes
Retractable piston for transport
Yes
Double speed
Yes
Operating mode
Tractor-driven PTO
Nominal splitting force
13 t
Pump
Double
Tractor three-point hitch
Yes
Manufacturing country
Italy
Product Features
Model:
SPLT13.11
Type:
Vertical
Double speed:
Yes
Operating mode:
Tractor-driven PTO
Nominal splitting force:
13 t
Piston stroke:
110 cm
Adjustable piston stroke (for short logs):
Yes
Worktop log cutting:
Yes
Cutting plate positions:
1
Ground splitting system:
Yes
Manufacturing country:
Italy
Motor data
Motor speed:
540 RPM
Power supply:
Tractor-driven PTO
Manufacturing country:
Italy
Pump data
Pump type:
Single
Flow rate:
4-19 L/min
Max. pressure:
230 bar
Oil tank:
Yes
Hydraulic cylinder outer diameter:
80 mm
Piston diameter:
40 mm
Piston speed:
23 cm/s
Piston speed (2):
9 cm/s
Retracting speed:
15 cm/s
Manufacturing country:
Italy
Hydraulic oil qty.:
16 Litres
Cutting data
Max. trunk length:
114 cm
Max. trunk diameter:
60 cm
Equipment
Frame:
Covered with front plate
Pump:
Double
Vertical log splitter safety lever:
Yes
Retaining side arms:
No
Retaining side supports:
Yes
Trunk lifting system:
No
Retractable piston for transport:
Yes
Stump Support Shelf:
Yes
Tractor three-point hitch:
Yes
Replaceable wedge guides:
Yes
Cartridge oil filter :
Yes
Wheeled trolley for transport:
Yes
Rear wheels size:
27 cm
Free gifts/extra features
4-way wedge:
No
Splitting wedge:
No
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
100x80x180 cm
Net weight:
250 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
105x80x190 cm
Gross weight (packaging included) :
260 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
15 minutes
Prompt Delivery
3 items in stock
Free Shipping
Estimated delivery: 25/06/2024 - 27/06/2024
Suggested price:
€ 3.099,17
€ 2.789,25
VAT Included
TOP QUALITYTOP QUALITY
You're viewing:
Customers also viewed:
Description

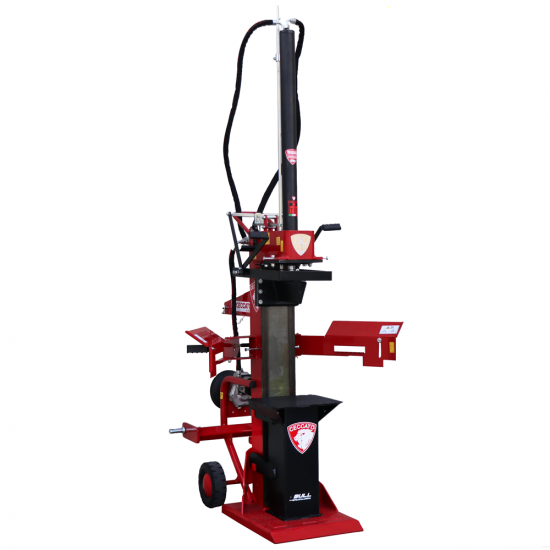

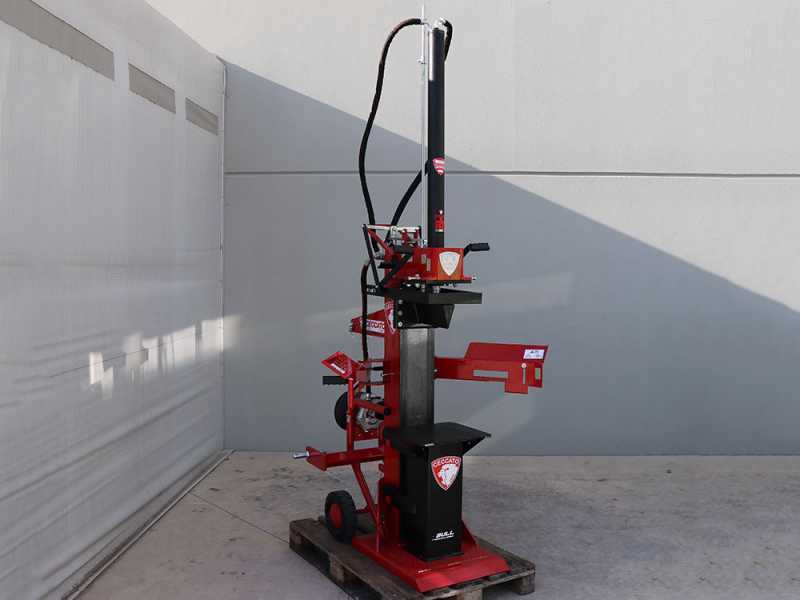

Ceccato Olindo SPLT13.11 tractor-mounted log splitter

The Ceccato Olindo Bull SPLT13.11 log splitter is a vertical log splitter intended for intensive uses. It comes with a big wedge, which slides on a thick steel guide which prevents the cylinder from wear even in case of intensive use.

The Bull SPLT13.11 is operated by means a cardan shaft connecting it directly to the tractor PTO.

The 13 tons splitting force allows splitting knotty logs up to 114 cm in height by means of the additional controls on the upper part of the machine in order to split large-sized logs.

Furthermore, it is equipped with a large capacity pump on the multiplier gearbox for using it with a cardan shaft, which guarantees a great splitting force and a high working speed.

It is provided with a safety arch and *adjustable end-of-stroke automatic control system. The piston can be closed for storage

This SPLT13.11 heavy-duty log splitter can operate very quickly and it is equipped with special safety devices to protect the Operator while working.

Ceccato Bull log splitter is entirely made in Italy.

This machine belongs to the Ceccato Olindo series of tractor-mounted Bull log splitters equipped with 1100 mm piston stroke: SPLT20 SPLT16 SPLT13.11

Highest safety ensured by the Ceccato Olindo log splitter

WEDGE: cutting wedge with 3° tilt towards the frame.

SUPPORT PLATFORM: the thickness of the supporting plate is 55 mm, thus improving the stability of the machine. The support platform reaches 100 mm beyond the edge of the cutting wedge.

PISTON STROKE: the cutting wedge at the end of the stroke features a residual distance of 100 mm from the cutting plate.

UPPER CONTROL LEVERS: the levers have been shortened as to comply with the Directive.

LOWER CONTROL ARM LEVERS: shortened levers on the log supporting arms. Thus, their positioning in compliance with the height measures stated in the Directive. The indicative shape has been specifically selected to prevent the possible fall of the log towards the Operator.

HYDRAULIC HOSES: we have increased the hose diameter for ensuring a lower oil temperature. Cable protection and shielding with Ceccato Olindo screen-printed canvas sheathing with steel studs. In case of damage or burst of the hose, this holds the oil and vaporises it without any risk of injury.

LOG LIFTING SYSTEM: installation of a log lifting device synchronised with the movement of the cutting wedge

Each machine model features all the specifications required in accordance with the Directive. Thus, all the use and maintenance instructions are properly upgraded.

The Ceccato log splitter is in compliance with the DIN EN 609-1: 2017 Directive.

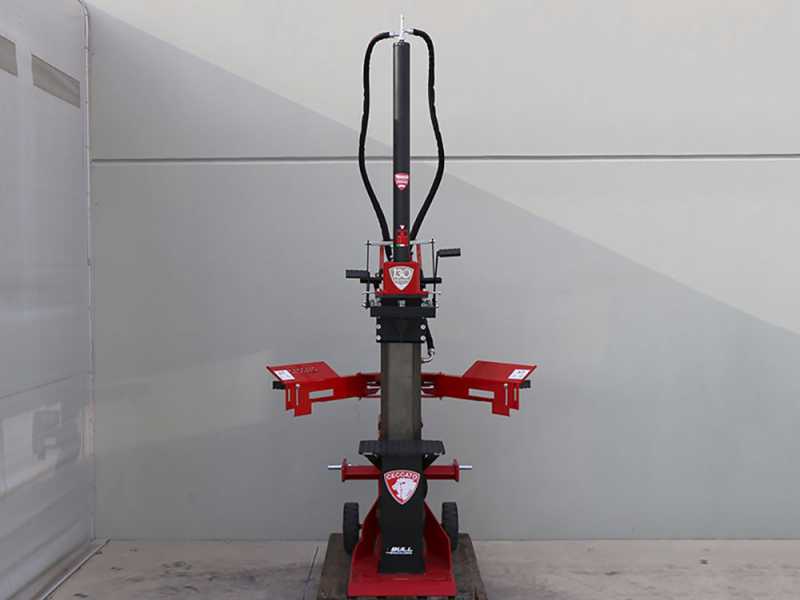

Tractor cardan shaft-driven

This log splitter is tractor-mounted and can be connected to the tractor via a cardan universal joint.

The log splitter operates by using the high-performance double hydraulic pump operation, which achieves 230 bar working pressure and can pump 19 L/min, supplying oil, drawn from the tank, to the hydraulic cylinder which acts as a pusher.

The frame of the machine structure itself acts as the hydraulic oil tank.

The log splitter can be connected to the tractor by means the three-point linkage on the sturdy machine frame.

Focus on the oil-bath hardened steel multiplier gearbox coated with cast aluminium.

The multiplier gearbox transfers torque from the tractor to the hydraulic pump by means of the cardan universal joint.

The hydraulic circuit is provided with metal filter cartridge.

Wedge and 1100 mm piston stroke

The 13 tons splitting force allows splitting knotty logs up to 114 cm in height by means of the additional controls on the upper part of the machine in order to split large-sized logs.

This is possible thanks to the very sturdy and large piston, which features a 80 mm outer diameter and a 40 mm internal diameter.

The 1100 mm piston slides on a steel guide in order to preserve the cylinder even under extra load. Moreover, it comes with a high-density ABS piston side guides with bronze plate. Thanks to their bronze thickness, the guides preserve the main cutting plate on the log splitter main frame part.

Adjustable piston stroke: when splitting short logs, you can speed the operations as the piston stroke can be adjusted by means of a tightening screw.

The cutting wedge is made of highly sturdy melted pressed steel and features a 26 cm splitting length.

Focus on the stroke adjustment for stopping the wedge from moving upwards.

Focus on the stroke adjustment for stopping the wedge from moving downwards.

You can disassemble and close the piston to limit the log splitter size for easy storage.

Dual controls and operating speed adjustment

The log splitter is equipped with a speed cylinder drive circuit and double powering controls.

Focus on the upper controls and the lower controls.

The control levers for operating the machine must necessarily be operated by the Operator using both hands, for avoiding any kind of injury.

When light pressure is applied, the log splitter makes the pushing cylinder move quickly until it comes into contact with the log.

By applying more pressure on the control handles, the piston considerably slows down its speed and increases the wedge splitting force of up to 13 tons.

Single or double speed can be selected by simply pressing down on the control handles with more or less pressure. Once the wedge will contact the log, the Operator will automatically know how much pressure to apply on the handles so that the wedge concentrates all the power of the log splitter for splitting the log.

Main features

This log splitter is made with thick enamelled steel sections that compose the highly sturdy boxed frame. Most log splitters on market mount an “H” shaped frame but this Ceccato log splitter mounts a boxed frame, which is reinforced with front plate where the wedge slides. This plate is made of high-strength tempered steel, which is harder than the steel used for the frame. This means that the frame and the support platform are very sturdy and strong.

This log splitter comes with wheels to make transport easier and it is perfectly balanced. Even just one Operator can transport the machine even if it weights around 300 Kg.

Focus on the 27 cm transport wheels.

Focus on the upper three-point linkage.

Focus on the lower three-point linkage.

Focus on the log lifting connection..

The cutting plate is 55 mm height and it also provides great stability by extending beyond the flat plate where the log splitter wedge runs, reaching a total length of 69 cm.

This machine complies with the security Directives in order to guarantee a completely safe operation.

Other features

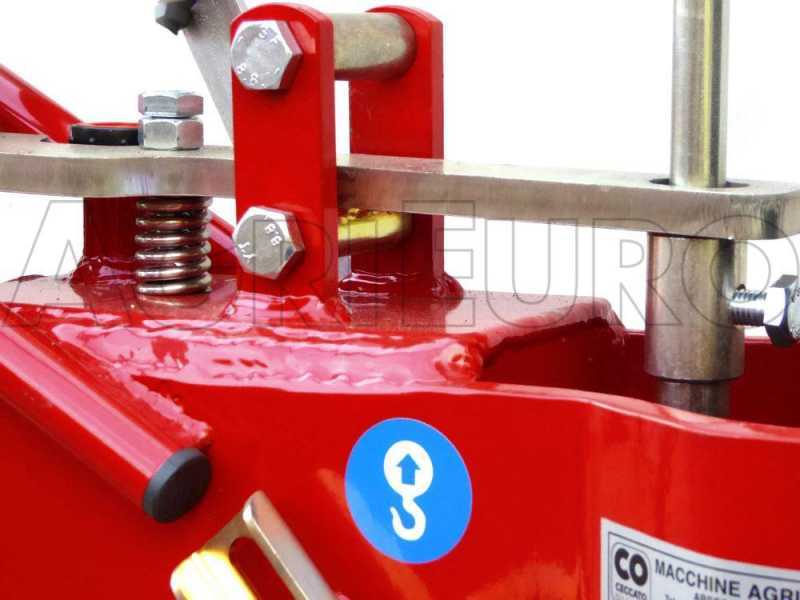

Wedge lift locking device. Pressing this upper support automatically stops the piston from rising. This allows you to safely use the log splitter, avoiding the risk of injury to hands and wrists..

Focus on the wedge.

Focus on the heavy-duty hydraulic distributor.

Focus on the removable plate for the ground split system.

Focus on the hydraulic oil drain plug.

Focus on the hydraulic oil level.

Focus on the hydraulic circuit metal filter cartridge.

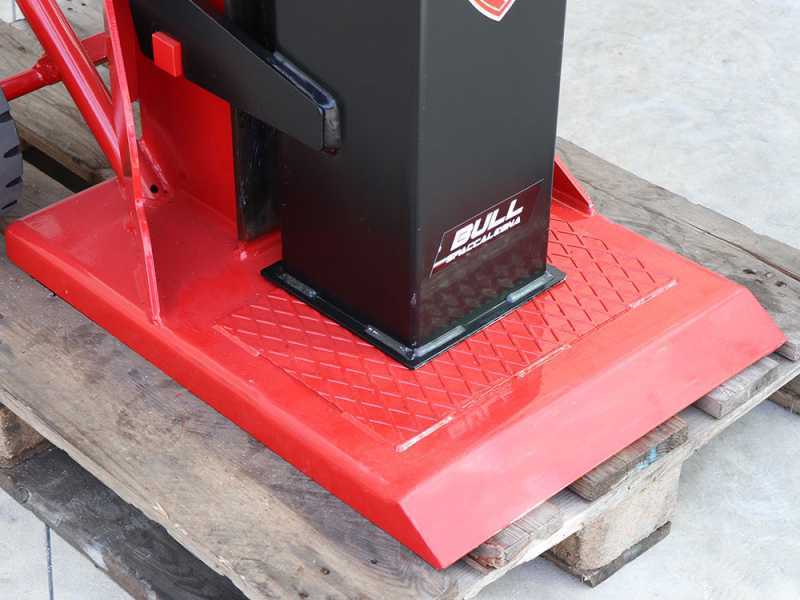

Focus on the very thick support platform.

Adjustable piston stroke: when splitting short logs, you can speed the operations as the piston stroke can be adjusted by means of a tightening screw.

Focus on the stroke adjustment for stopping the wedge from moving upwards.

Focus on the stroke adjustment for stopping the wedge from moving downwards.

Focus on the sturdy high-density ABS piston side guides.

Free items & Standard equipment

Free items included

The log splitter is safely shipped in its original packaging on pallet.

The maintenance and operating instructions manual is included in the packaging.

Pins for tractor 3-point linkage included in the packaging.
