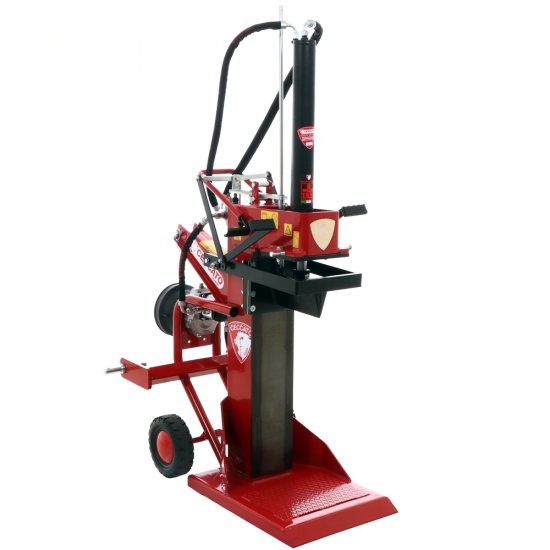

Ceccato BULL SPLT13 13 Tons Tractor-mounted Vertical Log Splitter - 650 mm Piston Stroke

Max. trunk diameter
60 cm
Piston stroke
65 mm
Thrust horse power
13 t
Max pressure
230 bar
Ground level cutting
Yes
Come back piston (for transport and storage)
Yes
Double speed
yes
Operating mode
Tractor-driven PTO
Three-point linkage to tractor
Yes
Manufacturing country
Italy
€ 2.392,74
VAT Included
Prompt Delivery
4 items in stock
|
Free Shipping
You should receive it by 07/07/2022
ID: 3735

EAN: 9993089183447

MPN: SPLT13

SPLT13 tractor-mounted vertical log splitter

Ceccato Olindo Bull SPLT13 is a vertical log splitter intended for professional and intensive use.

It is provided with a large wedge, which slides on stainless steel side guides featuring bronze rollers, that keeps the cylinder safe even under maximum stress.

The Bull SPLT13 log splitter can be operated by connecting it to the tractor PTO. With its 13 ton splitting force it can break knotty logs of different sizes up to max. 67 cm in height.

Ceccato Bull SPLT13 log splitter is provided with the ground split system. It is provided with a safety arch,adjustable end-of-stroke automatic control system and other safety devices for protecting the Operator during use.

Ceccato Bull log splitter is entirely made in Italy.

This machine is part of the Bull log splitter Series by Ceccato Olindo.

Highest safety ensured by the Ceccato Olindo log splitter

WEDGE: cutting wedge with 3° tilt towards the frame.

SUPPORT PLATFORM: the thickness of the supporting plate is 50 mm, thus improving the stability of the machine. The support platform reaches 100 mm beyond the edge of the cutting wedge.

PISTON STROKE: the cutting wedge at the end of the stroke features a residual distance of 100 mm from the support platform.

UPPER CONTROL LEVERS: the levers have been shortened as to comply with the Directive.

LOWER CONTROL ARM LEVERS: shortened levers on the log supporting arms. Thus, their positioning in compliance with the height measures stated in the Directive. The indicative shape has been specifically selected to prevent the possible fall of the log towards the Operator.

HYDRAULIC HOSES: we have increased the hose diameter for ensuring a lower oil temperature. Cable protection and shielding with Ceccato Olindo screen-printed canvas sheathing with steel studs. In case of damage or burst of the hose, this holds the oil and vaporises it without any risk of injury.

LOG LIFTING SYSTEM: installation of a log lifting device synchronised with the movement of the cutting wedge

Each machine model features all the specifications required in accordance with the Directive. Thus, all the use and maintenance instructions are properly upgraded.

The Ceccato log splitter is in compliance with the DIN EN 609-1: 2017 Directive.

Tractor cardan shaft-driven

This log splitter is tractor-mounted and can be connected to the tractor via a cardan universal joint.

The log splitter operates by using the high-performance double hydraulic pump operation, which achieves 230 bar working pressure and can pump 26 L/min, supplying oil, drawn from the tank, to the hydraulic cylinder which acts as a pusher.

The frame of the machine structure itself acts as the hydraulic oil tank.

The log splitter can be connected to the tractor by means the three-point linkage on the sturdy machine frame.

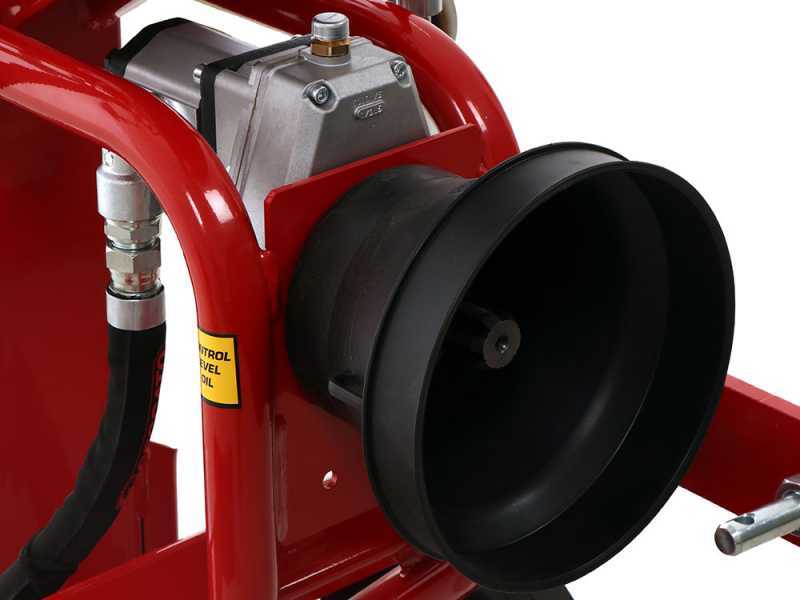

Focus on the oil-bath hardened steel multiplier gearbox coated with cast aluminium.

The multiplier gearbox transfers torque from the tractor to the hydraulic pump by means of the cardan universal joint.

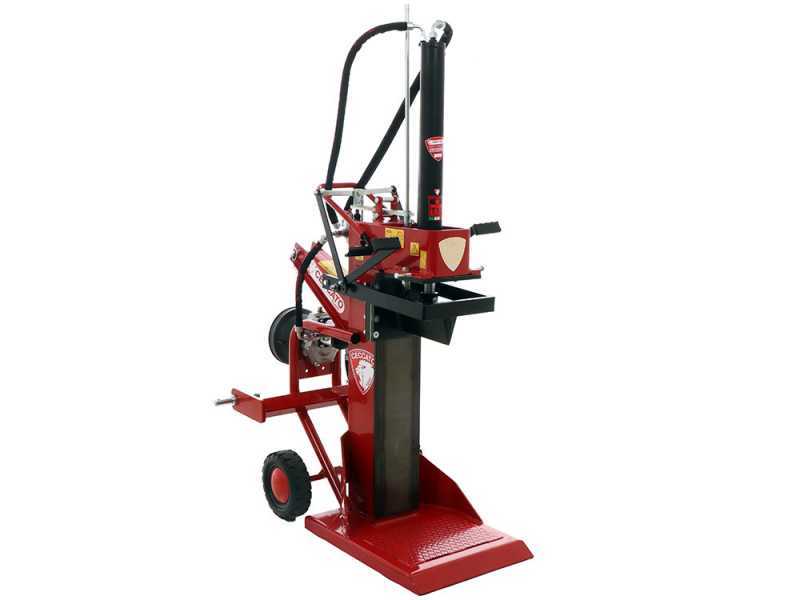

Wedge and piston

With its 13 ton splitting force it can break knotty logs of different sizes up to max. 67 cm in height.

This is possible thanks to the very sturdy and large piston, which features a 80 mm outer diameter and a 40 mm internal diameter.

The piston slides on a steel guide in order to preserve the cylinder even under extra load. Moreover, it comes with a high-density ABS piston side guides with bronze plate.

Highly wear-resistant guides. Their bronze sliding plate prevents the steel log support from wear.

The cutting wedge is made of highly sturdy melted pressed steel and features a 25 cm splitting length.

Adjustable piston stroke: when splitting short logs, you can speed the operations as the piston stroke can be adjusted by means of a tightening screw.

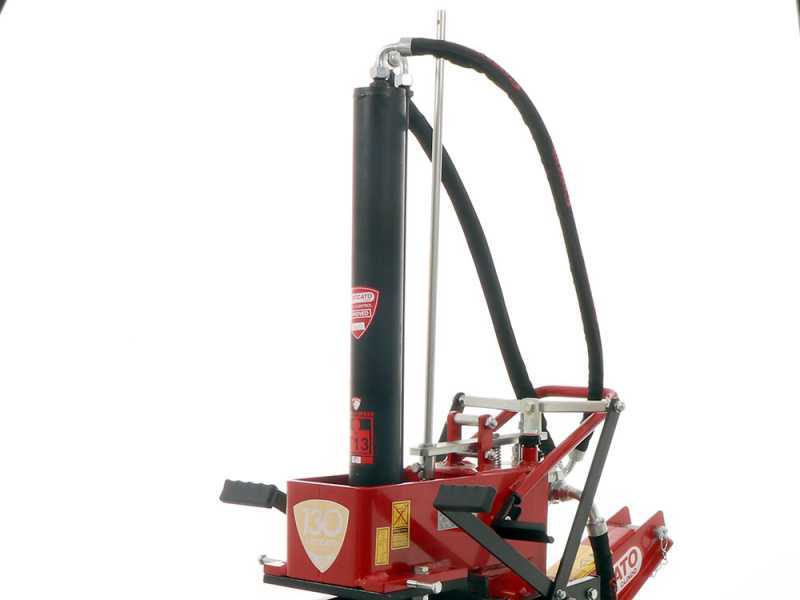

Controls and operating speed adjustment

The log splitter is equipped with a built-in variable speed cylinder drive circuit.

The dual control levers for operating the machine must necessarily be operated by the Operator using both hands, for avoiding any kind of injury.

When light pressure is applied, the log splitter makes the pushing cylinder move quickly until it comes into contact with the log.

By applying more pressure on the control handles, the piston considerably slows down its speed and increases the wedge splitting force of up to 13 tons.

Single or double speed can be selected by simply pressing down on the control handles with more or less pressure. Once the wedge will contact the log, the Operator will automatically know how much pressure to apply on the handles so that the wedge concentrates all the power of the log splitter for splitting the log.

Main features

This log splitter is made with thick enamelled steel sections that compose the highly sturdy boxed frame. Most log splitters on market mount an “H” shaped frame but this Ceccato log splitter mounts a boxed frame, which is reinforced with front plate where the wedge slides.

This plate is made of high-strength tempered steel, which is harder than the steel used for the frame.

This means that the frame and the support platform are very sturdy and strong.

This log splitter comes with 27 cm diameter wheels to make transport easier and it is perfectly balanced. Even just one Operator can transport the machine even if it weights around 300 Kg.

The cutting plate is 55 mm height and it also provides great stability by extending beyond the flat plate where the log splitter wedge runs, reaching a total length of 69 cm.

In specific situations, it can also be lifted using the specific lifting point connection.

This machine complies with the security Directives in order to guarantee a completely safe operation.

Other features

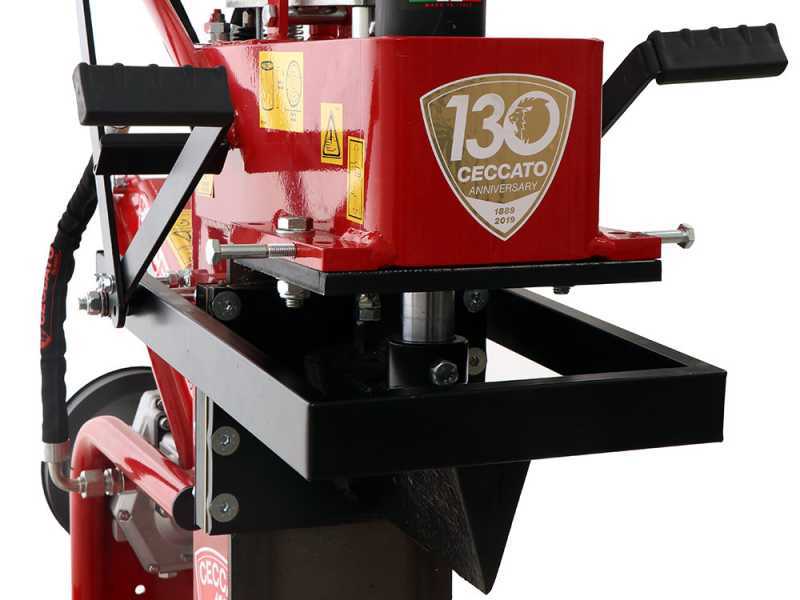

Wedge lift locking device. Pressing this upper support automatically stops the piston from rising. This allows you to safely use the log splitter, avoiding the risk of injury to hands and wrists..

Focus on the tractor linkage guard.

Focus on the heavy-duty hydraulic distributor.

Focus on the hydraulic oil drain plug.

Focus on the hydraulic oil level.

Focus on the very thick support platform.

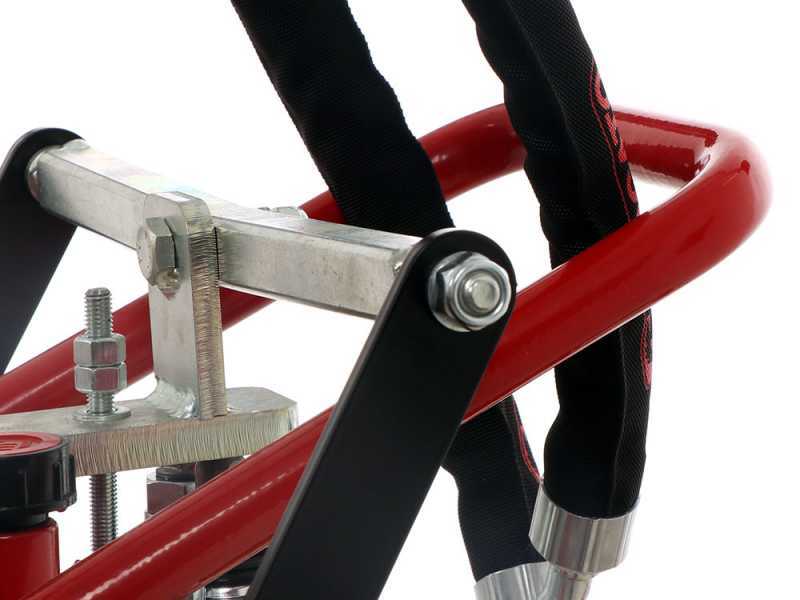

Adjustable piston stroke: you can adjust the piston stroke by means of the proper wrench. It is intended for short logs and for reducing the operating times.

Focus on the high-density ABS piston lateral guides featuring bronze plate.

Focus on the lower three-point linkage

Product Features
Model:
SPLT13
Typology :
Vertical
Double speed:
yes
Operating mode:
Tractor-driven PTO
Thrust horse power:
13 t
Piston stroke:
65 mm
Reducible piston stroke (for short logs):
Yes
Worktop log cutting:
No
Ground level cutting:
Yes
Manufacturing country:
Italy
Motor data
Motor Speed (RPM):
540 RPM
Power supply:
Tractor-driven PTO
Tank capacity:
18 L
Manufacturing country:
Italy
Pump data
Pump type:
Hydraulic
Flow Rate:
26 L/min
Max pressure:
230 bar
Oil tank:
Yes
Outer hydraulic cylinder's diameter:
80 mm
Piston's diameter:
40 mm
Piston speed:
23 cm/s
Piston's speed (2):
9 cm/s
Come back speed:
15 cm/s
Manufacturing country:
Italy
Cutting data
Maximum trunk length:
50 cm
Max. trunk diameter:
60 cm
Equipment
Frame:
Boxed with front plate
Pump:
Standard
Upper safety lever to protect hands when logs are boxed:
Yes
Side arms for cut logs containment:
No
Trunk containment brackets:
Yes
Log lifting system:
No
Come back piston (for transport and storage):
Yes
Log laying platform:
No
Three-point linkage to tractor:
Yes
Replaceable wedge guides:
Yes
Oil filter cartridge:
Yes
Transport trolley:
Yes
Rear wheels size:
27 cm
Pressure gauge on pump:
No
Free gifts/extra features
Four way wedge:
No
Splitting wedge:
No
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
100x80x180 cm
Net weight:
230 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
105x80x190 cm
Gross weight (packaging included) :
240 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
Assembled

Standard equipment

The log splitter is safely shipped in its original packaging on pallet.

The maintenance and operating instructions manual is included in the packaging.
