Ceccato BULL SPLT10 Tractor-mounted Vertical Log Splitter - 10 Tons - 540 mm PistonStroke

Questions & Answers (4)
ID: 104059

EAN: 9999237541237

MPN: SPLT10

8,5/10
After-sales assistance & Spare parts
Ceccato BULL SPLT10 Tractor-mounted Vertical Log Splitter - 10 Tons - 540 mm PistonStroke
+30 sold
Max. trunk diameter
50 cm
Piston stroke
54 cm
Max. pressure
230 bar
Retractable piston for transport
Yes
Operating mode
Tractor-driven PTO
Nominal splitting force
10 t
Tractor three-point hitch
Yes
Manufacturing country
Italy
Product Features
Model:
BULL SPLT10
Type:
Vertical
Double speed:
No
Operating mode:
Tractor-driven PTO
Nominal splitting force:
10 t
Piston stroke:
54 cm
Adjustable piston stroke (for short logs):
Yes
Worktop log cutting:
Yes
Cutting plate positions:
1
Ground splitting system:
No
High position trunk length:
50 cm
Manufacturing country:
Italy
Motor data
Motor speed:
540 RPM
Power supply:
Tractor-driven PTO
Manufacturing country:
Italy
Pump data
Pump type:
Single
Max. pressure:
230 bar
Oil tank:
Yes
Manufacturing country:
Italy
Hydraulic oil qty.:
7 Litres
Cutting data
Max. trunk length:
50 cm
Max. trunk diameter:
50 cm
Equipment
Frame:
Covered with front plate
Pump:
Standard
Vertical log splitter safety lever:
Yes
Trunk lifting system:
No
Retractable piston for transport:
Yes
Stump Support Shelf:
Yes
Tractor three-point hitch:
Yes
Wheeled trolley for transport:
Yes
Rear wheels size:
27 cm
Free gifts/extra features
4-way wedge:
No
Splitting wedge:
No
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
80x54x107 cm
Net weight:
106 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
80x60x166 cm
Gross weight (packaging included) :
120 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
Assembled
Prompt Delivery
6 items in stock
Free Shipping
Estimated delivery: 25/07/2024 - 29/07/2024
Suggested price:
€ 1.809,89
€ 1.538,41
VAT Included
TOP QUALITYTOP QUALITY
You're viewing:
Customers also viewed:
Description

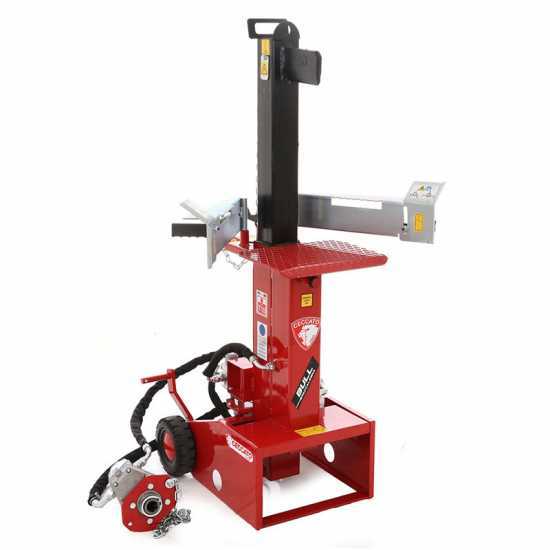

Ceccato Bull SPLT 10 tractor-mounted log splitter - 10 tons

The Ceccato Olindo Bull SPLT10 is a tractor-mounted vertical log splitter suitable for those who have to carry out intensive and heavy-duty splitting operations. A product of the highest Italian quality by Ceccato Olindo, historical brand and leader in the sector.

It is one of the highest-quality log splitters in its category in terms of quality/price ratio, made with top-quality materials, with a highly sturdy double-tubular reinforced frame.

The Bull SPLT10 is a tractor-mounted log splitter that can be connected to the tractor by means of the mobile pump which is directly linked to the PTO. It is NOT necessary using a cardan universal joint. Pump unit and multiplier gearbox are directly connected to the tractor PTO for extra splitting force and working speed.

With its 10 ton splitting force it can break knotty logs of different sizes up to max. 50 cm in height and a max. diameter of 50 cm.

The SPLT10 is provided with safety devices for protecting the Operator while working.

Splitting force: 10 tons

Log diameter: from 10 to 50 cm

Logs height: from 18 to 50 cm

Piston stroke: 54 cm

Overall dimensions: 80 x 54 x 107 cm

Weight: 106 Kg

Ceccato Bull log splitter is entirely made in Italy.

This machine is part of the Bull log splitter Series by Ceccato Olindo.

Highest safety ensured by the Ceccato Olindo log splitter

LOG SPLITTER MODEL 10/12 TONS

WEDGE: cutting wedge with 3° tilt towards the frame.

LOWER CONTROL ARM LEVERS: shortened levers on the log supporting arms. Thus, their positioning in compliance with the height measures stated in the Directive. The indicative shape has been specifically selected to prevent the possible fall of the log towards the Operator.

HYDRAULIC HOSES: we have increased the hose diameter for ensuring a lower oil temperature. Cable protection and shielding with Ceccato Olindo screen-printed canvas sheathing with steel studs. In case of damage or burst of the hose, this holds the oil and vaporises it without any risk of injury.

Each machine model features all the specifications required in accordance with the Directive. Thus, all the use and maintenance instructions are properly upgraded.

The Ceccato log splitter is in compliance with the DIN EN 609-1: 2017 Directive.

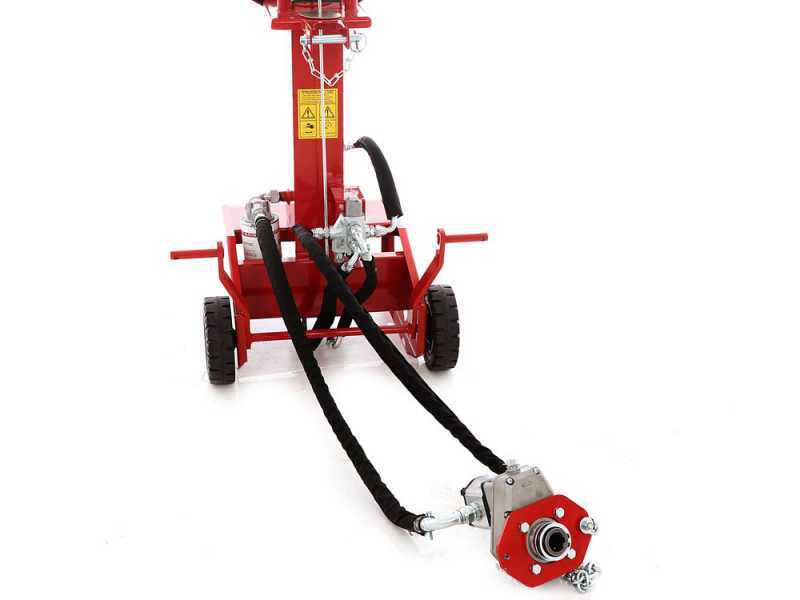

Tractor-driven: mobile hydraulic pump

This log splitter can be operated directly connecting it to the tractor, thanks to the mobile pump.

Indeed, the SPLT10 is provided with pump unit and multiplier gearbox are directly connected to the tractor PTO for extra splitting force and high working speed.

The multiplier gearbox transfers the drive torque from the tractor to the mobile hydraulic pump, which operates at a pressure of 230 bar (max.) and pumps 26 L/min of oil to the hydraulic cylinder.

The frame of the machine structure itself acts as the hydraulic oil tank.

The log splitter can be connected to the tractor by means the three-point linkage on the sturdy machine frame and the mobile pump safety chains.

Focus on the 3-point linkage

If you use the mobile pump it is NON using the cardan shaft, as usual for others tractor-mounted log splitters on market.

Double pump fully made in Italy.

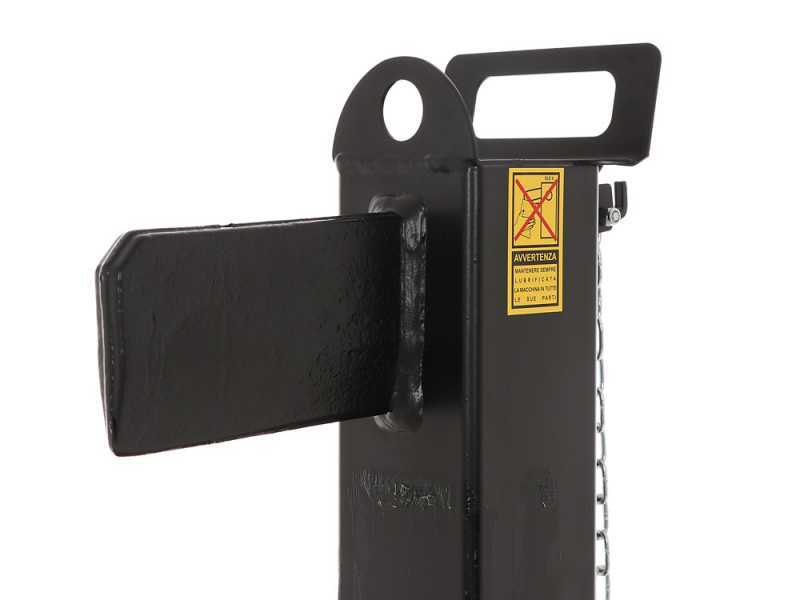

Wedge, dual control levers and cutting plate

With its 10 tons splitting force, this Ceccato log splitter can break knotty logs of different sizes up to max. 50 cm height and 50 cm diameter.

The cutting wedge is made of highly sturdy steel.

Large cutting plate: 39 x 30 cm

The user can operate the machine simply by means the dual control levers of the log splitter hydraulic valve.

The levers unit is equipped with proper hand guards and all safety devices to protect the Operator during use.

Adjustable end-of-stroke control system

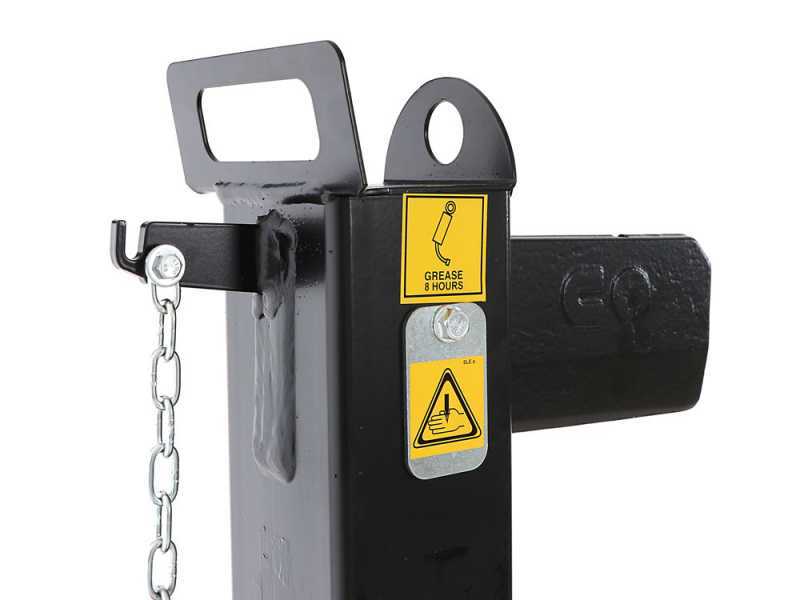

Other features

The log splitter is equipped with an oversized, reinforced steel double-tube frame. Highly-sturdy and resistant frame.

Focus on the 3-point linkage:
focus on the upper 3-point linkage connection and lower 3-point linkage connection.

This log splitter is provided with wheels to make transport easier and it is perfectly balanced. Even just one Operator can transport the machine by means the tilting handle.

Furthermore, it is equipped with specific lifting hook.

Sturdy support platform.

Focus on the oil filter

Focus on the oil level check

The frame of the machine structure itself acts as the hydraulic oil tank.

This machine complies with the security Directives in order to guarantee a completely safe operation.

Free items & Standard equipment

Standard equipment

The log splitter is safely shipped in its original packaging on pallet.

The maintenance and operating instructions manual is included in the packaging.
