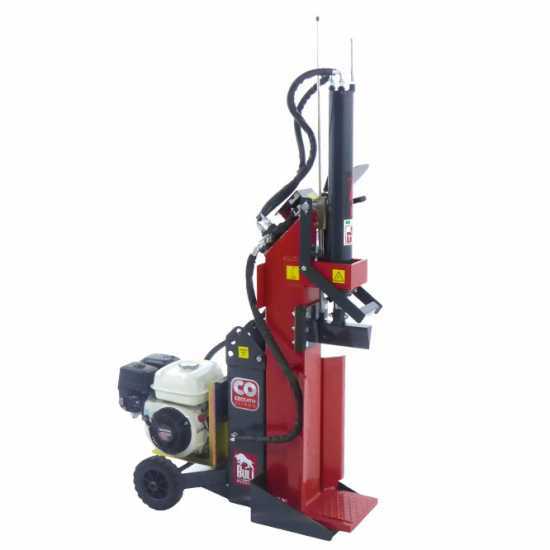

Ceccato BULL SPLE10-POLGP 10 Tons Petrol Log Splitter - Multi-position

Questions & Answers (1)
ID: K4834

EAN: 9993089183409

MPN: SPLE10-POLGP

Ceccato BULL SPLE10-POLGP 10 Tons Petrol Log Splitter - Multi-position
Special offer
+60 sold
Type
Adjustable multi-position
Max. trunk diameter
50 cm
Piston stroke
50 cm
Max. pressure
180 bar
Ground splitting system
Yes
Double speed
Yes
Motor type
4-stroke
Motor brand
Honda
Motor Model
GP 160
Cubic capacity
163 cm³
Nominal power
5.5 HP
Nominal splitting force
10 t
Manufacturing country
Italy
Product Features
Model:
Bull SPLE10-POLGP
Type:
Adjustable multi-position
Double speed:
Yes
Operating mode:
Spark ignition
Nominal splitting force:
10 t
Piston stroke:
50 cm
Adjustable piston stroke (for short logs):
Yes
Worktop log cutting:
No
Ground splitting system:
Yes
Manufacturing country:
Italy
Motor data
Motor brand:
Honda
Motor Model:
GP 160
Motor type:
4-stroke
Cubic capacity:
163 cm³
No. of cylinders:
1
Nominal power:
5.5 HP
Motor speed:
3600 RPM
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Decompression system:
Automatic
Tank capacity:
6.5 L
Oil tank capacity:
10 L
Manufacturing country:
Japan
Pump data
Pump type:
Single
Flow rate:
9.5 L/min
Max. pressure:
180 bar
Oil tank:
Yes
Hydraulic cylinder outer diameter:
80 mm
Piston diameter:
40 mm
Piston speed:
6.8 cm/s
Piston speed (2):
2.6 cm/s
Retracting speed:
5.4 cm/s
Manufacturing country:
Italy
Hydraulic oil qty.:
7 Litres
Cutting data
Max. trunk length:
50 cm
Max. trunk diameter:
50 cm
Equipment
Frame:
Covered with front plate
Pump:
Standard
Vertical log splitter safety lever:
Yes
Retaining side arms:
No
Retaining side supports:
Yes
Trunk lifting system:
No
Retractable piston for transport:
No
Tractor three-point hitch:
No
Replaceable wedge guides:
Yes
Cartridge oil filter :
Yes
CE-compliant safety switch:
CE-compliant
Wheeled trolley for transport:
Yes
Recoil start system (with rope):
Yes
Rear wheels size:
20 cm
Free gifts/extra features
Oil bottle:
No
4-way wedge:
No
Splitting wedge:
No
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
50x95x170 cm
Net weight:
132 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
50x95x180 cm
Gross weight (packaging included) :
134 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
Assembled
Prompt Delivery
6 items in stock
Free Shipping
Estimated delivery: 03/06/2024 - 05/06/2024
Suggested price:
€ 2.117,70
-10 %
€ 1.905,93
VAT Included
TOP QUALITYTOP QUALITY
You're viewing:
Customers also viewed:
Description

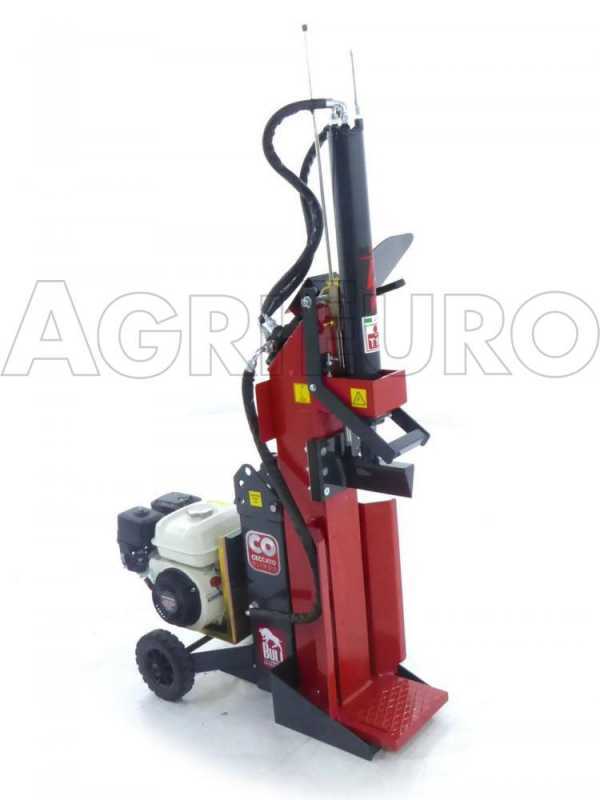

Ceccato Bull 10 tons petrol log splitter - multi-position

Bull SPLE10-POLGP log splitter by Ceccato Olindo is an electric single-phase multi-position log splitter with 4 different operating positions that allow choosing between vertical, horizontal and 30° or 60° tilted positions.

With its 10 ton splitting force ensured by the 4-stroke GP160 Honda engine it can break knotty logs of different sizes up to max. 54 cm in height and a max. diameter of 30 cm.

It is equipped with a large capacity pump that ensures high splitting force and operating speed, 2 wheels that allow easy transport and adjustable piston limit switch control system.

This SPLE10-POLGP heavy-duty log splitter can operate very quickly and it is equipped with special safety devices to protect the Operator while working.

Moreover, its multi-position configuration makes it extremely easy to transport. When it comes to the horizontal or tilted configuration, transporting the log splitter requires minimum effort.

Ceccato Bull log splitter is entirely made in Italy.

This machine is part of the Bull log splitter Series by Ceccato Olindo.

Highest safety ensured by the Ceccato Olindo log splitter

LOG SPLITTER MODEL 10/12 TONS

WEDGE: cutting wedge with 3° tilt towards the frame.

LOWER CONTROL ARM LEVERS: shortened levers on the log supporting arms. Thus, their positioning in compliance with the height measures stated in the Directive. The indicative shape has been specifically selected to prevent the possible fall of the log towards the Operator.

HYDRAULIC HOSES: we have increased the hose diameter for ensuring a lower oil temperature. Cable protection and shielding with Ceccato Olindo screen-printed canvas sheathing with steel studs. In case of damage or burst of the hose, this holds the oil and vaporises it without any risk of injury.

LOG GUARD: in order to prevent cut logs from hitting the Operator when the machine is used in horizontal position.

OIL FILTER: To make it easier to clean the oil filter ensuring a longer service life for the hydraulic system, we have replaced the former wire mesh filter mounted inside the tank with a high-quality external hydraulic filter with a 25 NM-B>2 filtration degree.

Each machine model features all the specifications required in accordance with the Directive. Thus, all the use and maintenance instructions are properly upgraded.

The Ceccato log splitter is in compliance with the DIN EN 609-1: 2017 Directive.

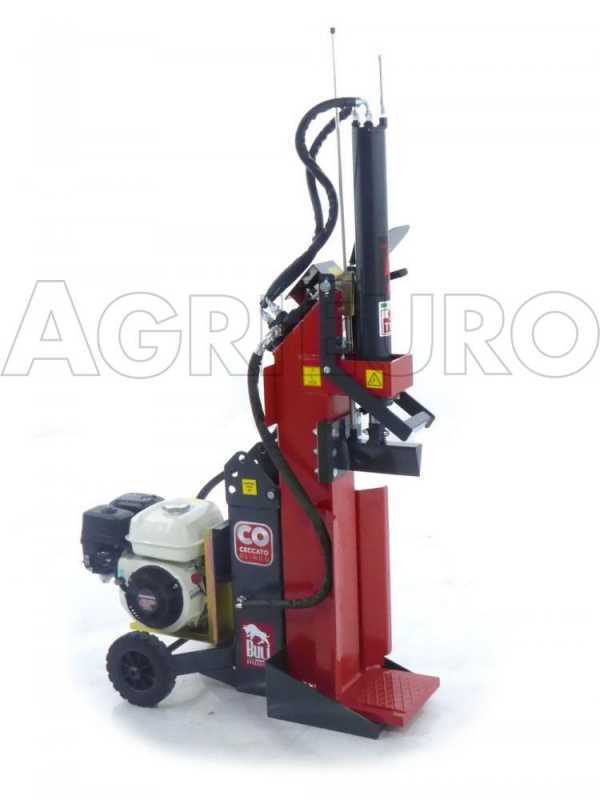

Multi-position: 4 operating positions

This log splitter features 4 different operating positions.

Indeed it is provided with an adjustable log tilt system featuring 4 different configurations that allow operating in vertical, horizontal and 30° or 60° tilted positions.

It is a very versatile machine allowing the Operator to choose between different working positions based on his/her own need depending on the logs dimensions and weight.

Horizontal position

60° tilted position

30° tilted position

Vertical position

Moreover, its multi-position configuration makes it extremely easy to transport: it is recommended to move the log splitter in horizontal or tilted position because it requires minimum effort.

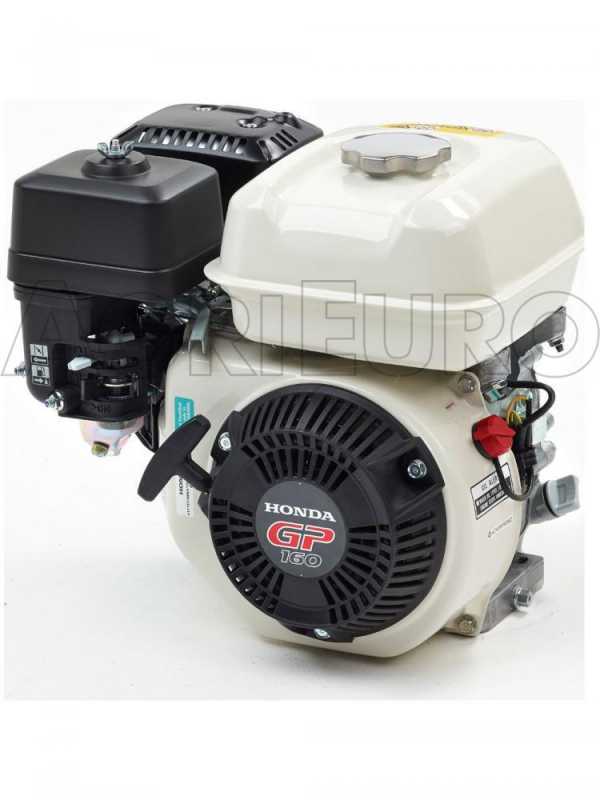

Honda GP 160 engine

The 163 cc Honda GP 160 OHV engine is light and high performing, suitable for operations requiring great power.


Features:

Engine type: 4-Stroke - OHV - single cylinder
Cylinder type: Cast iron
Cubic Capacity: 163 cm³
Compression ratio: 8.5: 1
Max. rpm: 3600 rpm
Fuel tank capacity: 3.1 L
Consumption: 1.4 L/h 3600 rpm
Dry weight: 15.1 kg

4-stroke petrol engine of the latest generation with "OHV” overhead valves - horizontal shaft, cycle eight, 4-stroke, inclined cylinder of 25 ° forced air cooling, cast iron cylinder

Focus of the air filter.
Nowadays, the great majority of agricultural and gardening equipment available on the market are fitted with engines with unknown brands or motors Made in China.



The engine is PROVIDED WITHOUT OIL.
Please carefully read the instruction manual before starting the unit.

Main features

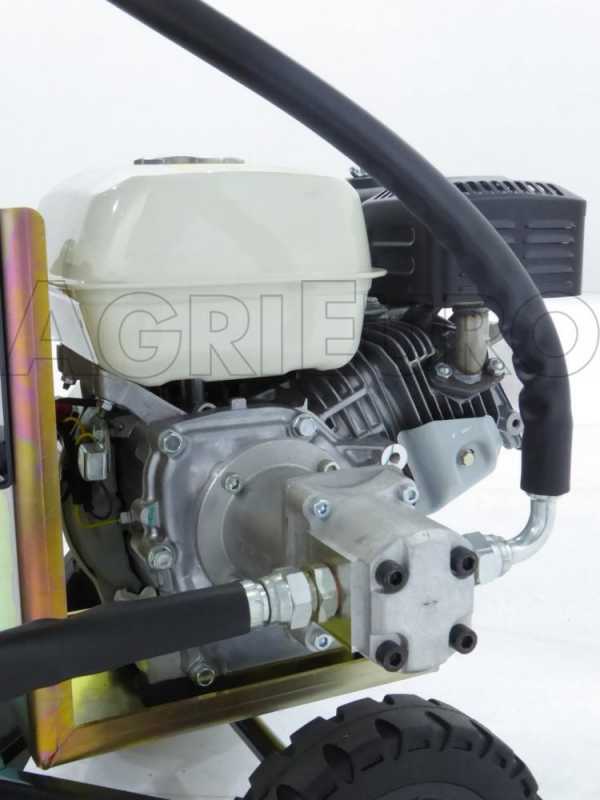

The hydraulic system consists of a hydraulic pump on the petrol engine that draft the oil from the tank to the hydraulic piston.

The frame of the machine structure itself acts as the hydraulic oil tank.

This log splitter is made with thick enamelled steel sections and provided with wheels for easy transport and front supports for secure positioning on the ground.

The cutting plate is placed on the supporting frame and is provided with a locking pin to fix it in the position needed.

This machine complies with the security Directives in order to guarantee a completely safe operation.

Operating speed adjustment

The log splitter is equipped with a built-in variable speed cylinder drive circuit.

The control levers for operating the machine must necessarily be operated by the Operator using both hands, for avoiding any kind of injury.

Simply pull the levers toward you to operate the machine: when light pressure is applied, the log splitter makes the pushing cylinder move quickly until it comes into contact with the log.

By applying more pressure on the control handles, the piston considerably slows down its speed and increases the wedge splitting force of up to 10 tons.

Single or double speed can be selected by simply pressing down on the control handles with more or less pressure. Once the wedge will contact the log, the Operator will automatically know how much pressure to apply on the handles so that the wedge concentrates all the power of the log splitter for splitting the log.

Other features

Adjustable piston stroke: you can adjust the piston stroke by means of the proper wrench. It is intended for short logs and for reducing the operating times.

High-density ABS piston side guides Self-lubricating and long-lasting material (it will never be necessary to replace them), and mostly, unlike the bronze ones, they won't wear the steel plate after years use.

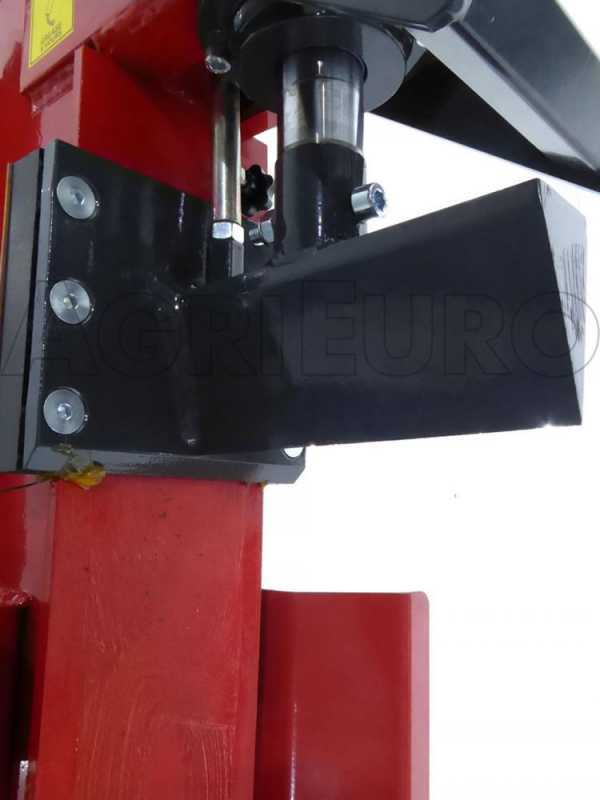

Wedge lift locking device. Pressing this upper support automatically stops the piston from rising. This allows you to safely use the log splitter, avoiding the risk of injury to hands and wrists.

Hydraulic cylinder

Focus on the hydraulic distributor connected to the control levers

Focus on the side supports for holding the logs.

Focus on the hydraulic oil drain plug.

Hydraulic circuit oil discharge

Focus on the support platform

Focus on the wedge.

Free items & Standard equipment

COMPLIMENTARY: 2 Oil Bottles

TWO oil bottles for 4-stroke engines

Standard equipment

The log splitter is safely shipped in its original packaging on pallet.

The maintenance and operating instructions manual is included in the packaging.
