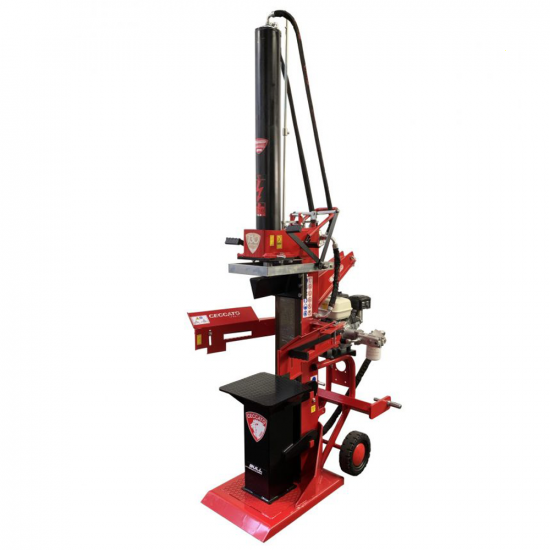

Ceccato BULL SPL16H - Petrol Log Splitter - Vertical

The BULL SPL16H log splitter from Ceccato is a petrol log splitter that generates a splitting force of no less than 16 tonnes, guaranteed by the Honda GX200 4-stroke petrol engine, allowing it to split logs, even knotty ones, of varying sizes up to a maximum height of 110 cm.

This log splitter ranks among the best in its category in terms of performance and robustness.

It is equipped with additional drive controls at the top of the machine that allow very large logs to be split.

High flow rate double pump, which guarantees a powerful splitting force and working speed.

It has two wheels made of a special rubber mixture that does not allow stones or debris to get jammed, and the log splitter is well balanced so you will not struggle to mode the machinery.

With this professional splitter the cutting operations are easy and safe: the SPL16H is equipped with special safety devices that are designed to protect the user.

The Ceccato log splitter is entirely manufactured in Italy.

This machine is part of the log splitter Bull line by Ceccato Olindo.

WEDGE: Cutting wedge with 3 inclination towards the column.

SUPPORT BASE: the thickness of the base plate is 55 mm, also favouring the stability of the machine.

STROKE: the cutting wedge at the stroke end features a residual distance of 100 mm from the supporting plate.

UPPER CONTROL LEVERS: the levers have been shortened as to comply with the Directive.

LOWER CONTROL ARM LEVERS: Shortened levers on the log supporting arms. Thus, their positioning in compliance with the height measures stated in the Directive. Thus, the shape has been specifically selected to prevent the possible fall of the log towards the operator.

HYDRAULIC HOSES: We have increased the tube diameter. This allows a lower oil temperature. Protection and skimming with Ceccato Olindo reinforced sheath and screen-printed with steel studs. In case of damage or burst of the hose, it allows retaining the vaporizing oil without any risk of injury.

LOG LIFTING: installation of the log lifting device synchronised with the movement of the cutting wedge.

Each machine model features all the specifications required in accordance with the Directive. Thus, all the use and maintenance instructions are properly upgraded.

The Ceccato log splitter is compliant with the DIN EN 609-1: 2017 Directive.

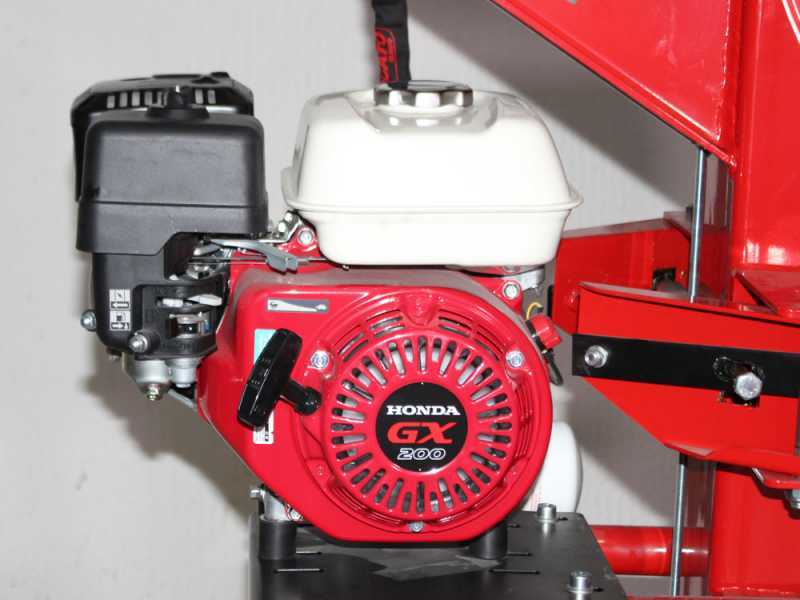

The Honda GX 200
engine is professional, powerful and with the latest generation technology in valve head.

Features:

The Honda “GX” series is highly professional and was developed for heavy-duty jobs in building and agricultural field for generators, welders etc. It’s characterized by great durability and reliability

The log splitter utilises the action of a high-performance double hydraulic pump operating at a pressure of 230 bar (max) capable of pumping up to 24 L/min and supplying oil, drawn from the tank, to the hydraulic cylinder acting as a log pusher. The body of the machine structure itself has the function of hydraulic oil tank.

Focus on the oil filter

NOTE: Always run the engine at maximum revs by setting the throttle lever to maximum

Featuring a splitting force of 16 tonnes, it allows splitting even knotty wood logs with a ranging in size up to a maximum height of 110 cm.

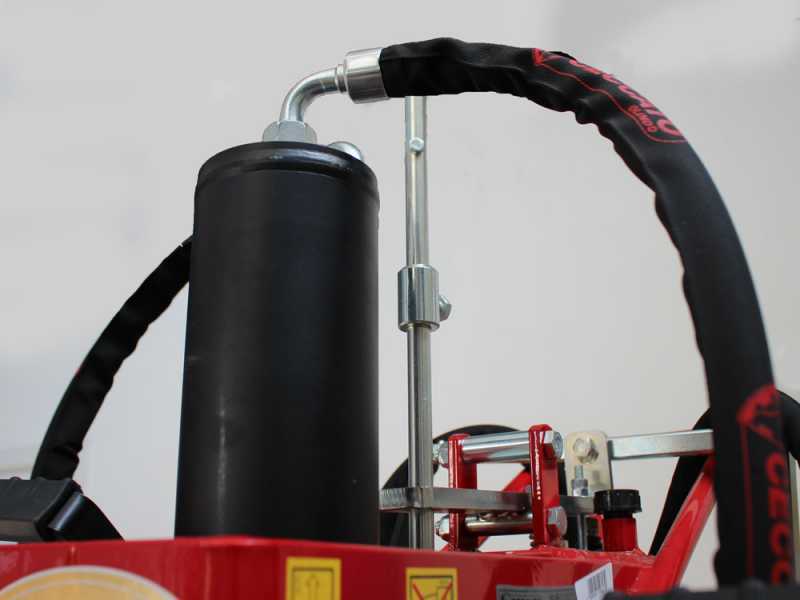

This is due to the exceptionally sturdy and large piston cylinder with an outer diameter of 100 mm and inner diameter of 60 mm.

The piston is guided by runners along a steel guide, which even under maximum stress safeguards the cylinder and is supported by side guides made of high-density ABS with replaceable contact shims made of bronze.

The guides are made of high-strength wear-resistant material and, thanks to their brass sliding thickness, they preserve the steel plate on the main body of the log splitter.

The wedge of the log splitter is made of cast and pressed steel, very high-strength with a splitting length of 25 cm.

Piston stroke adjustment: to cut short logs and speed up work, the working stroke of the piston can be adjusted.

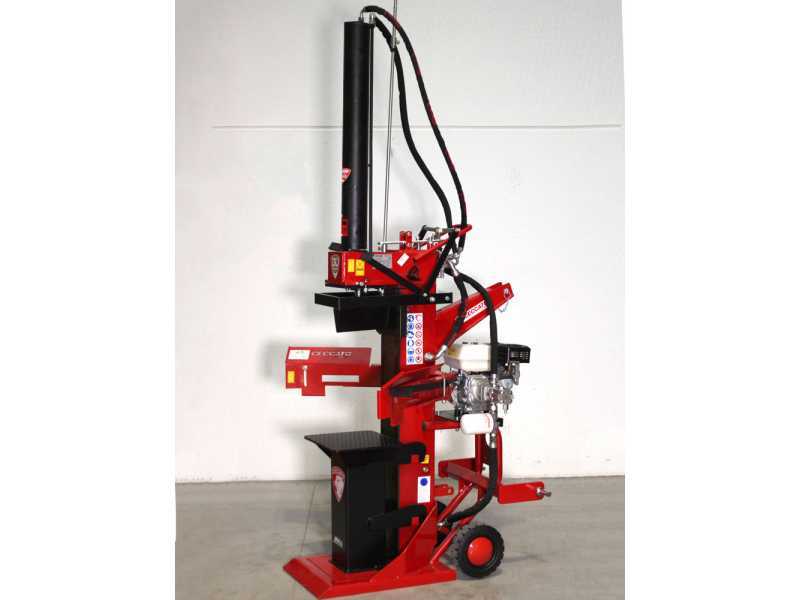

The log splitter is equipped with a cylinder drive circuit with variable speed.

The single or double speed are simply selected by pressing with greater or lesser pressure on the control handles. It will be instinctive for the operator, once that the wedge will come into contact with the strain, to press with greater pressure on the handles so that the wedge can hold all the power in order to execute the splitting.

The two-hand levers for operating the machine must necessarily be operated by the operator using both hands. This is to avoid any kind of accident.

By applying slight pressure, the log splitter makes the pusher cylinder move at a considerable speed while maintaining a small pressure capacity until contact is made with the wood to be split.

Instead, by pressing down harder on the control handles, the piston slows its speed considerably, increasing the pressure capacity of the splitting wedge by up to 16 tonnes.

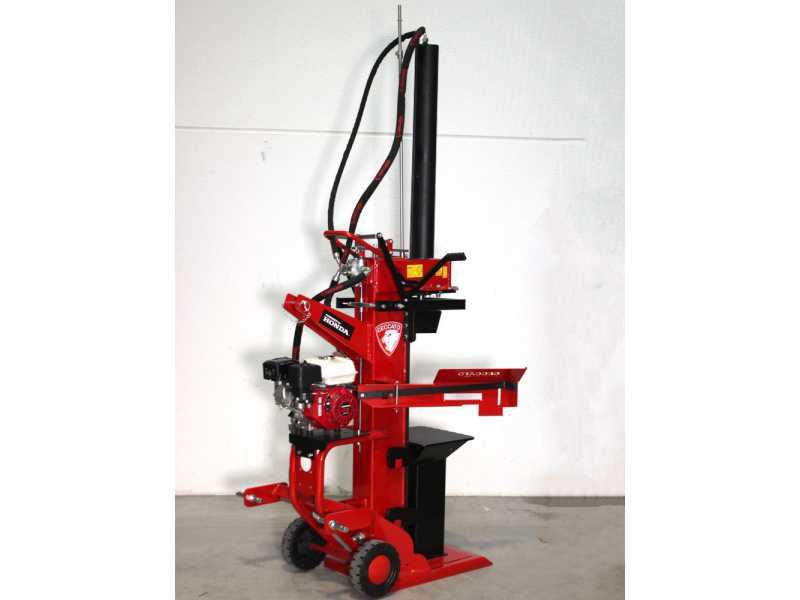

The log splitter is made of thick enamelled steel profiles that make up a very strong frame.

Indeed, unlike most log splitters on the market, which have frames made from 'H' beams, the frame of the Ceccato log splitter is made from a framed structure, and it is reinforced with the front flat plate where the splitting wedge slides.

This sliding plate is made of very high-strength hardened steel, the steel of which is even harder than that used for the frame structure.

The result is an extremely robust, virtually indestructible frame and supporting structure.

The log splitter is equipped with wheels for easy motion and it is excellently balanced: movement can also be performed by a single operator using the handle for tilting the log splitter and the wheels of 25 cm diameter.

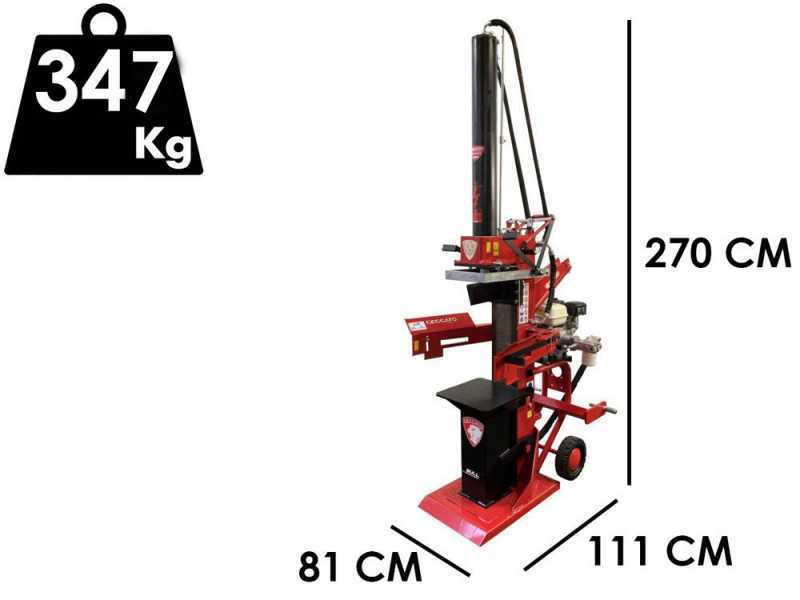

With a splitting force of 16 tonnes, this Ceccato log splitter is capable of splitting logs of varying sizes up to a maximum of 110 cm in height and 60 cm in diameter.

On particular occasions, it can also be lifted by means of the specific lifting point.

The splitting plate allows two working heights, 51 cm or 110 cm.

This machine is made keeping in mind all of the industry standards in order to make the operator's work safe.

Locking device of the lift wedge with stuck logs.

Pressing this upper support the piston’s ascent stops automatically. This allows you to ensure total safety by eliminating the risk of injuries to the hands and wrists.

Focus on the hydraulic oil level

Focus on the exceptionally thick splitting plate

Focus on the professional hydraulic distributor

Focus on the hydraulic oil tank plug

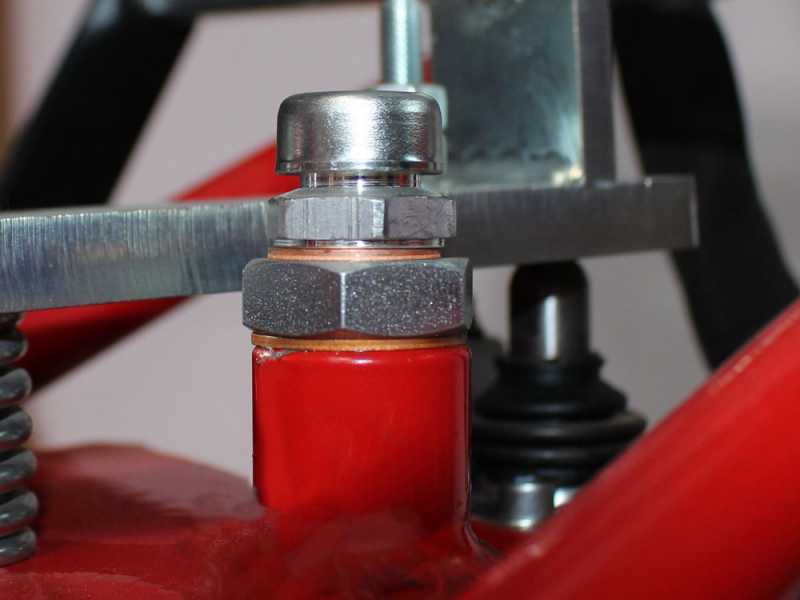

Adjustment of the piston stroke: to cut short logs and speed up the work it is possible to adjust the stroke by regulating the cylinder by means of the clamping key.

Focus on the oil filter
