Ceccato BULL SPL16-TCH Petrol Log Splitter - 16 Tons

Questions & Answers (2)
ID: 101054

EAN: 9993089413070

MPN: SPL16-TCH

8,5/10
After-sales assistance & Spare parts
Ceccato BULL SPL16-TCH Petrol Log Splitter - 16 Tons
+80 sold
Max. trunk diameter
60 cm
Piston stroke
65 cm
Max. pressure
230 bar
Ground splitting system
Yes
Double speed
Yes
Motor type
4-stroke
Motor brand
Honda
Motor Model
GX 200
Cubic capacity
196 cm³
Nominal power
6.5 HP
Nominal splitting force
16 t
Pump type
Double hydraulic
Pump
Double
Manufacturing country
Italy
Product Features
Model:
SPL16-TCH
Type:
Vertical
Double speed:
Yes
Operating mode:
Spark ignition
Nominal splitting force:
16 t
Piston stroke:
65 cm
Adjustable piston stroke (for short logs):
Yes
Worktop log cutting:
No
Ground splitting system:
Yes
Manufacturing country:
Italy
Motor data
Motor brand:
Honda
Motor Model:
GX 200
Motor type:
4-stroke
Cubic capacity:
196 cm³
No. of cylinders:
1
Nominal power:
6.5 HP
Motor speed:
3600 RPM
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Decompression system:
Automatic
Tank capacity:
18 L
Manufacturing country:
Japan
Pump data
Pump type:
Double hydraulic
Flow rate:
36 L/min
Max. pressure:
230 bar
Oil tank:
Yes
Hydraulic cylinder outer diameter:
90 mm
Piston diameter:
50 mm
Piston speed:
23 cm/s
Piston speed (2):
9 cm/s
Retracting speed:
15 cm/s
Manufacturing country:
Italy
Hydraulic oil qty.:
16 Litres
Cutting data
Max. trunk length:
65 cm
Max. trunk diameter:
60 cm
Equipment
Frame:
Covered with front plate
Pump:
Double
Vertical log splitter safety lever:
Yes
Retaining side arms:
No
Retaining side supports:
Yes
Trunk lifting system:
No
Retractable piston for transport:
No
Tractor three-point hitch:
No
Replaceable wedge guides:
Yes
Cartridge oil filter :
Yes
CE-compliant safety switch:
CE-compliant
Wheeled trolley for transport:
Yes
Recoil start system (with rope):
Yes
Rear wheels size:
27 cm
Free gifts/extra features
Oil bottle:
No
4-way wedge:
No
Splitting wedge:
No
Instructions manual:
Yes

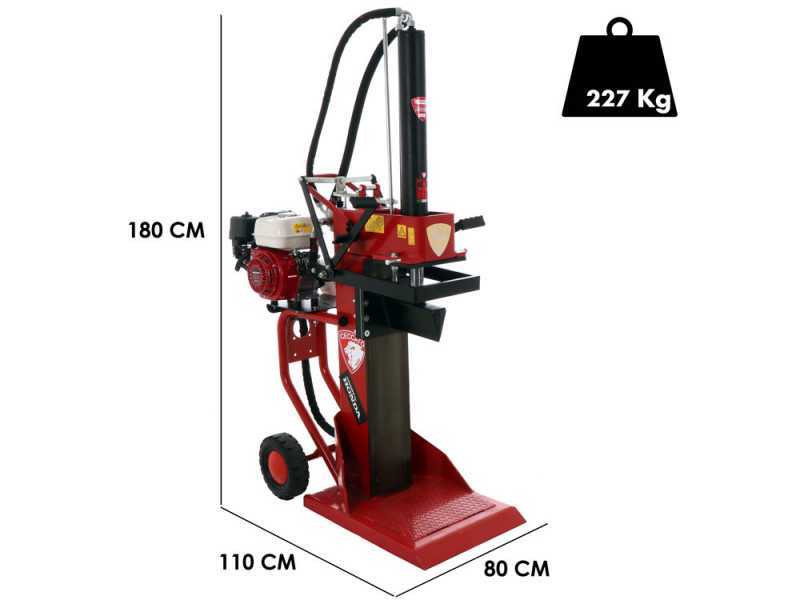

Dimensions and logistics
Product dimensions in cm (L x W x H):
100x80x180 cm
Net weight:
227 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
105x80x190 cm
Gross weight (packaging included) :
240 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
Assembled
Prompt Delivery
9 items in stock
Free Shipping
Estimated delivery: 26/06/2024 - 28/06/2024
Suggested price:
€ 3.006,98
€ 2.856,63
VAT Included
TOP QUALITYTOP QUALITY
You're viewing:
Customers also viewed:
Description

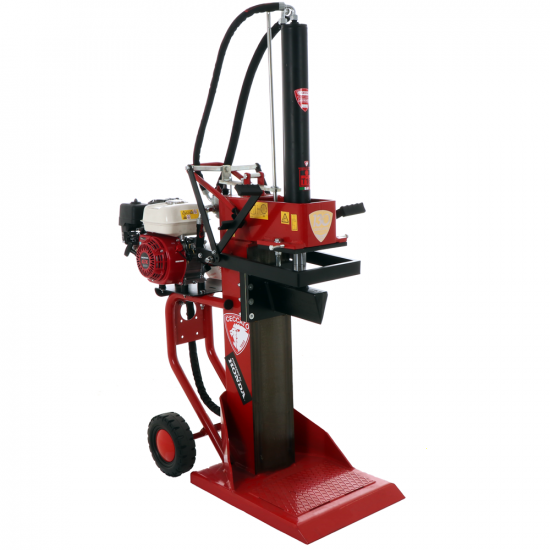

Ceccato Bull 16 tons petrol log splitter

The Ceccato Olindo Bull SPL16-TCH is a petrol log splitter featuring 16 tons splitting force ensured by the 4-stroke Honda GX200 engine, allowing to split even knotty and large logs of up to max. 67 cm height. It is provided with a large wedge, which slides on stainless steel side guides featuring bronze rollers, that keeps the cylinder safe even under maximum stress.

The machine is provided with a large-capacity two-stage pump ensuring great splitting force and operating speed. This log splitter is also equipped with 2 wheels for easy transport and adjustable end-of-stroke automatic control system.

This SPL16-TCH heavy-duty log splitter can operate very quickly and it is equipped with special safety devices to protect the Operator while working.

Ceccato Bull log splitter is entirely made in Italy.

This machine is part of the Bull log splitter Series by Ceccato Olindo.

Highest safety ensured by the Ceccato Olindo log splitter

WEDGE: cutting wedge with 3° tilt towards the frame.

SUPPORT PLATFORM: the thickness of the supporting plate is 55 mm, thus improving the stability of the machine. The support platform reaches 100 mm beyond the edge of the cutting wedge with a total lenght of 69 cm.

PISTON STROKE: the cutting wedge at the end of the stroke features a residual distance of 100 mm from the cutting plate.

UPPER CONTROL LEVERS: the levers have been shortened as to comply with the Directive.

LOWER CONTROL ARM LEVERS: shortened levers on the log supporting arms. Thus, their positioning in compliance with the height measures stated in the Directive. The indicative shape has been specifically selected to prevent the possible fall of the log towards the Operator.

HYDRAULIC HOSES: we have increased the hose diameter for ensuring a lower oil temperature. Cable protection and shielding with Ceccato Olindo screen-printed canvas sheathing with steel studs. In case of damage or burst of the hose, this holds the oil and vaporises it without any risk of injury.

LOG LIFTING SYSTEM: installation of a log lifting device synchronised with the movement of the cutting wedge.

Each machine model features all the specifications required in accordance with the Directive. Thus, all the use and maintenance instructions are properly upgraded.

The Ceccato log splitter is in compliance with the DIN EN 609-1: 2017 Directive.

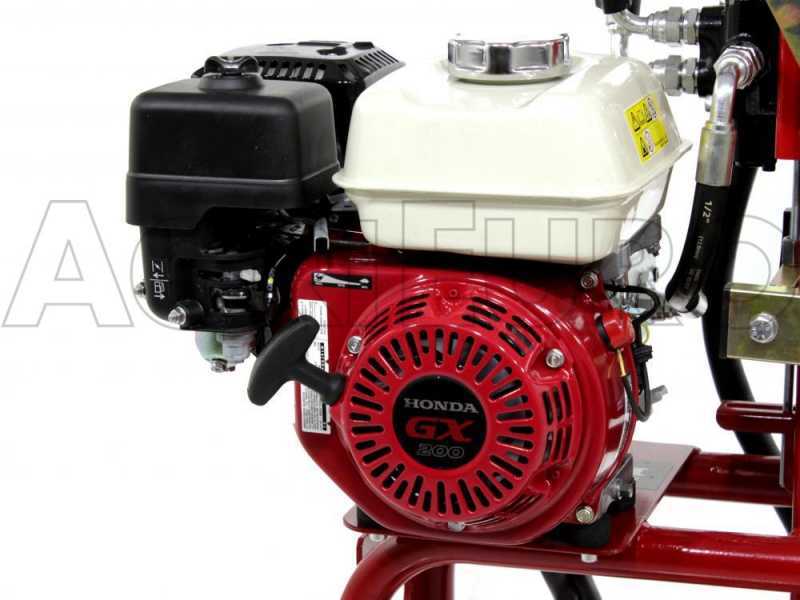

Honda GX 200 engine

Honda GX 200 engine: Highly-professional and powerful engine belonging to the latest overhead valve OHV technology.


Features:

Engine type: 4-Stroke, single cylinder - OHV
Cylinder type: Aluminium
Cubic Capacity: 196 cm³
Compression ratio: 8.5: 1
Max. rpm: 3600 rpm
Torque value: 12.4 Nm / 1.26 kgfm / 2500 rpm
Fuel tank capacity: 3.1 L
Consumption: 1,7 L/h at 3600 rpm

The Honda “GX” series is highly professional and was developed for heavy duty jobs in building and agricultural field for generators, welders etc., reliable and long life.


The log splitter operates by using the high-performance double hydraulic pump operation, which achieves 230 bar working pressure and can pump 24 L/min, supplying oil, drawn from the tank, to the hydraulic cylinder which acts as a pusher. The frame of the machine structure itself acts as the hydraulic oil tank.

Focus on the oil filter

NOTE: always run the engine at max. revs by setting the throttle to maximum.

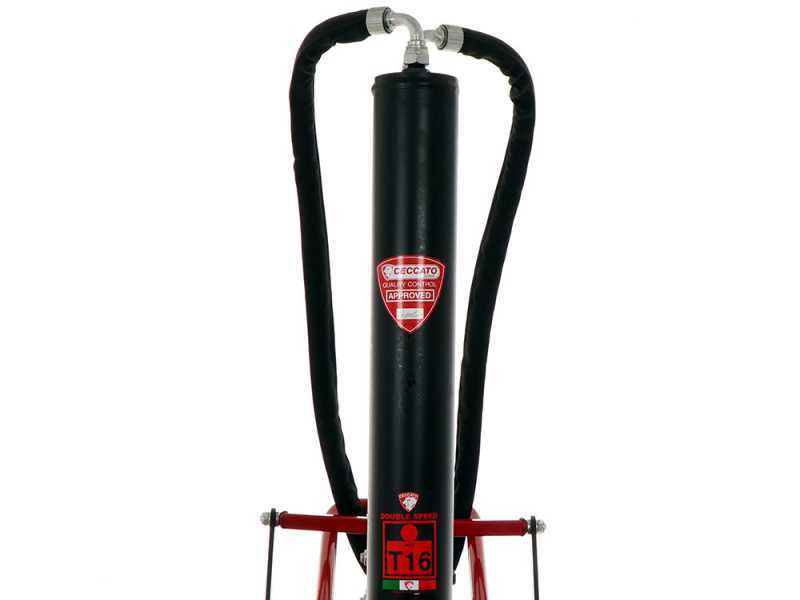

Wedge and piston

With its 16 tons splitting force it can break knotty logs of different sizes up to max. 67 cm height.

This is possible thanks to the very sturdy and large piston, which features a 90 mm outer diameter and a 50 mm internal diameter.

The piston slides on a steel guide in order to preserve the cylinder even under extra load. Moreover, it comes with a high-density ABS piston side guides with bronze plate.

Highly wear-resistant guides. Their bronze sliding plate prevents the steel log support from wear.

The cutting wedge is made of highly sturdy melted pressed steel and features a 26 cm splitting length.

Adjustable piston stroke: when splitting short logs, you can speed the operations adjusting the piston stroke.

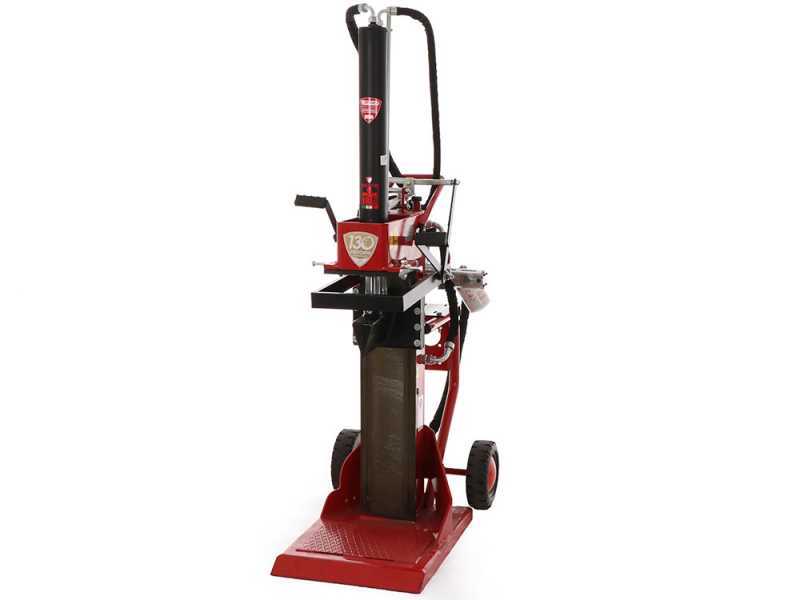

Controls and operating speed adjustment

The log splitter is equipped with a built-in variable speed cylinder drive circuit.

The dual control levers for operating the machine must necessarily be operated by the Operator using both hands, for avoiding any kind of injury.

When light pressure is applied, the log splitter makes the pushing cylinder move quickly until it comes into contact with the log.

By applying more pressure on the control handles, the piston considerably slows down its speed and increases the wedge splitting force of up to 16 tons.

Single or double speed can be selected by simply pressing down on the control handles with more or less pressure. Once the wedge will contact the log, the Operator will automatically know how much pressure to apply on the handles so that the wedge concentrates all the power of the log splitter for splitting the log.

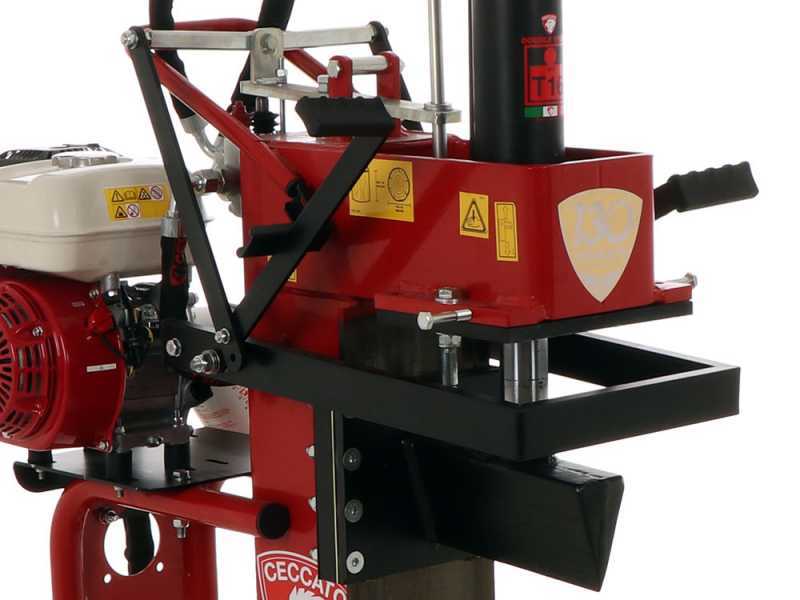

Main features

This log splitter is made with thick enamelled steel sections that compose the highly sturdy boxed frame. Most log splitters on market mount an “H” shaped frame but this Ceccato log splitter mounts a boxed frame, which is reinforced with front plate where the wedge slides. This plate is made of high-strength tempered steel, which is harder than the steel used for the frame. This means that the frame and the support platform are very sturdy and strong.

This log splitter comes with 27 cm diameter wheels to make transport easier and it is perfectly balanced. Even just one Operator can transport the machine by means the tilting handle.

With its 16 ton splitting force it can break knotty logs of different sizes up to max. 65 cm height and 60 cm diameter.

In specific situations, it can also be lifted using the specific lifting point connection.

The cutting plate is 55 mm height and it also provides great stability by extending beyond the flat plate where the log splitter wedge runs, reaching a total length of 69 cm.

This machine complies with the security Directives in order to guarantee a completely safe operation.

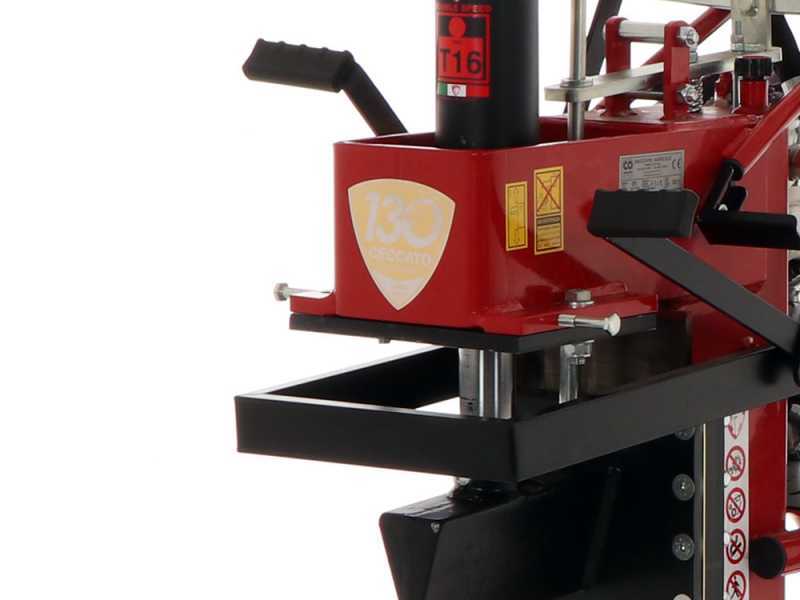

Other features

Wedge lift locking device. Pressing this upper support automatically stops the piston from rising. This allows you to safely use the log splitter, avoiding the risk of injury to hands and wrists..

Focus on the heavy-duty hydraulic distributor.

Focus on the hydraulic oil drain plug.

Focus on the hydraulic oil level.

Focus on the highly thick cutting plate..

Adjustable piston stroke: you can adjust the piston stroke by means of the proper wrench. It is intended for short logs and for reducing the operating times.

Focus on the high-density ABS piston lateral guides featuring bronze plate.

Focus on the oil filter

Free items & Standard equipment

Standard equipment

The log splitter is safely shipped in its original packaging on pallet.

The maintenance and operating instructions manual is included in the packaging.
