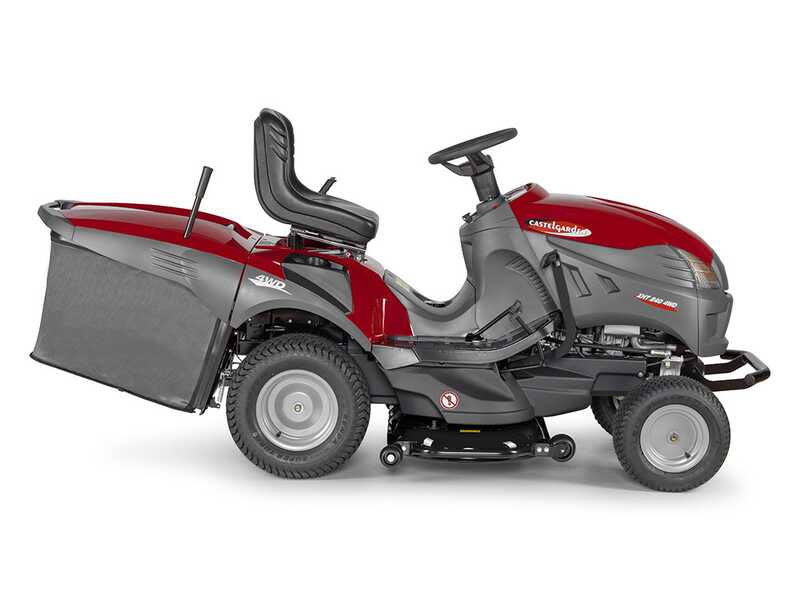

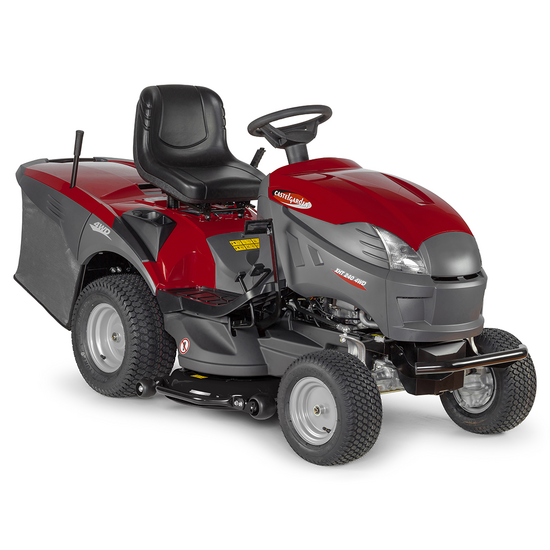

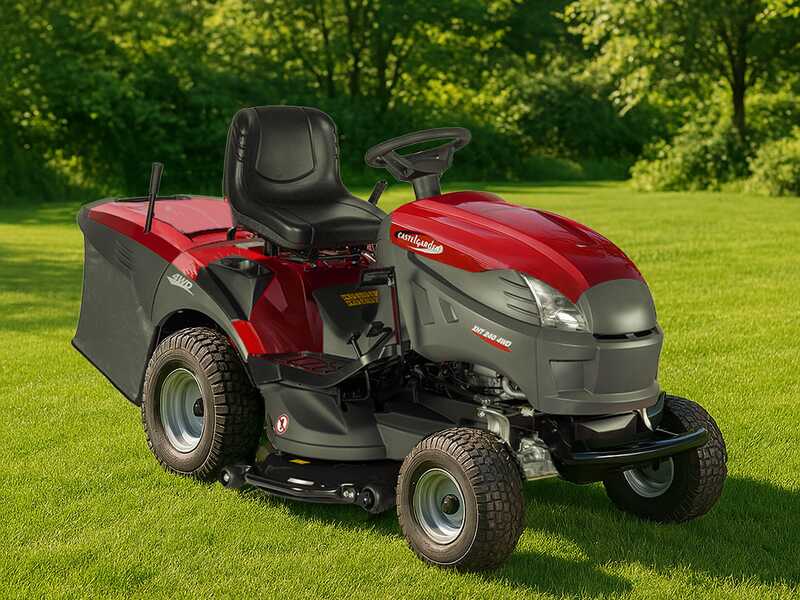

Castelgarden XHT 240 4WD - Lawn Tractor with Collection Bag - Hydrostatic Transmission

The Castelgarden XHT 240 4WD Petrol Lawn Tractor is a robust and efficient model, designed to offer optimal performance on large surfaces.

This tractor is equipped with a powerful 635 cc STIGA petrol engine, providing a power output of 10.6 kW at 2400 rpm, ideal for tackling even the most challenging terrains. With a cutting area of 8500 m², the Castelgarden XHT 240 4WD is perfect for large gardens.

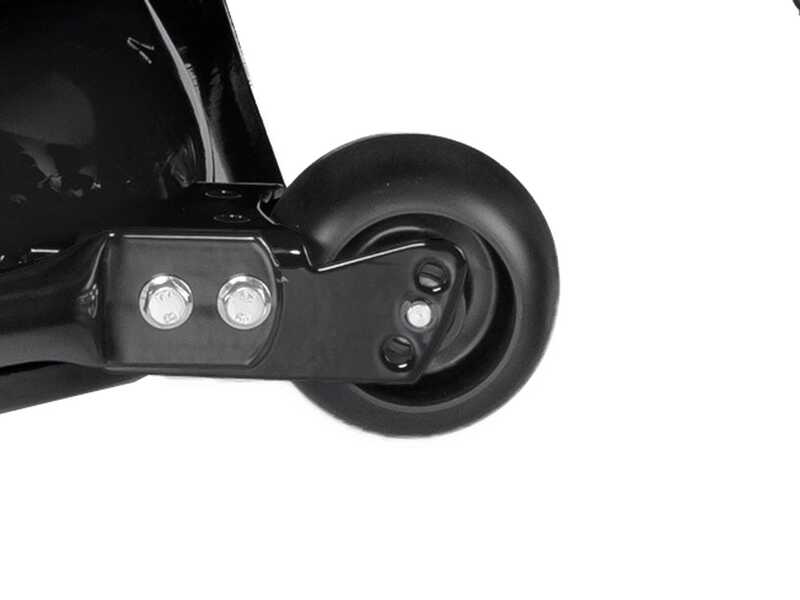

The 102 cm twin-blade cutting deck, equipped with anti-scalp wheels, ensures a precise and uniform cut, while the 360-litre collection bag facilitates the management of collected material, reducing the need for frequent emptying.

Manual adjustment with a lever for cutting height, thanks to a single lever it is possible to adjust the cutting height in 9 different positions, from a minimum of 25mm to a maximum of 100mm.

The 4-wheel drive (4WD) hydrostatic transmission and the electric steering system offer great manoeuvrability and traction on difficult and sloped terrains, ensuring stability even in low grip conditions.

Among other features, the tractor includes a dashboard with a multifunction display, front headlights for increased visibility, and a mulching system for a cleaner finish. The Castelgarden XHT 240 4WD is also equipped with a towing hitch, for towing compatible accessories, and an integrated battery charger.

Main Features:

• 10.6 kW STIGA Twin-Cylinder Engine: Powerful and reliable, offers optimal performance even on difficult terrains.

• 4WD Hydrostatic Transmission: Ensures excellent traction on any type of surface, even on the most inclined terrains.

• 102 cm Twin-Blade Cutting Deck with Anti-Slip Wheels: Ensures a uniform and precise cut.

• 360-Litre Collection Bag: Reduces the need for frequent emptying and facilitates the collection of cut grass.

• Multifunction Display with Hour Counter and Front Headlights: For comfortable and safe operation, even in low visibility conditions.

• Cruise Control

This Castelgarden XHT 240 4WD tractor is equipped with the twin-cylinder Stiga St 650 Twin engine, a 635 cc engine that develops a nominal power of 14.21 Hp at 2400 rpm.

The St 650 Twin engine is powerful, reliable, and generates low noise and emissions.

Features:

Nominal Power: 22 HP
The most correct term would be "Commercial Power", meaning the classic standard of power definition officially used until a few years ago by all the most renowned engine manufacturers.

* This data is still widely used and advertised in the main commercial sales channels, although it is an exaggerated figure compared to the actual power.

Effective Power: 14.21 HP (at a rotation speed of 2400 rpm)
Corresponds to the actual power expressed at the crankshaft. It is the one indicated as official in the engine manufacturer's manual or technical data.

* This data can vary for the same engine model depending on the rotation speed that the equipment manufacturer has decided to have the engine deliver.

1- COLLECTION WITH BAG (standard):

Brand new and spacious collection bag with a capacity of 360 litres, among the largest in its category.

The bag emptying system is very simple: it is done through a very effective system, leveraging the removable handle. This way, you can empty the bag at the desired point without any effort.

The bag can be removed in an instant: just lift it upwards to remove it from its "bridge" housing.

2- MULCHING (standard):

A cutting system that shreds the cut grass, leaving it on the lawn, pulverizing it to the point that it almost seems collected. This eliminates the problem of disposal (reducing effort and drastically shortening the time spent cutting) and also, as it decomposes, it will later turn into a nutrient for the lawn itself and into water (grass is made up of 80% water), thus ensuring a perfectly balanced biological cycle. However, it is useful to remember that, to ensure the absolute efficiency of the system, the lawn must still be irrigated, and the grass cut very often. Switching from one system to another is very easy.

3- Rear Discharge (not included, available separately as an accessory)

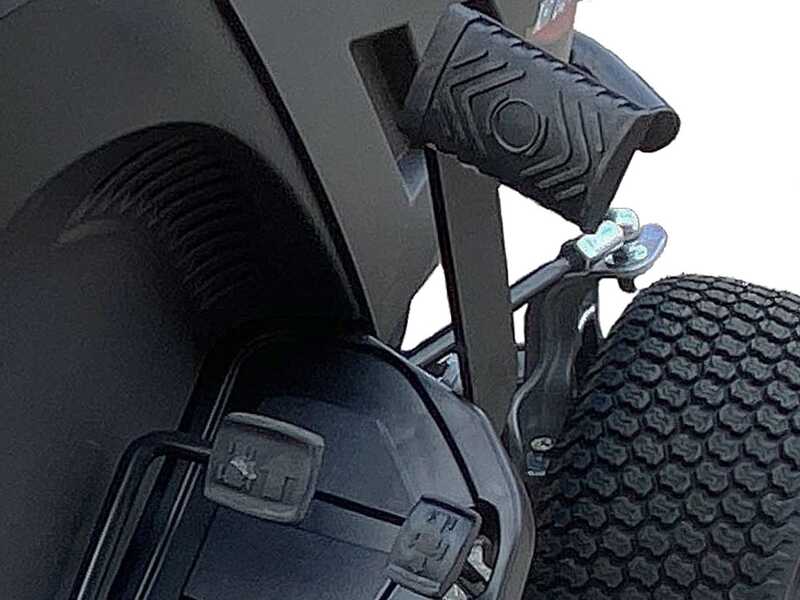

Thanks to the new hydrostatic transmission with 2 pedals, driving the XHT 240 4WD tractor will be easy and intuitive. Everything can be controlled simply with the right foot resting on the pedal.

The operation is very simple: to move forward, just press the pedal with the tip of your foot. The tractor will move forward based on the pressure applied. To engage reverse, just press the other end of the pedal with your heel.

Robust gears make the transmission difficult to break.

The hydrostatic transmission is by nature much more modern and functional (although more expensive) than the traditional manual gear transmission. The latter, whenever the speed needs to be changed, forces the operator to stop, change gear (because all tractors with manual or mechanical transmission require the gear change to be done from a standstill), release the clutch, and start again at the desired speed. Certainly, if the speed needs to be changed multiple times (for example, in all those gardens where there are trees, pots, or any other kind of obstacle), the traditional gear transmission would be decidedly impractical. The hydrostatic transmission, on the other hand, allows immediate speed changes, without ever stopping, in the utmost practicality, fully automatically, simply by varying the pressure on the pedal of this transmission.

The CastelGarden XHT 240 4WD lawn tractor is equipped with a 2-blade deck.

The tractor comes standard with collection blades

Cutting deck width 102 cm.

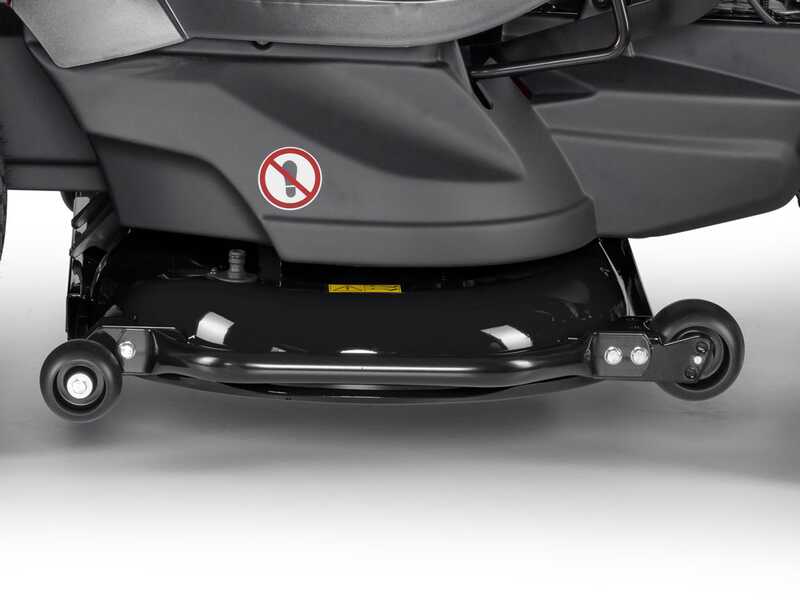

The deck of the lawn tractor is floating: it easily adapts to the undulations of the terrain (as long as they are not excessively harsh). Moreover, this model is equipped with a wide protection that completely surrounds the deck.

The blade engagement is electromagnetic and is controlled via the red button to the right of the steering wheel. This system avoids manual engagement via the classic lever found on many types of tractors and works thanks to an electromagnetic clutch that allows quick blade engagement. Nothing could be easier than pressing a button.

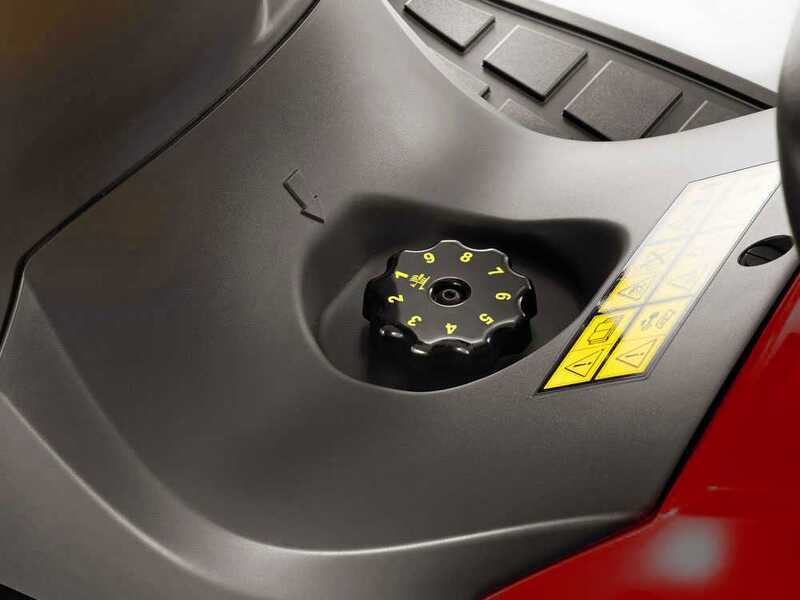

The cutting deck height adjustment is done via a lever.

The available cutting positions are 9 and can be varied from a maximum of 100 mm to a minimum of 25 mm.

Using the lever located to the right of the seat, it is possible to raise or lower the cutting deck, to facilitate the movement of the machine.

The cutting deck is equipped with a washing connection

The controls and adjustments of the CastelGarden XHT 240 4WD lawn tractor are easy and intuitive. This version is equipped with an extensive control instrumentation

• Speed regulator
• Control lights: indicate the operating status and alert in case of malfunctions.
• Parking brake
• Ignition switch with key
• Pedals for forward and brake
• Cutting height adjustment
• Lever to raise or lower the cutting deck
• Electromagnetic blade engagement with yellow button to the right of the steering wheel
• ON/OFF conventional headlights
• Choke
• Detail of the bag emptying handle
• Red button for blade activation in reverse
• Detail of the air adjustment
• Counter on Display
• Transmission release
• Cruise control

Other features of the CastelGarden XHT 240 4WD lawn tractor:

• Engine bonnet can be opened to allow cleaning and maintenance operations
• Ultra-comfort adjustable seat with high backrest for maximum comfort during use. Various positions can be set and easily adjusted.
• Ergonomic steering wheel made of soft-touch plastic.
• Lights for enhanced night visibility
• Sturdy front bull bar: prevents frontal impacts and protects the machine
• Rear wheels size 20 x 10.00 - 10
• Front wheels: wheel size is 16 x 6.50 - 8
• Pivoting front axle: ensures excellent balance, stability, and driving comfort even on uneven terrains.
• Washing connection for the cutting deck.
• Rich control panel
• cupholder
• Storage compartment

The ride-on lawn mower is designed and intended exclusively for cutting grass in gardens and parks (and not on other types of terrain). The working surface must be level, free of irregularities, stones, or other solid objects, and covered with maintained lawn grass (not uncultivated or spontaneous vegetation). Grass should be cut regularly and must not be allowed to grow beyond 25–30 cm, as most ride-on mowers are no longer capable of cutting at this height. Slopes exceeding 15% (equivalent to 9°) must be avoided, except when using 4x4 models.

For heavier-duty tasks, involving spontaneous vegetation, grass taller than the above-mentioned limits, or rougher surfaces than a garden, please consider alternative product categories such as Petrol Flail Mowers or Ride-On Flail Lawn, which are suitable for tall and uncultivated grass.

Grass must only be cut when both the lawn and the underlying soil are completely dry. Mowing operations should be carried out exclusively in dry weather, well away from periods of rain or irrigation, and preferably in the afternoon, when the grass is no longer affected by morning humidity. Wet grass tends to bend under the blades, reducing cutting efficiency, increasing the risk of clogging inside the deck, and subjecting both the engine and the transmission belt to excessive strain, which may result in damage.
