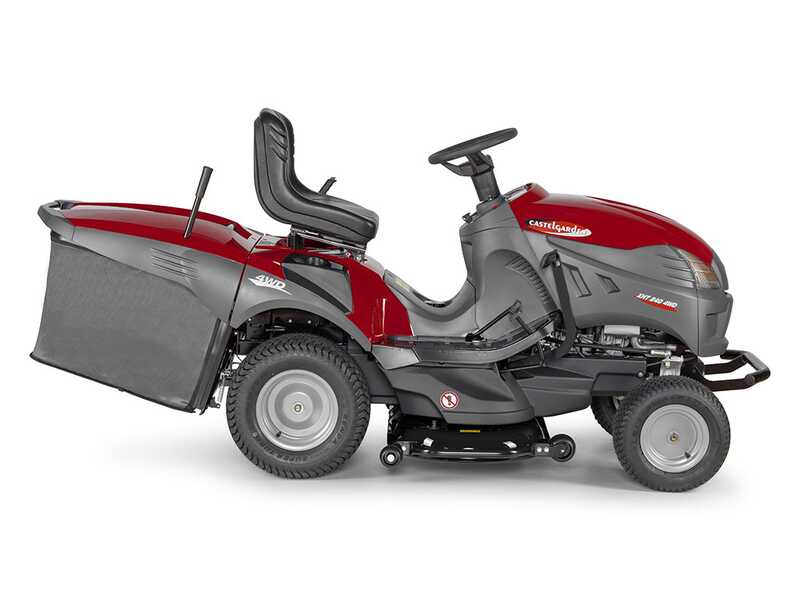

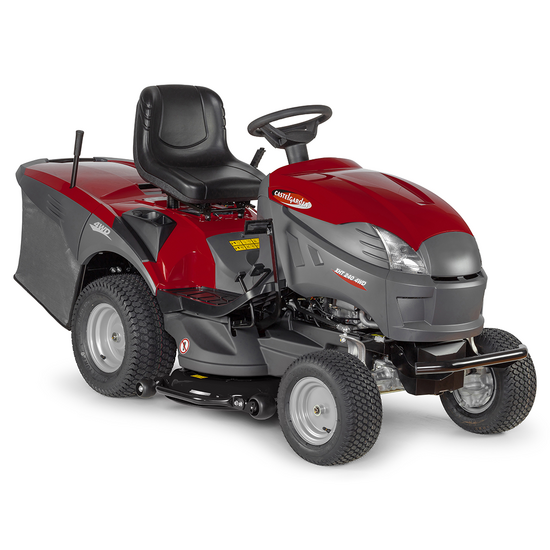

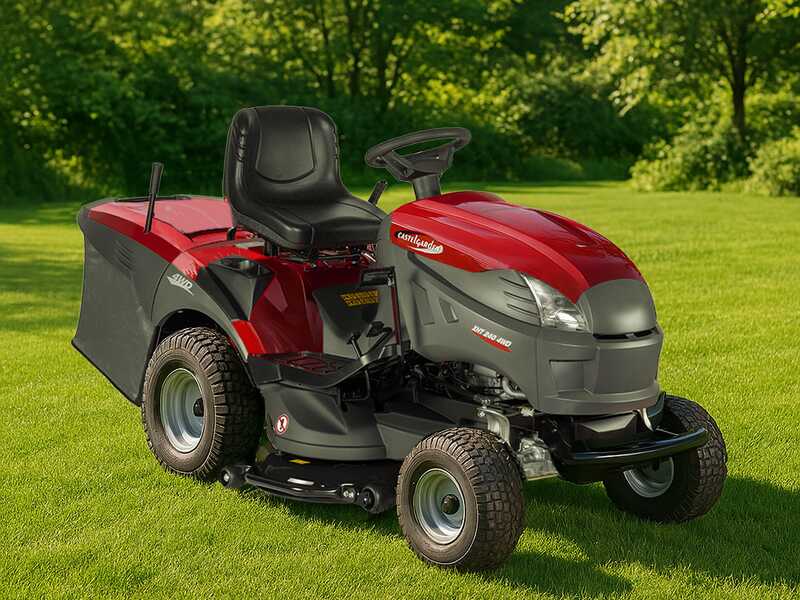

Castelgarden XHT 240 4WD - Lawn tractor with collection basket - hydrostatic transmission

The Castelgarden XHT 240 4WD Petrol Lawn Tractor is a robust and efficient model, designed to deliver optimal performance on large surfaces.

This tractor is equipped with a powerful 635 cc STIGA petrol engine, providing a power output of 10.6 kW at 2400 rpm, ideal for tackling even the most challenging terrains. With a cutting area of 8500 m², the Castelgarden XHT 240 4WD is perfect for large gardens.

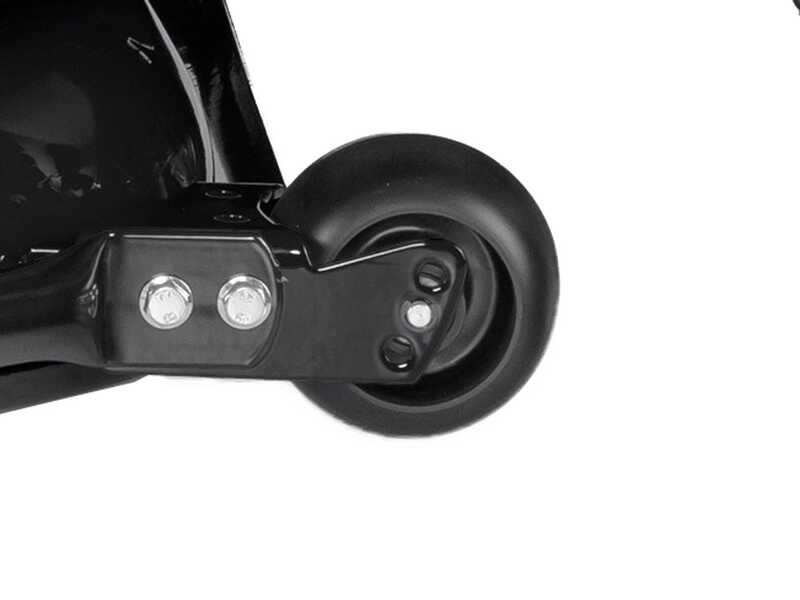

The 102 cm twin-blade cutting deck, equipped with anti-scalp wheels, allows for precise and uniform cutting, while the 360-litre collection bag facilitates the management of collected material, reducing the need for frequent emptying.

Manual adjustment with a lever for cutting height, thanks to a single lever it is possible to adjust the cutting height in 9 different positions, from a minimum of 25mm to a maximum of 100mm.

The hydrostatic transmission with 4-wheel drive (4WD) and the electric steering system offer great manoeuvrability and traction on difficult and inclined terrains, ensuring stability even in low-grip conditions.

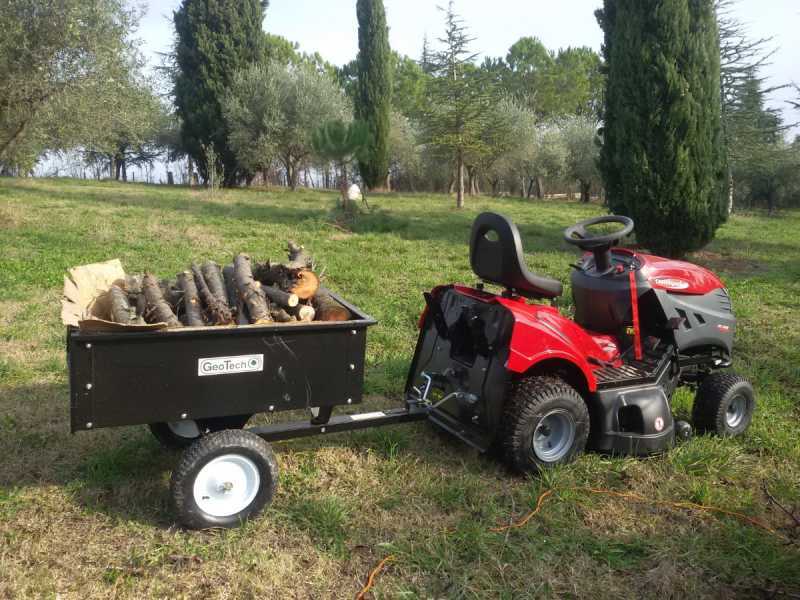

Among other features, the tractor includes a dashboard with a multifunction display, front headlights for increased visibility, and a mulching system for a cleaner finish. The Castelgarden XHT 240 4WD is also equipped with a towing hook, for towing compatible accessories, and an integrated battery charger.

Main Features:

• 10.6 kW STIGA Twin-cylinder Engine: Powerful and reliable, offers optimal performance even on difficult terrains.

• 4WD Hydrostatic Transmission: Ensures excellent traction on any type of surface, even on steep terrains.

• 102 cm Twin-blade Cutting Deck with Anti-slip Wheels: Ensures uniform and precise cutting.

• 360-litre Collection Bag: Reduces the need for frequent emptying and facilitates the collection of cut grass.

• Multifunction Display with Hour Meter and Front Headlights: For convenient and safe operation, even in low visibility conditions.

• Cruise control

This Castelgarden XHT 240 4WD tractor is equipped with the Stiga St 650 Twin twin-cylinder engine, a 635 cc engine that develops a nominal power of 14.21 Hp at 2400 rpm.

The St 650 Twin engine is powerful, reliable, and generates low noise and emissions.

Features:

Nominal Power: 22 HP
The most correct term would be "Commercial" Power, meaning the classic standard of power definition officially used until a few years ago by all the most renowned engine manufacturers.

* This data is still more widespread and advertised in the main commercial sales channels, although it is an inflated figure compared to the actual power.

Effective Power: 14.21 HP (at a rotation speed of 2400 rpm)
Corresponds to the actual power expressed at the crankshaft. It is the one indicated as official in the engine manufacturer's manual or technical data.

* This is a figure that can vary for the same engine model depending on the rotation speed that the equipment manufacturer has decided to have the engine deliver.

1- COLLECTION WITH BASKET (standard):

Brand new and spacious collection basket with a capacity of 360 litres, among the largest in its category.

The bag emptying system is very simple: it is done through a very effective system, leveraging the removable handle. This way, you can empty the bag at the desired point without any effort.

The bag can be removed in an instant: simply lift it upwards to slide it out of its "bridge" housing.

2- MULCHING (standard):

A cutting system that shreds the cut grass, leaving it on the lawn, pulverizing it to the point that it almost seems to have been collected. This eliminates the problem of its disposal (reducing effort and drastically shortening the time spent cutting) and also, as it decomposes, it will subsequently turn into a nutrient for the lawn itself and into water (grass is made up of 80% water), thus ensuring a perfectly balanced biological cycle. However, it is useful to remember that, to ensure the absolute efficiency of the system, the lawn must still be irrigated, and the grass cut very often. Switching from one system to another is very easy.

3- Rear Discharge (not included, purchasable separately as an accessory)

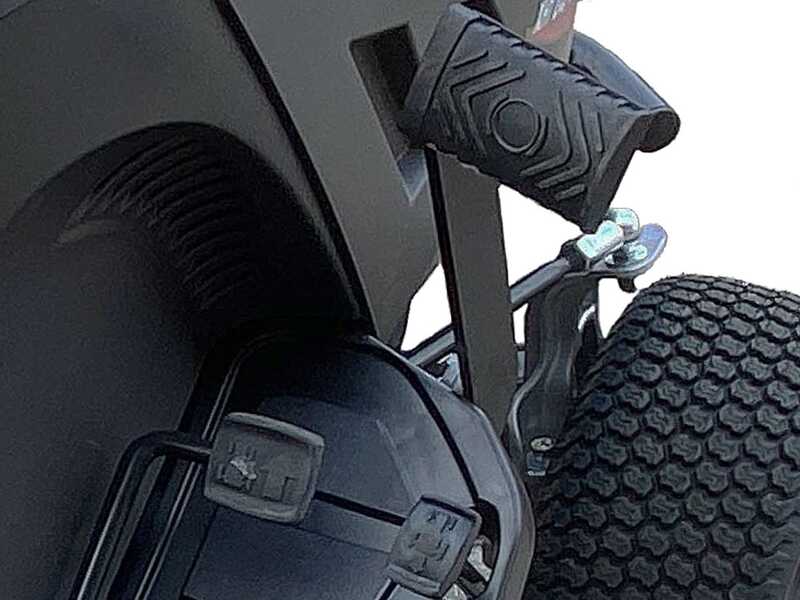

Thanks to the new hydrostatic transmission with 2 pedals, driving the XHT 240 4WD tractor will be easy and intuitive. Everything can be controlled simply with the right foot resting on the pedal.

The operation is very simple: to move forward, just press the pedal with the tip of your foot. The tractor will move forward based on the pressure applied. To engage reverse, just push with the heel on the other end of the pedal.

Robust gears make the transmission difficult to break.

The hydrostatic transmission is by nature much more modern and functional (although more expensive) than the traditional manual gear transmission. The latter, whenever the speed needs to be changed, requires the operator to stop, change gear (because all tractors with manual or mechanical transmission require the gear change to be done from a standstill), release the clutch, and start again at the desired speed. Certainly, if the speed needs to be changed several times (for example, in all those gardens where there are trees, pots, or any other kind of obstacle), the traditional gear transmission would be decidedly impractical. The hydrostatic transmission instead allows immediate speed changes, without ever stopping, in the utmost practicality, in a totally automatic manner, simply by varying the pressure on the drive pedal of this transmission.

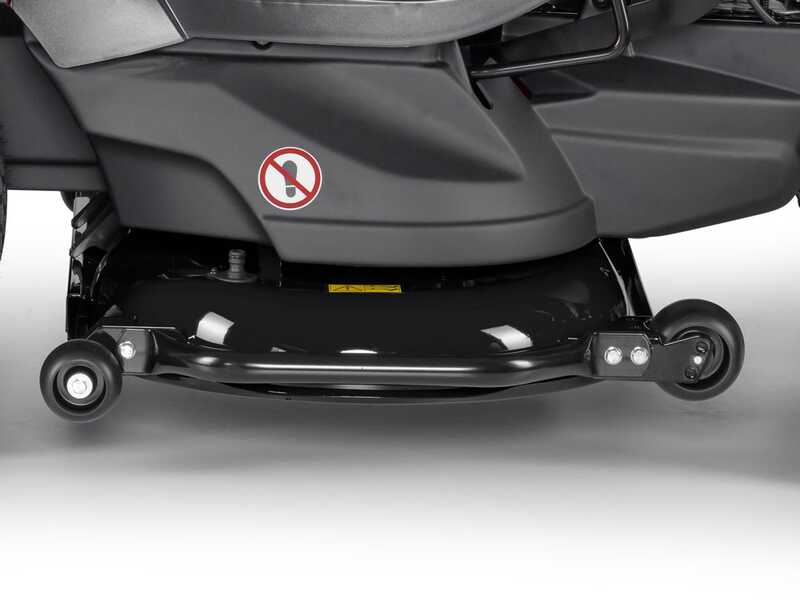

The CastelGarden XHT 240 4WD lawn tractor is equipped with a 2-blade deck.

The tractor comes standard with collection blades

Cutting deck width 102 cm.

The deck of the lawn tractor is floating: it easily adapts to the undulations of the terrain (as long as they are not excessively harsh). Moreover, this model is equipped with a wide protection that completely encloses the deck.

The blade engagement is electromagnetic and is controlled via the red button to the right of the steering wheel. This system avoids manual engagement through the classic lever found on many types of tractors and works thanks to an electromagnetic clutch that allows for quick blade engagement. Nothing is easier than pressing a button.

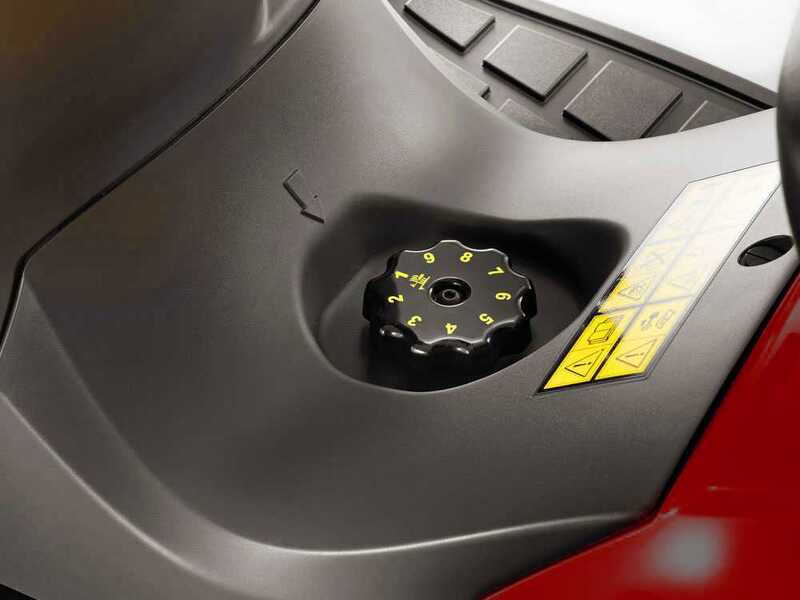

The cutting deck height adjustment is done via a lever.

The available cutting positions are 9 and can be varied from a maximum of 100 mm to a minimum of 25 mm.

Using the lever located to the right of the seat, it is possible to raise or lower the cutting deck to facilitate machine movement.

The cutting deck is equipped with a washing connection

The controls and adjustments of the CastelGarden XHT 240 4WD lawn tractor are easy and intuitive. This version is equipped with a comprehensive control instrumentation

• Speed regulator
• Control lights: indicate the operating status and alert in case of faults.
• Parking brake
• Ignition block with key
• Pedals for driving and braking
• Cutting height adjustment
• Lever to raise or lower the cutting deck
• Electromagnetic blade engagement with yellow button to the right of the steering wheel
• ON/OFF conventional headlights
• Choke
• Detail of the bag emptying handle
• Red button for activating blades in reverse
• Detail of the air regulation
• Counter on Display
• Transmission release
• Cruise control

Other features of the CastelGarden XHT 240 4WD lawn tractor:

• Engine bonnet can be opened to allow cleaning and maintenance operations
• Ultra-comfort adjustable seat with high backrest for maximum comfort during use. Various adjustable positions and easily adjustable.
• Ergonomic steering wheel made of soft-touch plastic.
• Lights for enhanced night visibility
• Sturdy front bull bar: prevents frontal impacts and protects the machine
• Rear wheels size 20 x 10.00 - 10
• Front wheels: wheel size is 16 x 6.50 - 8
• Pivoting front axle: ensures excellent balance, stability, and driving comfort even on uneven terrains.
• Washing connection for the cutting deck.
• Rich dashboard
• cupholder compartment
• Storage compartment
