Name: Campagnola Nuovo Holly - 210 - 280 - aluminium pole - Battery-powered electric olive harvester
Brand: Campagnola
SKU: K502342
Price: 548.64 EUR
Availability: InStock
Rating: 4.68 (19 reviews)

Description

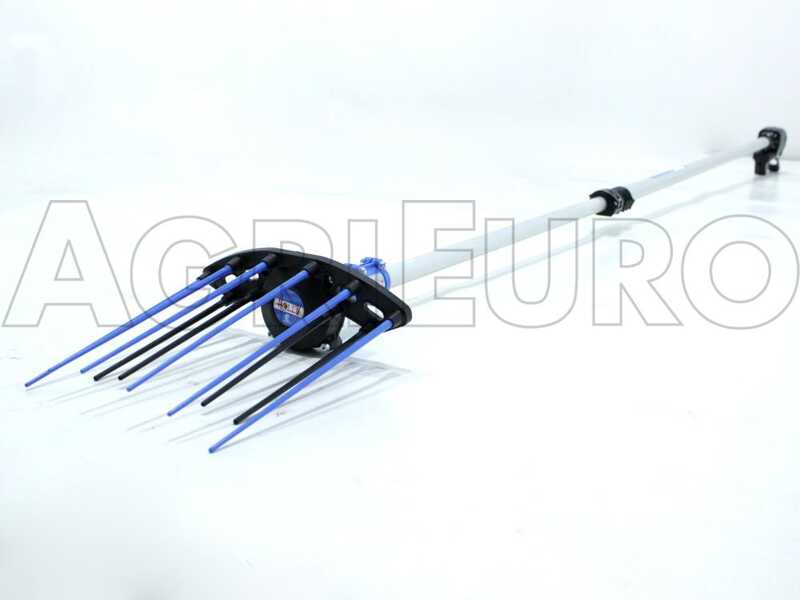

Holly Campagnola olive harvester

The new Holly olive harvester from Campagnola brings with it all the experience and quality acquired by this Italian company.
Like the other olive harvester models from this brand, Holly is also unrivalled in terms of ease of use and comfort.
Motor at the bottom of the shaft for better balance, a tear-proof handle for the cable, flexible tines to avoid damaging the plant, low power consumption and light weight: these are just some of the fantastic qualities this tool has to offer.

The head of this olive harvester performs an elliptical tilting rotary motion with the entire head.

It is fitted with two types of teeth, 25 and 20 cm, ensuring total penetration into the tree canopy. It is extremely easy to use.

This model is suitable for small producers (80/100 trees) and for mature olives.

The head is made entirely of carbon-filled technopolymer to ensure absolute lightness.

Campagnola Nuovo Holly - 210 - 280 - aluminium pole - Battery-powered electric olive harvester

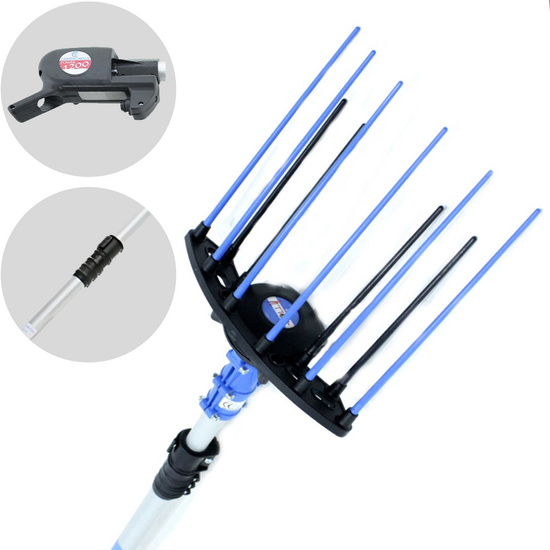

Head

The head of this olive harvester consists exclusively of the transmission and the support for the teeth. The motor is positioned at the bottom of the pole for better weight balance.

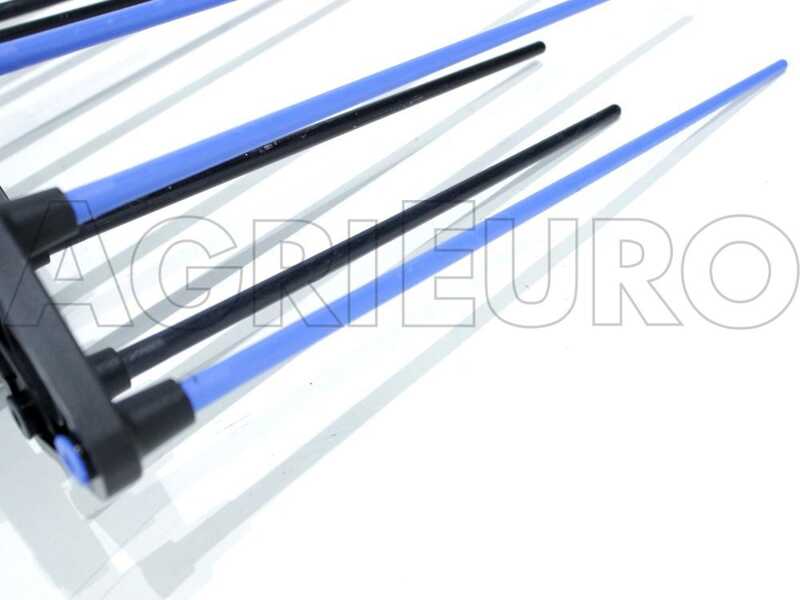

It is fitted with 10 teeth of two sizes: 25 cm (blue) and 20 cm (black). The choice of these two different sizes ensures greater efficiency in terms of harvesting and penetration into the tree canopy.

The teeth are soft and do not damage leaves and branches during operation.

The transmission allows the single support, on which the teeth are mounted, to perform short-range elliptical lateral rocking oscillations (both to the right and left of the initial position) at very high speed (1200 rotations per minute).
The advantages of this technique are reduced vibration and the detachment of the olive perpendicular to the ground.

The head weighs only 710 g.

Motor at the end of the pole

The motor at the bottom of the pole gives this olive harvester exceptional balance, which translates into less fatigue during use.
Today, however, 99% of olive harvesters on the market still have the motor mounted on the head: a simpler and cheaper solution that makes the olive harvester extremely unbalanced in terms of weight and very tiring to use.

It should not be forgotten that most of the time the olive harvester is held at the bottom of the pole, and if the weight is concentrated at the top, it becomes very difficult to handle and certainly impossible to use for a whole day.

When choosing an olive harvester, it is wrong to consider only the total weight when assessing its comfort of use.

Comfort of use is determined not by the total weight but by the balance of weights and therefore by the mounting of the motor at the bottom of the pole.

The most powerful motor on the market: 550 watts

* all olive harvesters on the market range from 100 to 300 watts

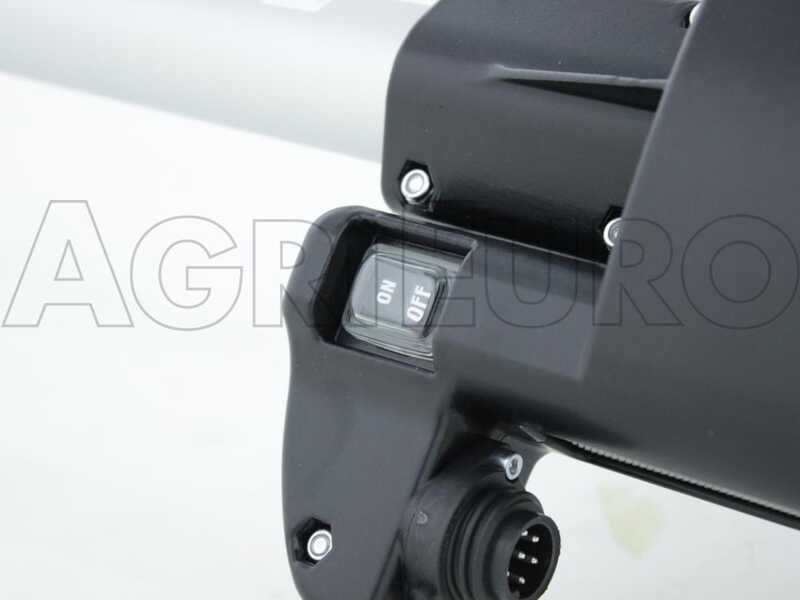

Support base with cable eyelet. Provides total protective coverage for the extension cable and motor connection socket. Both during operation, when the cable is constantly being pulled, and when the machine is not in use and is placed vertically on the ground.

Cable sold separately.

Pole

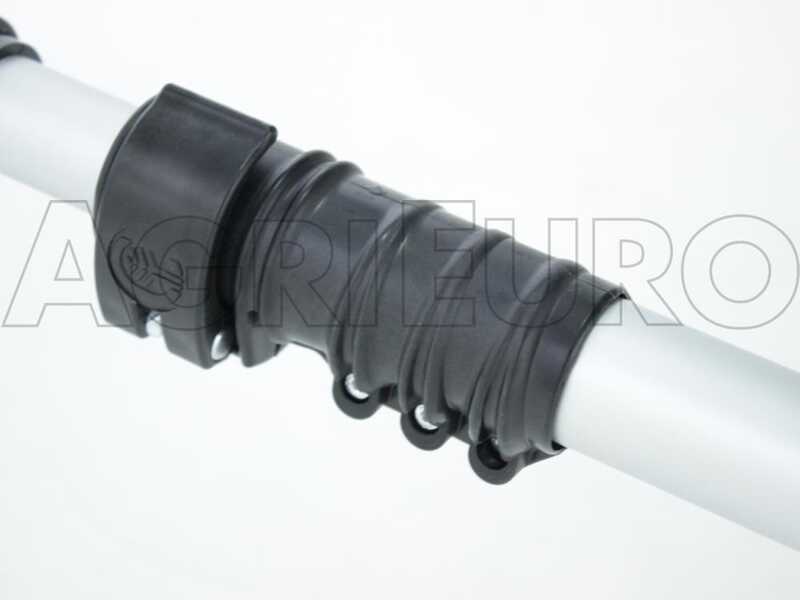

New super-lightweight aluminium telescopic pole (longer than previous models) with quick-release fastening.

Telescopic pole length: 150–220 cm

* with the head mounted, the olive harvester reaches a length of approximately 2.8 metres with the pole at its maximum extension

This long pole is always the ideal configuration for this olive harvester, precisely because the motor is mounted at the bottom of the pole.

Excellent for lower olive trees, we recommend holding the pole in the centre to maintain a 50/50 weight balance (as shown in the diagram above), making it even easier to handle.

Free items & Standard equipment

COMPLIMENTARY: ear protection muffs, goggles, headscarf, gloves + grease spray

COMPLIMENTARY:

Protective earmuffs to work with maximum comfort
The ear protection as to be the one recommended for all working conditions. Indeed, the earmuffs provided on the standard kit are specifically designed to protect the operator against the noise coming from the brush cutter.

Protective goggles that can be used as an alternative to the visor mask.
Protective mask goggles in polycarbonate with CE certificate, equipped with antifog and anti-scratch panoramic screen. The ventilation is ensured thanks to the holes made on the frame to avoid obfuscation and to improve comfort of use.

Cotton gloves with rubber waves, for greater comfort and a secure and stable grip on the equipment

Multipurpose lithium grease spray, 400 ml, to lubricate the internal transmission gears of the olive harvester Universal lithium grease suitable for any type of lubrication both on kinematic devices and on rotating ones.

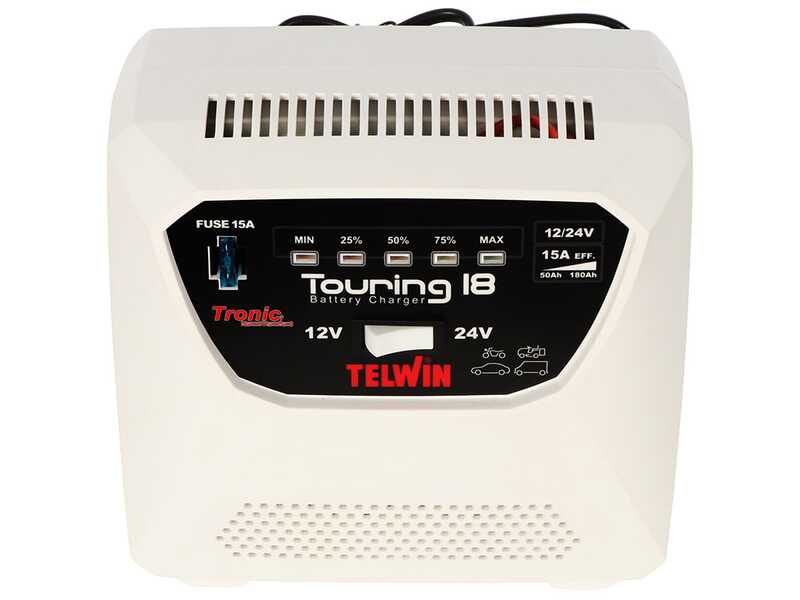

COMPLIMENTARY: Battery Charger Telwin Touring 18

The Telwin Touring 18 is a portable and lightweight battery charger, reliable and convenient. It is perfect for charging batteries from 12 to 24 V.

Lightweight, portable and very powerful at the same time. Small and powerful charger, the best you can find on the market to charge cars, motorcycles, campers batteries etc.

Battery charger with electronic control of charging phases, interruption and automatic reset (TRONIC ). Extremely reduced dimensions: 12x19,5x19 cm.

Battery charger ideal for charging WET, GEL, Pb-Ca, AGM, MF, EFB batteries with 12/24 Volt voltage. Suitable for charging batteries with a capacity of 60 to 180Ah (12V) and of 50 to 115Ah (24V).

Main features:

Power supply: single-phase
Protected against overloads and polarity reversals.
Automatic battery voltage recognition
Visual check of the battery charging phases thanks to the LED signalling

Suitable for:

Cars
Riding-on Mowers
Motorcycles
Campers etc.

Battery charger equipped with power cable and plug, with positive pole clamp (red), negative pole clamp (black).

Easy to use but also to transport thanks to its reduced weight of 3.5 Kg

The high quality of the product equipment is guaranteed by its TELWIN brand: historic Italian leading company for the production of this type of machineries.
