Campagnola Hercules 6 ECO Plug-in - 230 cm Carbon Pole - Electric Battery- powered Olive Harvester - 21V 5Ah

Add a question
ID: K608947

EAN: N/A

MPN: N/A

9,1/10
After-sales assistance & Spare parts

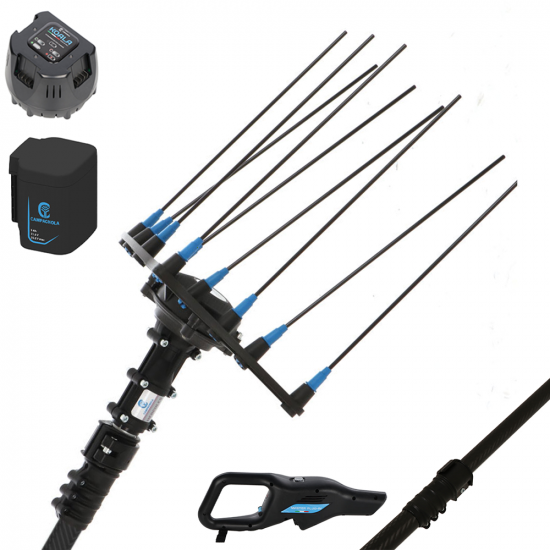

Campagnola Hercules 6 ECO Plug-in - 230 cm Carbon Pole - Electric Battery- powered Olive Harvester - 21V 5Ah
FREE
Campagnola sweatshirtCampagnola sweatshirt
Multi-purpose Lithium spray grease - 400 mlMulti-purpose Lithium spray grease - 400 ml
Cotton glovesCotton gloves
Protective gogglesProtective goggles
Noise-canceling earmuffsNoise-canceling earmuffs
Head material
ABS
Motion
Rotary
Speed (bpm)
1200 bpm
Max. prongs opening
34 cm
Pole material
Carbon
Max. length
230 cm
Motor type
Brush
Voltage
12 V
Nominal power (W)
325 W
Motor position
At the bottom of extension pole
Motor speed levels
1
Motor type
Battery-powered
Integrated battery
Li-ion battery-powered
Yes
No. of batteries
1
Battery Amperes
5 Ah
Carbon prongs
ABS Prongs
Manufacturing country
Italy
Product Features
Model:
Hercules ECO 6 Plug-in
Power supply:
Lead-acid battery 12 V
Head material:
ABS
Type:
12 V battery-powered
Operating mode:
12 V battery-powered
Items included:
Battery and battery charger included
Motor position:
At the bottom of extension pole
Motion:
Rotary
Integrated battery:
Speed (bpm):
1200 bpm
No. of prongs:
9
Prongs length:
36 cm
Prongs material:
Technopolymers, Carbon
Carbon prongs:
ABS Prongs:
Max. prongs opening:
34 cm
Max. length:
230 cm
Pole material:
Carbon
Carbon pole:
Max. power even with low battery:
Yes
Energy Saving System:
Yes
Pole type:
Fixed
Manufacturing country:
Italy
Motor data
Motor position:
At the bottom of extension pole
Motor type:
Battery-powered
Motor type :
Brush
Battery type:
Car type o Lithium (Li-Ion)
Motor speed levels:
1
Nominal power (W):
325 W
Power supply:
12 V battery-powered
Fuse:
Yes
Voltage:
12 V
Battery Amperes:
5 Ah
Recommended battery:
80 Ah
No. of batteries:
1
Motor power:
12 V
Manufacturing country:
Italy
Equipment
Extension pole attachment:
standard equipment
Extension power cable:
15 m
Control unit with circuit board:
Yes - inside the motor
Free gifts/extra features
Prongs/rods:
10
Instructions manual:
Yes
Dimensions and logistics

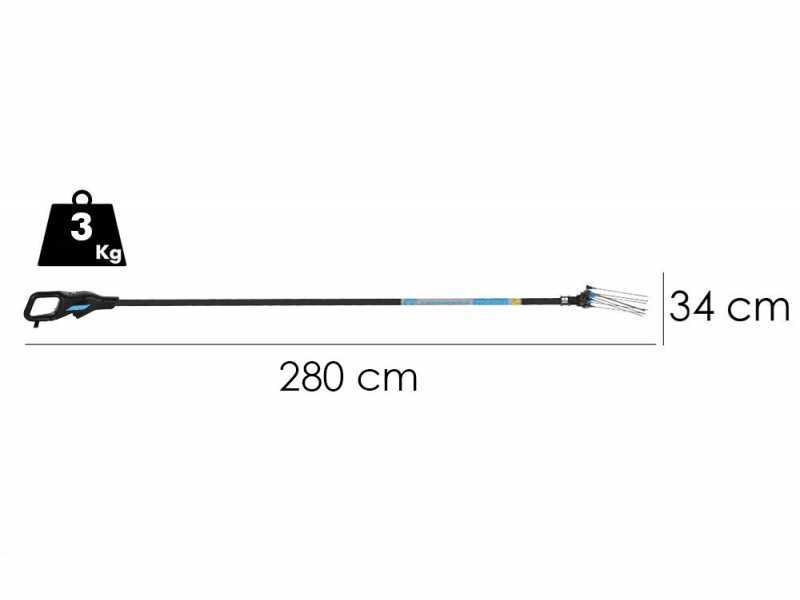

Product dimensions in cm (L x W x H):
34x280
Net weight:
3 Kg
Packaging:
Original packaging
Gross weight (packaging included) :
4.5 Kg
Assembly time:
5 minutes
Prompt Delivery
4 items in stock
Free Shipping
Estimated delivery: 25/02/2025 - 27/02/2025
€ 1.078,71
Vat included
Available versions
You're viewing:
Customers also viewed:
Description

Campagnola Hercules Olive Harvester

The Hercules ECO 6 PLUG-IN is designed to ensure maximum operating efficiency in a wide range of working contexts, offering high performance and optimal protection for both plants and fruits.

This harvester, thanks to its high-efficiency brush motor, is able to deliver a maximum power of 325 W, reaching a speed of 1200 rpm.

These features ensure stable and consistent operation, suitable for different working conditions.

Operating with a nominal voltage of 12V and a power consumption ranging from 7 to 8 Ah, the Hercules ECO 6 PLUG-IN stands out for its energy efficiency.

The compact design and low weight of just 3 kg make it user-friendly, significantly reducing operator fatigue even during longer work sessions.

The design of the harvester head combines strength and durability, while the interchangeable carbon fibre tines provide gentle and precise harvesting, minimizing fruit damage.

For added security and long-term product protection, an anti-tear system has been integrated for the power cable.

The 230 cm-long fixed carbon pole allows different heights to be reached easily, thus flexibly fulfilling various operational requirements.

Moreover, this model offers additional versatility thanks to its ability to be powered either by a car battery or by a Campagnola 21.6 V plug-and-play battery, further simplifying use and adapting to the different operator needs.

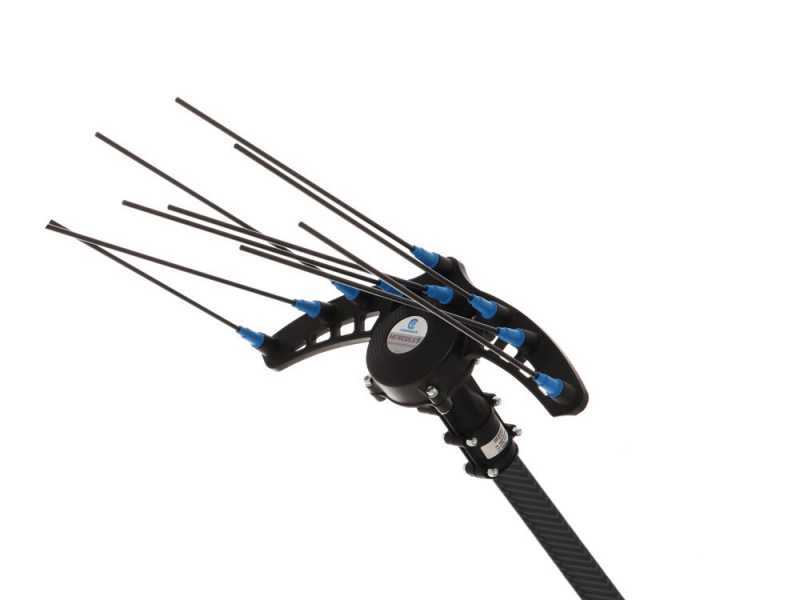

Rotating Head

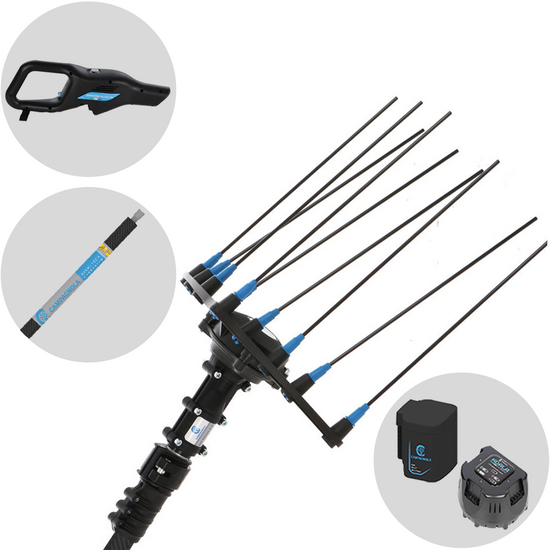

The head of the Hercules 6 ECO PLUG-IN harvester only consists of the transmission and tine support. This design aims to keep the device light and efficient for harvesting olives.

The engine is located at the bottom of the harvester rod to ensure better weight balance. This arrangement helps the operator to manoeuvre the device more easily.

The harvester is supplied with one sets of prongs:

  • Set of ten 36-cm carbon tines (black) This set allows a more incisive and energetic action, ideal for penetrating even the thickest foliage of olive trees.

The transmission of the harvester allows the single tine support to make short lateral elliptical swings to the right and left of its initial position. This feature helps to reduce vibrations during use and promotes the detachment of the olives perpendicular to the ground.

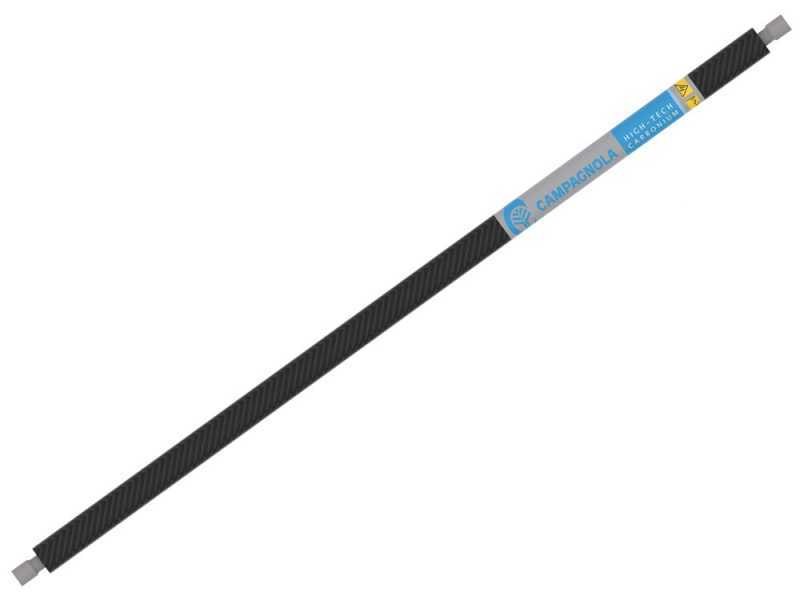

230 cm Fixed Carbon Pole

The most important features to consider when choosing a carbon pole instead of an aluminium one are:

  • Higher sturdiness;
  • More rigidity, thus higher control;
  • It weighs 300 grams less than the aluminium counterpart;

New fixed pole (longer than previous models), extra light and completely made of CARBON.

  • Fixed rotating carbon rod length: 230 cm

The pole at such length is always the ideal configuration of this harvester, precisely because it mounts the motor at the bottom of the pole.

Perfect for use with shorter olive trees, we recommend to grip the pole from the middle to maintain a weight balance of 50%-50% (see diagram above) making its operation even more comfortable.

The rotating pole for electrical equipment is 100% made of Carbon, thus resulting robust and extremely light.

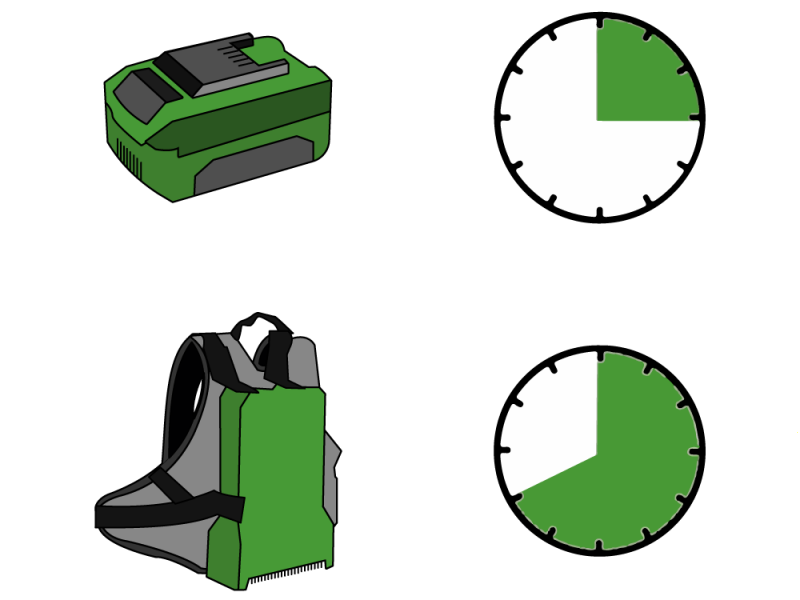

about the autonomy of lithium batteries

When using a harvester, the choice of battery depends on the practical needs of the user. The main differences between a base-mounted battery and a backpack battery concern freedom of movement and autonomy. The base-mounted battery is more manoeuvrable and lighter, but offers reduced autonomy. In contrast, the backpack provides longer working sessions, although it can be bulkier in tight spaces.
Base-mounted lithium-ion batteries offer greater freedom of movement. The lack of cumbersome cables improves agility when working between trees, making the harvester easier to manoeuvre. They are generally lighter than the backpak once, reducing operator fatigue, and make it easier to transport the device. In addition, handling is more intuitive, not requiring additional equipment such as a backpack. On the downside, however, they have a very limited autonomy and often cannot do a full day's work on their own.
On the other hand, lithium backpack batteries, while adding a certain amount of bulk, allow for greater energy capacity, extending the operational life of the harvester without the need for frequent recharging or battery changes. Their higher capacity allows long working sessions without interruption. In addition, shifting the weight of the battery to the back reduces the direct load on the arm and body, better balancing the overall weight of the equipment.
However, backpack batteries can be less ergonomic and uncomfortable in tight spaces or during quick movements between trees, and the presence of the cable can be an obstacle or obstruction during operation. Finally, the constant carrying of the backpack may cause more fatigue in the long run than an integrated solution in the product base.

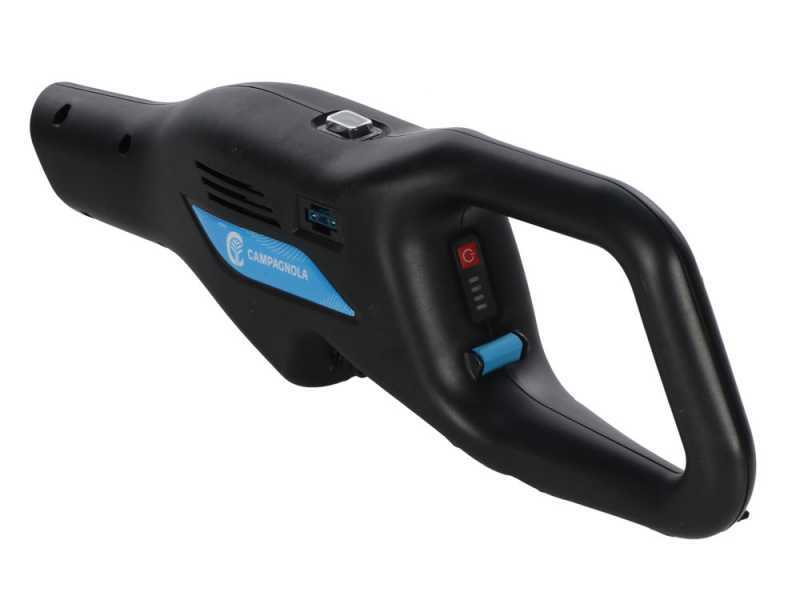

PLUG-IN Electric Motor

The Campagnola HERCULES 6 PLUG-IN is fitted with a 325 W brush motor placed in the head of the machine

The machine can be powered either by a 12V lead-acid car battery (not included), with a consumption of 8 Ah, or by a Campagnola Plug-in 21.6V lithium battery.

The Campagnola HERCULES 6 PLUG-IN features 9 carbon pick-up rods on the head.

The 36 cm long prongs allow deep access into the plant.

Technical details of the head:

  • Working width: max. 34 cm.
  • Shakes per minute: 1200.

Battery and Charger

Description of the 21.6V 5Ah Campagnola Battery and Charger

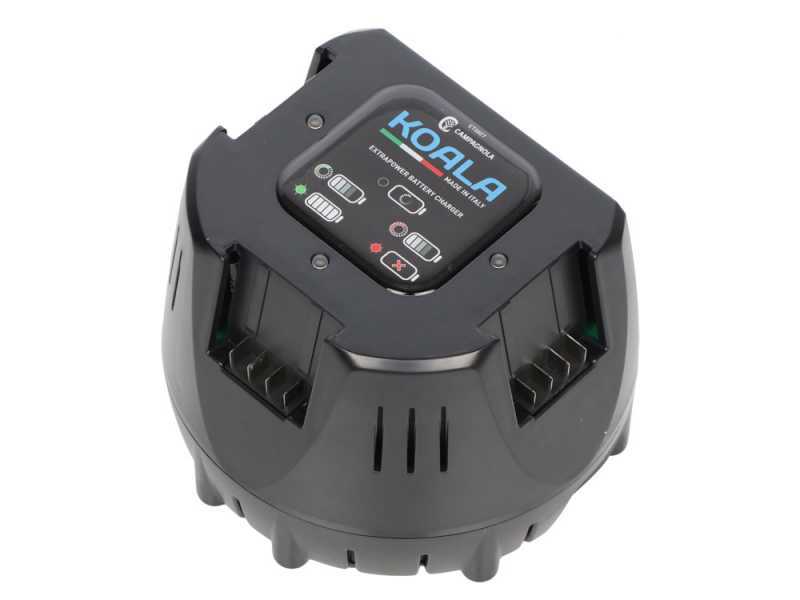

Campagnola charger:

The Campagnola battery charger is designed for charging 21.6V lithium-ion batteries used in Campagnola devices.

The compact design makes it suitable for intensive use in both private and professional settings.

The charger provides a fast and safe charging process, thanks to a smart charge management that protects the battery from overcharging and overheating.

Equipped with LED lights, the charger provides real-time information on charging status, allowing the user to easily monitor the process.

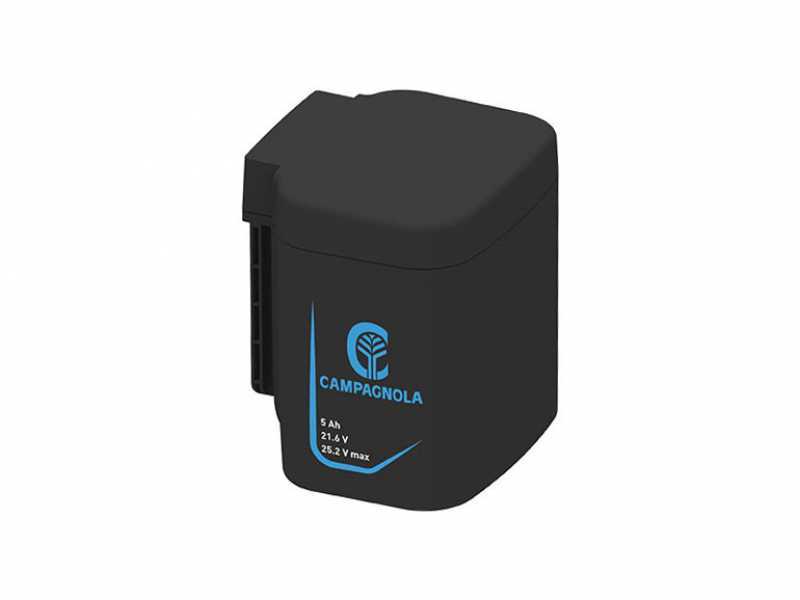

Campagnola 21.6V 5Ah battery:

The Campagnola 21.6V / 5Ah battery is ideal for powering a wide range of Campagnola tools and equipment.

With a capacity of 5Ah, this battery provides good autonomy, allowing handy and fast work.

Free items & Standard equipment

COMPLIMENTARY: ear protection muffs, goggles, headscarf, gloves + grease spray

COMPLIMENTARY:

Protective earmuffs to work with maximum comfort
The ear protection as to be the one recommended for all working conditions. Indeed, the earmuffs provided on the standard kit are specifically designed to protect the operator against the noise coming from the brush cutter.

Protective goggles that can be used as an alternative to the visor mask.
Protective mask goggles in polycarbonate with CE certificate, equipped with antifog and anti-scratch panoramic screen. The ventilation is ensured thanks to the holes made on the frame to avoid obfuscation and to improve comfort of use.

Cotton gloves with rubber waves, for greater comfort and a secure and stable grip on the equipment

Multipurpose lithium grease spray, 400 ml, to lubricate the internal transmission gears of the olive harvester Universal lithium grease suitable for any type of lubrication both on kinematic devices and on rotating ones.

Free items included

Standard equipment:

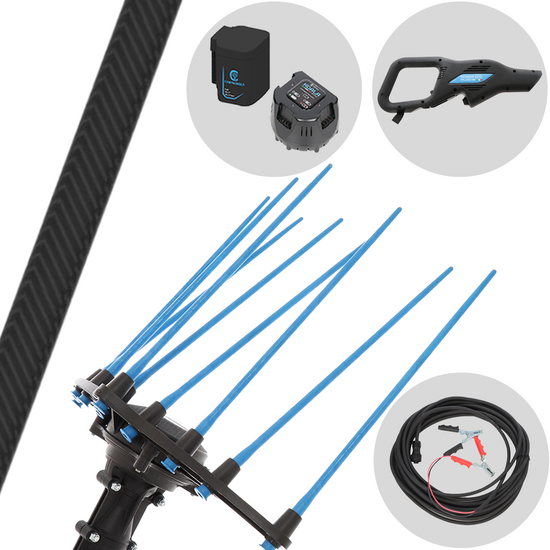

  • 15 m PROFESSIONAL connection cable with battery terminal clamps
  • 36 cm carbon tines
  • Instruction manual
  • Battery
  • Charger
