Campagnola Hercules 6 ECO Plug-in - 185-270 cm Carbon Pole - Electric Battery-powered Olive Harvester

Add a question
ID: K608940

EAN: N/A

MPN: N/A

9,1/10
After-sales assistance & Spare parts
Campagnola Hercules 6 ECO Plug-in - 185-270 cm Carbon Pole - Electric Battery-powered Olive Harvester
FREE
Campagnola sweatshirtCampagnola sweatshirt
Multi-purpose Lithium spray grease - 400 mlMulti-purpose Lithium spray grease - 400 ml
Cotton glovesCotton gloves
Protective gogglesProtective goggles
Noise-canceling earmuffsNoise-canceling earmuffs
Head material
ABS
Motion
Rotary
Speed (bpm)
1200 bpm
Max. prongs opening
35 cm
Pole material
Carbon
Telescopic pole
Max. length
270 cm
Motor type
Brush
Voltage
12 V
Nominal power (W)
325 W
Motor position
At the bottom of extension pole
Motor speed levels
1
Motor type
Battery-powered
Integrated battery
Li-ion battery-powered
Yes
Items included
Battery and battery charger NOT included
Carbon prongs
ABS Prongs
Manufacturing country
Italy
Product Features
Model:
Hercules ECO 6 Plug-in
Power supply:
Lead-acid battery 12 V
Head material:
ABS
Type:
12 V battery-powered
Operating mode:
12 V battery-powered
Items included:
Battery and battery charger NOT included
Motor position:
At the bottom of extension pole
Motion:
Rotary
Integrated battery:
Speed (bpm):
1200 bpm
No. of prongs:
9
Prongs length:
36 cm
Prongs material:
Technopolymers, Carbon
Carbon prongs:
ABS Prongs:
Max. prongs opening:
35 cm
Min. length:
185 cm
Max. length:
270 cm
Pole material:
Carbon
Carbon pole:
Max. power even with low battery:
Yes
Energy Saving System:
No
Pole type:
Telescopic
Manufacturing country:
Italy
Motor data
Motor position:
At the bottom of extension pole
Motor type:
Battery-powered
Motor type :
Brush
Battery type:
Car type o Lithium (Li-Ion)
Motor speed levels:
1
Nominal power (W):
325 W
Power supply:
12 V battery-powered
Fuse:
Yes
Voltage:
12 V
Recommended battery:
80 Ah
Motor power:
12 V
Manufacturing country:
Italy
Equipment
Extension pole attachment:
standard equipment
Telescopic pole:
Extension power cable:
15 m
Control unit with circuit board:
Yes - inside the motor
Free gifts/extra features
Prongs/rods:
10
Instructions manual:
Yes
Dimensions and logistics

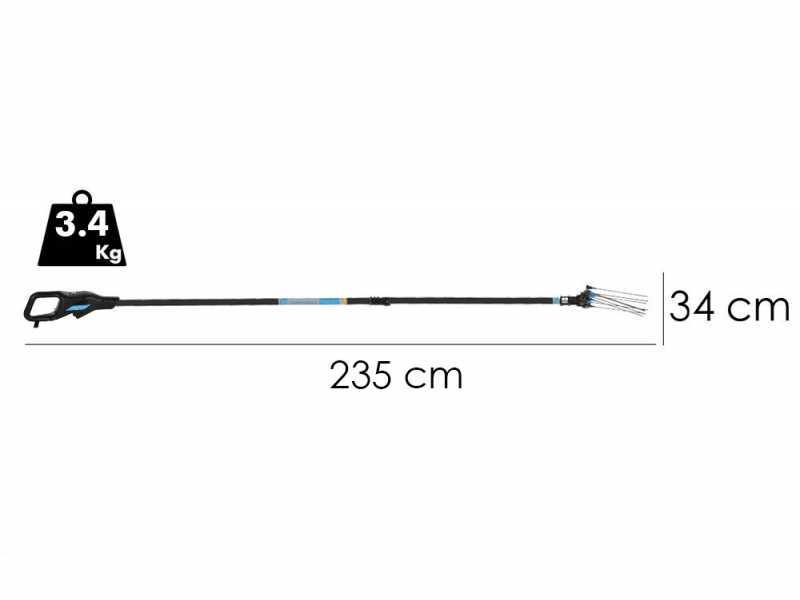

Product dimensions in cm (L x W x H):
235-320x34
Net weight:
3.4 Kg
Packaging:
Original packaging
Gross weight (packaging included) :
5 Kg
Assembly time:
5 minutes
Prompt Delivery
4 items in stock
Free Shipping
Estimated delivery: 21/02/2025 - 25/02/2025
€ 911,06
Vat included
Available versions
You're viewing:
Customers also viewed:
Description

Campagnola Hercules Olive Harvester

The Hercules ECO 6 PLUG-IN is developed for reliable performance and operational versatility in agricultural settings.
Equipped with a high-performance brush motor with a maximum power output of 325 W and a speed of 1200 rpm, this harvester is designed for optimal energy efficiency, drawing between 7 and 8 Ah at a nominal voltage of 12V.

Weighing only 3.4 kg, the device is designed to be manoeuvrable and reduce fatigue during extended use, while maintaining adequate strength and durability.

The harvester head, made of sturdy materials, is equipped with interchangeable carbon-fibre tines, allowing efficient harvesting while minimising the risk of damage to plants and fruit.

To enhance the safety and durability of the device, the Hercules ECO 6 PLUG-IN integrates an anti-tear protection system for the power cable.

Additionally, the telescopic pole, adjustable between 185 and 270 cm, allows the user to adapt to different operational needs, enhancing the versatility of the device.

This model can be powered by either a car battery or a Campagnola 21.6V plug-and-play battery, thus providing flexibility in different working conditions.

The Hercules ECO 6 PLUG-IN is therefore a practical and functional solution for harvesting tasks, combining efficiency, manoeuvrability and robustness.

WARNING!

BATTERY AND BATTERY CHARGER NOT INCLUDED

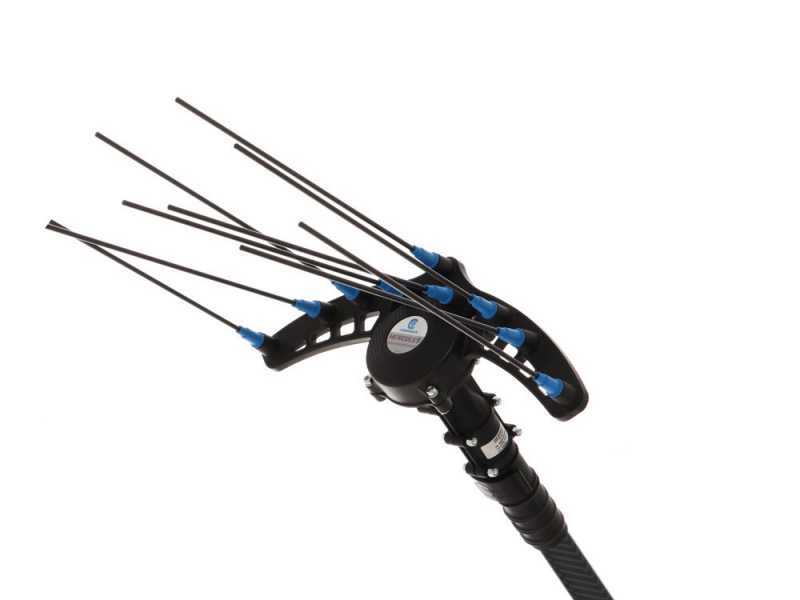

Rotating Head

The head of the Hercules 6 ECO PLUG-IN harvester only consists of the transmission and tine support.

This design aims to keep the device light and efficient for harvesting olives.

The engine is located at the bottom of the harvester rod to ensure better weight balance.

This arrangement helps the operator to manoeuvre the device more easily.

The harvester comes with:

  • Set of ten 36-cm carbon tines (black) This set allows a more incisive and energetic action, ideal for penetrating even the thickest foliage of olive trees.

The transmission of the harvester allows the single tine support to make short lateral elliptical swings to the right and left of its initial position. This feature helps to reduce vibrations during use and promotes the detachment of the olives perpendicular to the ground.

WARNING!

BATTERY AND BATTERY CHARGER NOT INCLUDED

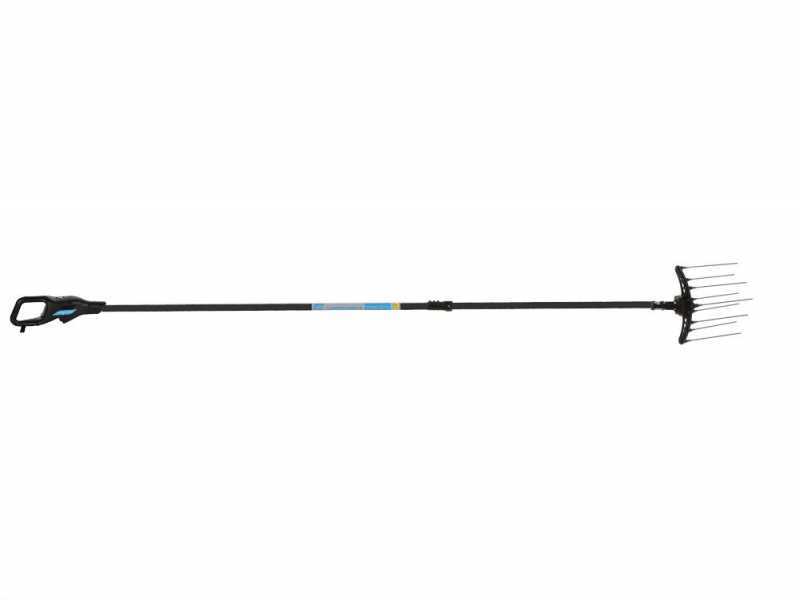

Pole

Telescopic carbon pole with quick coupling.

Length of the telescopic pole: 185–270 cm

* with its head fitted, the HERCULES reaches a length of 325 cm with the pole at maximum extension

The pole at such length is always the ideal configuration of this harvester, precisely because it fits the motor at the bottom of the pole

Excellent in case of smaller olive trees, we recommend holding the pole in the middle to keep the weight balance at 50% - 50%, making it even more manageable to use

WARNING!

BATTERY AND BATTERY CHARGER NOT INCLUDED

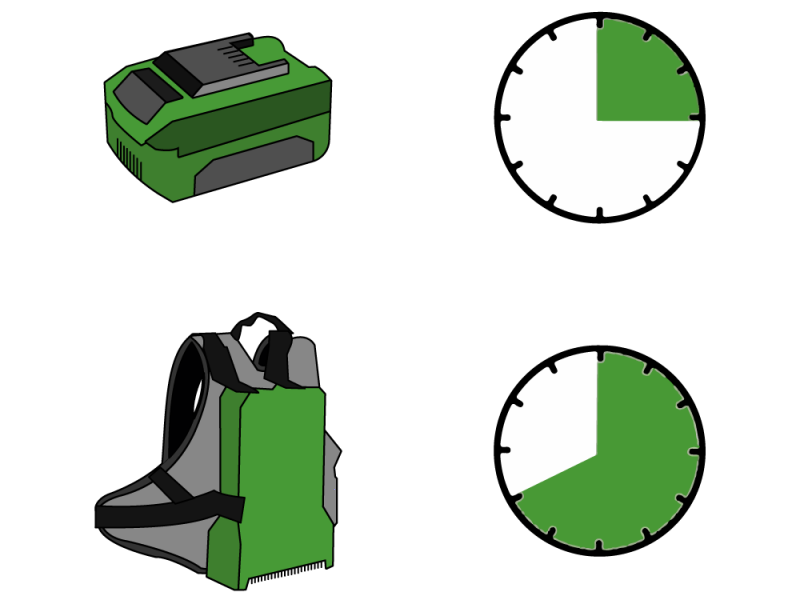

about the autonomy of lithium batteries

When using a harvester, the choice of battery depends on the practical needs of the user. The main differences between a base-mounted battery and a backpack battery concern freedom of movement and autonomy. The base-mounted battery is more manoeuvrable and lighter, but offers reduced autonomy. In contrast, the backpack provides longer working sessions, although it can be bulkier in tight spaces.
Base-mounted lithium-ion batteries offer greater freedom of movement. The lack of cumbersome cables improves agility when working between trees, making the harvester easier to manoeuvre. They are generally lighter than the backpak once, reducing operator fatigue, and make it easier to transport the device. In addition, handling is more intuitive, not requiring additional equipment such as a backpack. On the downside, however, they have a very limited autonomy and often cannot do a full day's work on their own.
On the other hand, lithium backpack batteries, while adding a certain amount of bulk, allow for greater energy capacity, extending the operational life of the harvester without the need for frequent recharging or battery changes. Their higher capacity allows long working sessions without interruption. In addition, shifting the weight of the battery to the back reduces the direct load on the arm and body, better balancing the overall weight of the equipment.
However, backpack batteries can be less ergonomic and uncomfortable in tight spaces or during quick movements between trees, and the presence of the cable can be an obstacle or obstruction during operation. Finally, the constant carrying of the backpack may cause more fatigue in the long run than an integrated solution in the product base.

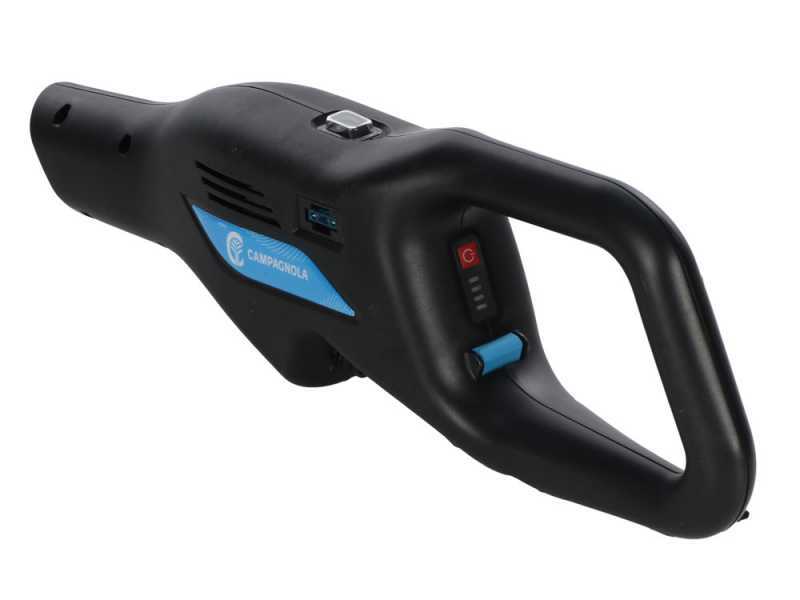

PLUG-IN Electric Motor

The Campagnola HERCULES 6 PLUG-IN is fitted with a 325 W brush motor placed in the head of the machine

The machine can be powered either by a 12V lead-acid car battery (not included), with a consumption of 8 Ah, or by a Campagnola Plug-in 21.6V lithium battery.

The Campagnola HERCULES 6 PLUG-IN features 9 carbon pick-up rods on the head.

The 36 cm long prongs allow deep access into the plant.

Technical details of the head:

  • Working width: max. 34 cm.
  • Shakes per minute: 1200.

WARNING!

BATTERY AND BATTERY CHARGER NOT INCLUDED

Free items & Standard equipment

COMPLIMENTARY: ear protection muffs, goggles, headscarf, gloves + grease spray

COMPLIMENTARY:

Protective earmuffs to work with maximum comfort
The ear protection as to be the one recommended for all working conditions. Indeed, the earmuffs provided on the standard kit are specifically designed to protect the operator against the noise coming from the brush cutter.

Protective goggles that can be used as an alternative to the visor mask.
Protective mask goggles in polycarbonate with CE certificate, equipped with antifog and anti-scratch panoramic screen. The ventilation is ensured thanks to the holes made on the frame to avoid obfuscation and to improve comfort of use.

Cotton gloves with rubber waves, for greater comfort and a secure and stable grip on the equipment

Multipurpose lithium grease spray, 400 ml, to lubricate the internal transmission gears of the olive harvester Universal lithium grease suitable for any type of lubrication both on kinematic devices and on rotating ones.

Standard Equipment

15 m long PROFESSIONAL connection cable of exceptional robustness, with battery terminal clamps

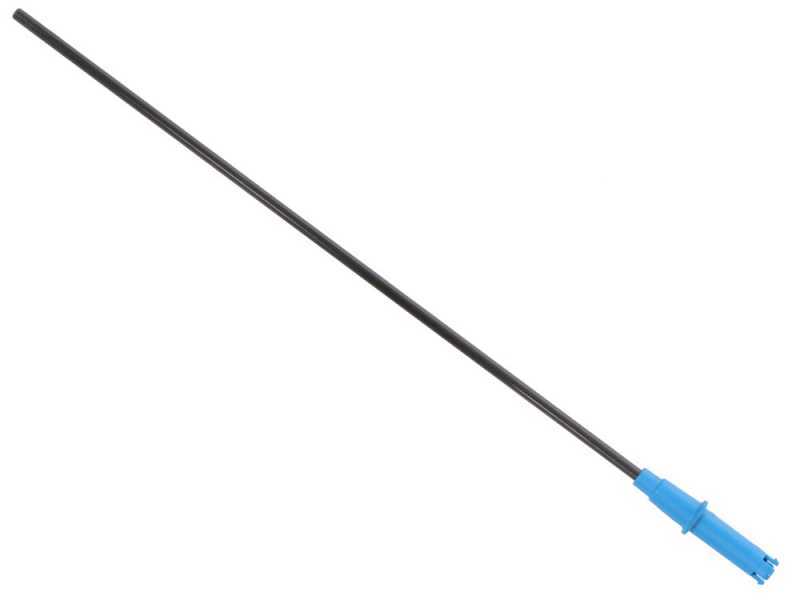

36 cm carbon tines

Instruction manual

WARNING: BATTERY NOT INCLUDED! The harvester requires a car battery of at least 60/70 Amperes to ensure a full day's autonomy or a 21.6V Campagnola Battery
