Name: Campagnola Hercules 6 ECO Plug-in - 150-220 cm Aluminium Pole - Electric Battery- powered Olive Harvester - 21.6V 5Ah
Brand: Campagnola
SKU: K608944
Price: 1039.49 EUR
Availability: InStock

Description

Campagnola Hercules Olive Harvester

The Hercules ECO 6 PLUG-IN is specially designed to optimize efficiency in every working environment, while guaranteeing high quality results and maximum protection for plants and fruits.

Equipped with a highly efficient brush motor, this harvester reaches a maximum power of 325 W and a speed of 1200 rpm.

It operates at a nominal voltage of 12V, with a power consumption between 7 and 8 Ah.

Its low weight of only 4 kg makes it extremely easy to handle, reducing fatigue even during extended use.

The head of the Hercules ECO 6 PLUG-IN offers a combination of robustness and durability, while the interchangeable carbon-fibre tines allow for gentle yet effective harvesting.

To further improve the safety and durability of the device, an anti-tear protection system has been integrated for the power cable.

The telescopic pole, with an adjustable length between 150 and 220 cm, adds versatility to the device, allowing the user to reach different heights and angles, easily adapting to different needs.

Additionally, this new model not only can be powered by a car battery, but also offers the possibility of using a small Campagnola 21.6 V plug-and-play battery, making the harvester even more manoeuvrable and versatile.

Campagnola Hercules 6 ECO Plug-in - 150-220 cm Aluminium Pole - Electric Battery- powered Olive Harvester - 21.6V 5Ah

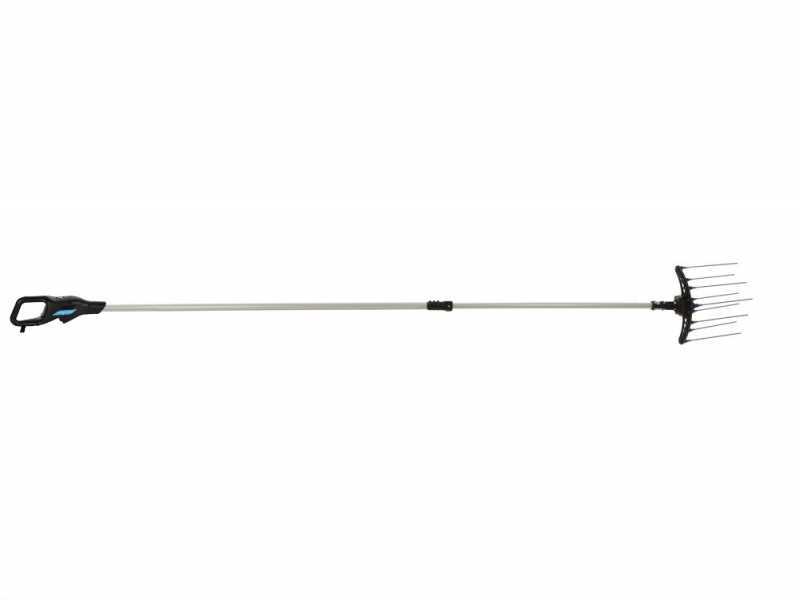

Pole

Telescopic aluminium pole with quick coupling.

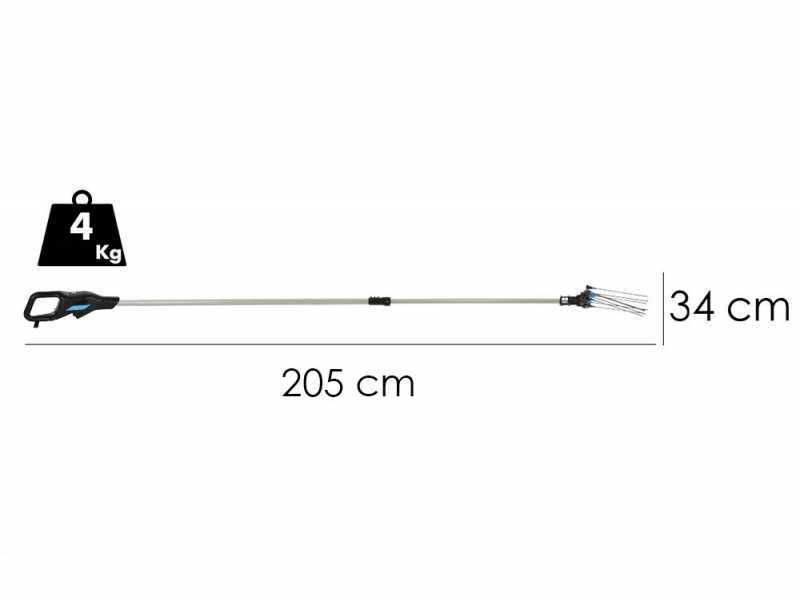

Length of the telescopic pole: 150– 220 cm

* with its head fitted, the HERCULES reaches a length of 275 cm with the pole at maximum extension

The pole at such length is always the ideal configuration of this harvester, precisely because it fits the motor at the bottom of the pole

Excellent in case of smaller olive trees, we recommend holding the pole in the middle to keep the weight balance at 50% - 50%, making it even more manageable to use

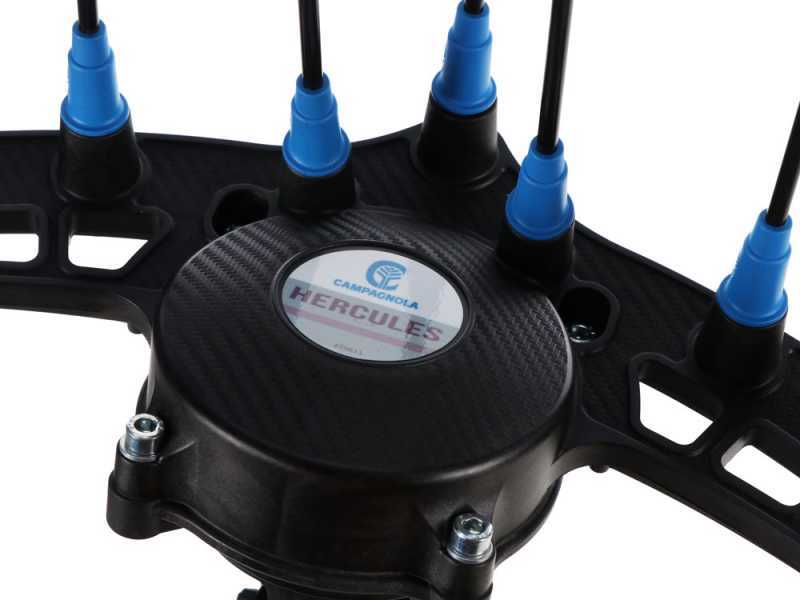

Rotating Head

The head of the Hercules 6 ECO PLUG-IN harvester only consists of the transmission and tine support. This design aims to keep the device light and efficient for harvesting olives.

The engine is located at the bottom of the harvester rod to ensure better weight balance. This arrangement helps the operator to manoeuvre the device more easily.

The harvester comes with:

Set of ten 36-cm carbon tines (black) This set allows a more incisive and energetic action, ideal for penetrating even the thickest foliage of olive trees.

The transmission of the harvester allows the single tine support to make short lateral elliptical swings to the right and left of its initial position. This feature helps to reduce vibrations during use and promotes the detachment of the olives perpendicular to the ground.

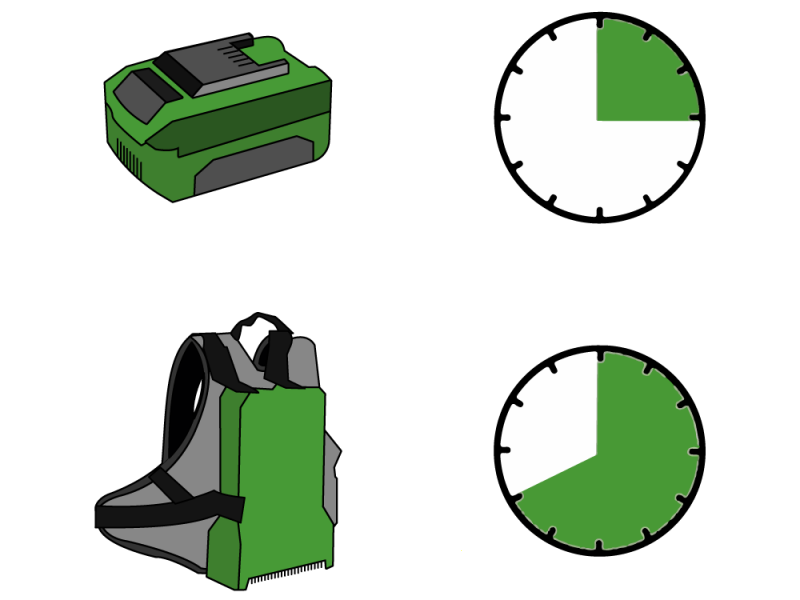

about the autonomy of lithium batteries

When using a harvester, the choice of battery depends on the practical needs of the user. The main differences between a base-mounted battery and a backpack battery concern freedom of movement and autonomy. The base-mounted battery is more manoeuvrable and lighter, but offers reduced autonomy. In contrast, the backpack provides longer working sessions, although it can be bulkier in tight spaces.

Base-mounted lithium-ion batteries offer greater freedom of movement. The lack of cumbersome cables improves agility when working between trees, making the harvester easier to manoeuvre. They are generally lighter than the backpak once, reducing operator fatigue, and make it easier to transport the device. In addition, handling is more intuitive, not requiring additional equipment such as a backpack. On the downside, however, they have a very limited autonomy and often cannot do a full day's work on their own.

On the other hand, lithium backpack batteries, while adding a certain amount of bulk, allow for greater energy capacity, extending the operational life of the harvester without the need for frequent recharging or battery changes. Their higher capacity allows long working sessions without interruption. In addition, shifting the weight of the battery to the back reduces the direct load on the arm and body, better balancing the overall weight of the equipment.

However, backpack batteries can be less ergonomic and uncomfortable in tight spaces or during quick movements between trees, and the presence of the cable can be an obstacle or obstruction during operation. Finally, the constant carrying of the backpack may cause more fatigue in the long run than an integrated solution in the product base.

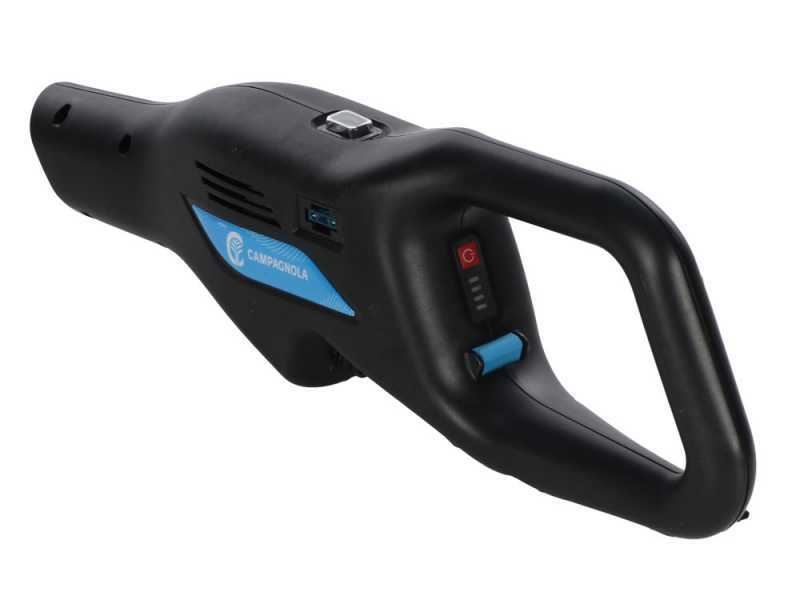

PLUG-IN Electric Motor

The Campagnola HERCULES 6 PLUG-IN is fitted with a 325 W brush motor placed in the head of the machine

The machine can be powered either by a 12V lead-acid car battery (not included), with a consumption of 8 Ah, or by a Campagnola Plug-in 21.6V lithium battery.

The Campagnola HERCULES 6 PLUG-IN features 9 carbon pick-up rods on the head.

The 36 cm long prongs allow deep access into the plant.

Technical details of the head:

Working width: max. 34 cm.
Shakes per minute: 1200.

Battery and Charger

Description of the 21.6V 5Ah Campagnola Battery and Charger

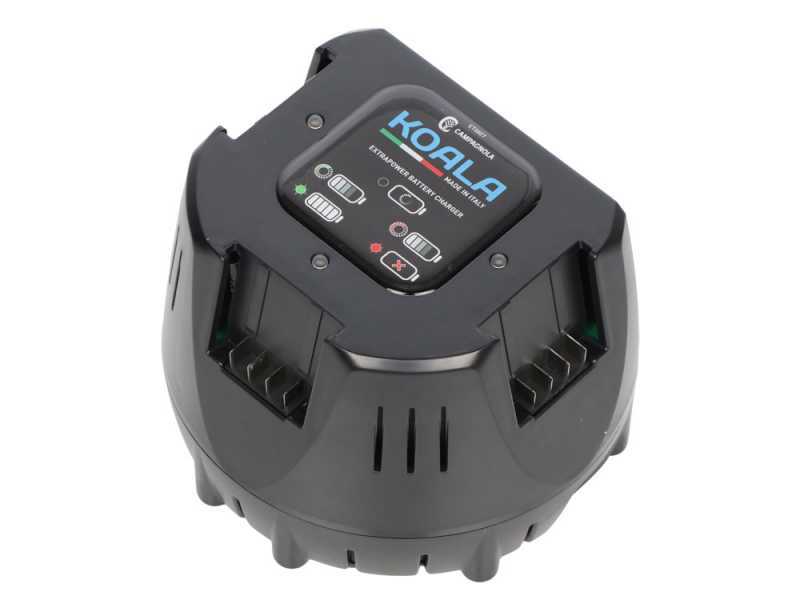

Campagnola charger:

The Campagnola charger is designed for charging 21.6V lithium-ion batteries used in Campagnola devices.

The compact design makes it suitable for intensive use in both private and professional settings.

The charger provides a fast and safe charging process, thanks to a smart charge management that protects the battery from overcharging and overheating.

Equipped with LED lights, the charger provides real-time information on charging status, allowing the user to easily monitor the process.

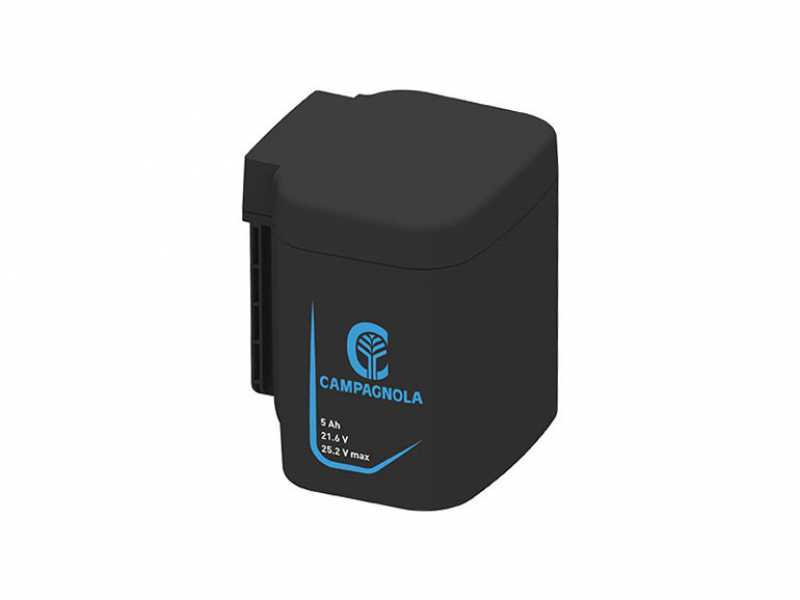

Campagnola 21.6V 5Ah battery:

The Campagnola 21.6V / 5Ah battery is ideal for powering a wide range of Campagnola tools and equipment.

With a capacity of 5Ah, this battery provides good autonomy, allowing handy and fast work.

Free items & Standard equipment

COMPLIMENTARY: ear protection muffs, goggles, headscarf, gloves + grease spray

COMPLIMENTARY:

Protective earmuffs to work with maximum comfort
The ear protection as to be the one recommended for all working conditions. Indeed, the earmuffs provided on the standard kit are specifically designed to protect the operator against the noise coming from the brush cutter.

Protective goggles that can be used as an alternative to the visor mask.
Protective mask goggles in polycarbonate with CE certificate, equipped with antifog and anti-scratch panoramic screen. The ventilation is ensured thanks to the holes made on the frame to avoid obfuscation and to improve comfort of use.

Cotton gloves with rubber waves, for greater comfort and a secure and stable grip on the equipment

Multipurpose lithium grease spray, 400 ml, to lubricate the internal transmission gears of the olive harvester Universal lithium grease suitable for any type of lubrication both on kinematic devices and on rotating ones.
