BullMach NAYLA 80 - Petrol Water Pump - High Head Lift - with 80 mm Fittings

Questions & Answers (1)
ID: K608488

EAN: 8054141543669

MPN: NAYLA 80

9,0/10
After-sales assistance & Spare parts

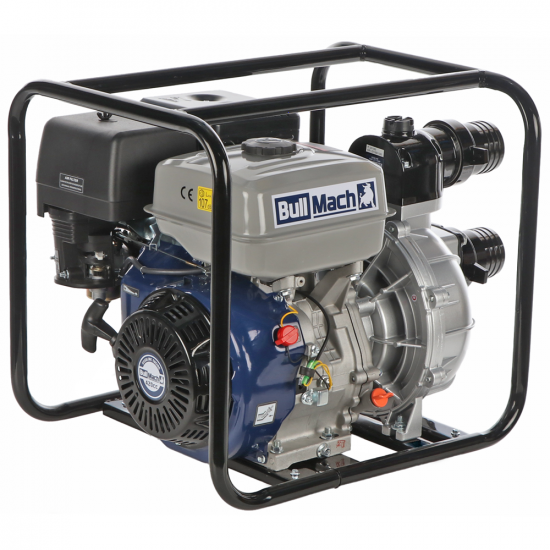

BullMach NAYLA 80 - Petrol Water Pump - High Head Lift - with 80 mm Fittings
FREE
2 bottles of 1 L oil each2 bottles of 1 L oil each
Motor brand
Producer-manufactured
Motor Model
FC190F-1
Cubic capacity
420 cm³
Nominal power
15 HP
Power supply
Petrol
Water pump type
Self-priming
Pump material
Aluminium
Flow rate
760 L/min
Fittings diameter
80 mm
Max. head lift
76 m
High delivery head
Yes
Max. suction height
6 m
Aluminium fittings
Yes
Product Features
Model:
NAYLA 80
Power supply:
Petrol
Fuel:
Petrol
Starting mode:
Recoil
Manufacturing country:
China
Motor data
Motor brand:
BullMach
Motor Model:
FC190F-1
Cubic capacity:
420 cm³
No. of cylinders:
1
Nominal power:
15 HP
Fuel:
Petrol
Engine lubrication system:
Oil bath
Decompression system:
Automatic
Tank capacity:
6 L
Oil tank capacity:
1.1 L
Manufacturing country:
China
Pump data
Pump brand:
BullMach
Water pump type:
Self-priming
Pump material:
Aluminium
Fittings diameter:
80 mm
Flow rate:
760 L/min
Max. head lift:
76 m
High delivery head:
Yes
Max. suction height:
6 m
Pair of fittings with ring nut:
Yes
Manufacturing country:
China
Equipment
Recoil start system (with rope):
Yes
Aluminium fittings:
Yes
Free gifts/extra features
Oil bottle:
Yes
Suction filter:
Yes
Instructions manual:
Yes
Dimensions and logistics

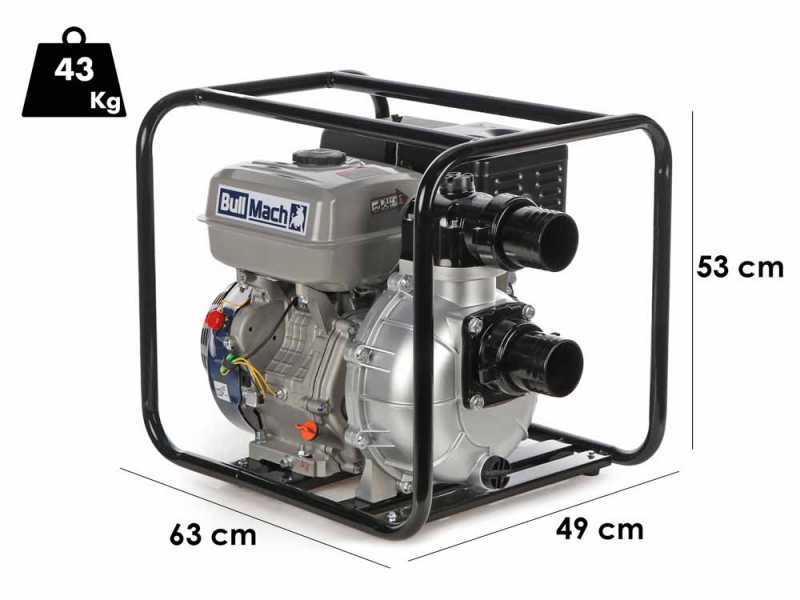

Product dimensions in cm (L x W x H):
63x49x53 cm
Net weight:
43 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
59x49x53 cm
Gross weight (packaging included) :
46.1 Kg
Assembly time:
5 minutes
Prompt Delivery
29 items in stock
Free Shipping
Estimated delivery: 24/02/2025 - 26/02/2025
€ 412,96
Vat included

You're viewing:
Customers also viewed:
Description

BullMach NAYLA 80 Irrigation Water Pump

The BullMach NAYLA 80 petrol water pump is an ideal solution for hobbyists who need a powerful and reliable machine for irrigation and water management in the home or agricultural sector.

Equipped with an FC190F-1 engine, it features a displacement of 420 cm³ and a power rating of 15 HP, guaranteeing excellent performance for non-professional tasks. This petrol water pump ensures a long service life and efficient operation thanks to its self-priming pump made of aluminium, a lightweight and corrosion-resistant material.

Designed to operate at high head, the BullMach NAYLA 80 can reach a maximum head of 76 metres and a maximum draft of 6 metres.

These features allow easy handling of water suction and lifting even in the most difficult situations. Aluminium fittings with a diameter of 80 mm facilitate quick connection and disconnection of pipes, improving user-friendliness and reducing preparation time.

Main features of the BullMach NAYLA 80 petrol water pump:

  • Powerful motor: Equipped with an FC190F-1 engine with 420 cm³ displacement and 15 HP, it offers high performance and reliability for hobby use.
  • Self-priming pump: Made of aluminium, it guarantees strength and lightness.
  • High prevalence: Maximum head of 76 metres and draft height of 6 metres, ideal for applications in difficult conditions.
  • Aluminium fittings: 80 mm in diameter for quick and safe connection of pipes.
  • Petrol-fuelled: It allows easy charging and use in areas without access to the power supply.

This motor pump is perfect for hobbyists who need a robust and reliable machine for irrigation or water handling operations in the home or agricultural sector.


These water pumps are suitable for transferring water (for example, from one cistern to another) of for furrow irrigation in fields and gardens.
We do not guarantee their suitability for use in combination with sprinklers or sprinkler systems of various types (as they require the contribution of a qualified technician and a number of calculations in terms of flow rate, head, pressure, pipe diameters, valves, nozzles, and so on), which may require more specific types of pumps for water systems.

Engine Specifications

Engine specifications:

Model: FC190F-1
Type:
4-stroke, single cylinder, forced-cooled, OHV
Displacement: 420 cc
Power: 15 Hp
Fuel: petrol
Tank: 6 L

The engine features a recoil start and a metal tank.

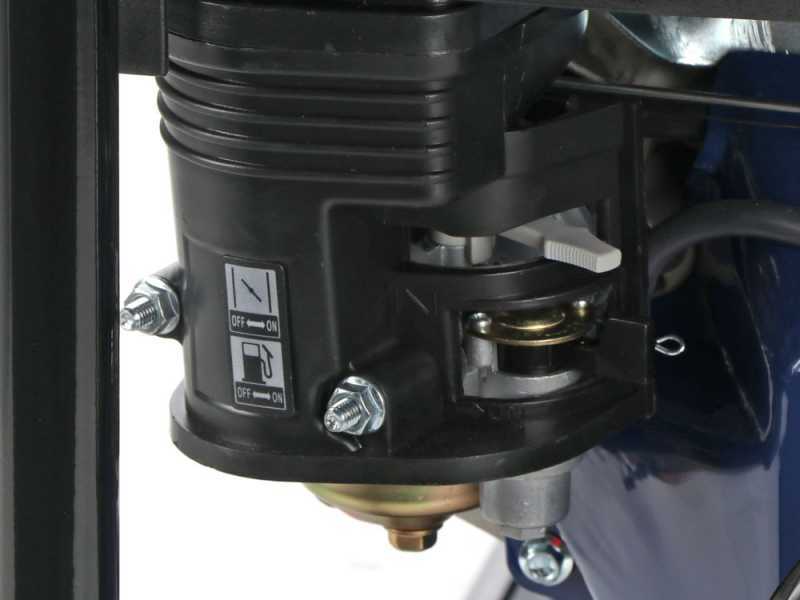

Detail of the engine adjustment controls that include the air adjustment and the engine throttle adjustment.

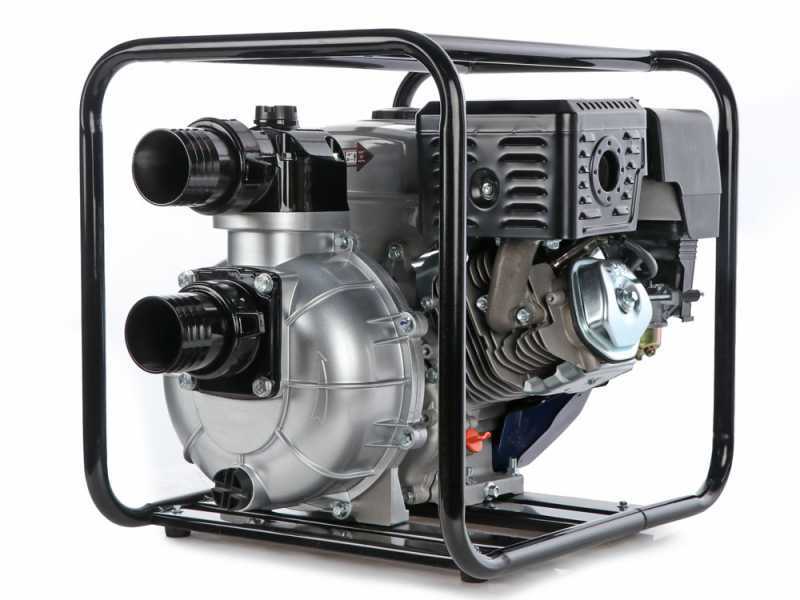

Water Pump Technical Features

The pump fitted on the NAYLA 80 is entirely made of cast aluminium alloy, making it light, yet strong and able to withstand prolonged pumping work.

Pump features:

Suction: 80 mm
Delivery: 80 mm
Maximum suction height: 6 m
Max. flow rate: 766 L/min
Max. head: 76 metres

Detail of the 80mm suction fitting.

Detail of the 80 mm delivery fittings.

Detail of the pump-motor fitting

WARNING:

In order to reach the maximum draft height, we recommend using a foot valve

Free items & Standard equipment

Free Items Included

Complimentary:

2 bottles of 10W40 oil, specific for 4-stroke engines

Standard Equipment

The pump is shipped in its original packaging, equipped with tools for assembly and maintenance, 2x 80 mm fittings, metal clamps and 2 rubber gaskets for the fittings, as well as the foot valve for draining.

All this is provided with instructions for use
