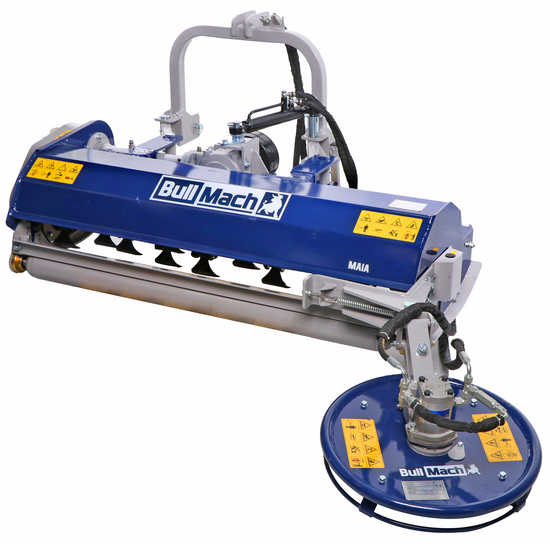

BullMach MAIA 155 SH - Tractor mulcher - Inter-row disc - Medium series - Hydraulic offset

The BullMach MAIA 155 SH tractor-mounted shredder is a versatile and reliable agricultural machine, ideal for shredding light prunings, grass and shrubs. Designed for hobby use, it stands out for its medium-sized, flexible structure, perfect for working on small and medium-sized plots of land. This shredder is suitable for tractors with a 3-point hitch, ensuring ease of use and versatility.

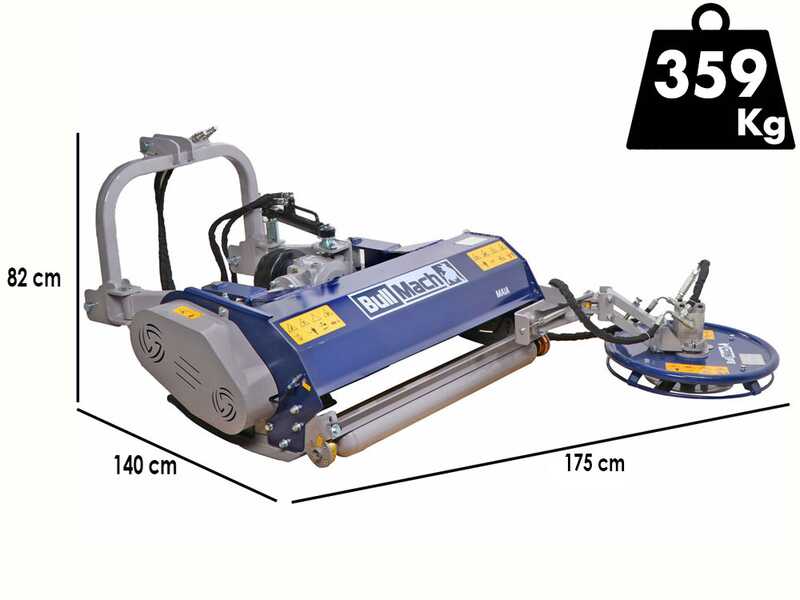

The effective working width is 155 cm, allowing optimal ground coverage in every pass. The total overall width is 175 cm, ensuring a good balance between efficiency and manoeuvrability. The total weight of 359 kg guarantees stability during work, while keeping the mulcher relatively light and manageable.

Among the main technical features is the inter-row disc, which allows for thorough cleaning of hard-to-reach areas, such as those between rows.

The 3-belt drive increases the efficiency and durability of the machine, reducing wear and ensuring constant power. The rear roller adjusts the cutting height and improves ground adherence, promoting a uniform finish. The hydraulic shift allows the lateral position to be adjusted, adapting to the working requirements in rows or edges.

Main technical features:

• Working width: 155 cm.
• Overall width: 175 cm.
• Weight: 359 kg.
• Transmission: 3 belts for maximum reliability.
• 3-point hitch: compatible with most tractors.
• Rear roller: for height adjustment and stability.
• Hydraulic displacement: ideal for working in specific areas.

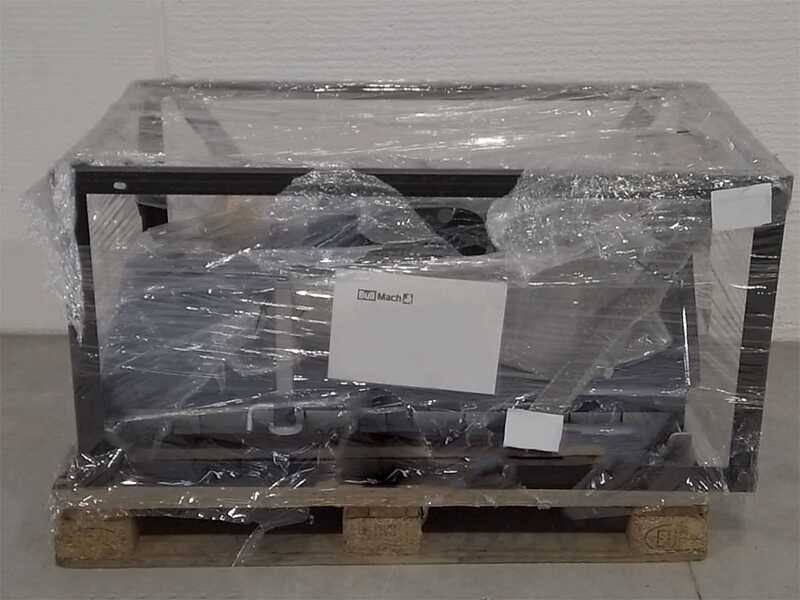

Warning: the machine is shipped ready for use and with oil at the correct level. Once all parts have been assembled , check that all bolts are tight.
Read the instruction manual carefully before use.

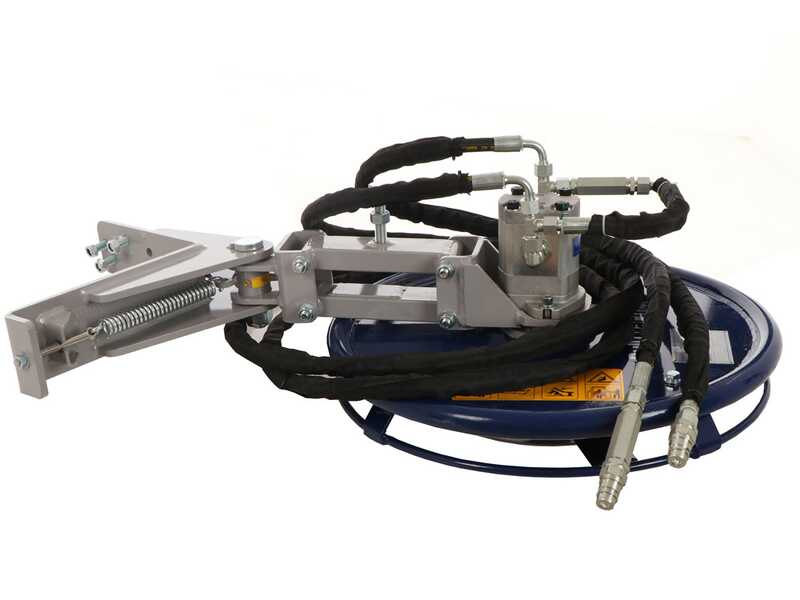

BullMach ORBIS 600 inter-row disc is a versatile tool, is useful for cleaning areas around tree trunks, fence posts and spaces between rows. Its main purpose is to reduce weed or grass growth, promoting the cultivation and health of the main crops.

Thanks to a return spring, when it comes into contact with the trunk of the plant, it retracts without causing damage to the crop.

The inter-row disc is installed on a system of parallels that makes it mobile, allowing it to adapt to any unevenness in the ground, with the possibility of adjusting the working height by means of a special screw.

The attachment to the flail mower comprises two parallel moving axles and the base of the disc is levelling, thus ensuring a floating movement of the disc itself, which allows it to adapt to any unevenness in the soil.

Hydraulic pump and 300 cm pair of hydraulic hoses with standard quick couplings.

Minimum tractor oil pump flow rate: 30 l/min

Inter-row disc total weight : 47 kg

2 horizontal blades that allow a cutting diameter of 51 cm

Disc diameter: 60 cm

Focus on 3 screws for connection to flail mowers.

Focus on pivot grease nipple.

Warning:

Minimum tractor oil pump flow rate: 30 l/min

Maximum tractor oil pump flow rate: 45 l/min

No. of hammers fitted as standard: 24

These hammers are mounted on a sturdy hardened steel bolt with a diameter of 24 mm (length 100 mm).

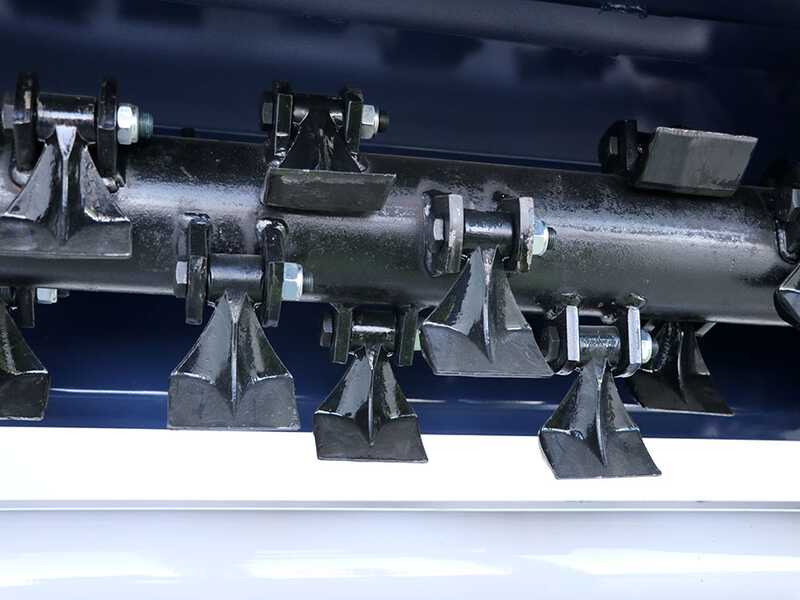

Close-up of the cutting hammers mounted on the rotating roller.

Finely shreds grass and twigs, while rolling the turf at the same time. Thanks to the high rotor speed and the large number of hammers (blades), it reduces the wave effect on the turf and performs excellent shredding.

The rotating roller on which the hammers are mounted has a diameter of 107 mm.

The mulcher is equipped with hydraulic offset.

The three-point hitch slides from right to left with a hydraulic piston mounted in place of the bar for manual displacement.

Detail of the piston that controls the hydraulic displacement of this mulcher.

Standard universal power take-off (1 3/8" Z6)

The attachments are universal and adaptable to all tractors on the market.

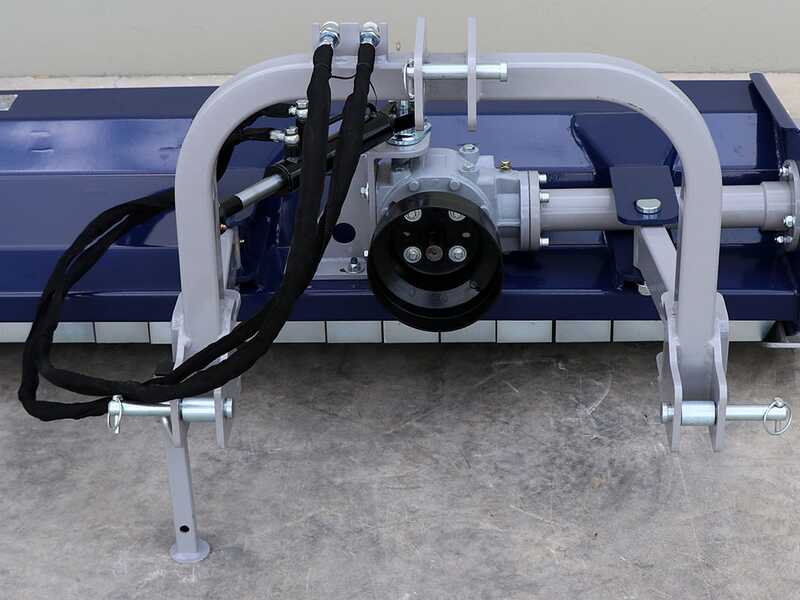

Detail of the sturdy 3-point hitch of category 1.

The three-point attachment has a lateral opening from the centre of 65 cm on both sides.

Maximum opening on the right side, maximum opening on the left side.

Gearbox in oil bath. The casing is made of cast iron, the internal gears are made of hardened steel. Equipped with lubricated extension.

This machine is equipped with a freewheel device (or overrunning clutch) integrated into the gearbox; this ensures a long service life for all moving parts of the machine, preventing kickback when switching from motion (540 rpm) to 0 rpm and allowing the rotor to turn freely until it stops.

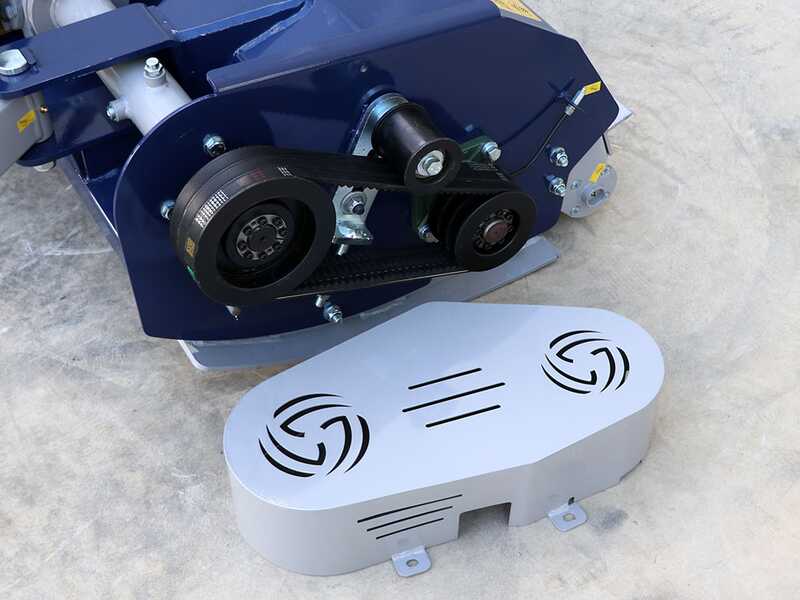

3-belt side drive (most tractor-mounted shredders in this weight category are equipped with a standard 2-belt drive)

Detail of the side belt guard.

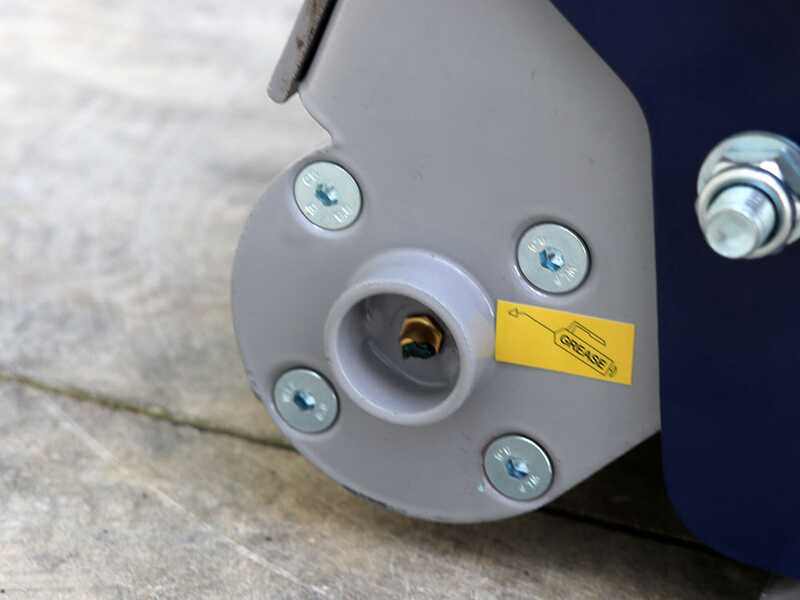

Detail of the side grease nipple on the transmission side, located in an easily accessible position.

Detail of the gearbox:
1 - Oil level cap
2 - Oil drain cap
3 - SAE 80/90 oil filler cap and vent

ATTENTION!
The gearbox of this machine can hold no more than 0.5L of oil.

Read the instruction manual carefully before starting the machine.

The power take-off is standard, type 1 3/8" z6 (suitable for all current and recent tractor models): If you have a very old tractor, check that it is equipped with the same power take-off and with normal clockwise rotation (right)

Height-adjustable rear support roller supplied as standard.

Detail of the rear roller fixing bearing.

Roller scraper supplied as standard.

Detail of the cutting roller fixing bearing.

Side skids are standard equipment and are also adjustable.

Detail of the support foot.

Detail of the 3 holes for adding an inter-row disc.

Sturdy series of front protective strips made of shaped steel.

Detail of the roller support, with holes for height adjustment.
