BullMach LYMPHIA 50 - Petrol Water Pump - with 50 mm Fittings

Questions & Answers (2)
ID: K608476

EAN: 8053435097901

MPN: LYMPHIA 50

9,0/10
After-sales assistance & Spare parts
BullMach LYMPHIA 50 - Petrol Water Pump - with 50 mm Fittings
FREE
2 bottles of 600 ml engine oil each2 bottles of 600 ml engine oil each
Motor brand
Producer-manufactured
Motor Model
FC170F-1
Cubic capacity
212 cm³
Nominal power
7 HP
Power supply
Petrol
Water pump type
Self-priming
Pump material
Aluminium
Flow rate
500 L/min
Fittings diameter
50 mm
Max. head lift
32 m
Max. suction height
7 m
Aluminium fittings
Yes
Product Features
Model:
LYMPHIA 50
Power supply:
Petrol
Fuel:
Petrol
Starting mode:
Recoil
Manufacturing country:
China
Motor data
Motor brand:
BullMach
Motor Model:
FC170F-1
Cubic capacity:
212 cm³
No. of cylinders:
1
Nominal power:
7 HP
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Decompression system:
Automatic
Tank capacity:
3.6 L
Oil tank capacity:
0.6 L
Manufacturing country:
China
Pump data
Pump brand:
BullMach
Water pump type:
Self-priming
Pump material:
Aluminium
Fittings diameter:
50 mm
Flow rate:
500 L/min
Max. head lift:
32 m
Max. suction height:
7 m
Pair of fittings with ring nut:
Yes
Manufacturing country:
China
Equipment
Recoil start system (with rope):
Yes
Aluminium fittings:
Yes
Free gifts/extra features
Oil bottle:
Yes
Hose clamps:
Yes
Suction filter:
Yes
Instructions manual:
Yes

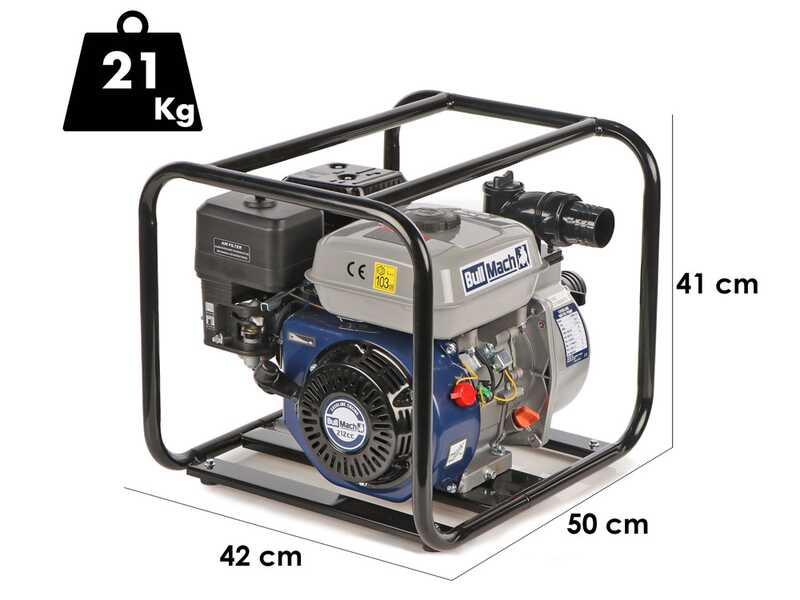

Dimensions and logistics
Product dimensions in cm (L x W x H):
50x41x42 cm
Net weight:
21 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
50x43x42 cm
Gross weight (packaging included) :
23 Kg
Assembly time:
5 minutes
Prompt Delivery
174 items in stock
Free Shipping
Estimated delivery: 21/02/2025 - 25/02/2025
€ 213,15
Vat included

You're viewing:
Customers also viewed:
Description

LYMPHIA 50 Irrigation Water Pump

The BullMach LYMPHIA 50 petrol water pump is a versatile and powerful device designed to cope with various watering and pumping needs. Equipped with the FC170F-1 engine, this water pump guarantees high and reliable performance. With a displacement of 212 cm³ and a single cylinder, it delivers a rated power of 7 HP, making it suitable for heavy work.

The BullMach LYMPHIA 50 uses petrol as fuel and runs on an overhead valve system. This type of power supply improves engine efficiency and reduces emissions. The engine is lubricated in an oil bath, ensuring long life and smooth operation. Furthermore, it is equipped with automatic decompression, which facilitates engine start-up.

The water pump has a tank capacity of 3.6 litres, allowing long periods of operation without the need for frequent refuelling. The oil tank capacity is 0.6 litres, ensuring adequate and constant lubrication of the engine.

Distinctive features:

  • Powerful motor: Model FC170F-1 with 212 cm³ displacement and 7 HP rated power.
  • Petrol fuel: Overhead-valve fuel system for greater efficiency and lower emissions.
  • Oil bath lubrication: Ensures long engine life and smooth running.
  • Automatic decompression: Facilitates engine starting.
  • Tank capacity: 3.6 L of fuel and 0.6 L of oil for extended operations.

These features make the BullMach LYMPHIA 50 an ideal water pump for anyone looking for a reliable and durable product for their irrigation or water pumping work.


These pumps are suitable for transferring water (e.g. from a cistern to another) or for furrow irrigation in fields and gardens.
We do not guarantee their suitability for use in combination with sprinklers or sprinkler systems of various types (as they require the contribution of a qualified technician and a number of calculations in terms of flow rate, head, pressure, pipe diameters, valves, nozzles, and so on), which may require more specific types of pumps for water systems.

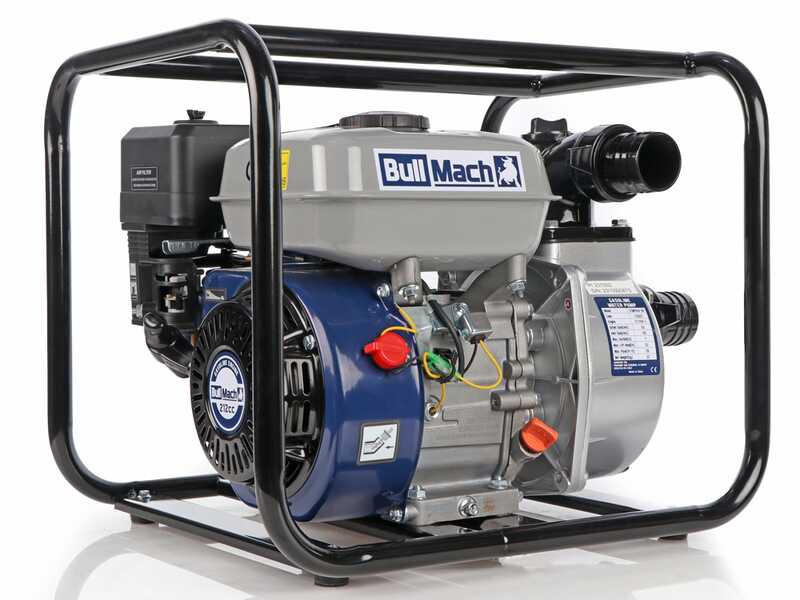

Engine Technical Specifications

Engine specifications:

Model: FC170F-1

Type: 4-stroke, single cylinder, forced-cooled, OHV
Displacement: 212 cc
Fuel: petrol

Power: 7 Hp
Tank: 3.6 L

The engine features a recoil starter and a metal tank with a fuel tap.

Detail of the engine adjustment controls that include the air adjustment and the engine throttle adjustment.

Water Pump Technical Features

The pump fitted on the LYMPHIA 50 is entirely made of cast aluminium alloy, making it light yet sturdy and able to withstand prolonged pumping work.

Pump features:

Suction: 50 mm
Delivery: 50 mm
Maximum suction height: 7 m
Max. flow rate: 500 L/min
Max. head: 32 metres

Focus on the 50 mm suction and discharge fittings.

Support frame with riser grommets.

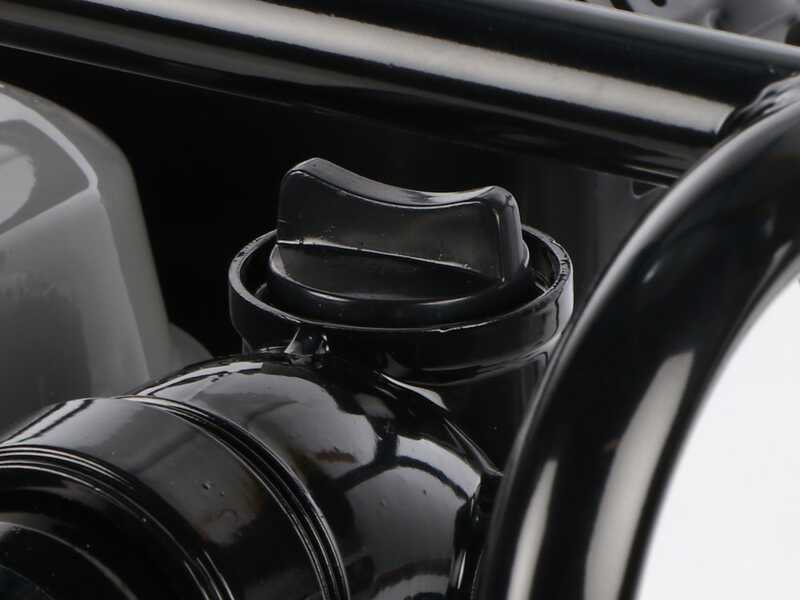

Detail of the pump filler cap

Detail of the pump emptying cap

WARNING:

In order to reach the maximum draft height, we recommend using a foot valve

Free items & Standard equipment

COMPLIMENTARY: 2 Oil Bottles

TWO oil bottles for 4-stroke engines

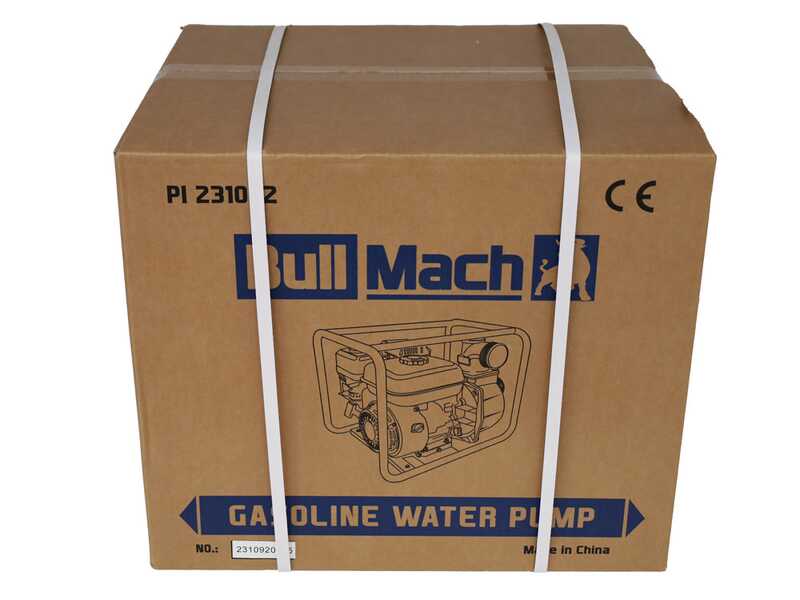

Standard Equipment

The pump is shipped in its original packaging, equipped with tools for assembly and maintenance, 2x 50 mm fittings, metal clamps and 2 rubber gaskets for the fittings, as well as the foot valve for draining.

Instruction manual included.
