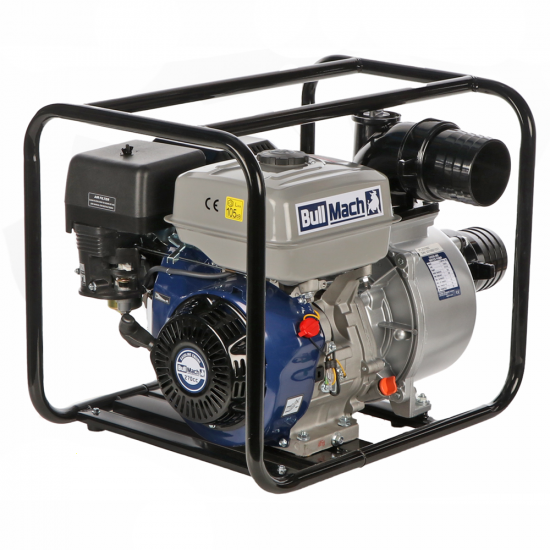

BullMach LYMPHIA 100 - Petrol Water Pump - with 100 mm Fittings

Questions & Answers (3)
ID: K608487

EAN: 8053435097925

MPN: LYMPHIA 100

9,0/10
After-sales assistance & Spare parts
BullMach LYMPHIA 100 - Petrol Water Pump - with 100 mm Fittings
Special offer
FREE
2 bottles of 1 L oil each2 bottles of 1 L oil each
Motor brand
Producer-manufactured
Motor Model
FC177F-1
Cubic capacity
270 cm³
Nominal power
9 HP
Power supply
Petrol
Water pump type
Self-priming
Pump material
Aluminium
Flow rate
1330 L/min
Fittings diameter
100 mm
Max. head lift
25 m
Max. suction height
7 m
Aluminium fittings
Yes
Product Features
Model:
LYMPHIA 100
Power supply:
Petrol
Fuel:
Petrol
Starting mode:
Recoil
Manufacturing country:
China
Motor data
Motor brand:
Greenbay
Motor Model:
FC177F-1
Cubic capacity:
270 cm³
No. of cylinders:
1
Nominal power:
9 HP
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Decompression system:
Automatic
Tank capacity:
6 L
Oil tank capacity:
1.1 L
Manufacturing country:
China
Pump data
Pump brand:
Greenbay
Water pump type:
Self-priming
Pump material:
Aluminium
Fittings diameter:
100 mm
Flow rate:
1330 L/min
Max. head lift:
25 m
Max. suction height:
7 m
Pair of fittings with ring nut:
Yes
Manufacturing country:
China
Equipment
Recoil start system (with rope):
Yes
Aluminium fittings:
Yes
Free gifts/extra features
Oil bottle:
Yes
Hose clamps:
Yes
Suction filter:
Yes
Instructions manual:
Yes

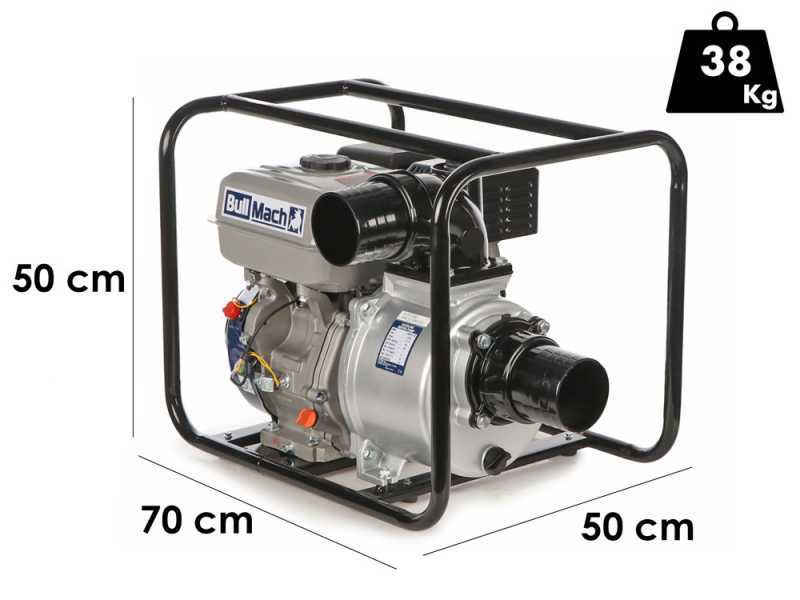

Dimensions and logistics
Product dimensions in cm (L x W x H):
70x50x50 cm
Net weight:
38 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
63x48x52 cm
Weight including packaging:
40.2 Kg
Assembly time:
5 minutes
Prompt Delivery
28 items in stock
Free Shipping
Estimated delivery: 30/05/2025 - 03/06/2025
Lowest price:
€ 312,65
-10 %
€ 281,03
Vat included

You're viewing:
Customers also viewed:
Description

LYMPHIA 100 Irrigation Water Pump

The BullMach LYMPHIA 100 petrol water pump is an efficient and reliable solution for pumping large volumes of water. Equipped with a FC177F-1 engine, this device guarantees optimum performance thanks to its 270 cm³ displacement and 7 HP rated power.

The single-cylinder petrol engine is designed with an overhead valve drive, ensuring efficient and durable operation.

This water pump is ideal for use in agriculture, gardening and other industrial applications requiring the rapid and large transfer of water. With a tank capacity of 6 litres, it allows long working sessions without the need for frequent refuelling.

In addition, the automatic decompression system facilitates engine start-up, making the device simple and immediate to use.

The BullMach LYMPHIA 100 uses an oil bath lubrication system, ensuring longer engine life and reduced maintenance costs. The oil tank capacity is 1.1 L, providing appropriate lubrication during intensive use. The 100 mm fittings ensure a high water flow, making this water pump particularly suitable for operations that require efficiency and speed.

Distinctive features and advantages:

  • FC177F-1 engine: 270 cm³ displacement and 7 HP power for high performance.
  • Overhead valve intake: improves engine efficiency and reduces fuel consumption.
  • Automatic decompression: facilitates engine start-up.
  • Fuel tank capacity:: 6 L for long work sessions without interruptions.
  • Oil bath lubrication: increases engine life and reduces maintenance costs.
  • 100 mm fittings: ensure a high water flow, ideal for pumping large volumes.

This BullMach LYMPHIA 100 petrol water pump is an excellent choice for anyone looking for a robust, high-performance product that can tackle the most demanding water transfer requirements.


These pumps are suitable for transferring water (e.g. from a cistern to another) or for furrow irrigation in fields and gardens.
We do not guarantee their suitability for use in combination with sprinklers or sprinkler systems of various types (as they require the contribution of a qualified technician and a number of calculations in terms of flow rate, head, pressure, pipe diameters, valves, nozzles, and so on), which may require more specific types of pumps for water systems.

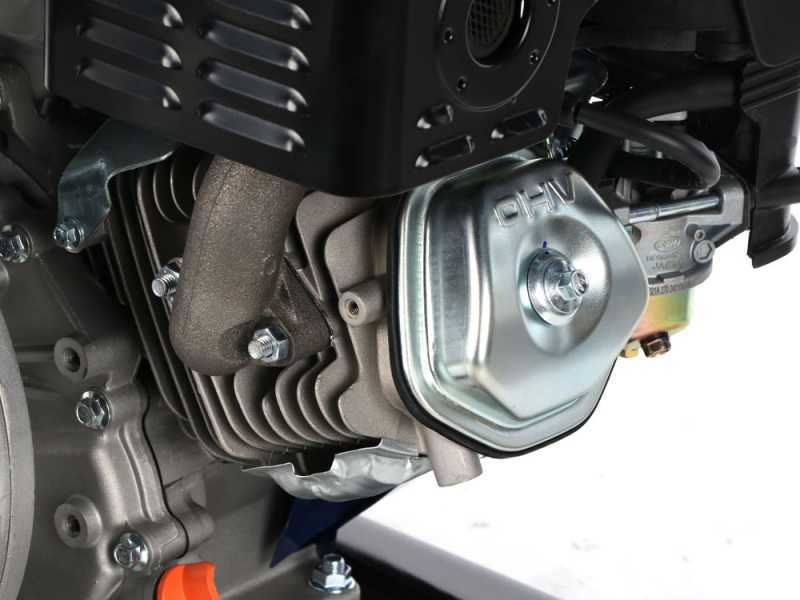

Engine Specifications

Engine specifications:

Model: FC177F-1

Type: 4-stroke, single cylinder, forced-cooled, OHV
Displacement: 270 cc
Fuel: petrol

Power: 9 Hp
Tank: 6 L

The engine features a recoil start system and a metal tank with fuel shut-off valve.

Detail of the engine adjustment controls that include the air adjustment and the engine throttle adjustment.

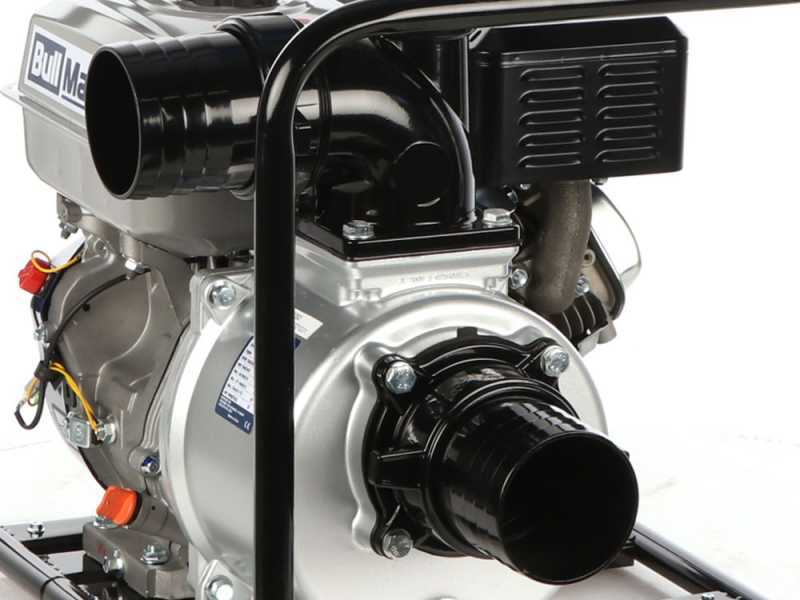

Water Pump Technical Features

The pump fitted on the LYMPHIA 100 is entirely made of cast aluminium alloy, making it light yet sturdy and able to withstand prolonged pumping work.

Pump features:

Suction: 100 mm
Delivery: 100 mm
Maximum suction height: 7 m
Max. flow rate: 1330 L/min
Max. head: 25 m

Detail of the 100 mm suction and discharge fittings.

Support frame with riser grommets.

Detail of the pump filler cap

Detail of the pump emptying cap

WARNING:

In order to reach the maximum draft height, we recommend using a foot valve

Free items & Standard equipment

Free Items Included

Complimentary:

2 bottles of 10W40 oil, specific for 4-stroke engines

Standard Equipment

The pump is shipped in its original packaging, equipped with tools for assembly and maintenance, 2x 100 mm fittings, metal clamps and 2 rubber gaskets for the fittings, as well as the foot valve for draining.

Instruction manual included.
