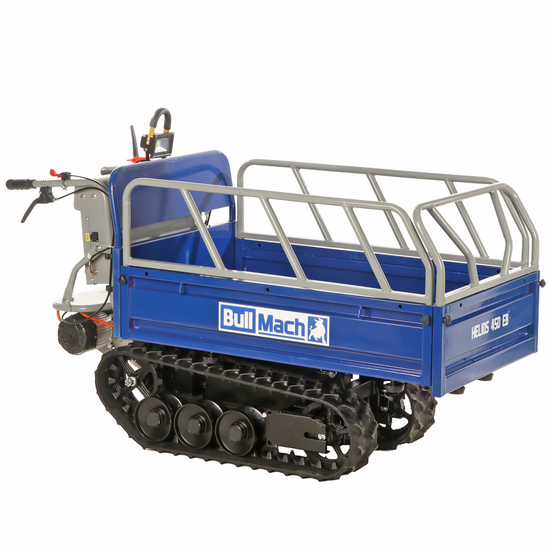

BullMach Helios 450 EB Electric Battery-Powered Tracked Barrow - Extendable Manual Barrow 450 Kg

Questions & Answers (16)
ID: K602187

EAN: 8054141540125

BullMach Helios 450 EB Electric Battery-Powered Tracked Barrow -  Extendable Manual Barrow 450 Kg
+100 sold
Load capacity
450 Kg
Barrow body type
Extendable sides
Box
Metal
Body tipping
Manual
Max. slope
35 %
Type
Tracked
Motor type
Battery-powered
Nominal power (W)
2400 W
Battery type
Lead
Voltage
60 V
Gear shifting system
Mechanical gearbox
Amperes available
20 Ah
Gears
2+2
Assisted steering
Yes
No. of batteries
1
Product Features
Model:
Helios 450 EB
Type :
Tracked
Operating mode:
Battery-powered
Items included:
Battery and battery charger included
Self-propelling:
Yes
Load capacity:
450 Kg
Max. slope:
35 %
Flow rate at 20% slope:
320 kg
Flow rate at 25% on slope:
250 kg
Barrow body type:
Extendable sides
Extendable body:
Body tipping:
Manual
Box size:
110x63x53
Extended box size:
130x90x53
Effective inner height:
530 mm
Box:
Metal
Manufacturing country:
China
Motor data
Motor brand:
BullMach
Motor type:
Battery-powered
Battery type:
Lead
Nominal power (W):
2400 W
Power supply:
Battery-powered
Engine lubrication system:
Oil bath
Amperes available:
20 Ah
Voltage:
60 V
No. of batteries:
1
Manufacturing country:
China
Transmission data
Gear shifting system:
Mechanical gearbox
Gearbox:
In oil bath
No. of forward speeds:
2
No. of reverse speeds:
2
Gears:
2+2
Operating mode:
Lever on the handlebar
Equipment
Tubular extension sides:
Yes
Box:
Extendable
Assisted steering:
Yes
Track width:
160 mm
Total rollers no.:
2
Electric start with key :
Yes
Led Spotlight:
Free gifts/extra features
Wooden pallet (safe shipping):
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
170x73x108 cm
Net weight:
225 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
145x75x85 cm
Gross weight (packaging included) :
242 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
60 minutes
Out of stock
Free Shipping
Suggested price:
€ 2.426,52
€ 2.183,87
VAT Included
You're viewing:
Customers also viewed:
Description

BullMach Helios 450 EB Tracked Barrow

The tracked barrow with extendable tipping with an actual flow rate of 450 kg. The robust steel frame and the gearbox with 2 forward and 2 back gears with speed regulator make this tracked barrow versatile and efficient.

The battery-powered electric motor allows the use of the machine for transporting objects also in closed places such as greenhouses, in fact, the machine does not produce any kind of harmful smoke, however, always ensuring the maximum efficiency and low noise. Thanks to its own wheels on tracks and to the Brushless, motor this tracked barrow is able to carry loads of 450 Kg also on sloping grounds, thus being an indispensable tool for each type of transport (wood, concrete, bricks, rubble, debris, etc.)

Equipped with a barrow with 3 openable and removable sides which allow to considerably increase the load carrying capacity of this tracked barrow.

The mechanical overturning by means of a lever and the extensible barrow make this model extremely versatile and easy to use.

This tracked barrow is able to carry loads

  • Up to a maximum of 450 kg on flat ground
  • Up to a maximum of 450 kg of soils that have a maximum slope of 20 ° , Thus being an indispensable tool for each type of transport.

Brushless Battery-Powered Motor

Brushless BullMach motor powered by a 60V 20Ah battery

It has a maximum power of 2400 W.

It is more reliable since it does not have a spark plug, filters, oil dipstick, carburetors, etc ... or components which can cause problems.

Lower consumption and reduced operational costs compared to petrol models.

Moreover, the operator won’t have to refuel (the fuel should always be fresh).

Zero smoke emission, zero impact on the environment and, above all, on the operator’s health.

Much quieter and therefore pleasant to use than a petrol engine one.

Dumper Tipping Barrow

High resistance steel barrow. The loading platform is at the minimum distance from the ground to facilitate loading / unloading operations.

An example of use is for the transport and the loading of the wood.
Using the overlays you have the ability to increase the load while greatly reducing the number of transport to be carried out for the job.

Mechanical tipping: manually activated with the appropriate rubberized release lever with spring, and facilitated (in case of heavy loads) from the barrow lifting lever placed on the side.

Extensible sides to significantly increase the size of the loading platform, it allows to also optimize the most bulky transport, up to a maximum extension of 130x90x53.

Gearbox, Parking Brake and Transmission

Adjustable speed and gearbox:
2 forward gears 2 reverse gears

Speed selector switch;

Gearbox large, robust and reliable with thick protection from stones or other objects present in the soil

Tracks and Cart

The width and profile of the tread guarantee perfect grip and stability on all types of terrain.

Made of special reinforced rubber with excellent grip, they are able to tackle any type of surface or step.

The perfect front / rear balance ensures the distribution of loads and a perfect adherence to the ground.

Track width: 160mm

Maximum width (considering tracks only): 570mm

Controls

Control: easy to operate and ergonomic, they offer precision and can be controlled in the work

Large black lever for motion and acceleration activation.

The two lower levers are for the steering, respectively right and left.

This allows the steering of the tracked barrow in an extremely easy way, without causing any sudden movements.

Speed selection key

Reversing the direction of travel and horn

Turning LED headlamp with accelerator

Free items & Standard equipment

Free Items Included

The tracked barrow is shipped in its original packaging.

Instruction manual, battery charger, key set for adjustment and assembly and funnel.
