BullMach ENIO 4200 - Electric log saw - Single-phase table saw

The BullMach ENIO 4200 gantry saw has been designed to offer superior cutting performance combined with unprecedented operating comfort.

This circular saw is designed for those who need a log-cutting machine that is both effective and efficient, and capable of significantly reducing fatigue during use.

Equipped with a 2200W single-phase electric motor, it guarantees an excellent log-cutting experience due to its high power and precision.

This cutting machine is not only a powerhouse, it is also exemplary in its safety: the protective cover is designed to minimise the risk of wood splinters being thrown towards the operator, thus ensuring a safe and controlled working environment.

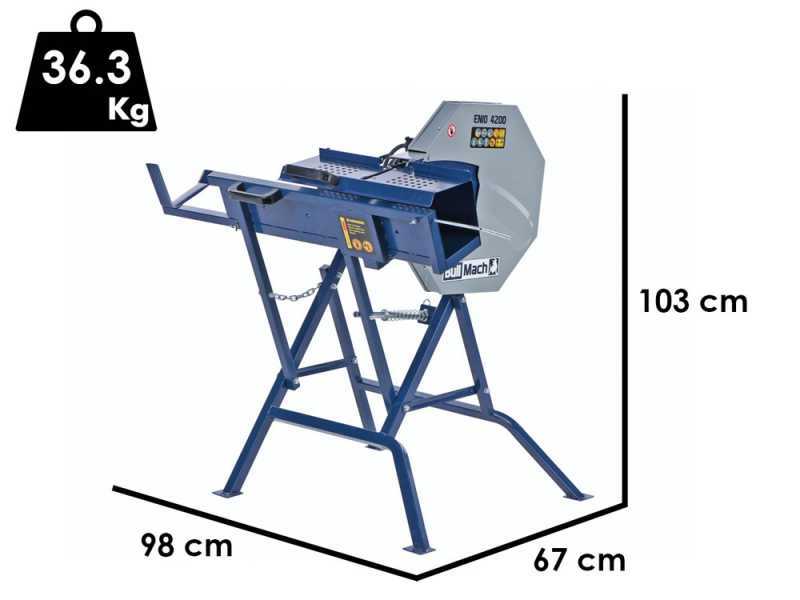

The design of the BullMach ENIO 4200 saw bench, with its trestle structure, is both practical and efficient.

The 405 mm diameter, 30 mm bore, hardened steel disc blade with 32 sharp teeth ensures clean and precise cuts. The saw's cutting capacity reaches 140 mm, with a blade that makes up to 2800 rpm, proving that it can tackle even the toughest tasks with ease.

Blade thickness of 2.2mm.

The wide worktable allows logs with lengths ranging from 300 to 1000 mm to be handled, providing users with the flexibility to process different sized parts with ease.

The BullMach ENIO 4200 is therefore the ideal solution for anyone looking for a high-quality log cutter that is easy to use and capable of delivering quick and convenient results while reducing operator fatigue.

Due to its robustness and compliance with all applicable safety standards for cutting logs, the circular saw is also suitable for less experienced users who want fast and uncomplicated work.

The reliability, ease of use and efficiency of this table saw on a stand make it an indispensable tool for all those who work with wood and are looking for an optimal solution for cutting logs.

Technical Specifications and Construction Details of the Log Cutter:

• Disc diameter: 405 mm
• Blade thickness of 2.2mm.
• Maximum Permissible Log Diameter: 140 mm
• Adaptable Log Length: Between 300 and 1000 mm

Distinctive Elements and Security Features:

• Blade: Made of hardened steel and equipped with 32 teeth, it ensures a clean and precise cut.

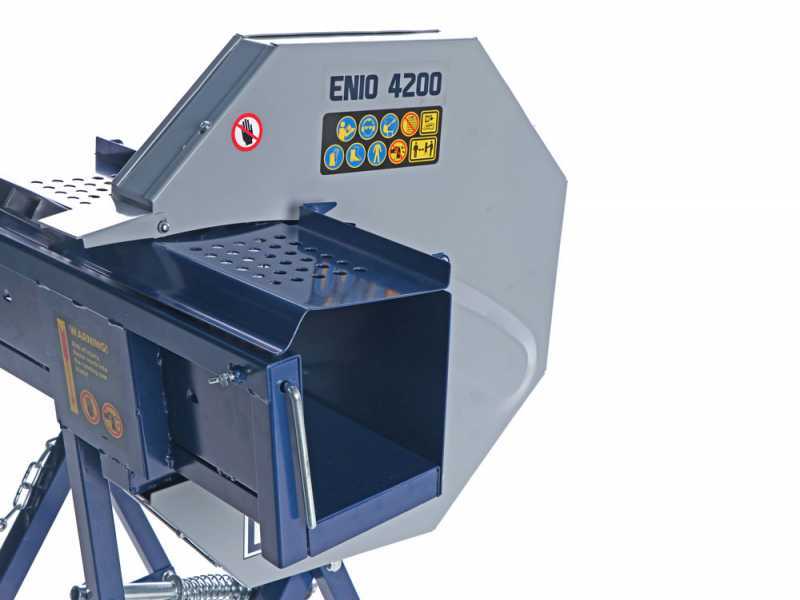

• Protective casing: Designed to ensure maximum operator safety, it features an easy-access, easy-maintenance design.
• Base of the Saw Bench: the unit during operation, ensuring fundamental solidity during cutting operations.
• Detail of the Handles: Designed with the user's safety in mind, the handles are surrounded by special guards to minimise risk during use.
• Adjustable support for long pieces.
• Cutting length adjuster.

The design and features of this log saw have been conceived and created not only to enhance the functionality and efficiency of the machine, but also to put safety and user-friendliness at the forefront.

Every construction element and every detail is the result of careful design and engineering oriented towards usability and durability.

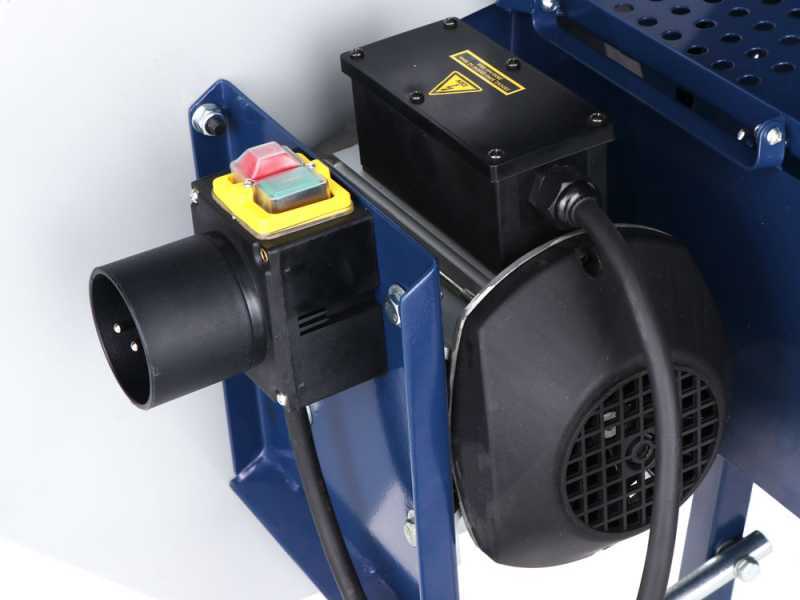

The BullMach ENIO 4200 gantry saw is characterised by its powerful 2200 watt single-phase electric motor, which ensures an effective and precise cut on logs of different sizes.

Operating at a standard voltage of 230V, this circular saw is ideal for use in a variety of work environments, making it a versatile option for professionals and DIY enthusiasts.

Motor Power: its 2200 watt motor is designed to deliver high performance and an effortless cutting experience. This power ensures that even the toughest logs can be cut with ease, increasing work efficiency and speed.

This machine includes carefully thought-out safety details, such as an emergency start and stop button, which ensures an immediate response in case of need.

Easy access to the button allows the user to quickly stop the operation, helping to prevent injuries and provide a safer working environment.

Recommendations for use

To ensure the maximum service life and efficiency of the machine, the following instructions must be strictly observed. Failure to comply with them constitutes improper use, carrying a serious risk of damage to the product (this type of damage is not covered by the warranty).

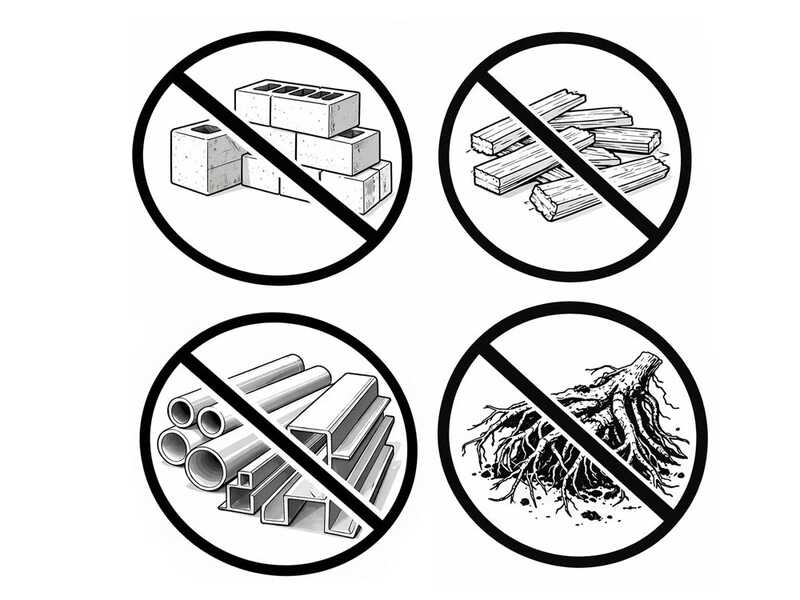

• Intended use of materials: The machine is designed exclusively for cutting logs. It is strictly forbidden to feed any other type of object or material into the cutting system. In particular, the following material must never be cut, including but not limited to:

1. Contaminated wood: logs with excessive amounts of soil, stones or foreign metal objects (nails, screws, staples, barbed wire or remnants of fencing).
2. Building materials: timber planks soiled with concrete, bricks, plasterboard or composite panels.
3. Synthetic and metal materials: plastic pipes (PVC, PE), metal profiles, light alloys or electrical cables.
4. Inert materials: rocks, glass, ceramics or mineral materials.

Impact with unsuitable materials could deform the blade, damage the flange/shaft and cause vibrations that damage bearings and supports.

• Suitability of extension leads: Avoid using unsuitable extension leads. Given the  high motor power, it is essential to ensure a constant power supply. Undersized cabling causes voltage drops that prevent the motor from reaching the correct speed, leading to abnormal overheating and permanent damage to electrical components. Use only cables with a minimum cross-section of 2.5 mm². This requirement is essential to correctly manage the high current absorption, particularly during start-up and during cutting operations under load, thereby preventing voltage drops and motor overheating.
• Log dimensions: do not exceed the maximum capacities. Do no cut logs larger than Ø 170 mm or outside the 300–1000 mm range length to prevent motor overloading.
• Load stability: the section of log or branch must be positioned so that the grain is perpendicular to the cutting disc.
• Never use the machine to cut more than one log or branch at a time: Stacking multiple pieces can cause sudden, uncontrolled movements of the material against the cutting disc, resulting in a risk of deformation or breakage of the disc.
• Cutting feed and motor load: Do not force the log through the cut to the point where the blade’s rotation slows significantly or stops. Stalling or prolonged operation under excessive load causes high absorption and abnormal overheating, posing a risk of permanent damage to the motor and electrical components (e.g. starting capacitor).
• Mains voltage stability: Do not connect the machine to electrical circuits where other heavy loads are operating simultaneously (e.g. air compressors, welding machines or air conditioners). Continuous voltage fluctuations can burn out the capacitor or the internal components of the electric motor.
• Cleaning the ventilation openings: Ensure that the motor’s ventilation grilles are always free from accumulations of sawdust or dust. A restricted air flow prevents heat dissipation, leading to deterioration of the windings’ insulation.
