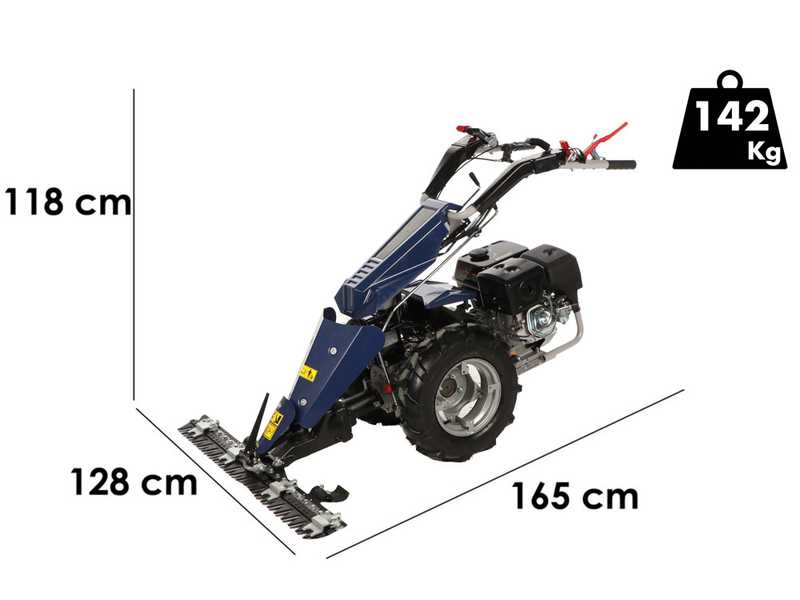

BullMach Chimera 400 - Petrol Two-wheel Tractor - 420cc - 11,5 HP

This model is equipped with a robust 418cc and 15 HP Loncin G420F engine, making it a highly versatile device that can be adapted to different functions thanks to the possibility of adding various accessories upon request.

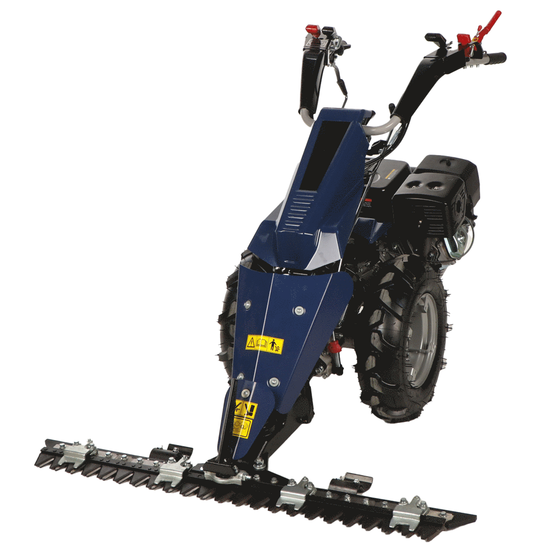

The BullMach Chimera 400 self-propelled scythe mower is ideal for cutting tall, uncultivated grass or for harvesting grass for livestock feeding. Thanks to its cutting system that works close to the base, it preserves the integrity of the grass, maintaining its high quality.

The 120 cm cutter bar, included in the price, attaches easily and can be replaced with other compatible attachments, increasing the mower's versatility. Also equipped with two skids, it allows the operator to easily adjust the cutting height.

Safety is ensured by a reverse clutch system that prevents accidents while protecting the operator. The gearbox, with six gears available (three forward and three reverse), is easily controlled through a lever under the rods, and the rigid axle supported by two sturdy wheels 5.00-10 with adjustable hubs makes this machine suitable for even slightly inclined or uneven terrain.

ATTENTION:
these accessories are not included in the purchase price of the machine.

MULCHING BAR 120cm

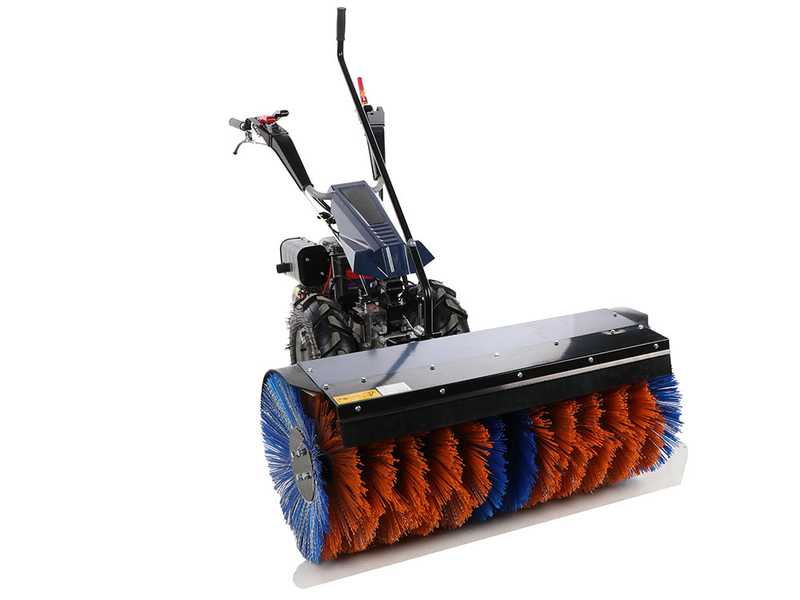

FRONTAL BRUSH 110cm

SNOW BLADE 102cm

IRON WHEELS Ø50cm

SIMPLE TILLER (rear tiller required for use)

ADJUSTABLE PLOUGH

TILLER

SNOW SHOVEL 92cm

ATTENTION!

Photos are illustrative only, they may differ from the main product.

Main features:

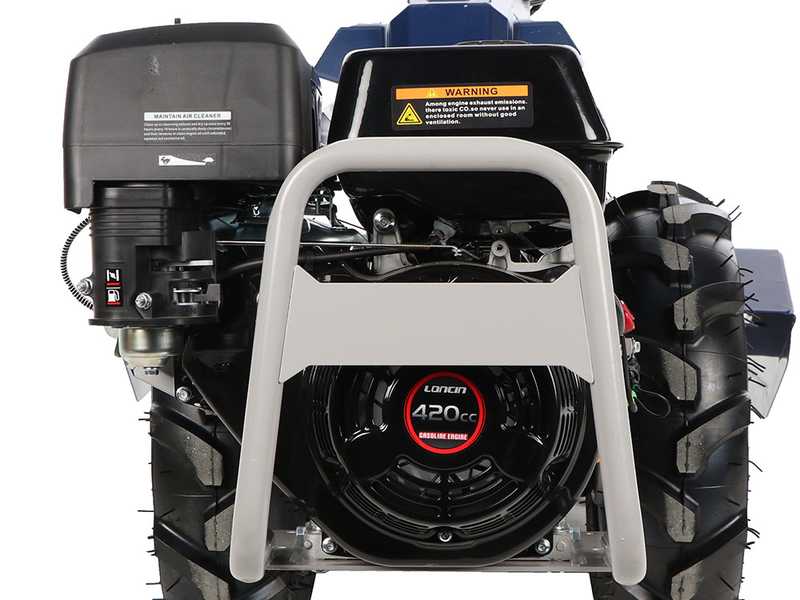

• Model and brand of the engine: Loncin G 420 FD
• Engine type: Single cylinder 4-stroke - OHV
• Cylinder type: Aluminium
• Cylinder capacity: 420 cm³
• Power: 15 Hp
• Starting: recoil start

Nominal Power: 15 Hp
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This figure is the one that is most widely used and publicised in the main sales channels, even if it is higher than the real power of the engine.

Actual power: 12.5 HP
It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

* this is a figure that can vary for the same engine model depending on the rpm the equipment manufacturer has decided to have the applied engine deliver

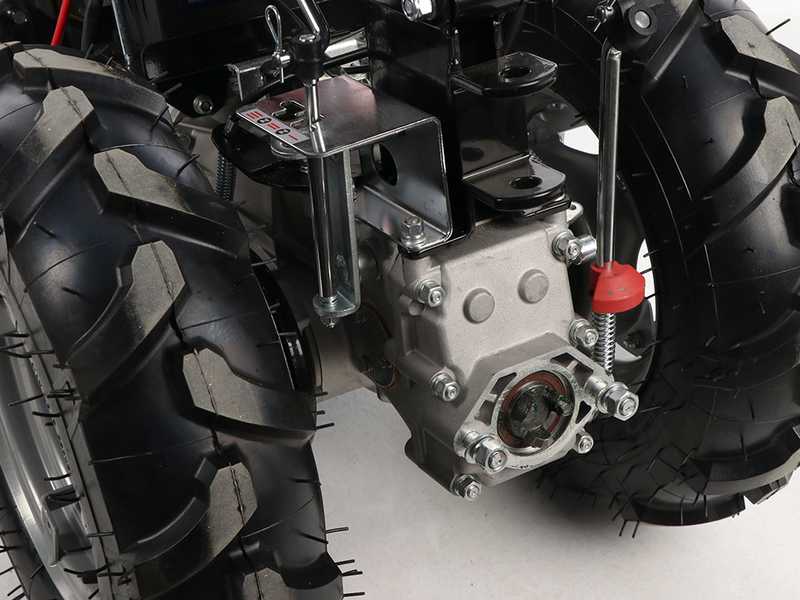

This two-wheel tractor is fitted with some of the best transmissions and gearboxes in oil bath on the market. Exceptional durability.

Suitable for heavy and continuous work, specifically for semi-professionals looking for the best in robustness and reliability over the years.

The internal mechanics are oversized, entirely with gears in an oil bath.

DIFFERENTIAL gear mechanism supplied as standard, with locking device on the steering handles.

This mechanical system for distributing the engine torque gives the two-wheel tractor truly extraordinary manoeuvrability, allowing very simple and light steering.

The two-wheel tractor mounts large pneumatic wheels with adjustable rim that allow the track width to be widened as required, ensuring a safe and uniform movement.

Transmission oil already at level

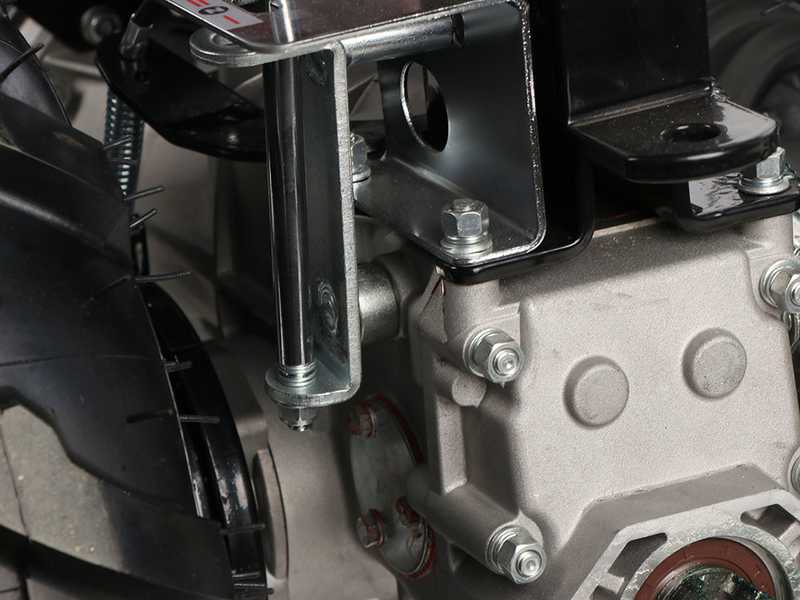

6 speeds 3 forward + 3 reverse with reverse shuttle.

The two-wheels tractor features a total of 6 gears: 3 forward gears in milling position (i.e. with tiller attachment fitted, or plough, furrow machine, and so on).

3 forward + 3 reverse gears (with reverse shuttle) with reverse machine for front-mounted equipment (i.e. with cutter bar attachment, flail mower, snow blower, etc.)

Therefore, the good number of speeds allows both rear and front-mounted equipment to be used with the appropriate operating speed and with extreme versatility.

The gearbox control is lever-operated.

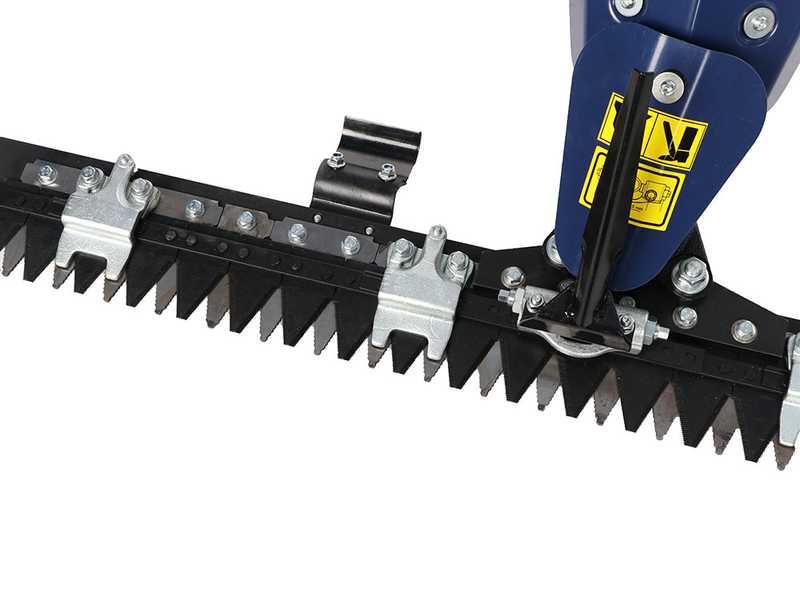

Sickle bar cutting width: 120 cm

Mulching cutting system: the sickle bar consists of a lower blade and an upper blade, which moves with an oscillatory motion in contact with the lower blade that is fixed and acts as a counter-blade. This type of cutter bar is called mulching because of the particular clean cut it makes on all types, textures and heights of grass, achieved thanks to the special profile of the blades of which it is composed.

Adjustable cutting height (20-60mm) by adjusting the inclination of the 2 rear slides.

The cutter bar is of the tilting type.

Grass guard front cover.

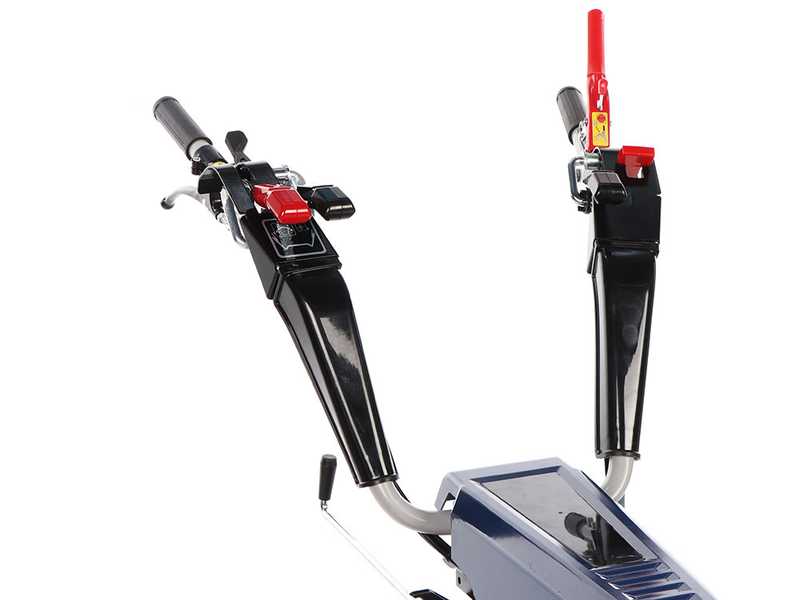

The steering handles are cushioned and 180° reversible.

Adjustable both in height and laterally:

Several height positions can be set by means of the lever at the base. On the other hand, it has 3 positions per direction of travel, which can be adjusted using this lever.

Soft rubber-coated handles

The reversible steering handles allow several other accessories to be attached (sickle bar, rough cut mower, etc.)

This two-wheel tractor comes with a number of controls which make it extremely versatile and rich in functionality.

• Red lever: clutch lever, which also acts as a safety lever that immediately stops the motion of the cutters and the machine's advance when released.
• Black lever: Locking and unlocking differential system
• Shuttle lever
• Parking brake
• Power off switch

The gear lever is located to the right of the operator. PTO engagement is activated and deactivated by the lever on the left (lever with the black knob).

Throttle lever
