BullMach Chimera 400 - Diesel two-wheel tractor - 418cc - 9.6 HP

The BullMach Chimera 400 two-wheels tractor is a good quality agricultural implement, designed to work the soil efficiently and effectively.

The robust 9.6 HP diesel engine offers high performance, providing the efficiency and speed needed for all the tasks for which this machine was designed.

Included in the sale's price, the 80 cm tiller is equipped with 6 elements, each with 4 hoes (24 hoes total). The machine is designed to be multifunctional, allowing additional accessories to be added on demand. The tiller can also be reduced from 80 to 60 cm, this modularity makes it easy to adapt the machine to various soil sizes and types of work.

This model has three speeds in both forward and reverse, a gear transmission immersed in an oil bath and a very durable crankcase.

The handlebars are adjustable and reversible, facilitating the use of the motor cultivator with both front and rear implements.

Two-wheel tractors are intended for working on soft, non-stony ground. They do not penetrate deeply but are capable of reducing the soil into very fine particles, more than a normal tiller does, making them particularly suitable for use in vegetable gardens with various types of crops. They are optimal for soft, already ploughed and frequently tilled soils.

For particularly compact, never tilled, stony or sloping terrain, we recommend considering the purchase of a tiller, which is more suitable for these conditions.

The machine includes a reverse clutch system that protects the operator from potential accidents.

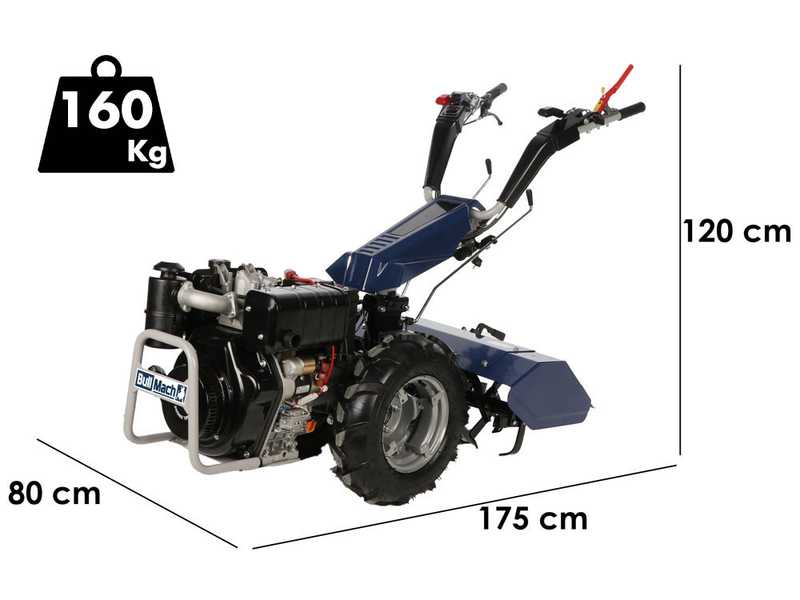

Weight: 160 kg

ATTENTION:
these accessories are not included in the purchase price of the machine.

MULCHING BAR 120cm

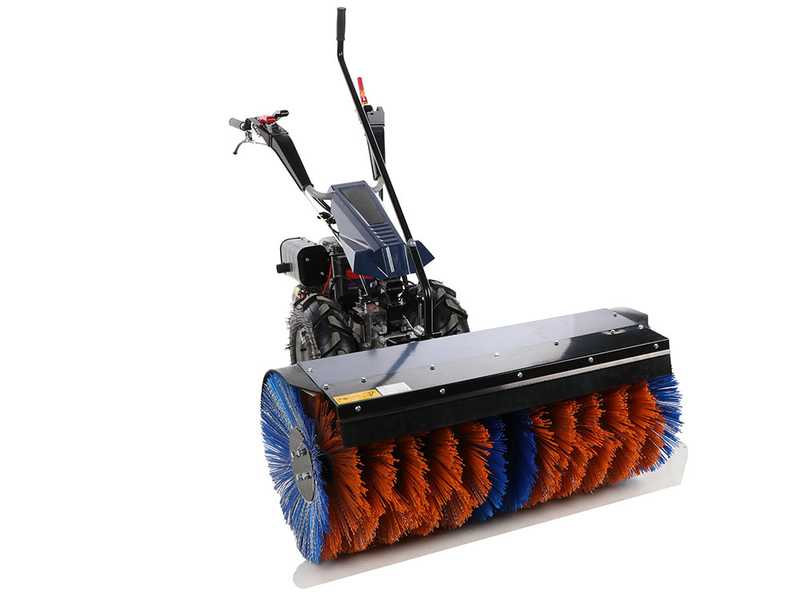

FRONTAL BRUSH 110cm

SNOW BLADE 102cm

IRON WHEELS Ø50cm

SIMPLE TILLER (rear tiller required for use)

ADJUSTABLE PLOUGH

TILLER

SNOW SHOVEL 92cm

ATTENTION!

Photos are illustrative only, they may differ from the main product.

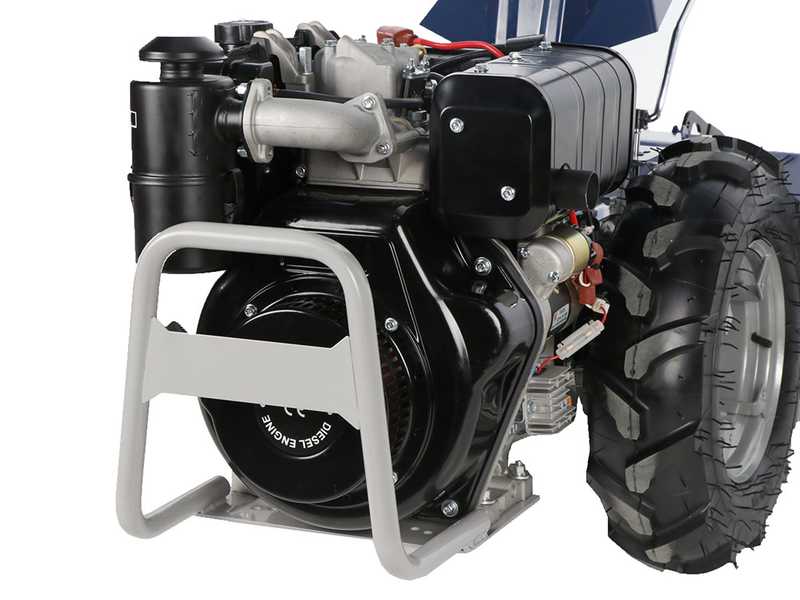

418 cc (9.6 HP) 188FA engine provides excellent power.

Technical features:

Fuel Tank (6 L)

Detail of the engine decompression system that facilitates starting

CAUTION!

The engine is PROVIDED WITHOUT OIL.
Please read carefully the instructions manual before starting the unit.

Nominal Power: 9.6 HP

* The correct term would be "Commercial” Power, meaning the classic standard of definition of power officially used until a few years ago by all leading engine manufacturers. This figure is the one that is most widely used and publicised in the main sales channels.

Effective power: 8.8 HP

* Corresponds to the actual power expressed on the working organ in use. This is the power indicated as official in the engine instructions manual.

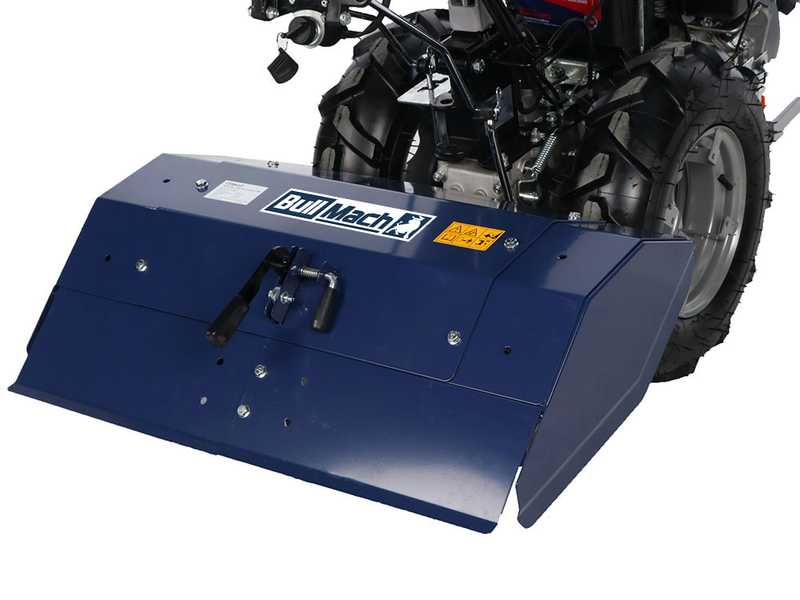

Tiller equipped with 6 elements, each with 4 hoes of 30.5 cm diameter.

The tiller can also be reduced from 80 to 60 cm, this modularity makes it easy to adapt the machine to various soil sizes and types of work.

External bonnet made of painted sheet steel, and equipped with accident-preventing stone guard

The spur is equipped with various positions, which determine the working depth of the tiller (remember that all rotary cultivators on the market tend to grind the soil very finely, but by their very nature they carry out fairly superficial tilling, i.e. they have a medium-low working depth in the soil).

Transmission can only be activated when necessary. This allows to move the machine using self-propulsion with the tiller stationary.

Safety system:
- inability to engage reverse gear when the operator is working with the tiller engaged. Turn off (by means of the appropriate lever) the cutter engagement and then engage reverse gear.
- stop drive when the handles are released in accordance with Machinery Directive 2006/42/EC

Hole diameter for wheel: 21 mm

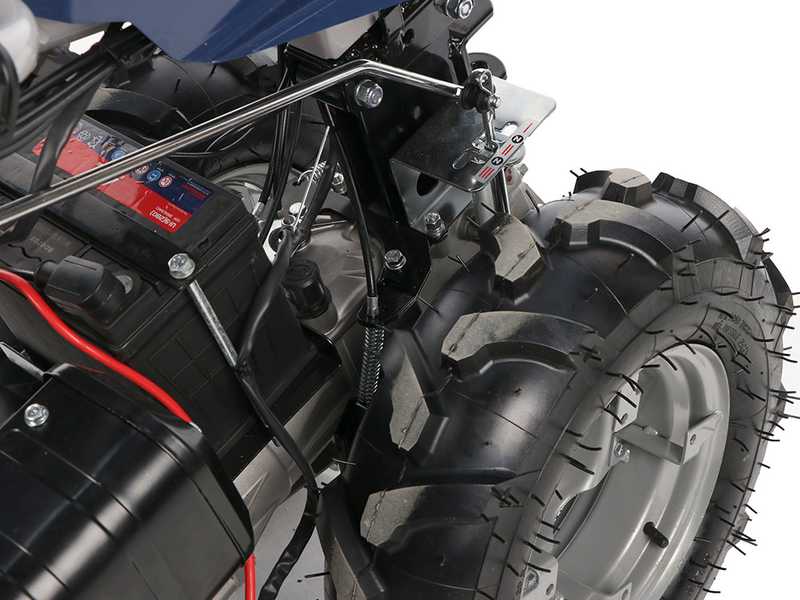

This two-wheel tractor is fitted with some of the best transmissions and gearboxes in oil bath on the market. Exceptional durability.

Suitable for heavy and continuous work, specifically for semi-professionals looking for the best in robustness and reliability over the years.

The internal mechanics are oversized, entirely with gears in an oil bath.

DIFFERENTIAL gear mechanism supplied as standard, with locking device on the steering handles.

This mechanical system for distributing the engine torque gives the two-wheel tractor truly extraordinary manoeuvrability, allowing very simple and light steering.

The two-wheel tractor mounts large pneumatic wheels with adjustable rim that allow the track width to be widened as required, ensuring a safe and uniform movement.

Transmission oil already at level

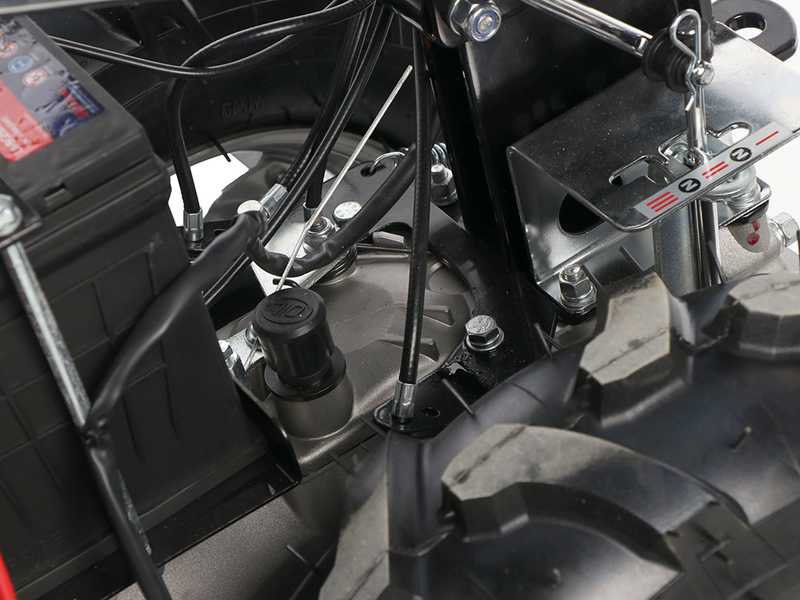

6 speeds 3 forward + 3 reverse with reverse shuttle.

The two-wheels tractor features a total of 6 gears: 3 forward gears in milling position (i.e. with tiller attachment fitted, or plough, furrow machine, and so on).

3 forward + 3 reverse gears (with reverse shuttle) with reverse machine for front-mounted equipment (i.e. with cutter bar attachment, flail mower, snow blower, etc.)

Therefore, the good number of speeds allows both rear and front-mounted equipment to be used with the appropriate operating speed and with extreme versatility.

The gearbox control is lever-operated.

The steering handles are cushioned and 180° reversible.

Adjustable both in height and laterally:

Several height positions can be set by means of the lever at the base. On the other hand, it has 3 positions per direction of travel, which can be adjusted using this lever.

Soft rubber-coated handles

The reversible steering handles allow several other accessories to be attached (sickle bar, rough cut mower, etc.)

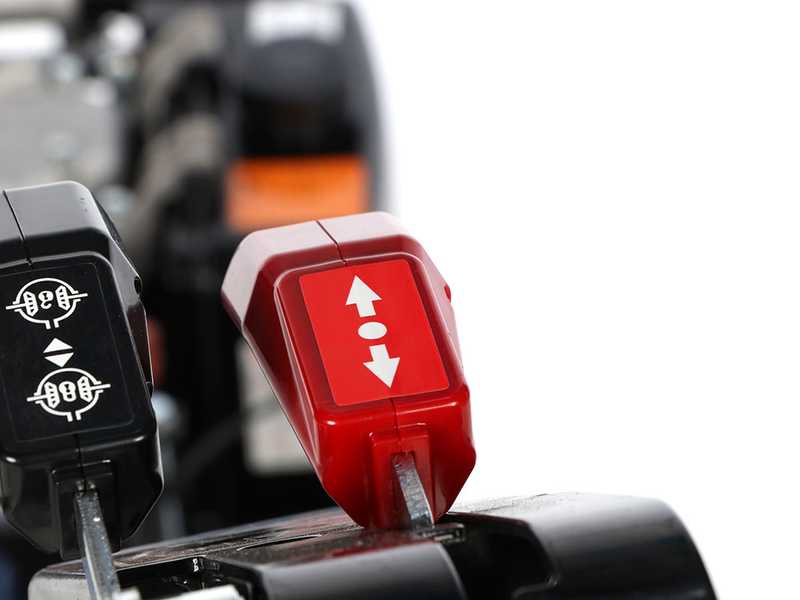

This two-wheel tractor comes with a number of controls which make it extremely versatile and rich in functionality.

• Red lever: clutch lever, which also acts as a safety lever that immediately stops the motion of the cutters and the machine's advance when released.
• Black lever: Locking and unlocking differential system
• Shuttle lever
• Parking brake

The gear lever is located to the right of the operator. PTO engagement is activated and deactivated by the lever on the left (lever with the black knob).

Throttle handle and on/off switch
