BullMach Chimera 300 - Petrol two-wheel tractor - Loncin G200F - 6.5HP

Add a question
ID: K609785

EAN: 8053435097994

MPN: CHIMERA 300

9,0/10
After-sales assistance & Spare parts
BullMach Chimera 300 - Petrol two-wheel tractor - Loncin G200F - 6.5HP
Free gifts from AgriEuro
2 bottles of 600 ml engine oil each2 bottles of 600 ml engine oil each
Standard milling cutter width
56 cm
Recommended operating area
300 s.q. m.
Motor type
4-stroke
Motor brand
Loncin
Motor Model
G200F
Cubic capacity
196 cm³
Nominal power
6.5 HP
Transmission type
Gears in oil-bath
Gears
2+2
Soil consistency
Soft
Product Features
Model:
Chimera 300
Body material:
ABS
Type:
With gears in oil bath
Conversion via other accessories:
Yes
Operating mode:
Spark ignition
Recommended operating area:
300 s.q. m.
Soil consistency:
Soft
Soft soil:
Starting mode:
Recoil
Manufacturing country:
China
Motor data
Motor brand:
Loncin
Motor Model:
G200F
Motor type:
4-stroke
Cubic capacity:
196 cm³
No. of cylinders:
Single-cylinder
Nominal power:
6.5 HP
Rated power (HP):
5 HP
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Decompression system:
Automatic
Tank capacity:
3.6 L
Oil tank capacity:
0.6 L
Manufacturing country:
China
Transmission data
Transmission type:
Gears in oil-bath
No. of forward speeds:
2
No. of reverse speeds:
2
Gears:
2+2
Operating mode:
Gear lever
Cutting data
Standard milling cutter width:
56 cm
Narrow milling cutter width :
42 cm
Milling cutter diameter:
31 cm
No. of blade holders:
6
No. of blades:
24
Blade engagement:
Lever on the handlebar
Equipment
Flail mower cutting deck:
No
Milling cutter accessory:
Included as standard
Sickle bar accessory:
On request
Furrower accessory:
On request
Front brush accessory:
On request
Snow plough + snow chains accessory:
No
Wheel barrow accessory:
No
Snow blower accessory:
No
Leaf blower - garden vacuum accessory:
No
CE Accident prevention system:
Yes
Adjustable stake:
No
Recoil start system (with rope):
Yes
Rear wheels size:
4.00-8
Height-adjustable handle:
Yes
Side-adjustable handle:
Yes
Reversible steering handles:
Yes
Rubber-coated soft grip:
Yes
Folding/removable handle/s:
Yes
Free gifts/extra features
Engine oil bottle for free:
2
Maintenance tool kit:
Yes
Instructions manual:
Yes
Dimensions and logistics

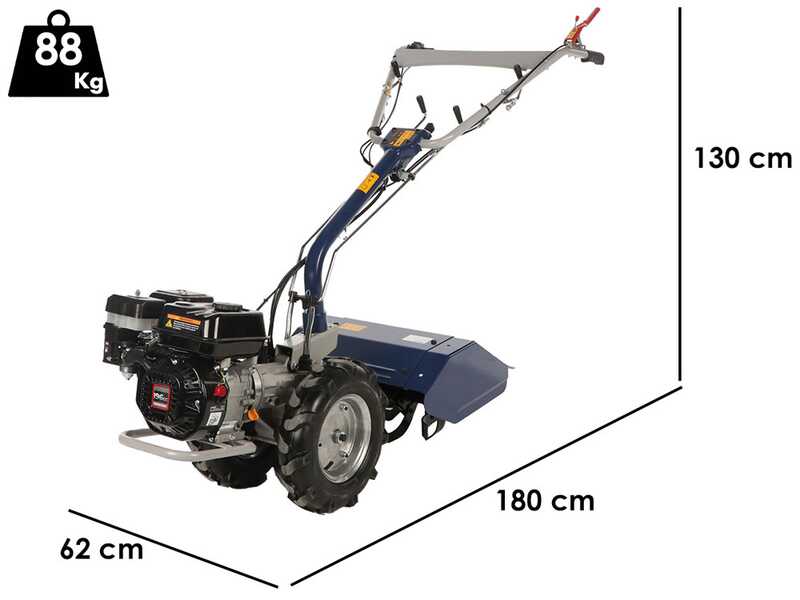

Product dimensions in cm (L x W x H):
180x62x130 cm
Net weight:
80 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
87x46x83 + 58x55x37.5 cm
Weight including packaging:
97 Kg
Assembly time:
45 minutes
Prompt Delivery
10 items in stock
Free Shipping
Estimated delivery: 18/06/2025 - 20/06/2025
Suggested price:
€ 1.677,95
€ 1.258,46
Vat included

You're viewing:
Customers also viewed:
Description

BullMach Chimera 300 two-wheel tractor

The BullMach Chimera 300 two-wheel tractor, equipped with a robust Loncin G200F engine of 196 cc and 6.5 HP, is designed to offer versatility and power. This model easily adapts to various agricultural activities thanks to the possibility of adding optional accessories.

The base unit includes a tiller that can be customized to suit different needs: it starts with a working width of 42 cm with 16 blades distributed over 4 elements and can be extended to 56 cm by adding two additional elements (included), bringing the total to 24 blades. This modularity facilitates adapting the machine to various land sizes and types of work.

Ideal for working on soft and well-maintained soils, the BullMach Chimera 300 optimizes soil crumbling, making it perfect for cultivation in gardens. However, for hard, very rocky, or sloped terrains, it is recommended to consider a tiller, more suitable for such conditions.

The two-wheel tractor's gear system includes four gears (two forward and two reverse) easily selectable via a lever under the handlebars. Thanks to the rigid axle and two sturdy wheels of 4.00-8 (420 mm), the two-wheel tractor is stable even on sloped or uneven terrains.

A 56 cm tiller system is also included, which can be quickly mounted and dismounted thanks to a quick coupling mechanism. This allows for easy expansion of the machine's functionalities.

For operator safety, the BullMach Chimera 300 incorporates a reverse clutch system, preventing accidents during use.

WARNING!

Engine without oil, to be added before first use.

Mountable accessories, not included in the price

WARNING:
these accessories are not included in the purchase price of the machine.

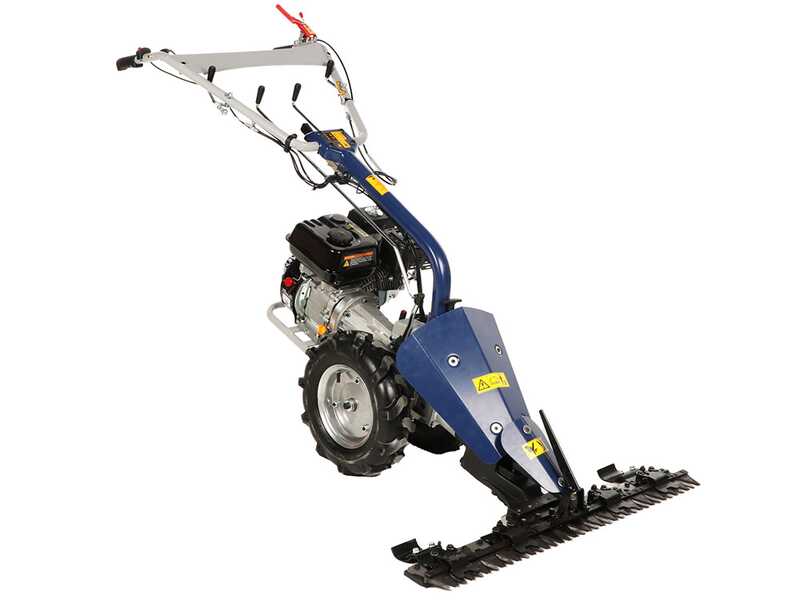

CUTTING BAR 97cm


FRONT BRUSH 90cm


FURROWING KIT AND IRON WHEELS Ø50cm

WARNING!

The photos are for illustrative purposes only, they may differ from the main product.

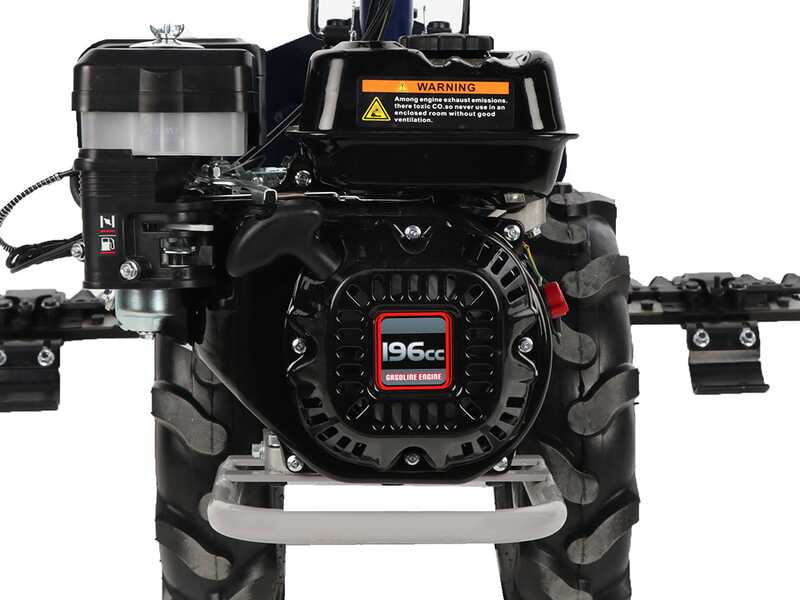

Loncin G200F engine

The two-wheel tractor features a Loncin G200F 4-stroke air-cooled engine of 196cc, with overhead valves and aluminium cylinder.

Features:

Engine type
Single-cylinder 4-stroke - OHV
Cylinder type
Aluminium
Engine cooling
air-cooled
Displacement
196 cm³
Fuel
Petrol
Starting
recoil start
Fuel tank capacity
3.6 litres
Oil tank capacity
0.6 litres

WARNING
The engine is SUPPLIED WITHOUT OIL.
Before starting, carefully read the instruction manual.

Nominal Power: 6.5 HP would be "Commercial Power", meaning the classic power standard officially used until a few years ago by all major engine manufacturers.

* This data is still widely used and advertised in major commercial sales channels, although it is an inflated figure compared to the actual power.

Effective Power: 5.5 HP (at a rotation speed of 3600 rpm)
Corresponds to the actual power expressed at the crankshaft. It is the one indicated as official in the engine manufacturer's manual or technical data.

* This data may vary for the same engine model depending on the rotation speed that the equipment manufacturer has decided to have the applied engine deliver.

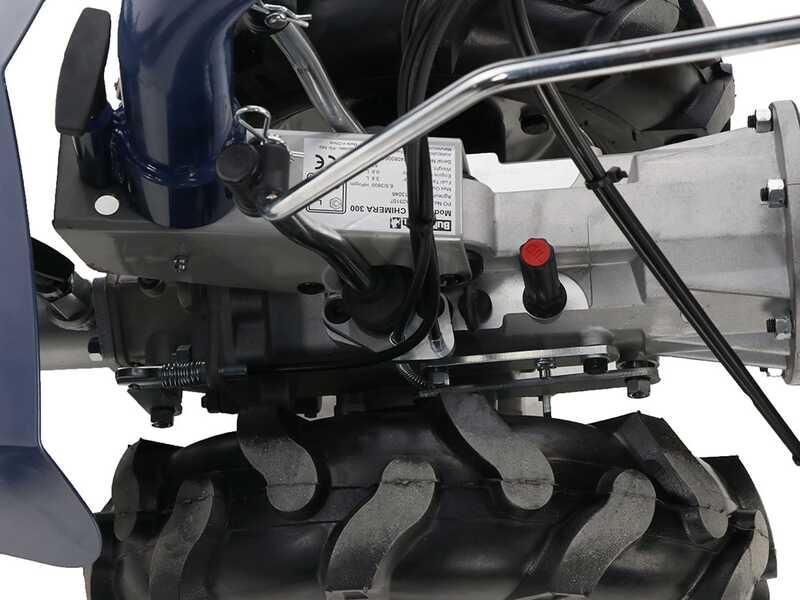

2+2 Gearbox and Transmission

4 speeds 2 forward + 2 reverse with inverter.

The two-wheel tactor has a total of 4 speeds: 2 forward gears in tilling position (i.e., with tiller accessory mounted, or plough, furrow, etc...).

2 forward gears + 2 RM (with inverter) with reversed machine for front equipment (i.e., with cutting bar accessory, mower, snow blower, etc...)

Therefore, the good number of speeds allows the use of both rear and front equipment with the appropriate operating speed and with extreme versatility.

The gear control is lever-operated.

Transmission oil already at level

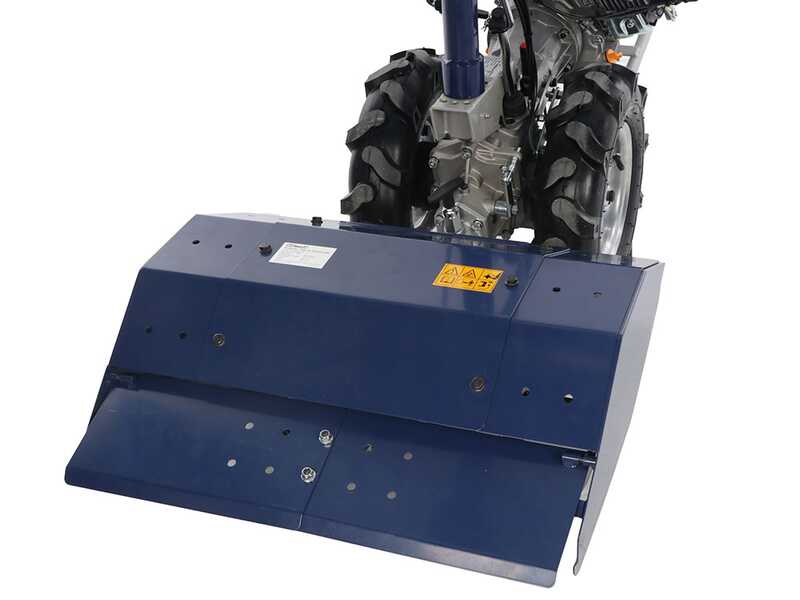

56 cm Rear Tiller

Tiller equipped with 4+2 elements, each with 4 blades of 31 cm diameter.

The tiller can be extended according to various needs. It starts with an operational size of 42 cm, characterized by 16 blades distributed over four elements. It can be expanded to 56 cm by adding two additional elements, already included, bringing the total blades to 24. This configurability allows easy adjustment of the machine for different land extensions and types of work.

External hood made of painted steel sheet, and equipped with anti-injury stone guard

It is possible to activate the transmission only when necessary. This allows for movements using traction with the tiller stopped.

Safety Devices:
- impossibility of engaging reverse gear when the operator is working with the tiller engaged. Disengage (via the appropriate lever) the engagement of the tillers and then engage reverse gear.
- stop of the march upon leaving the handlebars in compliance with the machinery directive 2006/42/EC

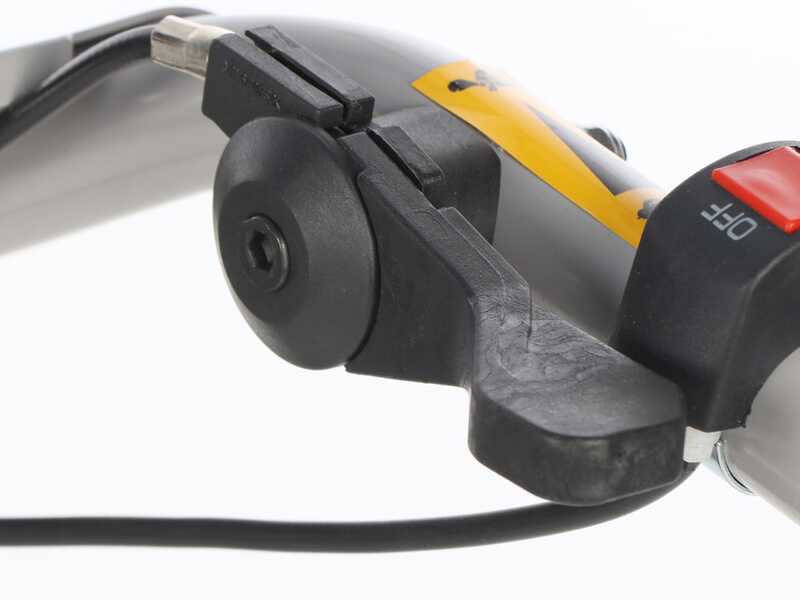

Handlebars and Controls

The guide handlebars are cushioned and reversible at 180°.

Adjustable both in height and laterally:

Various height positions can be set thanks to the lever located at the base of the same. Laterally, it has 3 positions for each direction of travel, adjustable via this lever.

Handles covered in soft rubber.

The reversible handlebars allow the application of many other accessories (cutting bar, mower, etc...)

This cultivator has several controls that make it extremely versatile and rich in functionality.

  • clutch lever that also acts as a safety lever that immediately stops the motion of the tillers and the machine's advancement upon release.
  • Right side lever: neutral release
  • Left side lever: power take-off activation
  • gear levers, depending on the direction of use, one will work for forward gears and one for reverse
  • Throttle control
  • Start button+

Quick release lever for the accessory

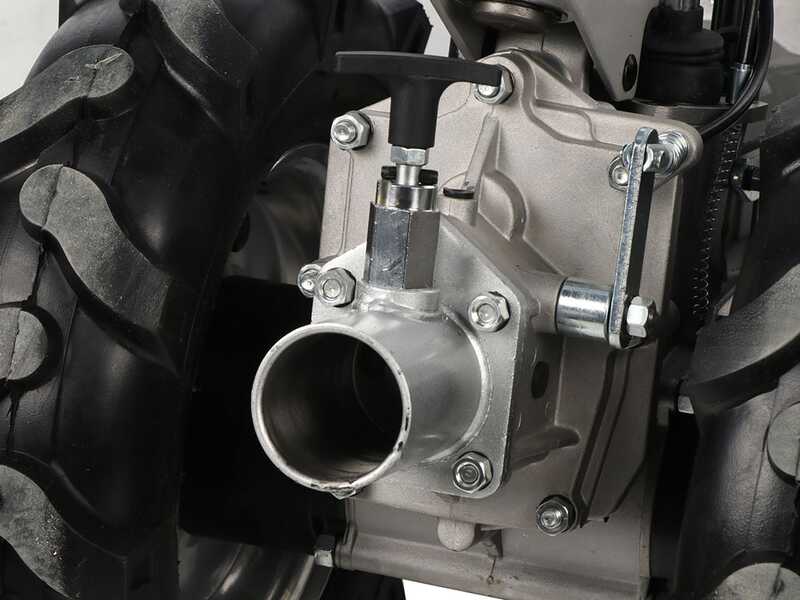

Other features

Among other features, we find:

  • Quick coupling (50mm)
  • Tractor wheels 4.00-8 (420mm)
  • Machine-accessory attachment, be sure to check proper insertion before use.
Free items & Standard equipment

COMPLIMENTARY: 2 Oil Bottles

TWO oil bottles for 4-stroke engines

Free tems

Instruction manual included in the package

The machinery is supplied in its original packaging.
