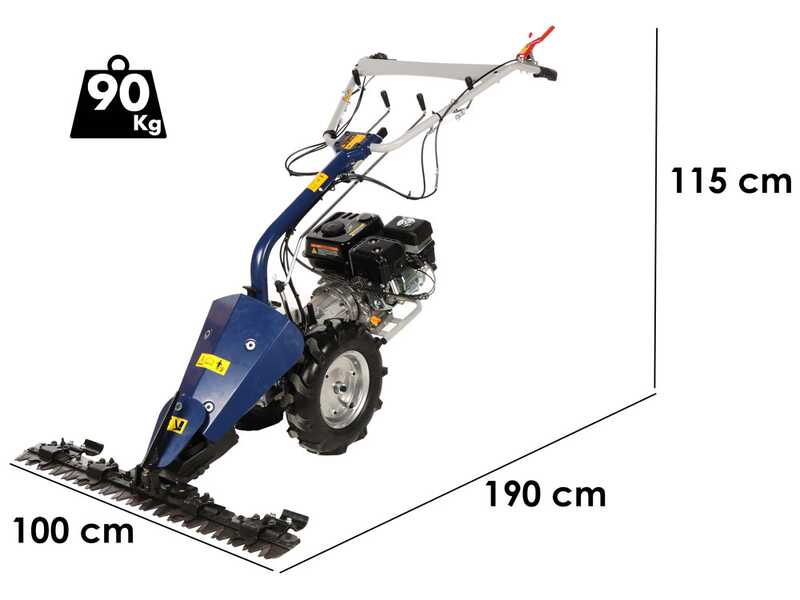

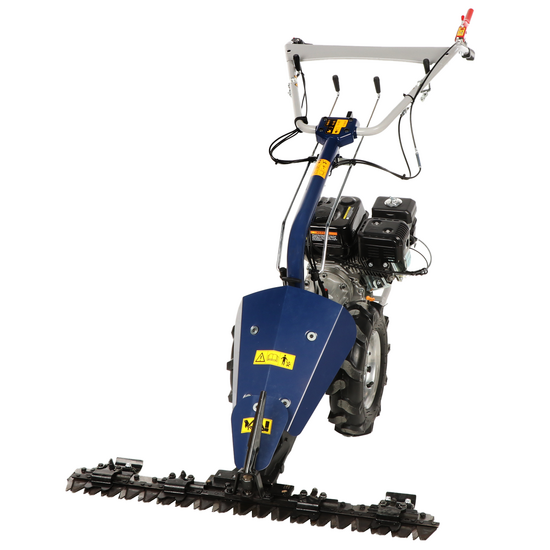

BullMach Chimera 300 - Multifunction Scythe Mower - Loncin G200F

The BullMach Chimera 300 model is equipped with a powerful Loncin G200F engine of 196 cc and 6.5 HP, offering great versatility and the ability to adapt to multiple uses through the addition of optional accessories.

This self-propelled scythe mower is suitable for cutting tall grass, making it perfect for collecting forage intended for livestock. Its cutting mechanism, operating close to the root, ensures the preservation of superior grass quality.

The gearbox, with 4 available speeds (two forward and two reverse), is conveniently managed with a lever positioned under the handlebars. The rigid axle, supported by two sturdy 4.00-8 (420mm) wheels, makes the mower suitable even for slightly sloping or uneven terrain.

Included in the equipment is a 97 cm cutting bar, which can be quickly mounted and dismounted thanks to a quick coupling system, thus allowing the expansion of the machine's functionalities. The cutting height is easily adjustable via two incorporated slides.

Safety is ensured by a reverse clutch system that protects the operator from potential hazards.

WARNING!

Engine without oil, to be added before first use.

WARNING:
these accessories are not included in the purchase price of the machine.

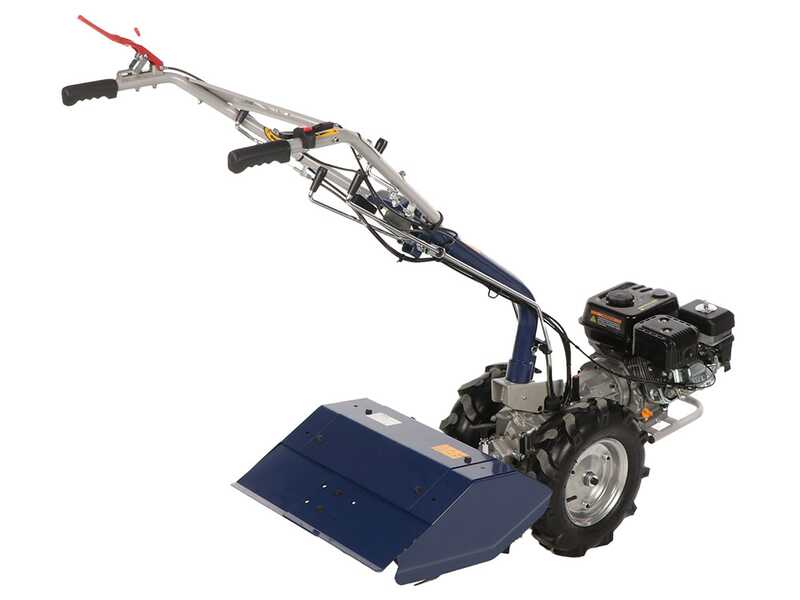

REAR TILLER 42-56cm

FRONT BRUSH 90cm

FURROWING KIT AND IRON WHEELS Ø50cm

WARNING!

The photos are for illustrative purposes only and may differ from the main product

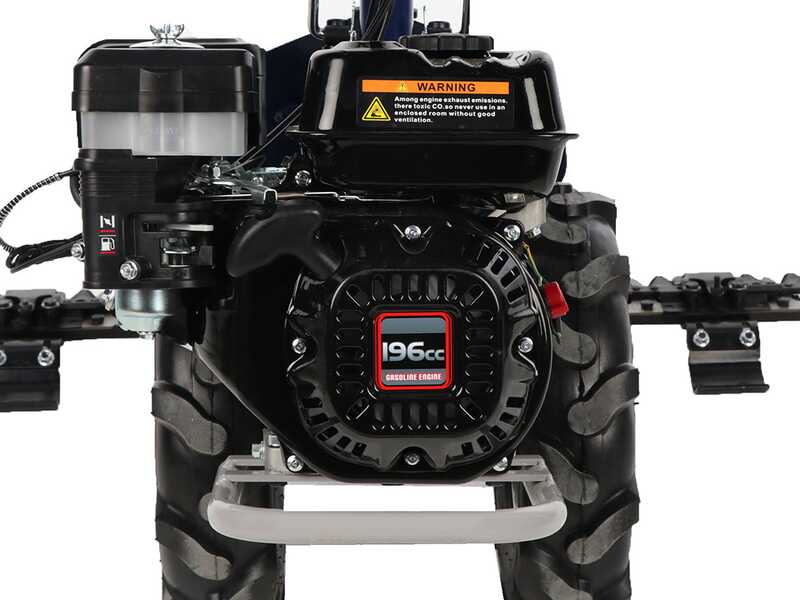

The mower features a Loncin G200F 4-stroke air-cooled engine of 196cc, with overhead valves and an aluminium cylinder.

Features:

WARNING
The engine is SUPPLIED WITHOUT OIL.
Before starting, carefully read the instruction manual.

Nominal Power: 6.5 HP would be "Commercial" Power, meaning the classic power definition standard officially used until a few years ago by all major engine manufacturers.

* This data is still widely used and advertised in major sales channels, although it is an exaggerated figure compared to the actual power.

Effective Power: 5.5 HP (at a rotation speed of 3600 rpm)
Corresponds to the actual power expressed at the crankshaft. It is the one indicated as official in the engine manufacturer's manual or technical data.

* This data can vary for the same engine model depending on the rotation speed that the equipment manufacturer has decided to have the engine deliver.

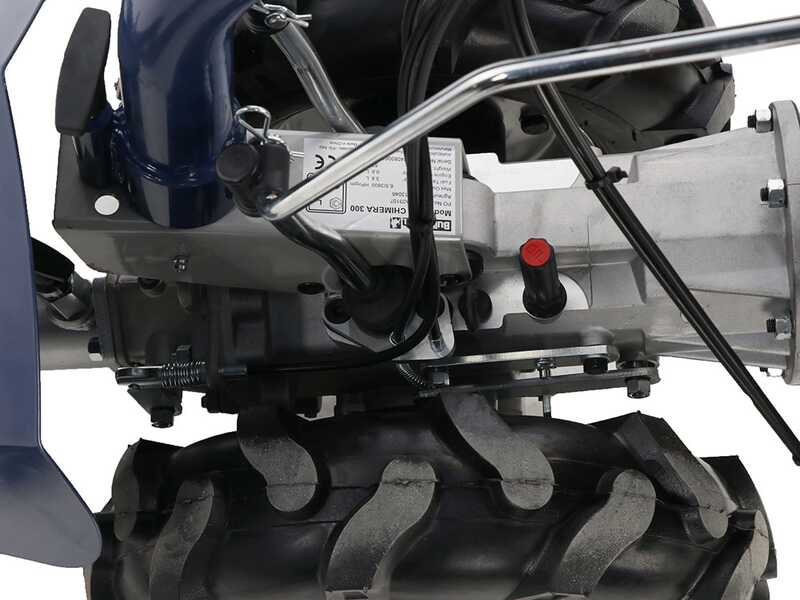

4 speeds 2 forward + 2 reverse with inverter.

The scythe mower has a total of 4 speeds: 2 forward gears in tilling position (i.e., with tiller accessory mounted, or small plough, furrow, etc...).

2 forward gears + 2 RM (with inverter) with reverse machine for front equipment (i.e., with cutting bar, mower, snow blower, etc...)

Therefore, the good number of speeds allows the use of both rear and front equipment with the appropriate operating speed and with extreme versatility.

The gear control is lever-operated.

Transmission oil already at level

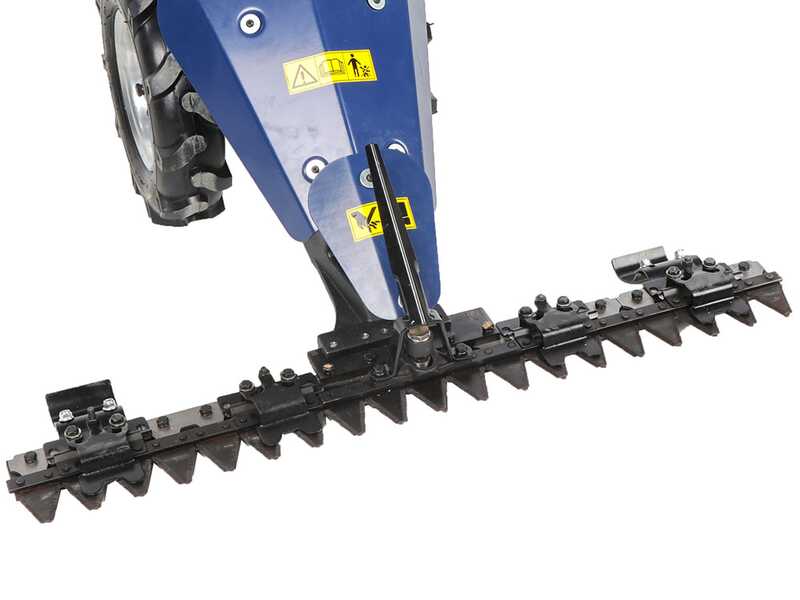

Cutting width of the scythe mower bar: 97 cm

Mulching Cutting System: the bar consists of a lower blade and an upper one, which moves in an oscillating motion in contact with the fixed lower blade acting as a counter-blade. This type of cutting bar is called mulching for the particular clean cut it performs on any type, consistency, and height of grass, achieved thanks to the special profile of the blades it is composed of.

Adjustable cutting height through the adjustment of the inclination of the 2 rear slides (20-60mm)

The mower bar is of the oscillating type.

Front grass protection guard.

The guide handlebars are cushioned and reversible at 180°.

Adjustable both in height and laterally:

Several height positions can be set thanks to the lever located at the base of the handlebars. Laterally, it has 3 positions for each direction of travel, adjustable via this lever.

Handles covered in soft rubber.

The reversible handlebars allow the application of many other accessories (cutting bar, mower, etc...)

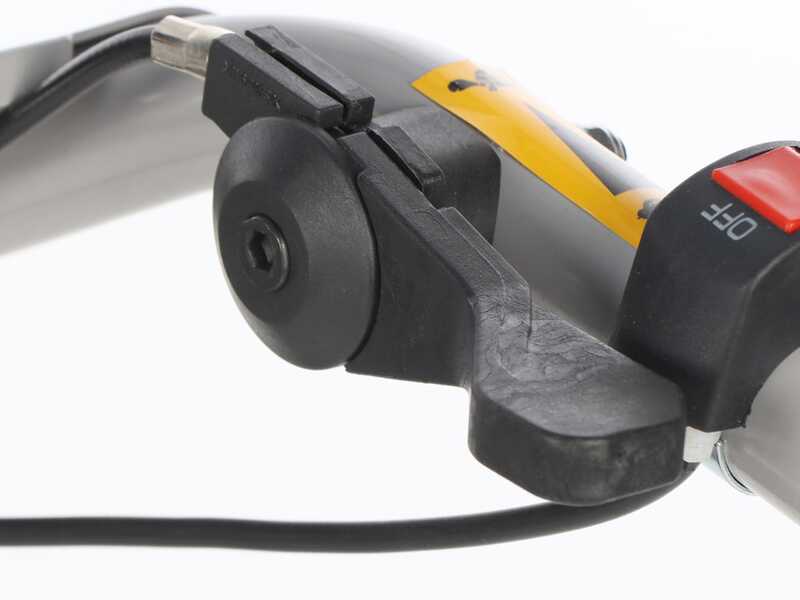

This cultivator has several controls that make it extremely versatile and rich in features.

• clutch lever that also acts as a safety lever that immediately stops the movement of the blades and the machine's advancement upon release.
• Right side lever: neutral gear release
• Left side lever: power take-off activation
• gear levers, depending on the direction of use one will work for forward gears and one for reverse
• Throttle lever
• Start button+

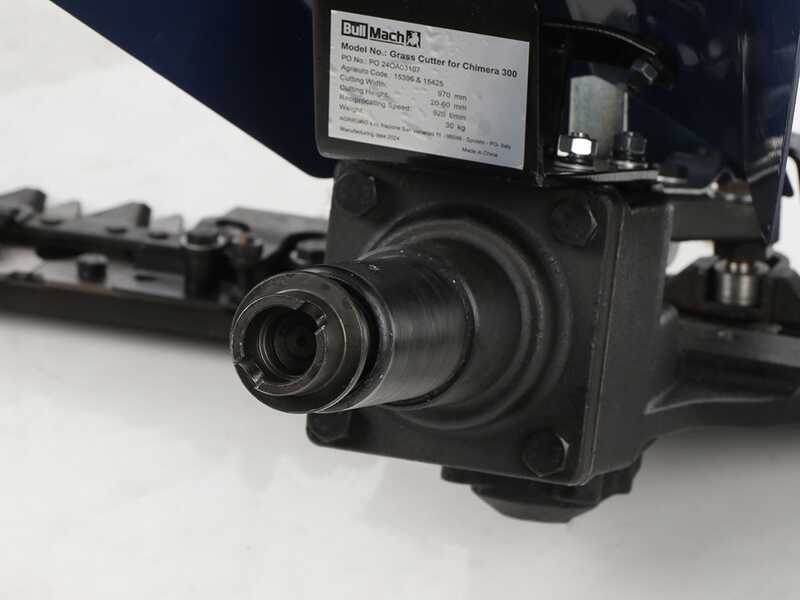

Quick release lever for the accessory

Among the other features we find:

• Quick coupling (50mm)
• Tractor wheels 4.00-8 (420mm)
• Machine-accessory attachment, be sure to check the correct insertion before use.
• Adjustable slides
