BullMach BM-EFH 5H Three-phase Hot Air Generator with Fan - 5 kW

Add a question
ID: 108498

EAN: 8054141544307

MPN: BM-EFH 5H

BullMach BM-EFH 5H Three-phase Hot Air Generator with Fan - 5 kW
Power supply
Three-phase electric
Max. heat output
5 kW
Body material
Enamelled steel
Thermostat
Yes
Product Features
Model:
BM-EFH 5H
Power supply:
Three-phase electric
Body material:
Enamelled steel
Type:
Ventilated
Handheld:
Operating mode:
Electric 400V
Start:
manual
Max. heat output:
5 kW
Air flow:
774 m3/h
Absorption:
6.9 A
Thermostat:
Yes
Recommended for indoor areas:
Yes
Manufacturing country:
China
Equipment
Thermal-protected motor:
Yes
Over-heating thermostat:
Yes
Built-in room thermostat :
Yes
Adjustable heat:
Yes
Free gifts/extra features
Instructions manual:
Yes
Dimensions and logistics

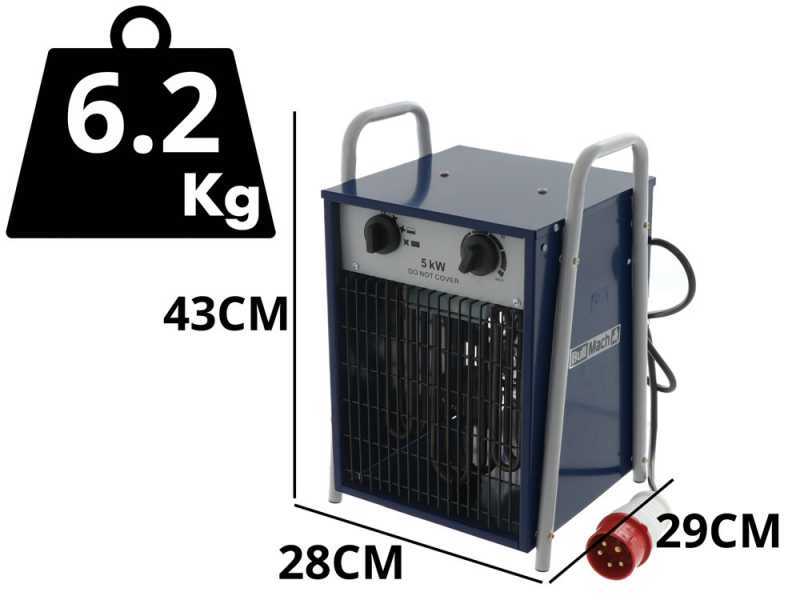

Product dimensions in cm (L x W x H):
28x29x43cm
Net weight:
6.2 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
30x28,5x44cm
Gross weight (packaging included) :
7.1 Kg
Assembly time:
Assembled
Prompt Delivery
50 items in stock
Free Shipping
Estimated delivery: 23/05/2024 - 27/05/2024
€ 115,80
VAT Included

You're viewing:
Customers also viewed:
Description

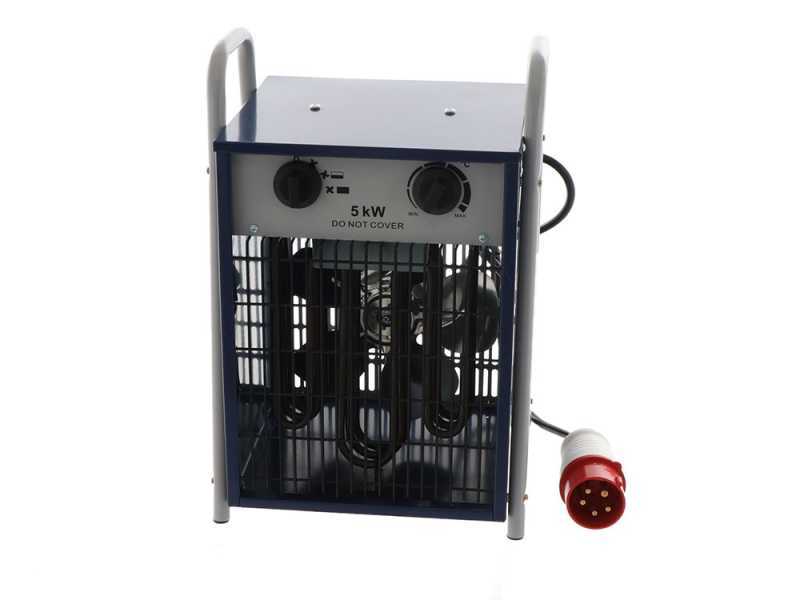

BullMach BM-EFH 5H three-phase heat generator

The BullMach BM-EFH 5H is a three-phase hot air generator equipped with fan.

It is a hobby use product designed for quick heating of small or medium-sized shops, halls, showrooms, bungalows, offices, garages, tensile structures and cellars.

With no open flame or emissions, this heater can also be operated when it is forbidden to use it in closed rooms with poor ventilation and use fuels, such as gas or oil.

These electric exhalation heaters are highly-efficient and designed for different applications. They provide clean and safe heat quickly. Excellent for temporary or emergency heating due to its ease of use and transport.

3 different power levels to best suit your needs:

  • 30W (summer ventilation mode)
  • 2500 W
  • 5000 W

BullMach hot air generator main features:

  • Low noise
  • No smokes
  • No smells
  • No humidity

Compact design and small size thanks to its low weight of 6.2 kg that allows it to be easily transported everywhere without problems.

It can heat environments up to 60 s.q. m. large.

Main features

  • Max. thermal power: 5 kW
  • Power supply: 380/400V/Hz
  • Power required: 5 kW
  • Power levels: 30/2500/5000 W
  • No oxygen consumption
  • No smokes, smells and condensation
  • Low noise 100% efficiency
  • Thermally-protected motor
  • Built-in thermostat
  • Adjustable heat level
  • Made of sturdy and long-lasting steel

The operating principle of these portable hot air generators is based on the Joule effect of the current flowing through the heating elements, which heat the air by means an axial fan. The heating function is also controlled by the room and overheat prevention thermostat.

Focus on the controls

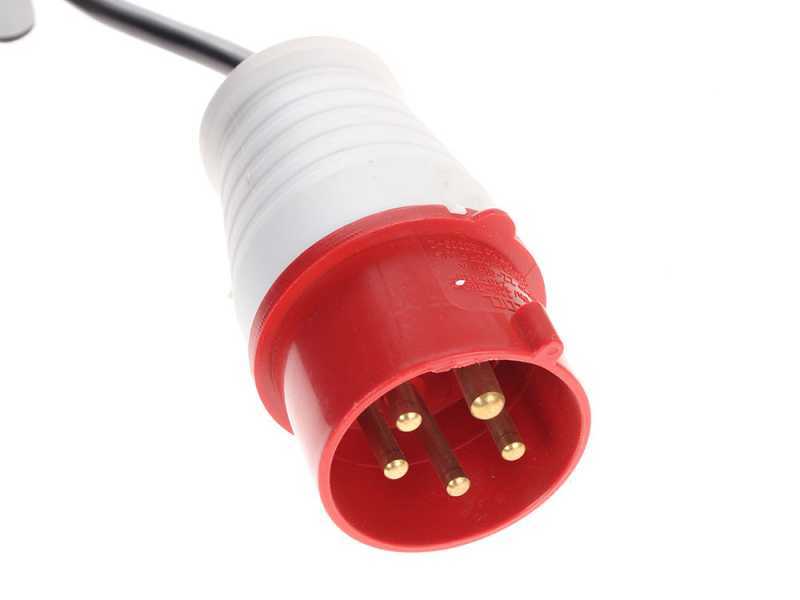

Focus on the three-phase plug

Carrying handles

How to select the ideal hot air generator

Important features that the Operator has to consider in order to choose the ideal gas heater which best suits his requirements according to the room that has to be heated up:

  • Dimensions of the area that has to be heated up [V]
  • The ideal temperature [ΔT] that has to be reached
  • Room thermal insulation [K]

High thermal insulation: k = 1

Medium levels thermal insulation: k = 2

Low levels thermal insulation: k = 3

No thermal insulation: k = 4

Therefore, the heat requirements can be also calculated by using the following formula:

V x ΔT x K [kcal/h]

For example:

V = width 4 m width, 12 m length, 3 m height, room volume = 144 m³

ΔT = outdoor temperature -5ºC, room required temperature +18ºC, room temperature = 23ºC

K = 4 not-insulated room

The formula above mentioned brings to the following result: 144 x 23 x 4 = 13 248 kcal / h, which has to be compared with the data written on the machine serial no. plate, which highlights this heater functionality being able to produce larger volumes of instant heat compared to that one needed.

Converting to kW is easy, just multiply the result by 0.001163, so 13248 x 0.001163 = 15.4 KW

Free items & Standard equipment

Free items included

The hot air generator is shipped in its original packaging.

The packaging includes:

  • Maintenance and instructions manual
