Blue Bird TWH 500 - Petrol-driven winch - Honda GX50 4S

Questions & Answers (3)
ID: K605638

EAN: 8025518363173

MPN: 883500

8,1/10
After-sales assistance & Spare parts
Blue Bird TWH 500 - Petrol-driven winch - Honda GX50 4S
+100 sold
FREE
4-stroke engine oil bottles4-stroke engine oil bottles
Power supply
Petrol
Motor brand
Honda
Motor Model
GX 50
Cubic capacity
47.9 cm³
Rated power
1.9 Hp
Single rope traction
400 Kg
Traction double rope
800 Kg
Cable diameter
10 mm
Winding speed
25 m/min
Weight
10.5 Kg
Manufacturing country
Italy
Product Features
Model:
TWH 500
Sound pressure level:
92 Lpa av
Sound power level:
112 LWa av
Power supply:
Petrol
Operating mode:
Spark ignition
Direct pulling capacity:
400 Kg/N
Double pulling capacity:
800 Kg/N
Fuel:
Petrol
Winding speed:
25 m/min
Single rope traction:
400 Kg
Traction double rope:
800 Kg
Cable diameter:
10 mm
Manufacturing country:
Italy
Motor data
Motor brand:
Honda
Motor Model:
GX 50
Cubic capacity:
47.9 cm³
No. of cylinders:
Single-cylinder
Rated power:
1.9 Hp
Manufacturing country:
Japan
Equipment
Lifting handle:
Yes
Free gifts/extra features
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
44 x 26 x 30 cm
Net weight:
10.5 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
47 x 32 x 36
Gross weight (packaging included) :
13 Kg
Assembly time:
Assembled
Prompt Delivery
4 items in stock
Free Shipping
Estimated delivery: 19/11/2024 - 21/11/2024
€ 789,96
VAT Included

You're viewing:
Customers also viewed:
Description

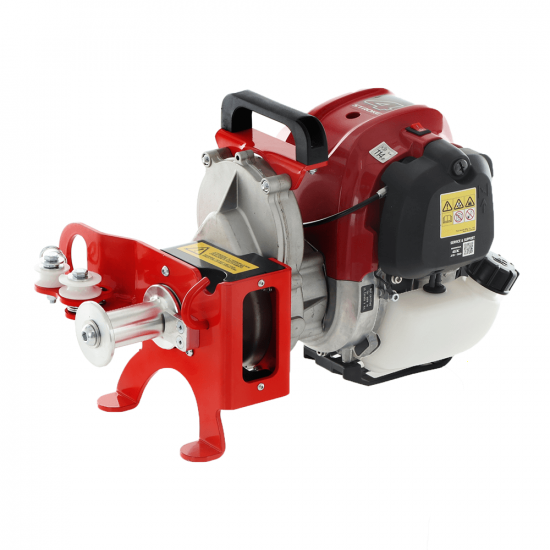

Blue Bird TWH 500 winch with petrol engine

The winch was designed with the objective of reducing the pulling effort required to drag weights.

Blue Bird Industries portable forestry winches are designed only for pulling non-rotating objects, usually at 45 degrees from the horizontal surface.

The field of application for Blue Bird winches ranges from the forestry sector (hauling wood, tractor winches) to the leisure sector (loading unloading boats, hunting, etc.).

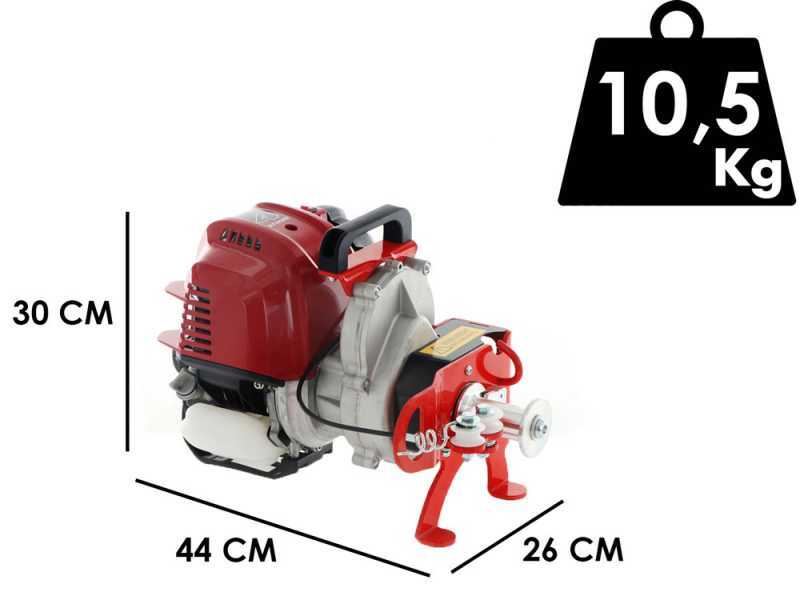

Its compactness and lightness make this device a useful aid for those working in the forestry sector, in fact its dimensions are 44x 26 x 30 cm.

The great power, versatility, compactness and weight mean that this product can be used both in the professional and DIY sector.

This winch is equipped with a Honda 4-stroke engine with cutting-edge design features and in line with the latest European regulations on environmental impact.

It features a direct towing capacity of 400 Kg and a winding speed of 25 metres per minute.

Equipped with a rope guide to carry out the rope winding operation automatically. Automatic braking system, as required by current European standards.

This sturdy and resistant engine is the result of years of testing by Blue Bird engineers and technicians.

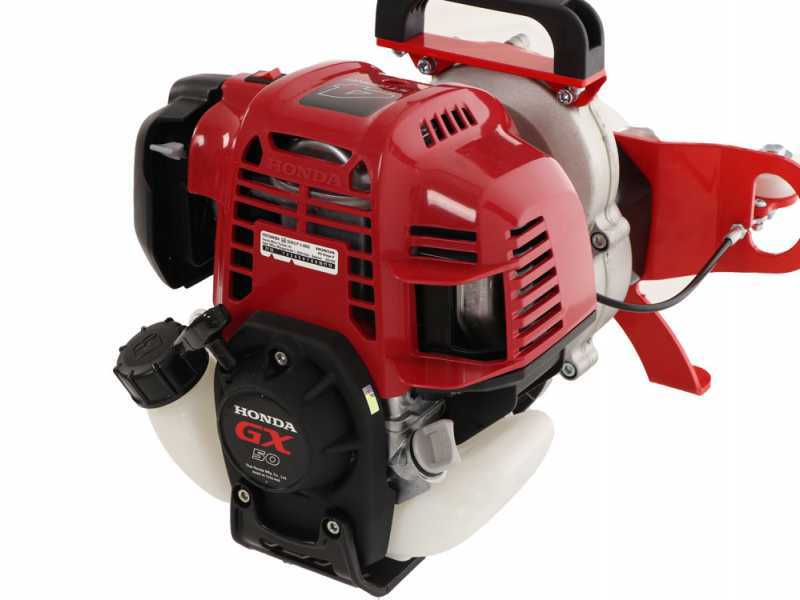

Honda GX50 4 Tempi 4-stroke engine

Equipped with a powerful 4-stroke Honda GX50 petrol engine, it is provided with state-of-the-art features in line with the latest European regulations.

A 47.9 cc engine with easy starting, it can reach a power of 1.47 kW (1.9 Hp) at 7000 rpm.

Thanks to the power of this engine, the rope features a winding capacity of 25 m/min automatic with rope guide.

It is possible to chose among 2 different types of towing systems:

  • Direct pull with a load capacity of 400 Kg
  • Double pull with a load capacity of 800Kg

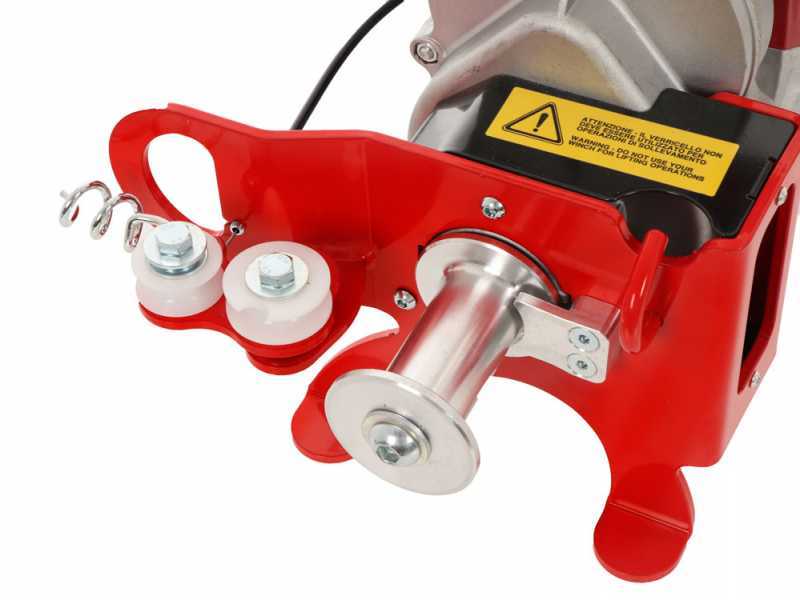

Features and details

Controls are via a throttle control knob, which is easy to use even for not expert users.

The main parts of the winch are:

  • Engine
  • Lifting handle
  • Support feet
  • Anchor shackle
  • Rope guide
  • Sliding pulleys
  • Reducer
  • Throttle cable

Recommended rope: Low-elasticity double polyester braid Ø 10 NOT INCLUDED

Free items & Standard equipment

Free items included

The winch is shipped in its original packaging with the instructions manual.

The package also includes:

Maintenance tools kit
