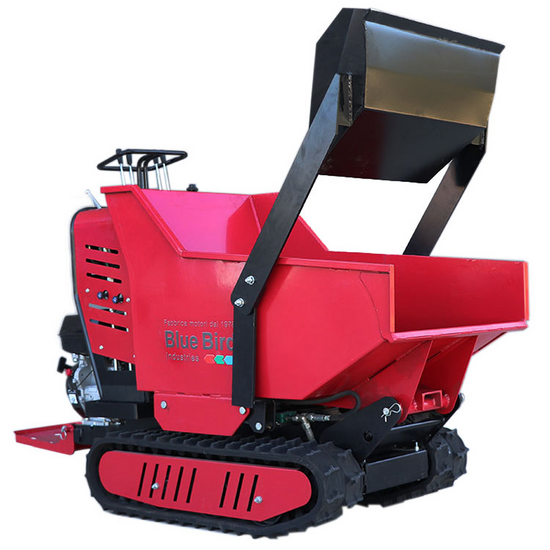

Blue Bird Trasporter 500DL Trcked Power Barrow - Hydraulic Dumper Barrow 500 Kg

The Blue Bird Trasporter 500DL tracked power barrow is equipped with an hydraulic system for lifting the dumper barrow with a capacity of 500Kg and by loading shovel. The hydraulic tilting of the body of which this tracked power barrow is equipped with, facilitates at the maximum each working stage, eliminating the effort to raise the tipping a load time.

Thanks to its tracks and to the powerful Loncin engine this tracked power barrow is able to carry loads of 500 Kg also on sloping grounds. It can take a maximum slope of 20 ° uphill and up to 10 ° of side slope, thus being an indispensable tool for each type of transport.

It has a Loncin G 200 F engine with a displacement of 270 cc capable of emitting a power of 9 Hp. Furthermore, the machine is also equipped with electric start, able to offer a even easier and faster switching process.

The controls are simple and intuitive, equipped with levers for the management of the barrow and of the blade, for the management of tracks and also separately for the management of the forward speed.

The machine is supplied by the manufacturer with transmission oil level. Anyway, oil levels must ALWAYS be checked before operating the unit as specified in the instruction and maintenance manual.

Advice on how to use the front lifting shovel
• The front shovel should only be used for loading loose material onto the power barrow.
• It is not suited for use as a shovel for levelling the soil; there are dedicated attachments specifically designed for said purpose called ‘front blades’. When moving the power barrow forward, the shovel must be raised and not forced into the ground (this could damage the pistons, joints, supports and other components).

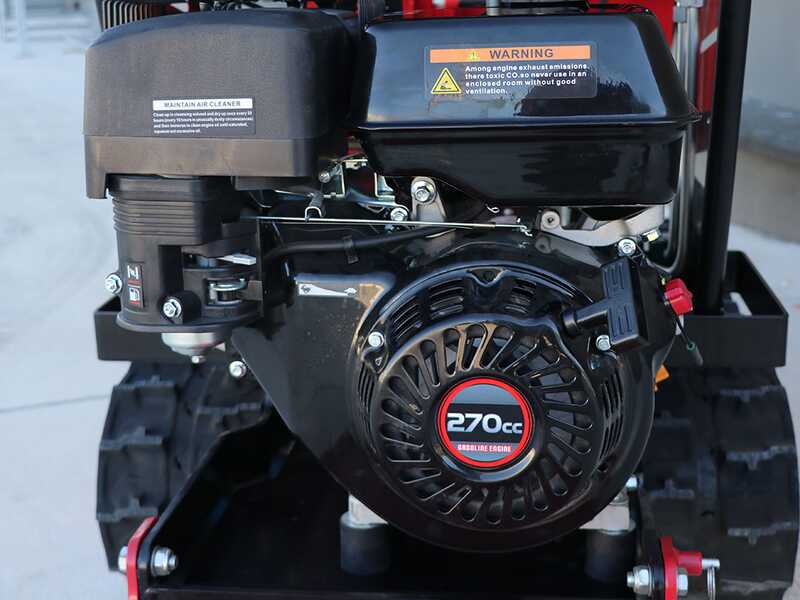

The Loncin G270F engine is suitable for works where a great power is required obtained thanks to the high displacement of 270 cc

Features:

4-stroke petrol engine of the latest generation with overhead valve shaft “OHV” and automatic decompresser ignition.

The engine is also equipped with an electric start with key

WARNING

The engine is PROVIDED WITHOUT OIL.
Make sure to carefully read the instructions manual before starting the unit.

Focus on the rope for the recoil start

Engine oil tank

Parking brake

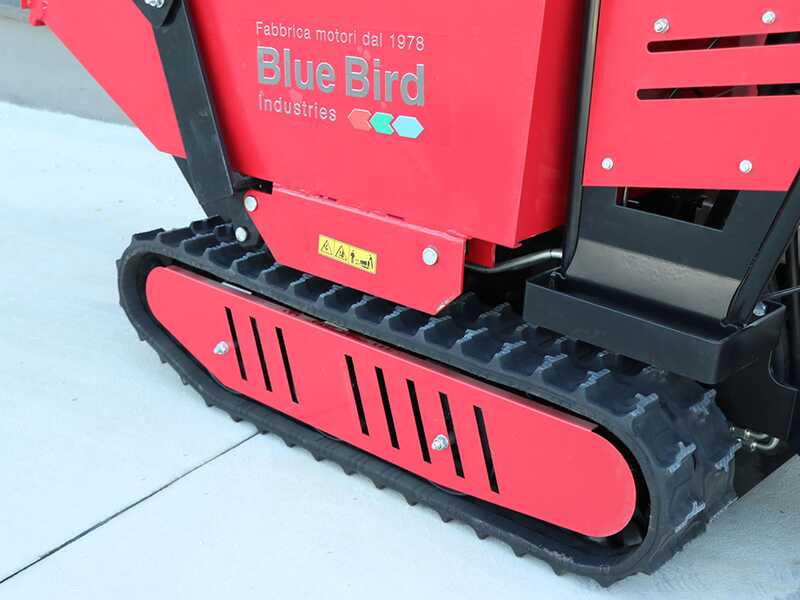

Crawler wagon: Robust and over sized. Both the height and the length is greater than the average of the tracked power barrows on the market of the same size. The drive wheel is made of cast iron / steel. The perfect front / rear balance ensures the distribution of loads and a perfect adherence to the ground. The rollers are self-cleaning.

The track at rear angle greater pointy "tank type" allowing him to climb easily even on stairs or other types of obstacles.

Track Width: 180 mm

Total track length 106 cm

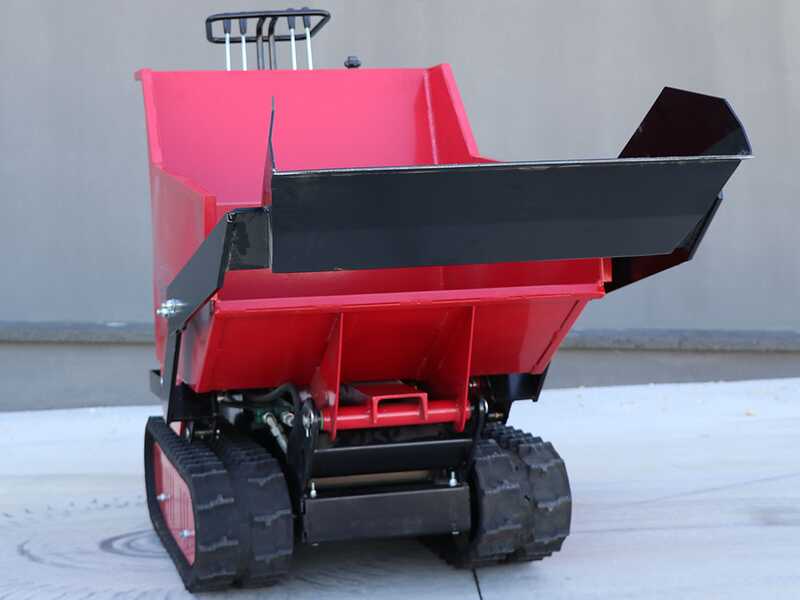

The tracked power barrow also has a loading shovel that allows to perform operations in a very simple and effective way, especially without any effort. The shift is adjusted by the hydraulic system.

For the movements of the blade it will suffice to use only the specific lever on the control panel.

Shovel thickness: 4 mm

The shovel makes an angle of 100 °.

Body in high-strength steel, is reinforced with tubular cross members in the lower part, which make it suitable for any load or stress. The loading platform is at the minimum distance from the ground to facilitate the operations of loading / unloading

Barrow in the overturning phase

Barrow thickness 4 mm

The capacity of the barrow is 500 Kg

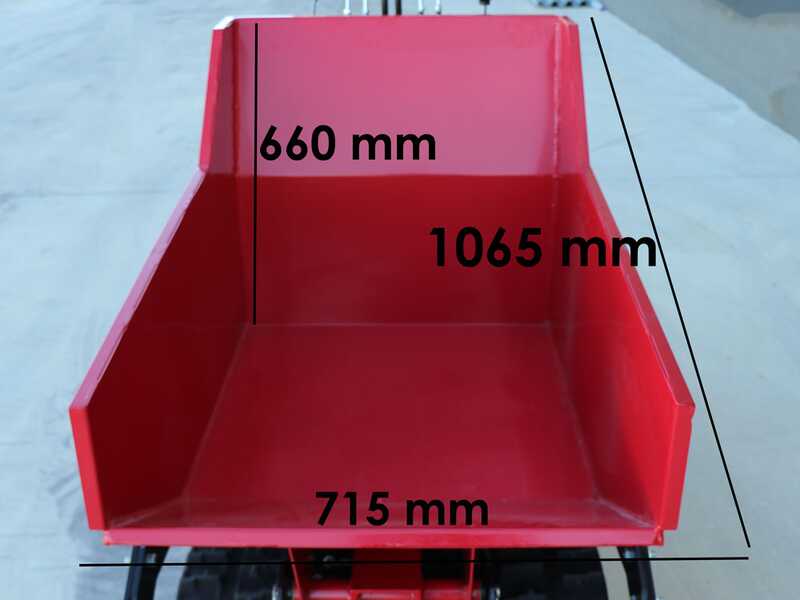

Barrow dimensions: 1065 x 715 x 660 mm

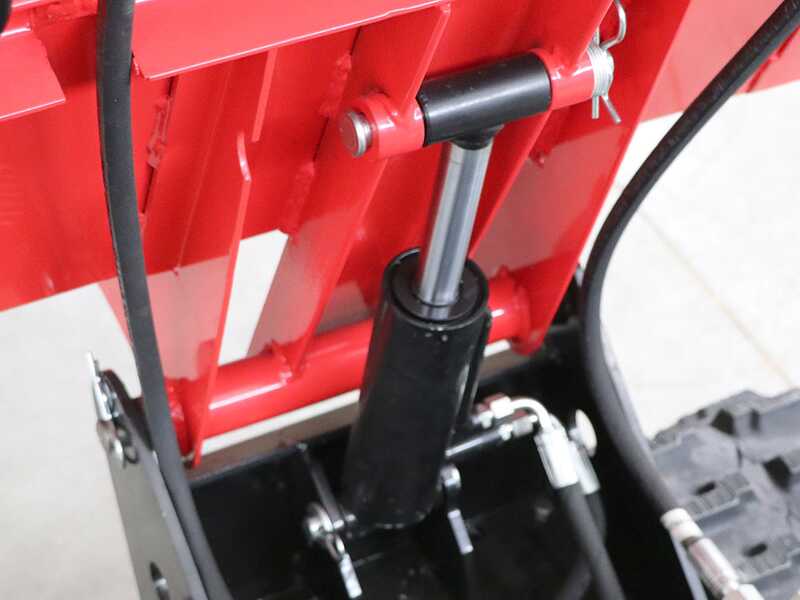

Powerful hydraulic circuit that allows the lifting of both the barrow and the shovel through the use of the levers present on the control panel.

It is characterized by:

• Hydraulic pump
• Distributor equipped with practical actuation lever of the pump positioned under the control panel
• Sturdy hydraulic cylinder fitted with a blocking valve that ensures the blocking of the barrow in the case of sudden pressure loss

Maximum tilting angle 80°

Focus on the valves for opening of the circuit

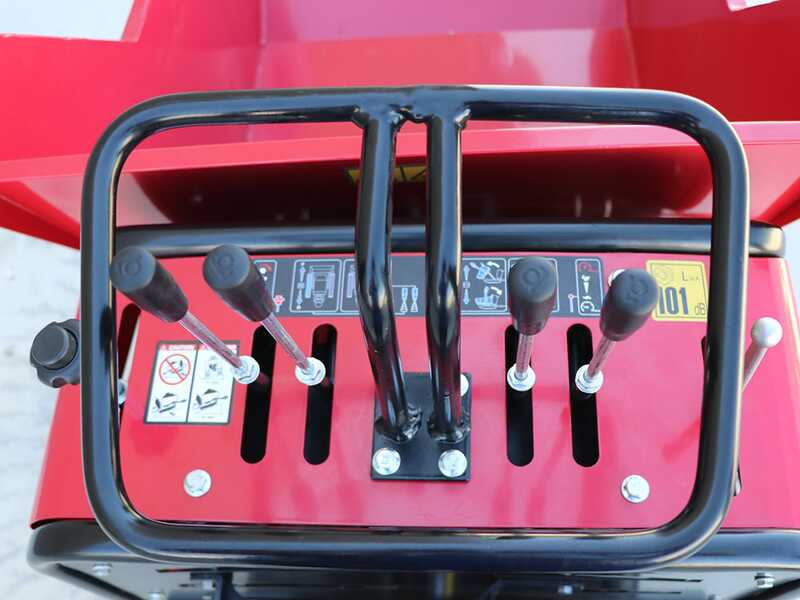

The controls are simple and intuitive, there is also a scheme to show how to properly use them. Below the control panel there is a space that allows you to always carry the instruction manual

The central levers are for the adjustment of the blade, the body and for the steering of the tracked power barrow, as they individually control the tracks.

In the left part there is the lever for adjusting the speed

In the right part is present the lever for speed advancement of the tracked power barrow.

Operator platform opening hook
